IPC-HDW8341X-3D-S2 - DAHUA DH-IPC-HDW8341X-3D-S2 3MP WizMind Dual-Lens Network Camera With ELEVATOR Camera Queue Management and Face Detection IPC-HDW8341X-3D-S2 without logo

In stock
SKU
IPC-HDW8341X-3D-S2
Rating:
100% of 100
$288.00

IPC-HDW8341X-3D-S2

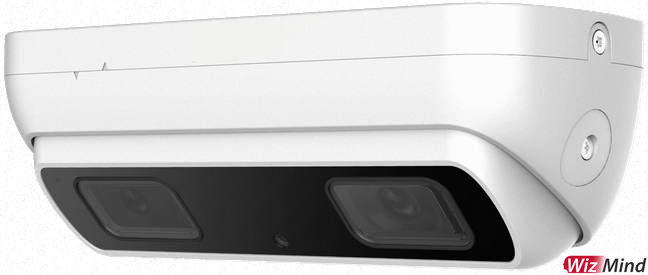

3MP WizMind Dual-Lens Network Camera

> 3MP, 1/2.8” CMOS image sensor, low illuminance, high image definition

> Outputs max. 3MP (2048 × 1536) @30 fps

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> People counting: Queue management, people counting in area, entry/ exit number counting, and it can output daily/monthly/yearly report

> Alarm: 2 in, 2 out; audio: 2 in, 1 out; 485; BNC; supports max. 256 G

> Micro SD card, built-in Mic and speaker. Siren active deterrence, built- in 8 voices, and user can import custom voices.

> 12V DC/PoE power supply

> IP67, IK10 protection

>without Logo,English firmware
>100% original products manufactured by DAHUA

DAHUA IPC-HDW8341X-3D-S2,DAHUA DH-IPC-HDW8341X-3D-S2,IPC-HDW8341X-3D-S2,DH-IPC-HDW8341X-3D-S2,WizMind Dual-Lens Network Camera,DH-IPC-HDW8341XN-3D-S2,DH-IPC-HDW8341XP-3D-S2, elevator cameras,DAHUA elevator camera,Dual-Lens Network Camera

The delivery time is 15-25 working days

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

IPC-HDW8341X-3D-S2 - DAHUA DH-IPC-HDW8341X-3D-S2 3MP WizMind Dual-Lens Network Camera With ELEVATOR Camera Queue Management and Face Detection IPC-HDW8341X-3D-S2 without logo

IPC-HDW8341X-3D-S2

3MP WizMind Dual-Lens Network Camera

> 3MP, 1/2.8” CMOS image sensor, low illuminance, high image definition

> Outputs max. 3MP (2048 × 1536) @30 fps

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> People counting: Queue management, people counting in area, entry/ exit number counting, and it can output daily/monthly/yearly report

> Alarm: 2 in, 2 out; audio: 2 in, 1 out; 485; BNC; supports max. 256 G

> Micro SD card, built-in Mic and speaker. Siren active deterrence, built- in 8 voices, and user can import custom voices.

> 12V DC/PoE power supply

> IP67, IK10 protection

>without Logo,English firmware
>100% original products manufactured by DAHUA

WizMind Series

 WizMind is a wide range of project-oriented products that adopt industry-leading deep learning algorithms, such as IPC, NVR, PTZ, XVR, thermal camera and software platform. Focusing on customers’ needs, WizMind provides precise and reliable and comprehensive AI products for verticals.
Precise: Powered by AI chip and deep learning algorithms, WizMind delivers accurate detection and recognition of human and vehicle, enabling users to rapidly and precisely act on what really matters. In addition, it provides accurate and effective AI search to locate targets, and various human-based data for business analysis.
Reliable: Strict component selection to ensure the high product reliability. With thorough testing of front-end cameras, back-end device and platform, WizMind injects reliability into all of its solutions.
Comprehensive: Focusing on human and vehicle, WizMind provides various applications solutions such as face recognition, privacy protection, video metadata, stereo analysis, ANPR, illegal parking, etc. Moreover, WizMind combines deep learning algorithm with thermal imaging technology to help users achieve ultra-long distance monitoring in harsh environments, highly accurate non-contact temperature measurement with only ±0.3℃ temperature difference, and early detection of fire.wizmind AI

IPC-HDW8341X-3D-S2 - DAHUA DH-IPC-HDW8341X-3D-S2 3MP WizMind Dual-Lens Network Camera With ELEVATOR Camera Queue Management and Face Detection IPC-HDW8341X-3D-S2 without logo System Overview



 WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

DAHUA Smart Shop solution

Equipped with advanced HiSilicon chip and fast lens, Dahua WizMind Dual-Lens series network camera provides excellent image effects. With advanced deep learning algorithm, the camera supports various intelligent functions, such as people counting, queue management, stereo analysis, perimeter protection and face detection, which provides better intelligent apllication solutions based on scenes

IPC-HDW8341X-3D-S2 - DAHUA DH-IPC-HDW8341X-3D-S2 3MP WizMind Dual-Lens Network Camera With ELEVATOR Camera Queue Management and Face Detection IPC-HDW8341X-3D-S2 without logo Functions

Starlight

Starlight technology mainly applies to the environment of low illuminance, and it can provide clear colorful video. Even in the environment of ultra-low illuminance, the technology can guarantee the good image effect.

ePoE

ePoE technology provides a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.ePoE technology

Face Detection

Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.

Perimeter Protection

With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

People Counting

With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs yearly/monthly/weekly/daily reports to meet your requirements.

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Perimeter Protection

With deep learning algorithm, Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Detect tripwire and intrusion violationsProcessing Flow

In Area No.

With advanced stereo image technology and deep leaning algorithm, Dahua In Area No. technology recognizes human targets accurately to count people in area in real-time. You can set people quantity threshold, when the number larger or smaller than the threshold, it triggers linkage. It is applicable in the scene that has limit on people quantity.

Queue Management

With advanced image processing technology and deep leaning algorithm, Dahua Queue Management technology counts people quantity in selected area in real time to realize queue management. It supports multiple polygon areas. When No. in area/strand time is not smaller or not larger than the threshold, it triggers alarm..

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.



IPC-HDW8341X-3D-S2 - DAHUA DH-IPC-HDW8341X-3D-S2 3MP WizMind Dual-Lens Network Camera With ELEVATOR Camera Queue Management and Face Detection IPC-HDW8341X-3D-S2 without logo Picture



IPC-HDW8341X-3D-S2 DAHUA IPC-HDW8341X-3D-S2,DAHUA DH-IPC-HDW8341X-3D-S2,IPC-HDW8341X-3D-S2,DH-IPC-HDW8341X-3D-S2,WizMind Dual-Lens Network Camera,DH-IPC-HDW8341XN-3D-S2,DH-IPC-HDW8341XP-3D-S2, elevator cameras,DAHUA elevator camera,Dual-Lens Network Camera


IPC-HDW8341X-3D-S2 - DAHUA DH-IPC-HDW8341X-3D-S2 3MP WizMind Dual-Lens Network Camera With ELEVATOR Camera Queue Management and Face Detection IPC-HDW8341X-3D-S2 without logo Dimensions




IPC-HDW8341X-3D-S2 - DAHUA DH-IPC-HDW8341X-3D-S2 3MP WizMind Dual-Lens Network Camera With ELEVATOR Camera Queue Management and Face Detection IPC-HDW8341X-3D-S2 without logo Installation


IPC-HDW8341X-3D-S2 - DAHUA DH-IPC-HDW8341X-3D-S2 3MP WizMind Dual-Lens Network Camera With ELEVATOR Camera Queue Management and Face Detection IPC-HDW8341X-3D-S2 without logo Technical Specifications

*****

Camera

Image Sensor

1/2.8”3Megapixel progressive CMOS

Max. Resolution

2048 (H) × 1536 (V)

ROM

4 GB

RAM

2 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 Lux @F1.6

S/N Ratio

>56 dB

Illumination Distance

20 m (IR) (65.6 ft) (IR LED)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Tilt: 0°–70°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

2.8 mm: F1.6
3.6 mm: F1.6

Field of View

2.8 mm: Horizontal 96° × Vertical 70° × Diagonal 128°
3.6 mm: Horizontal 79° × Vertical 57° × Diagonal 104°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 0.7 m (2.3 ft)
3.6 mm: 1.3 m (4.3 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

44.8 m

(147 ft)

17.9 m

(58.7 ft)

9.0 m

(29.5 ft)

4.5 m

(14.8 ft)

3.6mm

64.0 m

(210.0 ft)

25.6 m

( 84.0 ft)

12.8 m

(42.0 ft)

6.4 m

(21.0 ft)

Smart Event

IVS

Abandoned object; missing object

Professional, intelligent

IVS (Perimeter Protection)

Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), loitering detection, people gathering, parking detection

Face Detection

Face detection; track; optimization; snapshot; report high quality picture; face enhancement; face exposure; face attribute extract, 6 attributes and 5 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, surprise), mask, beard; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting

People Counting

Support tripwire number counting; people counting in area, and displaying and outputting yearly/monthly/weekly/daily reports.
Support queue management, and displaying and outputting yearly/monthly/weekly/daily reports.
Support 4 tripwire rule configuration, people counting in 4 areas, and 4 queue managements.

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.264+
Smart H.265+

Video Frame Rate

Main stream: 3MP (1–25/30 fps)
Sub stream: D1 (1–25/30 fps)
Third stream: 2MP (1–25/30 fps)
Fourth stream: 2MP (1–25/30 fps)
Fifth stream: D1 (1–25/30 fps)

Stream Capability

5 streams

Resolution

3M (2048 × 1536); 1080p (1920 × 1080); 720p ( 1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); 640 × 480 (VGA)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–17664 kbps
H.265: 3 kbps–17664 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; G.726; AAC; G.723

Built-in Speaker

Yes

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; people counting in area; stay alarm; people counting; people counting exception detection; safety exception

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P; RTMP

User/Host

20

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE9; IE11; FireFox; Chrome

Management Software

Smart PSS; DSS; NVR; IVSS

Mobile Phone

IOS; Android

Certification

Certification

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

RS-485

1 (baud rate range: 1200 bps–115200 bps)

Audio Input

2 channels (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

2 channels in: 5mA 3V–5V DC

Alarm Output

2 channels out: 1,000mA 30V DC/500mA 50V DC

Power

Power Supply

12V DC/PoE

Power Consumption

Basic power consumption: 3.5W (12V DC); 4.4W (PoE)
Max. power consumption (ICR switch + IR full intensity + WDR + Intelligent functions enabled): 9.1W (12V DC); 10.6W (PoE)

Environment

Operating Conditions

-40°C to +60°C/Less than 95% RH

Storage Temperature

–40°C to +60°C (–40°F to +140°F)

Ingress Protection

IP67; IK10

Structure

Casing

Metal

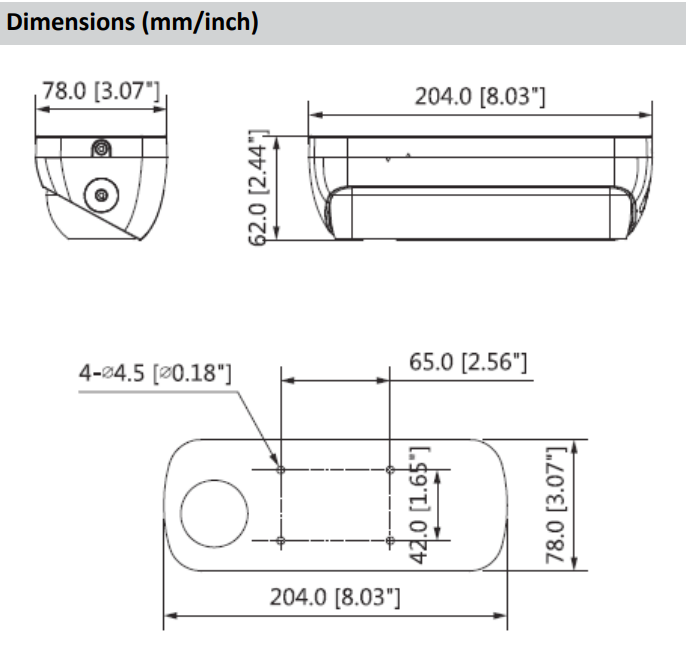

Dimensions

204.0 mm × 78.0 mm × 61.5 mm

(8.0" × 3.1" × 2.4") (L × W × H)

Net Weight

0.81 kg (1.8 lb)

Gross Weight

1.19 kg (2.6 lb)

******

**

Icctvzone-wholesales DAHUA IP Cameras

*

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

**DAHUA IPC-HDW8341X-3D-S2,DAHUA DH-IPC-HDW8341X-3D-S2,IPC-HDW8341X-3D-S2,DH-IPC-HDW8341X-3D-S2,WizMind Dual-Lens Network Camera,DH-IPC-HDW8341XN-3D-S2,DH-IPC-HDW8341XP-3D-S2, elevator cameras*************

More Information
Wired/Wireless Wired
Outdoor use Intdoor use, Outdoor use
Focal Type Fixed
Day/Night Low light
Factor Bullet
Max Resolution 4 MP
