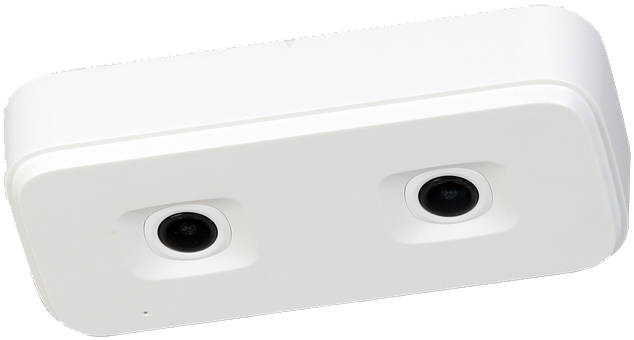

DAHUA IPC-HD4140X-3D - DAHUA DH-IPC-HD4140X-3D 1.3MP Dual-Lens People Counting AI Network Camera IPC-HD4140X-3D

In stock

SKU

IPC-HD4140X-3D

Be the first to review this product

$250.00

PAL/NTSC

Brand

Qty

IPC-HD4140X-3D

1.3MP Dual-Lens People Counting AI Network Camera

> Two 1/3” 1.3Megapixel progressive scan STARVISTM CMOS
> H.265&H.264 triple-stream encoding
> 25/30fps@1.3MP(1280×960)
> DWDR, Day/Night(Electronic), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.1mm fixed lens (2.8mm optional)
> Micro SD memory, IP54, PoE
> People Counting: Support line crossing people counting, region people counting

>without Logo,English firmware
>100% original products manufactured by DAHUA

The delivery time is 25 working days .

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DAHUA IPC-HD4140X-3D - DAHUA DH-IPC-HD4140X-3D 1.3MP Dual-Lens People Counting AI Network Camera IPC-HD4140X-3D without Logo

IPC-HD4140X-3D

1.3MP Dual-Lens People Counting AI Network Camera

>without Logo,English firmware
>100% original products manufactured by DAHUA

DAHUA Smart Shop solution

Dahua AI series products adopt the most advanced AI technologies,
including deep learning algorithms that primarily target people and
vehicles, which provides higher flexibility and accuracy for end-users.
This enables the Dahua AI series to offer various advanced applications
such as Face Recognition, ANPR, Metadata, People Counting, traffic data
statistics, etc.The complete lineup of Dahua AI includes network (PTZ)
cameras, network video recorders, servers, and platform management
products. Beyond seeing the world, the power of AI allows devices to
perceive the environment and understand the world in a better way.
System Overview
The Dahua Stereo Vision People Counting camera uses dual-lens imaging
technology to capture 3D depth information from within images. The
camera pairs this information with deep learning algorithms to analyze
and detect human bodies and track target objects in real time. The
camera provides statistics for separate individuals’ entrance and exit with
up to 95% counting accuracy.
Functions
Smart Codec (H.265+ & H.264+)
Smart Codec is the optimized implementation of standard video
compression (H.265 & H.264) that uses a scene-adaptive encoding
strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference
structure and intelligent noise reduction to deliver high-quality video
without straining the network. Smart Codec technology reduces bit rate
and storage requirements by up to 70% when compared to the standard
video compression.

DAHUA IPC-HD4140X-3D - DAHUA DH-IPC-HD4140X-3D 1.3MP Dual-Lens People Counting AI Network Camera IPC-HD4140X-3D without Logo Picture

DAHUA IPC-HD4140X-3D - DAHUA DH-IPC-HD4140X-3D 1.3MP Dual-Lens People Counting AI Network Camera IPC-HD4140X-3D without Logo Dimension

DAHUA IPC-HD4140X-3D - DAHUA DH-IPC-HD4140X-3D 1.3MP Dual-Lens People Counting AI Network Camera IPC-HD4140X-3D without Logo Installation

DAHUA IPC-HD4140X-3D

DAHUA IPC-HD4140X-3D - DAHUA DH-IPC-HD4140X-3D 1.3MP Dual-Lens People Counting AI Network Camera IPC-HD4140X-3D without Logo Technical Specifications

******

Camera

Image Sensor

Two 1/3”1.3Megapixel progressive scan CMOS

Effective Pixels

1028(H)x960(V)

RAM/ROM

512MB/128MB

Scanning System

Progressive

Minimum Illumination

0.003Lux/F2.2 ( Color,1/3s,30IRE)

0.02Lux/F2.2 ( Color,1/30s,30IRE)

0.005Lux/F2.2 ( B/W,1/3s,30IRE)

0.02Lux/F2.2 ( B/W,1/30s,30IRE)

S/N Ratio

More than 50dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.1mm (2.8mm)

Max. Aperture

F2.2

Angle of View

H: 109.5° (89°), V: 84.3° (64°)

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

0.3m (0.98ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.1 mm

24m(79ft)

10m(33ft)

4.8m(15.7ft)

2.4m(7.9ft)

2.8 mm

35m(115ft)

14m(46ft)

7m(23ft)

3.5m(11.5ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

N/A

Artificial Intelligence

People Counting

Line crossing people counting, Region people counting, Height filter, Loitering filter

General Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing,

Network disconnection, Ip address conflict, Illegal

access, Storage anomaly

General Intelligence

N/A

Video

Compression

H.265/H.264/H.264H/H.264B/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

3 Streams

Resolution

1.3M(1280x960)/ 720P(1280x720)/

D1(704×576/704x480)/ VGA(640x480)

Frame Rate

Main Stream: 1.3MP (1~25/30fps)

Sub Stream 1: D1 (1 ~ 25/30fps)

Sub Stream 2: 720P (1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 1280~ 6144Kbps

H.265: 512~ 3072Kbps

Day/Night

Electronic

BLC Mode

BLC / HLC /DWDR

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

N/A

Defog

N/A

Digital Zoom

16x

Flip

N/A

Mirror

N/A

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

Built-in Mic

RS485

1 port

Alarm

1 channel In: 5mA 5VDC

1 channel Out: 300mA 12VDC

Electrical

Power Supply

DC12V, PoE (IEEE 802.3af)(Class 0)

Power Consumption

DC12V: 3.6W 4.6W(People Counting on)

PoE: 4.2W 5.3W((People Counting on))

Environmental

Operating Conditions

-10° C ~ +45° C (14° F ~ +113° F) / Less than 95% RH

Storage Conditions

-10° C ~ +45° C (14° F ~ +113° F) / Less than 95% RH

Ingress Protection

IP54

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

162.1mmx76mmx37.8mm (6.38"x2.99"x1.49")

Net Weight

0.3kg (0.66lb)

Gross Weight

0.46kg (1.01lb)

***********

**
