PFT1300 - DH-PFT1300 PoE Extender

In stock
SKU
bvPFT1300
Be the first to review this product
$18.60
Add to Wish List

PFT1300

PoE Extender

> Support passive PoE cascade power supply and Ethernet data exchange
> Support IEEE 802.3af/at standard power supply IP Camera
> Cooperate with High PoE Midspan (PFT1200), able to cascade level 2 PoE Extender, connect to 3 IPC (power consumption <=8W), max transmission distance 300m
> 1*RJ45 10/100M PoE power supply input; 1*RJ45 10/100M supply power for IP Cam; 1*RJ45 10/100M supply power for the next extender
> Installation mode: junction box internal mounting, DIN rail mounting
Loading...

PFT1300 - DH-PFT1300 PoE Extender is a security camera product for CCTV video surveillance, monitoring, and replacement projects.

Listed details include PoE. Use the model number to match this item with an existing recorder, camera system, or installation requirement.

PFT1300 - DH-PFT1300 PoE Extender

TAM1GT1GT-30 is designed to work under extreme environments, such as wide temperature range and lightning environment. The TAM1GT1GT-30 is single-port 802.3at PoE+ midspan with internal power supply in compact housing. Carrying both Ethernet data and power, the device helps users to utilize just one Ethernet cable to easily install and deploy IP camera, wireless AP or VoIP phone.

PFT1300 - DH-PFT1300 PoE Extender PICTURE

DH-PFT1300

PFT1300 - DH-PFT1300 PoE Extender DIAGRAM

PFT1300 - DH-PFT1300 PoE Extender TECHNICAL SPECIFICATION

**********

Technical Specification

Model

PFT1300

Ethernet Port

1*10/100 Base-T PoE power receiving port

1*10/100 Base-T PoE power supply port, supply power for the next extender

1*10/100 Base-T PoE power supply port, supply power for IPC

Transmission Distance

Cooperate with DH-PFT1200, able to cascade level two extender, connect to 3 IPC (level one extender connects to 1 IPC, the OUT port of level two extender and CAMERA port connect to 1 IPC respectively, IPC power consumption <=8W), transmission distance is 300m

Power Consumption

<=3W

Application Humidity

10%~90%

Working Temperature

﹣30°C~65°C

Weight

57g

Dimension(W×D×H)

79mm×52mm×23mm

*************

*********

**

**

Icctvzone-wholesales IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales NVR

best price of camera

*

*

Write Your Own Review
You're reviewing:PFT1300 - DH-PFT1300 PoE Extender
Your Rating
Brand Description
History Color sit amet, consectetur adipiscing elit. In gravida pellentesque ligula, vel eleifend turpis blandit vel. Nam quis lorem ut mi mattis ullamcorper ac quis dui. Vestibulum et scelerisque ante, eu sodales mi. Nunc tincidunt tempus varius. Integer ante dolor, suscipit non faucibus a, scelerisque vitae sapien.
IP VIDEO PRODUCT SELECTION Download
Inventory List
DHCVI PRODUCT SELECTION Download
Thermal camera selection download
wizmind AI products selelction
Compare Products
  1. Remove This Item
Compare
Clear All
You have no items to compare.

Business reopening solution

Wizsensen AI

EZ-IP

unclehectorshoes

Retro Sneaker

High-Top retro sneakers

Retro Shoes & Sneakers | Classic & Vintage Styles

engineer-boots

Oxford Shoes

Chelsea Boots

********
Related Products

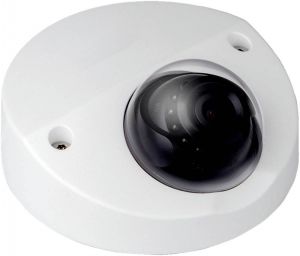

IPC-HDBW4431F-AS
IPC-HDBW4431F-AS - IPC-HDBW4431F-AS 4MP IR Mini Dome Network Camera With Smart Detection supported Micro SD memory, IP67, IK10, PoE H.265&H.264 triple-stream encoding IPC-HDBW4431F-AS
Rating:
100% of 100
1  Review Add Your Review
$87.69
Add to Wish List

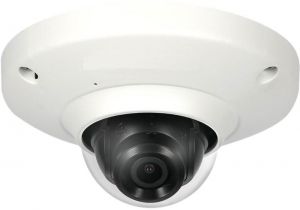

IPC-HDB4231C-AS
IPC-HDB4231C-AS - IPC-HDB4231C-AS 2MP Mini-Dome Network Camera with Smart detection supported Built-in Mic Starlight Technology Intelligent Video System (IVS) IPC-HDB4231C-AS
Rating:
100% of 100
1  Review Add Your Review
$79.56
Add to Wish List
IPC-HFW2431S-S-S2
IPC-HFW2431S-S-S2 - IPC-HFW2431S-S-S2 4MP WDR IR Bullet Network Camera With Intelligent detection: Intrusion, tripwire SMART H.264/H.265 Abnormality detection IPC-HFW2431S-S-S2
Rating:
100% of 100
5  Reviews Add Your Review
$78.54
Add to Wish List
IPC-HFW2230S-S-S2
IPC-HFW2230S-S-S2 - IPC-HFW2230S-S-S2 2MP IR Bullet Network Camera With Supports max. 256 GB Micro SD card 12V DC/POE power support IP67 protection Intelligent detection IPC-HFW2230S-S-S2
Be the first to review this product
$65.21
Add to Wish List
DH-IPC-HDW2831T-ZS-S2
IPC-HDW2831T-ZS-S2 - IPC-HDW2831T-ZS-S2 8MP Lite IR Vari-focal Eyeball Nework Camera WITH SMART H.264/H.265 Starlight technology Wide Dynamic Range (WDR) technology IPC-HDW2831T-ZS-S2
Be the first to review this product
$120.98
Add to Wish List

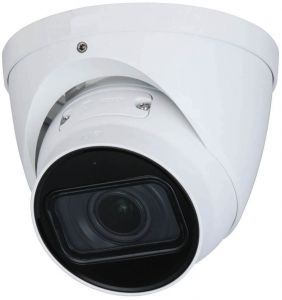

IPC-HDW2431T-ZS-S2
IPC-HDW2431T-ZS-S2- IPC-HDW2431T-ZS-S2 4MP WDR IR Eyeball Network Camera With Intelligent detection WDR, 3D DNR, HLC, BLC, IPC-HDW2431T-ZS-S2
Be the first to review this product
$128.85
Add to Wish List
Upsell Products

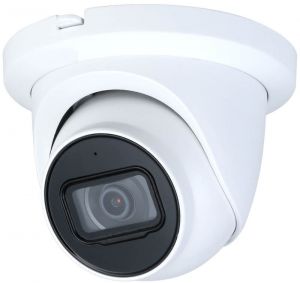

IPC-HDW2431TM-AS-S2
IPC-HDW2431TM-AS-S2 - IPC-HDW2431TM-AS-S2 4MP WDR IR Eyeball Network Camera With Intelligent detection Abnormality detection 12V DC/POE power support SMART H.264/H.265 IPC-HDW2431TM-AS-S2
Rating:
100% of 100
3  Reviews Add Your Review
$78.89
Add to Wish List

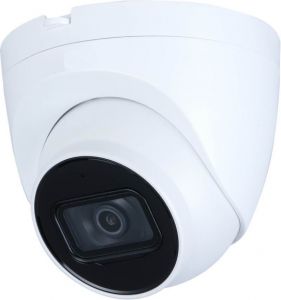

IPC-HDW2230T-AS-S2 - DH-IPC-HDW2230T-AS-S2 2MP IR Eyeball Network Camera With Supports max. 256 GB Micro SD card, built-in Mic Starlight t technology Smart ( H.265+ & H.264+ ) IPC-HDW2230T-AS-S2 without logo
IPC-HDW2230T-AS-S2 - IPC-HDW2230T-AS-S2 2MP IR Eyeball Network Camera With Supports max. 256 GB Micro SD card, built-in Mic Starlight t technology Smart ( H.265+ & H.264+ ) IPC-HDW2230T-AS-S2
Be the first to review this product
$74.30
Add to Wish List

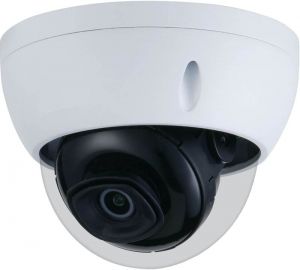

IPC-HDBW2231E-S-S2 - IPC-HDBW2231E-S-S2 2MP WDR IR Mini Dome Network Camera With Built-in IR LED Intelligent detection IP67, IK10 protection grade Starlight IPC-HDBW2231E-S-S2
