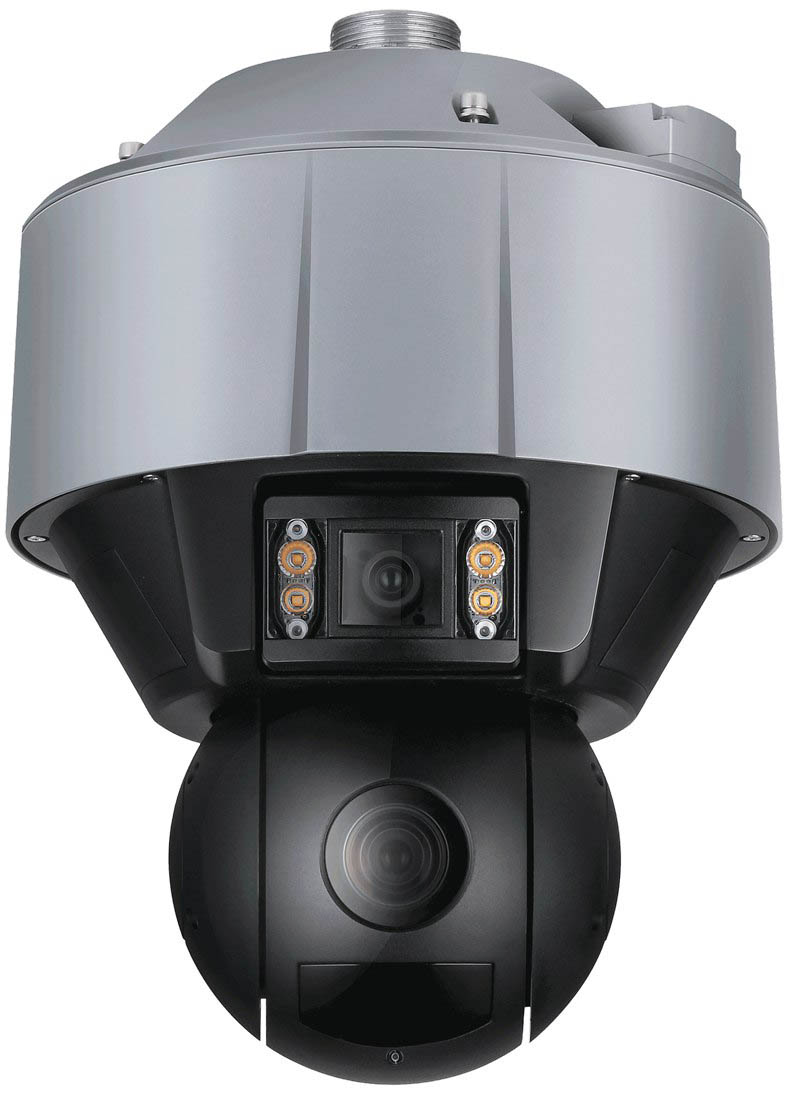

SDT5X425-4Z4-WA-0832 - DAHUA DH-SDT5X425-4Z4-WA-0832 4MP Starlight IR WizMind Network Dual-PTZ Camera With Smart Tracking PFA Technology Perimeter Protection SDT5X425-4Z4-WA-0832

In stock
SKU
SDT5X425-4Z4-WA-0832
$1,825.50

SDT5X425-4Z4-WA-0832

4MP Starlight IR WizMind Network Dual-PTZ Camera

> Dual PTZ system, dual vari-focal lens
> 1/1.8" 4Megapixel CMOS
> Powerful 25x optical zoom
> Starlight technology
> Max. 50/60 fps@4M
> Deep-learning-based auto tracking and perimeter protection
> Support Hi-PoE
> H.265 Encoding
> IP67

>without Logo,English firmware
>100% original products manufactured by DAHUA

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

SDT5X425-4Z4-WA-0832 - DAHUA DH-SDT5X425-4Z4-WA-0832 4MP Starlight IR WizMind Network Dual-PTZ Camera With Smart Tracking PFA Technology Perimeter Protection SDT5X425-4Z4-WA-0832 without logo

SDT5X425-4Z4-WA-0832

4MP Starlight IR WizMind Network Dual-PTZ Camera

> Dual PTZ system, dual vari-focal lens
> 1/1.8" 4Megapixel CMOS
> Powerful 25x optical zoom
> Starlight technology
> Max. 50/60 fps@4M
> Deep-learning-based auto tracking and perimeter protection
> Support Hi-PoE
> H.265 Encoding
> IP67

>without Logo,English firmware
>100% original products manufactured by DAHUA

SDT5X425-4Z4-WA-0832 - DAHUA DH-SDT5X425-4Z4-WA-0832 4MP Starlight IR WizMind Network Dual-PTZ Camera With Smart Tracking PFA Technology Perimeter Protection SDT5X425-4Z4-WA-0832 without logo SYSTEM OVERVIEW



AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc. The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and more devices. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way.

advanced AI technologies

Dahua PTZ AI network camera adopts advanced CNN deep learning algorithms to support face recogniton with high accuracy. This camera possess wide monitor range, PFA algorithm that can always present a clear, focused image while zooming, and smart wiper technology that supported by RainSensor.

DAHUA Smart Shop solution

SDT5X425-4Z4-WA-0832 - DAHUA DH-SDT5X425-4Z4-WA-0832 4MP Starlight IR WizMind Network Dual-PTZ Camera With Smart Tracking PFA Technology Perimeter Protection SDT5X425-4Z4-WA-0832 without logo FUNCTIONS

DAHUA DH-PSDW81642M-A360

DAHUA DH-PSDW81642M-A360

DAHUA DH-PSDW81642M-A360

Starlight Technology

For challenging low-light applications, Dahua's Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.001 Lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Face Recognition

Once facial features are extracted from captured faces, they are stored in a database where they can be easily searched and compared against other images. Once a successful match is found, the system outputs the result. The Dahua Face Recognition camera supports a built-in database that stores up to 10,000 facial images, helping the camera achieve realtime face capture and comparison.

Metadata

Metadata is feature attribute information extracted from a target object which can be used for data retrieval. There are four kinds of metadata supported by Dahua PTZ AI camera: human face, human body, motor vehicle and non-motor vehicle metadata. Facial information includes gender, age, glasses, masks, beards, etc. Human body information includes hat, top, top color, bottom, bottom color, bag, etc. Motor vehicle information includes plate color, type, vehicle color, sunshield, ornament, calling, seatbelt, smoking, annual inspection sticker, etc. Non-motor vehicle information includes type, color, top type, top color, people number, etc.

Perimeter Protection

Automatically filtering out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improving alarm accuracy.

Starlight+ Technology

For challenging low-light applications, Dahua's Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.001 Lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

PFA Technology

PFA technology has innovatively introduced new methods of judgment to ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms. PFA ensures clarity of the image throughout the process of zooming and shortens focus time. The realization of PFA technology substantially improves user experience and increases product value.

Predictive Focus Algorithm (PFA)

Predictive Focus Algorithm (PFA)

Predictive Focus Algorithm (PFA)

Environmental

cameras operate in extreme temperature environments, rated for use in temperatures from -40 °C to +70 °C (-40 °F to +158 °F) with 95% humidity. Subjected to rigorous dust and water immersion tests and certified to the IP67 Ingress Protection rating makes it suitable for demanding outdoor applications.

Protection

The camera allows for -5%~+10% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 8KV lightning rating provides effective protection for both the camera and its structure against lightning.

Interoperability

The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

Dual PTZ System

The Panorama camera and Detail camera of the dual PTZ system can be adjusted horizontally and vertically.

 Smart Tracking

Human, motor vehicle, and non-motor vehicle, or their combinations can be set as objects. Once the objects selected trigger detection rules (like tripwire and intrusion), the detail camera will track them automatically.

SDT5X425-4Z4-WA-0832 - DAHUA DH-SDT5X425-4Z4-WA-0832 4MP Starlight IR WizMind Network Dual-PTZ Camera With Smart Tracking PFA Technology Perimeter Protection SDT5X425-4Z4-WA-0832 without logo PICTURE



DAHUA DH-SDT5X405-4F-WA


SDT5X425-4Z4-WA-0832 - DAHUA DH-SDT5X425-4Z4-WA-0832 4MP Starlight IR WizMind Network Dual-PTZ Camera With Smart Tracking PFA Technology Perimeter Protection SDT5X425-4Z4-WA-0832 without logo DIMENSIONS




SDT5X425-4Z4-WA-0832 - DAHUA DH-SDT5X425-4Z4-WA-0832 4MP Starlight IR WizMind Network Dual-PTZ Camera With Smart Tracking PFA Technology Perimeter Protection SDT5X425-4Z4-WA-0832 without logo INSTALLATION


SDT5X425-4Z4-WA-0832 - DAHUA DH-SDT5X425-4Z4-WA-0832 4MP Starlight IR WizMind Network Dual-PTZ Camera With Smart Tracking PFA Technology Perimeter Protection SDT5X425-4Z4-WA-0832 without logo TECHNICAL SPECIFICATIONS

***

*

Camera

Image Sensor

Panorama: 1/1.8" CMOS
Detail: 1/1.8" CMOS

Pixel

Panorama: 4MP
Detail: 4MP

Max. Resolution

2688 (H) x 1520 (V)

ROM

8 GB

RAM

4 GB

Electronic Shutter Speed

Panorama: 1/3 s–1/100000 s
Detail: 1/1 s–1/100000 s

Scanning System

Progressive

Min. Illumination

Panorama:
Color: 0.001 Lux@F1.6
B/W: 0.0001 Lux@F1.6
Detail:
Color: 0.001 Lux@F1.6
B/W: 0.0001 Lux@F1.6
0 Lux (IR light on)

Illumination Distance

Panorama (white light):
20 m (65.62 ft)—face recognition
30 m (98.43 ft)—video metadata
Detail (IR light): 100 m (328.08 ft)

Illuminator On/Off Control

Panorama: SmartIR/Manual/Off
Detail: Zoom Prio/Manual/SmartIR/Off

Illuminator Number

4 IR lights; 4 white lights

Lens

Focal Length

Panorama: 2.8 mm–12 mm
Detail: 5.4 mm–135 mm

Aperture

Panorama:
F1.6
Detail:
F1.6-F4.0

Field of View

Panorama: H: 99.2°–45.8°; V: 59.7°–27°; D: 110.4°–51.7°
Detail: H: 58°–3.5°; V: 35°–2°; D: 64°–4°

Optical Zoom

Panorama: 4x
Detail: 25x

Focus Control

Auto/Semi-Auto/Manual

Close Focus Distance

Panorama: 1 m–2.5 m (3.28 ft–8.20 ft)
Detail: 0.5 m–7 m (1.64 ft–22.97 ft)

Iris Control

Panorama: Auto
Detail: Auto

DORI Distance

Detect

Observe

Recognize

Identify

Panorama:
128 m
(419.95 ft)
Detail:
1688 m
(5538.06 ft)

Panorama:
51 m
(167.32 ft)
Detail:
675 m
(2214.57 ft)

Panorama:
25 m
(82.02 ft)
Detail:
337 m
(1105.64 ft)

Panorama:
12 m
(39.37 ft)
Detail:
168 m
(551.18 ft)

PTZ

Pan/Tilt Range

Panorama:
Pan: 0°–360° endless; Tilt: 0°–30°
Detail:
Pan: 0°–305° (the angle between two cameras: -125° to +180°); Tilt: -3°–90°

Manual Control Speed

Panorama: Pan: 0.1°/s–100°/s; Tilt: 0.1°/s–25°/s
Detail: Pan: 0.1°/s–400°/s; Tilt: 0.1°/s–200°/s

Preset Speed

Panorama: Pan: 100°/s; Tilt: 50°/s
Detail: Pan: 360°/s; Tilt: 200°/s

Presets

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Speed Adjustment

Support

Power-off Memory

Support

Idle Motion

Preset/Tour/Pattern/Scanning

Protocol

DH-SD
Pelco-P/D (auto recognition)

Artificial Intelligence

Video Metadata

Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.

Perimeter Protection

Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

Face Recognition

Support

Video

Compression

H.265; H.264 Baseline Profile; H.264 Main Profile; H.264 High Profile; M-JPEG; Smart H.265; Smart H.264

Streaming Capability

3 streams

Resolution

Panorama:
4M (2688 × 1520); 4M (2560 × 1440); 1080P (1920 × 1080); 960P (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Detail:
4M (2688 × 1520); 4M (2560 × 1440); 1080P (1920 × 1080); 960P (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Frame Rate

Main stream: 4M/1080P/1.3M/720P (1–50/60 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 1080P/1.3M/720P/CIF (1–25/30 fps)

Bit Rate Control

Variable/Constant

Bit Rate

H.264: 2816 Kbps–13056 Kbps
H.265: 1024 Kbps–7936 Kbps

Day/Night

Panorama: Auto (ICR)
Detail: Auto (ICR)

BLC

Support

WDR

Support

HLC

Support

White Balance

Panorama: Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp
Detail: Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp

Gain Control

Auto/Manual

Noise Reduction

2D/3D

Motion Detection

Support

Region of Interest (RoI)

Support

Image Stabilization

Electronic

Defog

Electronic

Digital Zoom

16x

Flip

0°/180°

S/N Ratio

Panorama: ≥ 55 dB
Detail: ≥ 55 dB

Audio

Compression

G.711a; G.711mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; SNMPv1/v2c/v3 (MIB-2); RTCP

Interoperability

ONVIF; CGI

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth 64 MB)

Storage

Imou Cloud; FTP; Micro SD card (256 GB)

Browser

IE7 and later versions
Chrome 45 and earlier versions
Firefox 52 and earlier versions
Safari 12 and earlier versions

Management Software

SmartPSS; DSS; NVR

Certification

Certifications

FCC: 47 CFR FCC Part15, Subpart B, Class A
LVD: EN 62368-1: 2014+A11: 2017
EMC: EN 55032: 2015, Class A
EN 61000-3-2: 2014
EN 61000-3-3: 2013
EN 55024:2010+A1: 2015
EN 55035: 2017
EN 50130-4: 2011+A1: 2014

Port

Audio Input

1 (LINE IN; bare wire)

Audio Output

1 (LINE OUT; bare wire)

Two-way Audio

Support

Alarm I/O

2/1
Digital input: 0–5V DC

Alarm Linkage

Capture; preset; tour; pattern; SD card record; trigger digital output; send email

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; vandalization detection; illegal access detection

Power

Power Supply

DC 36V/2.23A ± 25%
Hi-PoE

Power Consumption

Basic: 21W
Max.: 40W (PTZ, zoom, focus, IR light, white light, and
smart plan enabled)

Environment

Operating Temperature

–40°C to +70°C (–40°F to +158°F)

Operating Humidity

≤ 95%

Protection

IP67; TVS 8000V lightning protection; surge protection; voltage transient protection

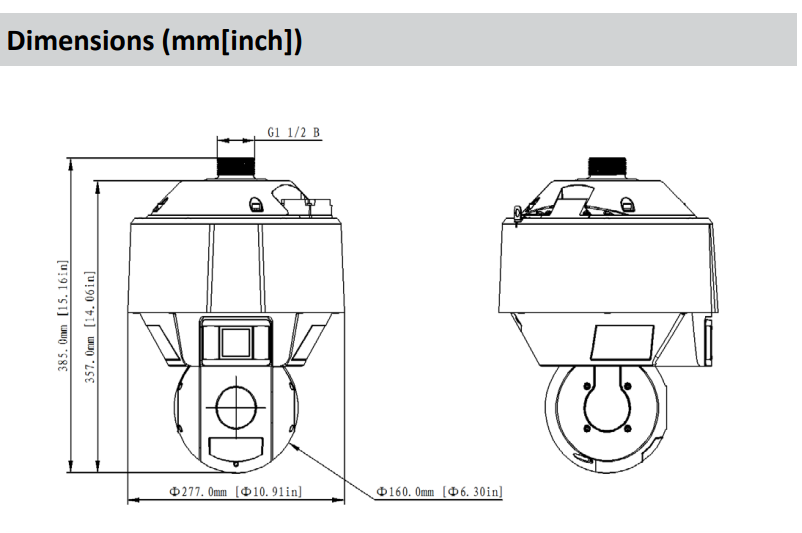

Structure

Dimensions

385 mm × Φ277 mm (15.16" × Φ10.91")

Net Weight

9 kg (19.84 lb)

Gross Weight

13.8 kg (30.42 lb)



*

***
