NKB5000 and NKB5000-F - DAHUA DH-NKB5000/DAHUA DH-NKB5000-F HD Network Control Keyboard

In stock

SKU

NKB5000

Rating:

100% of 100

1 Review Add Your Review

$900.00

NKB5000(-F)

HD Network Control Keyboard

> Keyboard to Control

-Standalone DVR

-(Network) High Speed Dome

-High Speed Dome

-Central Management Platform

-Network Video Server

> RS232, RS485 & Network Connections(Wi-Fi)

> Four Dimensional Joystick Control of PTZ Functions

> Support 4K decoding live view

> Support 4CH HDMI output

> Support snapshot and recording to U-disk

> Support Video-Wall display control

> Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Control

> NKB5000-F model includes an extension keypad module

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

NKB5000 and NKB5000-F - DAHUA DH-NKB5000/DAHUA DH-NKB5000-F HD Network Control Keyboard

NKB5000(-F)

HD Network Control Keyboard

> Keyboard to Control

-Standalone DVR

-(Network) High Speed Dome

-High Speed Dome

-Central Management Platform

-Network Video Server

> RS232, RS485 & Network Connections(Wi-Fi)

> Four Dimensional Joystick Control of PTZ Functions

> Support 4K decoding live view

> Support 4CH HDMI output

> Support snapshot and recording to U-disk

> Support Video-Wall display control

> Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Control

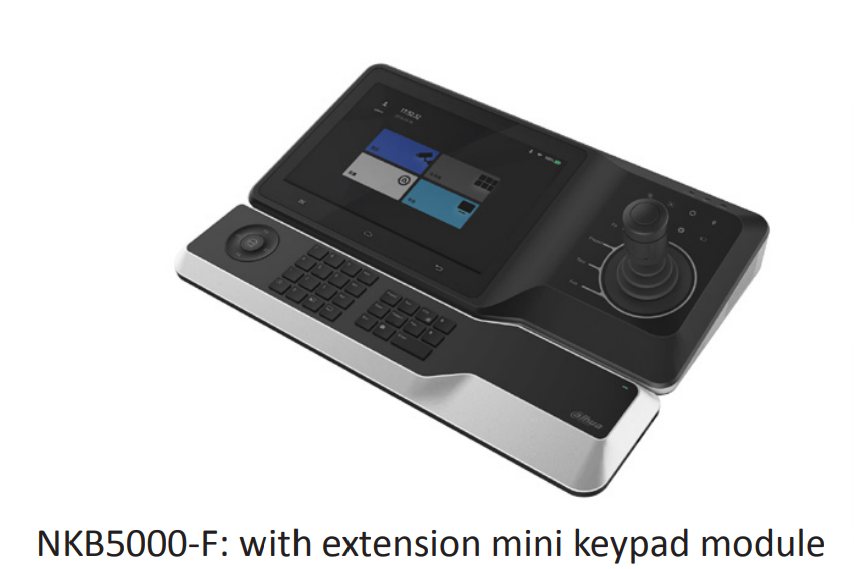

> NKB5000-F model includes an extension keypad module

NKB5000 and NKB5000-F - DAHUA DH-NKB5000/DAHUA DH-NKB5000-F HD Network Control Keyboard PICTURE

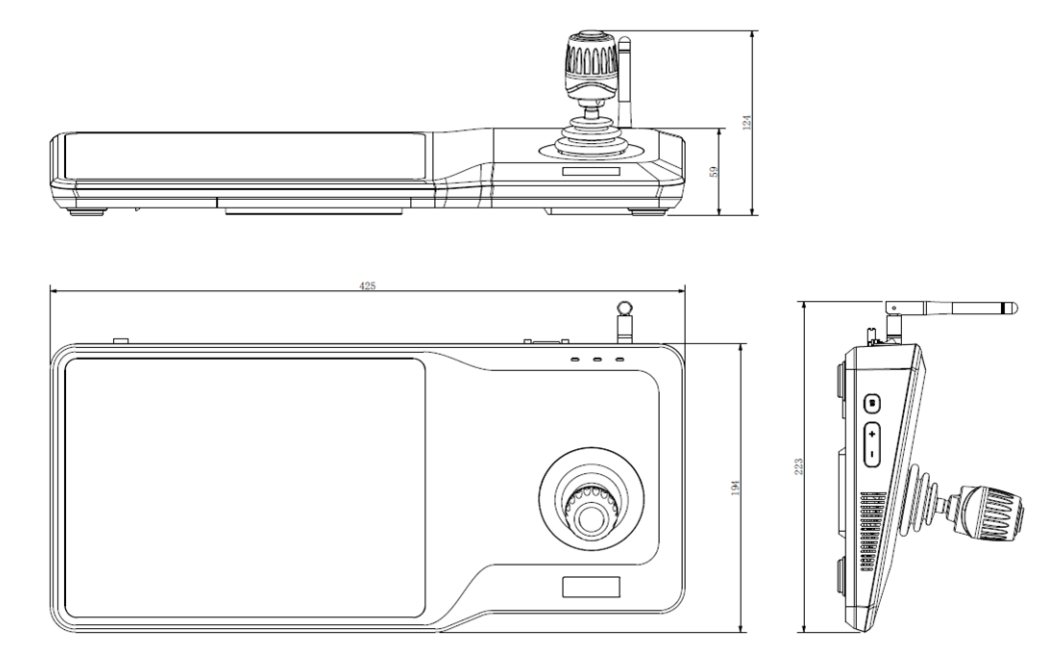

NKB5000 and NKB5000-F - DAHUA DH-NKB5000/DAHUA DH-NKB5000-F HD Network Control Keyboard DIAGRAM

NKB5000 and NKB5000-F - DAHUA DH-NKB5000/DAHUA DH-NKB5000-F HD Network Control Keyboard TECHNICAL SPECIFICATION

*******

Model

NKB5000(-F)

System

Main Processor

Dual-core Processor

Operation System

Embedded LINUX 4.2.0

Display

Video Output

4×HDMI(extension decoding display)

Stream Type

H.265, H.264, MPEG, Nonstandard

Decoding Capability

3CH@12MP(25fps)/4CH@4K(25fps)/8CH@5MP(25fps)/12CH@3MP(25fps)/16CH@2MP(30fps)

Stream Type

H.265, H.264, H264H, H264B, MJPEG, MPEG4, SVAC, SmartH.264 and non standard

Display split

1/4/9/16

Screen

10.1" TFT LCD touch screen (1280*800)

Audio & Alarm

Audio Input/Output

1 pair 3.5mm jack(reserved)

Loudspeaker

Alarm In

4, High-low level(reserved)

Alarm Out

4 (3 relay, 1 12V_1A)(reserved)

General

Network Interface

2×RJ-45 port (100/1000M)), Wi-Fi

USB Interface

2 USB3.0, 2 USB2.0

Wi-Fi

Support 2.4GHz

RS485

1 for ptz control

RS232

2 for debugging

RS422

1(reserved)

Environmental

Power Supply

DC12V, 4A

Power Consumption

25W(max), 18W(standby)

Working Temperature

-10°C ~+55°C

Working Humidity

10%~95%

Atmosphere Pressure

86kpa~106kpa

Dimension

Host: 425mmx194mmx59mm (W×D×H) (exclude joystick)

Mini Keypad: 421mmx105mmx26mm (W×D×H)

Weight

3.73kg(exclude package)

*********

**
