IPC-PDBW8802-A180 - DAHUA DH-IPC-PDBW8802-A180 4x2MP Multi-Sensor Panoramic IR Dome Network Camera With Smart detection True Day/Night Intelligent Video System (IVS) IPC-PDBW8802-A180

In stock
SKU
IPC-PDBW8802-A180
$896.89

IPC-PDBW8802-A180

4x2MP Multi-Sensor Panoramic IR Dome Network Camera

> Four 1/1.8” 2Megapixel progressive scan CMOS
> H.265/H.264 triple-stream encoding
> Max 25fps@4096x1800
> Support 180-degree panoramic view
> Day/Night(ICR), 3DNR, AWB, AGC, BLC ,WDR
> Smart detection
> Intelligent Function

> Max. IR LEDs length 30m

> Micro SD memory, IP67, IK10,PoE+

>without Logo,English firmware
>100% original products manufactured by DAHUA

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

IPC-PDBW8802-A180 - DAHUA DH-IPC-PDBW8802-A180 4x2MP Multi-Sensor Panoramic IR Dome Network Camera With Smart detection True Day/Night Intelligent Video System (IVS) IPC-PDBW8802-A180 without logo

IPC-PDBW8802-A180

4x2MP Multi-Sensor Panoramic IR Dome Network Camera

> Four 1/1.8” 2Megapixel progressive scan CMOS
> H.265/H.264 triple-stream encoding
> Max 25fps@4096x1800
> Support 180-degree panoramic view
> Day/Night(ICR), 3DNR, AWB, AGC, BLC ,WDR
> Smart detection
> Intelligent Function

> Max. IR LEDs length 30m

> Micro SD memory, IP67, IK10,PoE+

>without Logo,English firmware
>100% original products manufactured by DAHUA



IPC-PDBW8802-A180 - DAHUA DH-IPC-PDBW8802-A180 4x2MP Multi-Sensor Panoramic IR Dome Network Camera With Smart detection True Day/Night Intelligent Video System (IVS) IPC-PDBW8802-A180 without logo System Overview


The multi-sensor camera provides added flexibility for capturing wide area video surveillance.With four 2MP sensors working in tandem to create a comprehensive 180-degree overview, the camera can replace multiple single-sensor cameras providing a higher return on investment. With the field of view being divided across the four sensors,adjustments can be made to each sensor for contrast and brightness, resulting in a crystal-clear panorama.

IPC-PDBW8802-A180 - DAHUA DH-IPC-PDBW8802-A180 4x2MP Multi-Sensor Panoramic IR Dome Network Camera With Smart detection True Day/Night Intelligent Video System (IVS) IPC-PDBW8802-A180 without logo Functions

Starlight TechnologyStarlight Technology

Featuring Starlight Technology, this camera is ideal for applications with challenging lighting conditions. Its low-light performance delivers usable video with minimal ambient light. Even in extreme low-light conditions, Starlight Technology is capable of delivering color images in near complete darkness (less than 0.01 lux).

True Day/Night

A day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens.

Intelligent Video System (IVS)

Intelligent Video System (IVS)

Dahua camera is equipped with a built-in intelligent analytic algorithm based on video, which can realize intelligent functions like Tripwire, Intrusion, Abandoned, Missing and so on, to quickly and accurately respond to monitoring events in specific area. It can enhance monitoring efficiency. In addition, the camera supports intelligent tamper detection, which is to generate warning message via detecting dramatic scene change and to guarantee effective video surveillance.

Smart IR

With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of camera's infrared LEDs to compensate the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 30m (98ft).

Smart Codec (H.265+ & H.264+)

Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression.

Protection (IP67, IK10, wide voltage)

Supporting ±25% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests (IK10), The camera complies with an IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.)

Environmental

With a temperature range of -30 °C to +60 °C (-22 °F to +140 °F), the camera is designed for extreme temperature environments. The camera  complies to an IK10 impact rating making it capable of withstanding the equivalent of 55 kg (120 lbs) of force. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications. For enviorments with rain, sleet, snow and fog, an integrated wiper provides users with clear visibility at all times.

IPC-PDBW8802-A180 - DAHUA DH-IPC-PDBW8802-A180 4x2MP Multi-Sensor Panoramic IR Dome Network Camera With Smart detection True Day/Night Intelligent Video System (IVS) IPC-PDBW8802-A180 without logo Picture

DAHUA DH-IPC-PDBW8802-A180

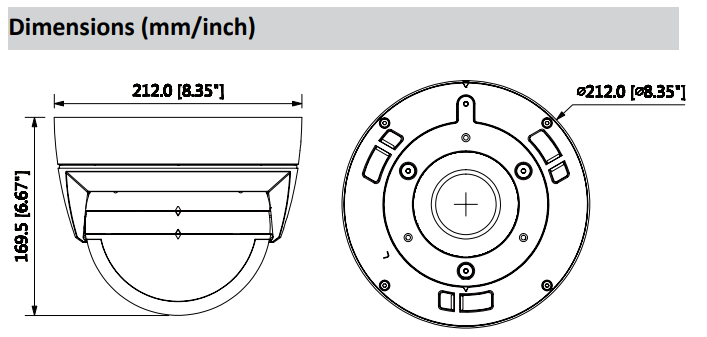

 IPC-PDBW8802-A180 - DAHUA DH-IPC-PDBW8802-A180 4x2MP Multi-Sensor Panoramic IR Dome Network Camera With Smart detection True Day/Night Intelligent Video System (IVS) IPC-PDBW8802-A180 without logo Dimension

DAHUA DH-IPC-PDBW8802-A180

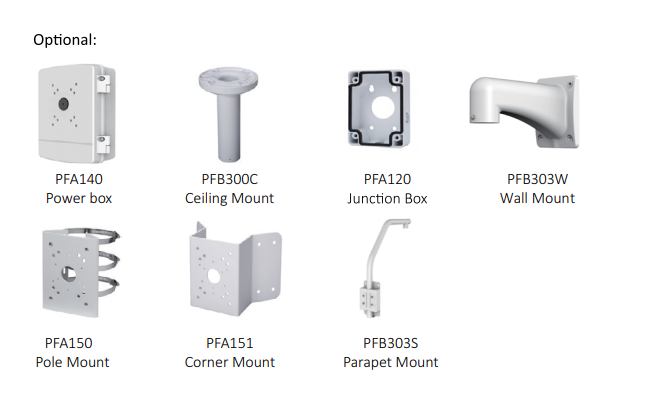

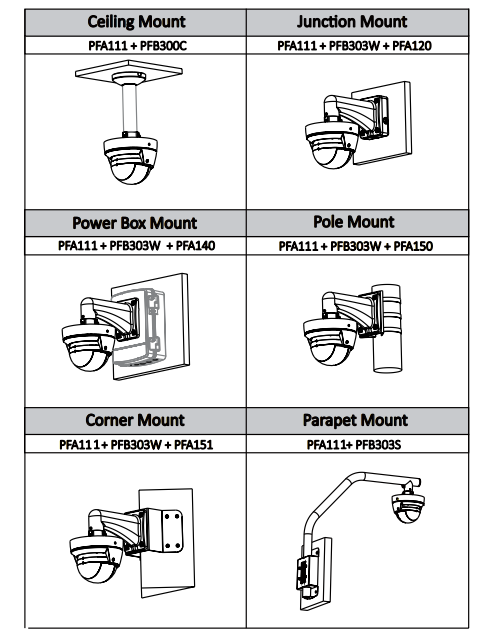

 IPC-PDBW8802-A180 - DAHUA DH-IPC-PDBW8802-A180 4x2MP Multi-Sensor Panoramic IR Dome Network Camera With Smart detection True Day/Night Intelligent Video System (IVS) IPC-PDBW8802-A180 without logo Installation

DAHUA DH-IPC-PDBW8802-A180

DAHUA DH-IPC-PDBW8802-A180

DAHUA DH-IPC-PDBW8802-A180

IPC-PDBW8802-A180 - DAHUA DH-IPC-PDBW8802-A180 4x2MP Multi-Sensor Panoramic IR Dome Network Camera With Smart detection True Day/Night Intelligent Video System (IVS) IPC-PDBW8802-A180 without logo Specifications

Technical Specifications

 ********

Camera

Image Sensor

Four 1/1.8” 2Megapixel progressive scan CMOS

Effective Pixels

4096(H)x1800(V)

RAM/ROM

1024MB/128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.005Lux/F2.2( Color,1/3s,30IRE)

0.03Lux/F2.2( Color,1/30s,30IRE)

0Lux/F2.2(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/ Manual

IR LEDs

6

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

5.0mm

Max. Aperture

F2.2

Angle of View

H: 180˚, V:80˚

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

N/A

DORI Distance

Detect

Observe

Recognize

Identify

53m(178ft)

21m(69ft)

10m(33ft)

5m(17ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~355˚; Tilt:0˚~75˚; Rotation:±20˚

Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Heat Map, E-PTZ

Video

Compression

H.265/H.264/H.264B/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

3 Streams

Resolution

4096×1800/3840×1680/2880×1264/

/1920x832/1280x560/1024X452

Frame Rate

Main Stream: 4096x1800 (1~25fps)

Sub Stream: 1024X452 (1 ~ 25fps)

Third Stream: 1920x832 (1 ~ 25fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265: 9Kbps~ 9472Kbps

H.264: 24Kbps~ 15616Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization(EIS)

N/A

Smart IR

Support

Defog

N/A

Digital Zoom

16x

Flip

N/A

Mirror

N/A

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/G.711Mu/AAC/ G.726

Network

Ethernet

RJ-45 (100/1000Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

1 Port(For adjustment only)

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

2 channel In: 5mA 5VDC

2 channel Out: 1A 30VDC / 0.5A 50VAC

Electrical

Power Supply

AC24V, PoE+(802.3at)(Class 4)

Power Consumption

<25.5W

Environmental

Operating Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Storage Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

Φ212mm×169.5mm(Φ8.35×6.67)

Net Weight

3.6kg(7.9lb)

Gross Weight

4.6kg(10.1lb)

*************

**
