HAC-PFW3601-A180-AC24 - DAHUA DH-HAC-PFW3601-A180-AC24 3X2MP Multi-Sensor Panoramic HDCVI IR-Bullet Camera DH-HAC-PFW3601P-A180-AC24 Three 1/2.8” 2Megapixel CMOS 3 individual 2MP video output simultaneously DH-HAC-PFW3601N-A180-AC24 Without logo

In stock
SKU
HAC-PFW3601-A180-AC24
$456.89

HAC-PFW3601-A180-AC24

3X2MP Multi-Sensor Panoramic HDCVI IR-Bullet Camera

> Three 1/2.8” 2Megapixel progressive scan CMOS
> 1 panoramic view &3 individual 2MP video output simultaneously
> Max. 15fps@4K,25fps@4M
> 120db true WDR,2D&3D NR
> HDCVI starlight technology
> Max.20m IR distance
> IP67&IK10 ingress protection
> Up to 500m transmission with RG59 coaxial cable

> without Logo,English firmware
> 100% original products manufactured by DAHUA

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

HAC-PFW3601-A180-AC24 - DAHUA DH-HAC-PFW3601-A180-AC24 3X2MP Multi-Sensor Panoramic HDCVI IR-Bullet Camera DH-HAC-PFW3601P-A180-AC24 Three 1/2.8” 2Megapixel CMOS 3 individual 2MP video output simultaneously DH-HAC-PFW3601N-A180-AC24 Without logo

HAC-PFW3601-A180-AC24

3X2MP Multi-Sensor Panoramic HDCVI IR-Bullet Camera

> Three 1/2.8” 2Megapixel progressive scan CMOS
> 1 panoramic view &3 individual 2MP video output simultaneously
> Max. 15fps@4K,25fps@4M
> 120db true WDR,2D&3D NR
> HDCVI starlight technology
> Max.20m IR distance
> IP67&IK10 ingress protection
> Up to 500m transmission with RG59 coaxial cable

> without Logo,English firmware
> 100% original products manufactured by DAHUA

HAC-PFW3601-A180-AC24 - DAHUA DH-HAC-PFW3601-A180-AC24 3X2MP Multi-Sensor Panoramic HDCVI IR-Bullet Camera DH-HAC-PFW3601P-A180-AC24 Three 1/2.8” 2Megapixel CMOS 3 individual 2MP video output simultaneously DH-HAC-PFW3601N-A180-AC24 Without logo OVERVIEW

The multi-sensor Starlight panoramic HDCVI camera provides added flexibility for wide-area video surveillance. Three 2MP sensors work in tandem to create a comprehensive 180-degree 4K image with enhanced details and simultaneously outputs separate three channels of 2MP HDCVI video. This results in four crystal-clear video feeds from just one camera, drastically reducing installation and maintenance costs. Additionally, the multi-sensor camera also supports electronic cruise and multiple motion detection functionality. Its panoramic view makes the camera an ideal choice for large-size businesses and places such as airports, stadiums, parking lots, and shopping malls.

HDCVI

HDCVI Camera products

DHCVI Camera

HAC-PFW3601-A180-AC24 - DAHUA DH-HAC-PFW3601-A180-AC24 3X2MP Multi-Sensor Panoramic HDCVI IR-Bullet Camera DH-HAC-PFW3601P-A180-AC24 Three 1/2.8” 2Megapixel CMOS 3 individual 2MP video output simultaneously DH-HAC-PFW3601N-A180-AC24 Without logo FUNCTIONS

180° panoramic view

Equipped with 3x2MP CMOS sensors PFW3601 camera can monitor full horizontal views and deliver high quality comprehensive 180-degree coverage with no blind spot.The camera is able to provide coverage of wide, open areas, such as airports, harbour, park, public square,shopping malls and more.So you wil get a overall coverage video just with one HACPFW3601 over coax with less hardware,and saving you money.

Multi channels video output

With four BNC interfaces HAC-PFW3601 can output three channels of 2MP separate real-time video corresponding to three independent imaging systems and one channel of seamless stitching panoramic video at the same time.The three-in-one design combines details with full view and to meet the efficient and cost-effective installation requirements.

Intelligent Mode

Utilize Dahua's advance intelligent algorithm the panoramic channel is able to support electronic cruise, a.k.a. E-PTZ,which benefits the detection of moving targets in critical areas.Realize the regional area amplification of the panoramic image,the size and location are adjustable as you want

4 Signals over 1 Coaxial Cable

HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility. * Audio input is available for some models of HDCVI cameras.

Long Distance Transmission

HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 700m transmission for 4K and 4MP HD video via coaxial cable, and up to 300m via UTP cable.* *Actual results verified by real-scene testing in Dahua's test laboratory.

Simplicity

HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.

Starlight

With the adoption of large sized high performance sensor, the camera is able to provide incomparable performance even under extreme lowlight environment. The starlight feature allows more details to be captured and accurate color to be recognized at night or in scenes with limited illumination.

starlight

Broadcast-quality Audio

Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information.

Multiple-formats

The camera supports multiple video formats including HDCVI, CVBS, and other two common HD analog formats in the market. A DIP switch located on the cable allows you to quickly toggle formats, further simplifying installation and debugging. This feature makes the camera compatible with not only XVRs, but also most existing HD/SD DVRs.

Wide Dynamic Range

Embedded with industry leading wide dynamic range (WDR) technology, vivid pictures are achieved even in the most intense contrast lighting conditions. True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Advanced 3DNR

3DNR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua’s advanced 3DNR technology allows remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. Besides, the advanced 3DNR effectively decreases the band width and saves the storage space.

Protection

The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments. Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.

HAC-PFW3601-A180-AC24 - DAHUA DH-HAC-PFW3601-A180-AC24 3X2MP Multi-Sensor Panoramic HDCVI IR-Bullet Camera DH-HAC-PFW3601P-A180-AC24 Three 1/2.8” 2Megapixel CMOS 3 individual 2MP video output simultaneously DH-HAC-PFW3601N-A180-AC24 Without logo Picture

DAHUA DH-HAC-PFW3601-A180-AC24

HAC-PFW3601-A180-AC24 - DAHUA DH-HAC-PFW3601-A180-AC24 3X2MP Multi-Sensor Panoramic HDCVI IR-Bullet Camera DH-HAC-PFW3601P-A180-AC24 Three 1/2.8” 2Megapixel CMOS 3 individual 2MP video output simultaneously DH-HAC-PFW3601N-A180-AC24 Without logo Dimension



HAC-PFW3601-A180-AC24 - DAHUA DH-HAC-PFW3601-A180-AC24 3X2MP Multi-Sensor Panoramic HDCVI IR-Bullet Camera DH-HAC-PFW3601P-A180-AC24 Three 1/2.8” 2Megapixel CMOS 3 individual 2MP video output simultaneously DH-HAC-PFW3601N-A180-AC24 Without logo

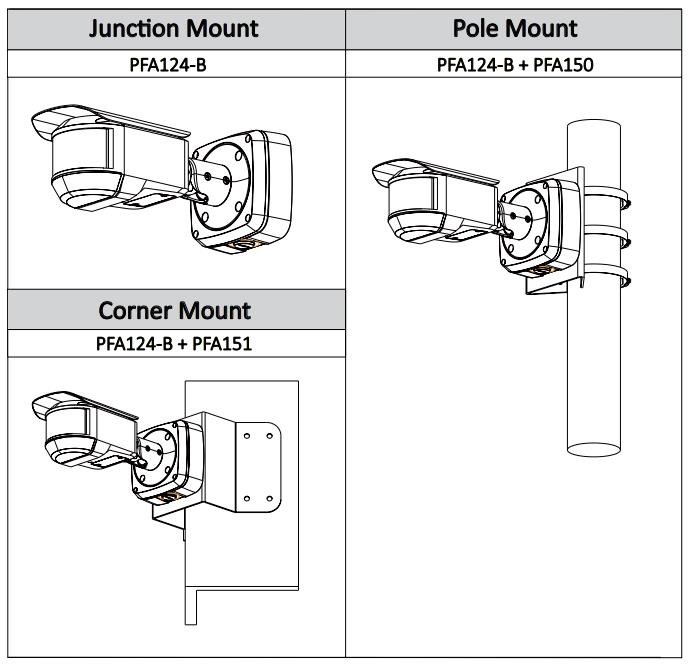

Installation



HAC-PFW3601-A180-AC24 - DAHUA DH-HAC-PFW3601-A180-AC24 3X2MP Multi-Sensor Panoramic HDCVI IR-Bullet Camera DH-HAC-PFW3601P-A180-AC24 Three 1/2.8” 2Megapixel CMOS 3 individual 2MP video output simultaneously DH-HAC-PFW3601N-A180-AC24 Without logo Specification



Technical Specifications

*************

Camera

Image Sensor

Three 1/2.8" 2MP STARVISTM CMOS

Effective Pixels(Panorama)

4K(3840x832)/4M(2560x554)

Scanning System

Progressive

Electronic Shutter Speed

PAL:1/4s~1/100,000s

NTSC:1/3s~1/100,000s

Minimum Illumination

0.005Lux/F1.8( Color), 30IRE,0Lux/F1.8(IR on)

S/N Ratio

More than 65dB

IR Distance

20m

IR On/Off Control

Auto (ICR)/Color/B/W

IR LEDs

6

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

3.6mm

Max Aperture

F1.8

Angle of View

H: 180°

Focus Control

N/A

Close Focus Distance

500mm

19.7''

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

DORI

Definition

Distance

Detect

25px/m (8px/ft)

50m(163ft)

Observe

63px/m (19px/ft)

20m(65ft)

Recognize

125px/m (38px/ft)

10m(33ft)

Identify

250px/m (76px/ft)

5m(16ft)

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video

Resolution

4K (3840X2160)/4MP(2560×1440)

Frame Rate

PAL:3840×2160@12.5fps,2560x1440@25fps;

NTSC:3840×2160@15fps,2560x1440@25fps;

Video Output

1-channel BNC HDCVI panoramic video output & 3-channels BNC 2MP HDCVI video output

Day/Night

Auto (Electronic) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / WDR

WDR

120dB

Gain Control

AGC

Noise Reduction

2D/3D

White Balance

Auto / Manual

Smart IR

Auto / Manual

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Alarm I/O

2/1

Audio Interface

1-channel audio in(JACK)

Test interface

1-channel 2-pin CVBS video output

Upgrade Interface

1-channel 4-pin USB input

Code switcher

1 physical code switch(switch the preset video source)

Menu set

1 Five-direction button

Eelectrical

Power Supply

24V AC ±25%

Power Consumption

24W

Environmental

Operating Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

Ingress Protection & Vandal Resistance

IP67&IK10

Construction

Casing

Aluminium

Dimensions

286mm x 119mmx 106mm(11.26"×4.68"×4.19")

Net Weight

2.05kg (4.5lb)

Gross Weight

2.43kg (5.36lb)

*******************Icctvzone-wholesales DAHUA IP Cameras

Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

*

***************

More Information
Wired/Wireless Wired
Outdoor use Intdoor use, Outdoor use
Day/Night Low light
Focal Type Fixed
Factor Bullet
