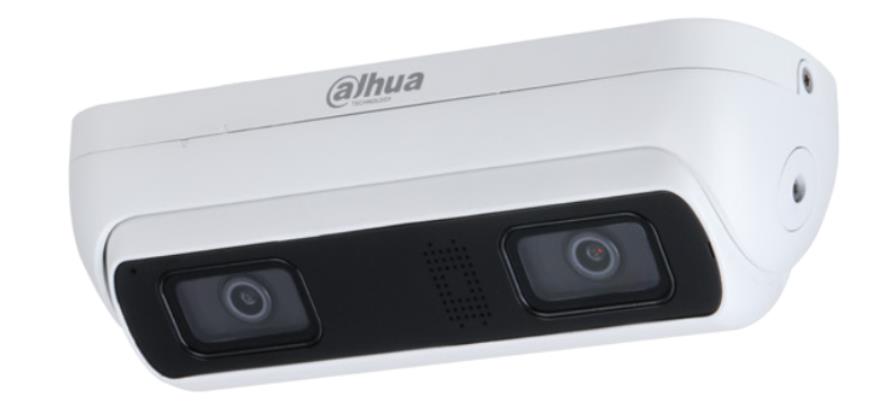

Camera

Image Sensor

1/2.8”4Megapixel progressive CMOS

Max. Resolution

2560 (H) × 1440 (V)

ROM

4GB

RAM

1GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

2.0 mm:

0.007 lux@F2.0 (Color, 30 IRE)

0.0007 lux@F2.0 (B/W, 30 IRE)

0 lux (Illuminator on)

2.8 mm:

0.005 lux@F1.6 (Color, 30 IRE)

0.0005 lux@F1.6 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

20 m (65.62 ft) (IR LED)

Illuminator On/Off Control

Auto

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Tilt: –10° to 70°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.0 mm; 2.8 mm

Max. Aperture

2.0 mm: F2.0
2.8 mm: F1.6

Field of View

2.0 mm: Horizontal: 122°; Vertical: 72°; Diagonal: 141°
2.8 mm: Horizontal: 95°; Vertical: 52°; Diagonal: 114°

Iris Control

Fixed

Close Focus Distance

2.0 mm: 0.5 m (1.64 ft)
2.8 mm: 1.1 m (3.61 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.0 mm

44.8 m (146.98 ft)

17.9 m

(58.73 ft)

9.0 m

(29.52 ft)

4.5 m

(14.76 ft)

2.8 mm

63.6 m (126.64 ft)

25.4 m

(50.52 ft)

12.7 m

(25.26 ft)

6.4 m

(12.80 ft)

Smart Event

IVS

Abandoned object; missing object

Professional, intelligent

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting

People Counting

Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area; queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 2560 × 1440 @(1–25/30 fps )
Sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
Third stream: 1920 × 1080 @ (1–25/30 fps)

Stream Capability

3 streams

Resolution

4 M (2560 × 1440); 3 M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3 M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Built-in Speaker

Yes

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; In Area No.; stay alarm; people counting; abnormal number of people detection; security exception

Network

Network Port

RJ-45 (10/100/1000 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 512 GB); NAS

Browser

IE: IE 9 and later
Chrome
Firefox
Safari: Safari 12 and later

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

FCC:47 CFR FCC Part 15, Subpart B;

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

RS-485

1 (baud rate range: 1200 bps–115200 bps)

Audio Input

2 channels (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

2 channels in: 5 mA 3 V–5 VDC

Alarm Output

2 channels out: 300 mA 12 VDC

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 4 W (12 VDC); 6.4 W (PoE)

Max. (H.265+main stream/IR intensity+IR on): 11.3 W (12 VDC); 12.9 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67; IK10

Structure

Casing

Metal

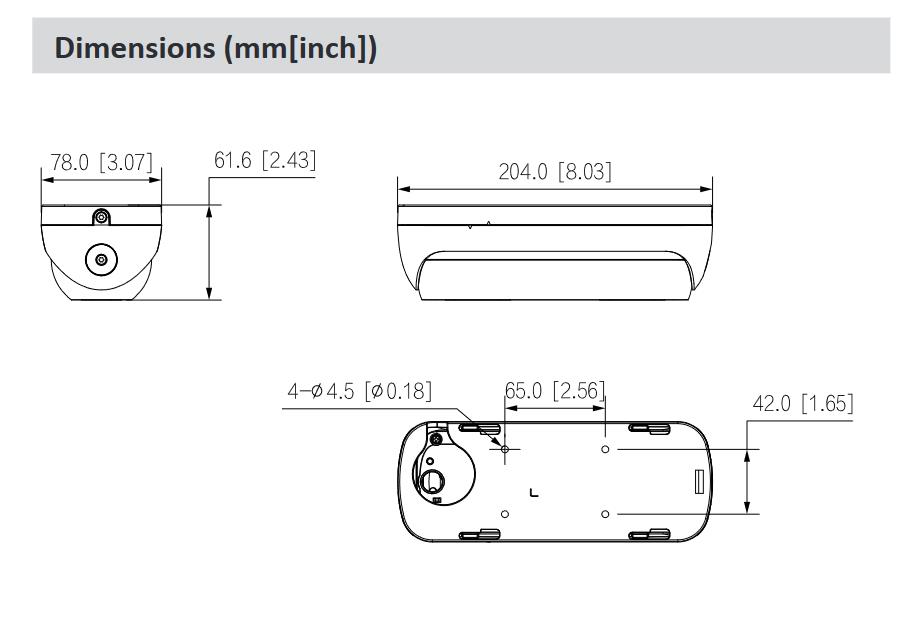

Product Dimensions

204.0 mm × 78.0 mm × 61.6 mm (8.03" × 3.07" × 2.43") (L × W × H)

Net Weight

0.82 kg (1.81 lb)

Gross Weight

1.18 kg (2.60 lb)
