IPC-HDW2431R-ZS - DAHUA DH-IPC-HDW2431R-ZS 4MP IR Eyeball Network Camera with Image Flip Technology Smart IR Wide Dynamic Range 2.7~13.5mm varifocal lens IPC-HDW2431R-ZS

In stock
SKU
IPC-HDW2431R-ZS
Rating:
100% of 100
$112.32

IPC-HDW2431R-ZS

4MP IR Eyeball Network Camera

> 1/3” 4Megapixel progressive CMOS
> H.265& H.264 dual-stream encoding
> 20fps@4M(2688×1520)&25/30fps@3M(2304×1296)
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Micro SD card slot, up to 128GB
> 2.7~13.5mm varifocal lens
> Max IR LEDs Length 50m
> IP67, PoE
>without Logo,English firmware
>100% original products manufactured by DAHUA

The delivery time is 25 working days usually, some times can complete early

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

IPC-HDW2431R-ZS - DAHUA DH-IPC-HDW2431R-ZS 4MP IR Eyeball Network Camera with Image Flip Technology Smart IR Wide Dynamic Range 2.7~13.5mm varifocal lens IPC-HDW2431R-ZS

IPC-HDW2431R-ZS

4MP IR Eyeball Network Camera

> 1/3” 4Megapixel progressive CMOS
> H.265& H.264 dual-stream encoding
> 20fps@4M(2688×1520)&25/30fps@3M(2304×1296)
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Micro SD card slot, up to 128GB
> 2.7~13.5mm varifocal lens
> Max IR LEDs Length 50m
> IP67, PoE
>,English firmware
>100% original products manufactured by DAHUA

IPC-HDW2431R-ZS - DAHUA DH-IPC-HDW2431R-ZS 4MP IR Eyeball Network Camera with Image Flip Technology Smart IR Wide Dynamic Range 2.7~13.5mm varifocal lens IPC-HDW2431R-ZS System Overview



The IR Megapixel Vari-focal camera delivers 4MP resolution with a 2.7~13.5mm varifocal lens.The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.

DAHUA Smart Shop solution

IPC-HDW2431R-ZS - DAHUA DH-IPC-HDW2431R-ZS 4MP IR Eyeball Network Camera with Image Flip Technology Smart IR Wide Dynamic Range 2.7~13.5mm varifocal lens IPC-HDW2431R-ZS Functions

Smart (H.265+ & H.264+)

Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.

Smart IR Technology

With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of camera's infrared LEDs to compensate the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 30m (98ft).

Intelligent Video Analysis (IVS)

With advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion and so on.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

Environmental

cameras operate in extreme temperature environments, rated for use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95% humidity.

Image Flip

Capturing unnecessary data such as surrounding hallway walls can increase storage requirements without any added value. The image flip feature allows the camera's image to be rotated in 90° increments for better video optimization.

Interoperability

The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

Wide Dynamic Range (WDR)

The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

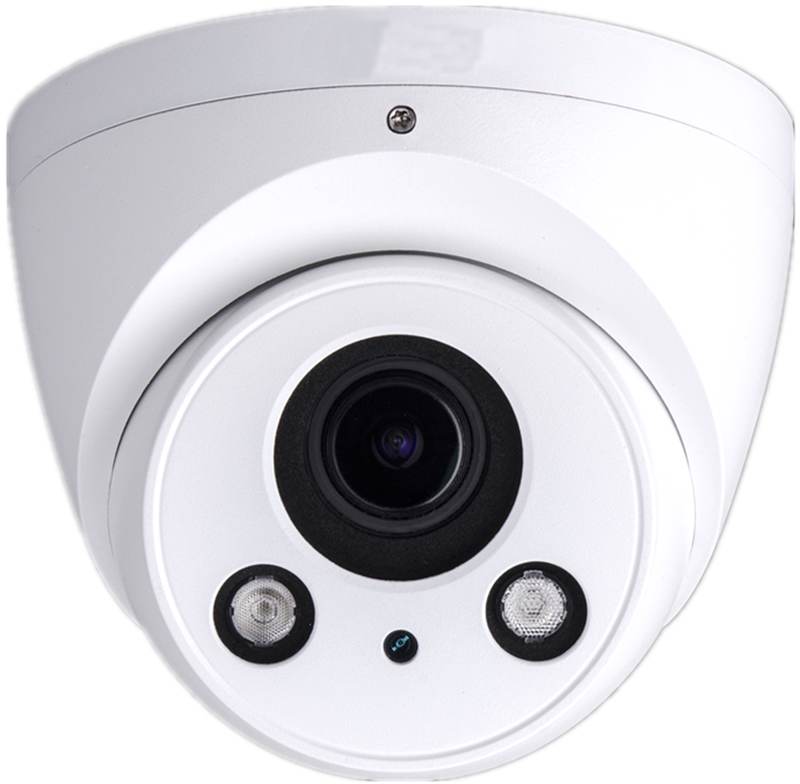

IPC-HDW2431R-ZS - DAHUA DH-IPC-HDW2431R-ZS 4MP IR Eyeball Network Camera with Image Flip Technology Smart IR Wide Dynamic Range 2.7~13.5mm varifocal lens IPC-HDW2431R-ZS Picture



DAHUA DH-IPC-HDW2431R-ZS


IPC-HDW2431R-ZS - DAHUA DH-IPC-HDW2431R-ZS 4MP IR Eyeball Network Camera with Image Flip Technology Smart IR Wide Dynamic Range 2.7~13.5mm varifocal lens IPC-HDW2431R-ZS  Dimensions

 DAHUA DH-IPC-HDW2231R-ZS

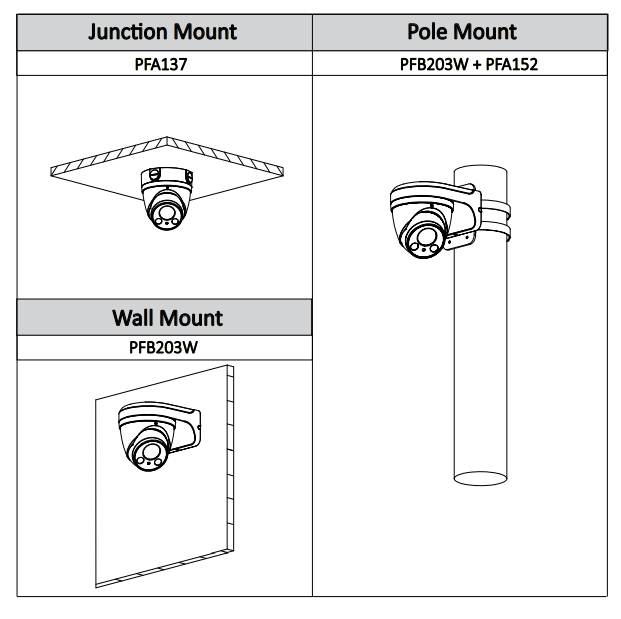

IPC-HDW2431R-ZS - DAHUA DH-IPC-HDW2431R-ZS 4MP IR Eyeball Network Camera with Image Flip Technology Smart IR Wide Dynamic Range 2.7~13.5mm varifocal lens IPC-HDW2431R-ZS  Installation


DAHUA DH-IPC-HDW2231R-ZS

IPC-HDW2431R-ZS - DAHUA DH-IPC-HDW2431R-ZS 4MP IR Eyeball Network Camera with Image Flip Technology Smart IR Wide Dynamic Range 2.7~13.5mm varifocal lens IPC-HDW2431R-ZS Technical Specifications

***

Camera

Image Sensor

1/3” 4Megapixel progressive CMOS

Effective Pixels

2688(H) x1520(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.03Lux/F1.4( Color,1/3s,30IRE)

0.3Lux/F1.4( Color,1/30s,30IRE)

0Lux/F1.4(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 50m(164ft)

IR On/Off Control

Auto/ Manual

IR LEDs

2

Lens

Lens Type

Motorized

Mount Type

Board-in

Focal Length

2.7mm~13.5mm

Max. Aperture

F1.4

Angle of View

H:104°~28°, V:55°~16°

Focus Control

Motorized

Close Focus Distance

0.2m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

64m(210ft)

26m(85ft)

13m(43ft)

6m(20ft)

T

222m(728ft)

89m(292ft)

44m(144ft)

22m(72ft)

PTZ

Pan/Tilt Range

Pan:0° ~360 ° ;Tilt:0° ~78° ;Rotation:0° ~360°

Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly

IVS

Tripwire, Intrusion

Video

Compression

H.265/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

2 Streams

Resolution

4M(2688x1520)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/VGA(640×480)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 4M (1 ~ 20fps)/3M(1 ~ 25/30fps)

Sub Stream: D1(1 ~ 20/25fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265: 12K ~ 6400Kbps

H.264: 32K ~ 10240Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization(EIS)

N/A

Smart IR

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;

FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Micro SD Card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSSDMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V PoE (IEEE802.3af)(Class 0)

Power Consumption

<9.5W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Storage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

Φ122mm x 102mm(4.8’’ x4.0’’)

Net Weight

0.60Kg(1.32lb)

Gross Weight

0.71Kg(1.57lb)

*****

**

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

*****

More Information
Wired/Wireless Wired
Outdoor use Intdoor use, Outdoor use
Focal Type Fixed
Day/Night Low light
Factor Dome
Max Resolution 4 MP
