IPC-EW5541-AS- DAHUA DH-IPC-EW5541-AS 5MP WizMind IR Fisheye Network CAMERA With Heat Map and In Area No IPC-EW5541-AS

In stock
SKU
IPC-EW5541-AS
Rating:
100% of 100
$142.00

IPC-EW5541-AS

5MP WizMind IR Fisheye Network CAMERA

> 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition

> Outputs max. 5MP (2592 × 1944) @25/30 fps

> H.265 codec, high compression rate, ultra-low bit rate

> Built-in efficient IR illuminator, and the max. illumination distance: 10 m

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> 120dB WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Intelligent detection: Intrusion, tripwire, people counting in area

> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic

> 12V DC/PoE power supply, easy for installation

> Heat map for people counting. You can adjust the number of people, time threshold to generate a heat map, which can be exported.

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee,Enough stock, welcome to order

in Warehouse

IPC-EW5541-AS- DAHUA DH-IPC-EW5541-AS 5MP WizMind IR Fisheye Network CAMERA With Heat Map and In Area No IPC-EW5541-AS

IPC-EW5541-AS

5MP WizMind IR Fisheye Network CAMERA

> 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition

> Outputs max. 5MP (2592 × 1944) @25/30 fps

> H.265 codec, high compression rate, ultra-low bit rate

> Built-in efficient IR illuminator, and the max. illumination distance: 10 m

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> 120dB WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Intelligent detection: Intrusion, tripwire, people counting in area

> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic

> 12V DC/PoE power supply, easy for installation

> Heat map for people counting. You can adjust the number of people, time threshold to generate a heat map, which can be exported.

WizMind Series

 WizMind is a wide range of project-oriented products that adopt industry-leading deep learning algorithms, such as IPC, NVR, PTZ, XVR, thermal camera and software platform. Focusing on customers’ needs, WizMind provides precise and reliable and comprehensive AI products for verticals.
Precise: Powered by AI chip and deep learning algorithms, WizMind delivers accurate detection and recognition of human and vehicle, enabling users to rapidly and precisely act on what really matters. In addition, it provides accurate and effective AI search to locate targets, and various human-based data for business analysis.
Reliable: Strict component selection to ensure the high product reliability. With thorough testing of front-end cameras, back-end device and platform, WizMind injects reliability into all of its solutions.
Comprehensive: Focusing on human and vehicle, WizMind provides various applications solutions such as face recognition, privacy protection, video metadata, stereo analysis, ANPR, illegal parking, etc. Moreover, WizMind combines deep learning algorithm with thermal imaging technology to help users achieve ultra-long distance monitoring in harsh environments, highly accurate non-contact temperature measurement with only ±0.3℃ temperature difference, and early detection of fire.wizmind AI

    IPC-EW5541-AS- DAHUA DH-IPC-EW5541-AS 5MP WizMind IR Fisheye Network CAMERA With Heat Map and In Area No IPC-EW5541-AS System Overview



    WizMind is a full portfolio of solutions composed of project-oriented products including IPC, NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer's requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals

    With fisheye lens, Fisheye series camera can realize 360° surveillance, and it is widely applied in various scenes such as airports, shopping centers, banks and hotels..

    IPC-EW5541-AS- DAHUA DH-IPC-EW5541-AS 5MP WizMind IR Fisheye Network CAMERA With Heat Map and In Area No IPC-EW5541-AS Functions

    Smart H.265+ & Smart H.264+

    With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission..

    Heat Map

    Duhua heat map technology is used to display the crowd density and people appearance probability. Display the crowd status by different colors. Generally, the crowd status is the statistics of people quantity in space and time dimensions..

    In Area No.

    With advanced stereo image technology and deep leaning algorithm, Dahua In Area No. technology recognizes human targets accurately to count people in area in real-time. You can set people quantity threshold, when the number larger or smaller than the threshold, it triggers linkage. It is applicable in the scene that has limit on people quantity.

    True WDR

    With advanced Wide Dynamic Range (120dB WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.

    Protection (wide voltage)

    The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

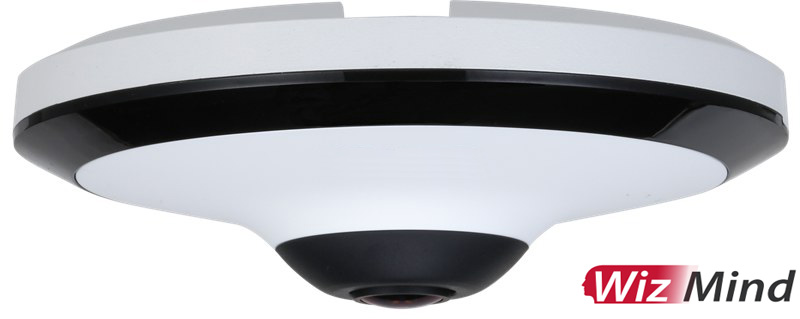

    IPC-EW5541-AS- DAHUA DH-IPC-EW5541-AS 5MP WizMind IR Fisheye Network CAMERA With Heat Map and In Area No IPC-EW5541-AS  Picture


    DAHUA DH-IPC-EW5541-AS

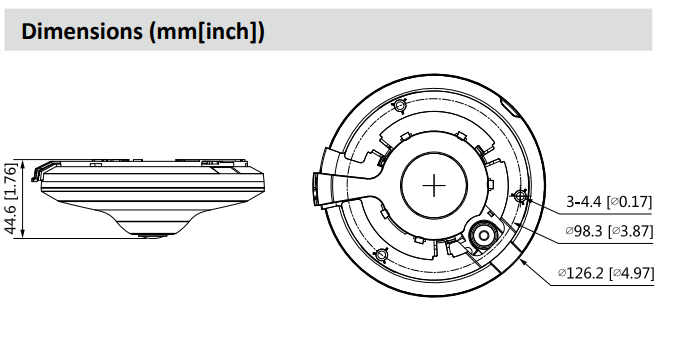

    IPC-EW5541-AS- DAHUA DH-IPC-EW5541-AS 5MP WizMind IR Fisheye Network CAMERA With Heat Map and In Area No IPC-EW5541-AS  Dimension

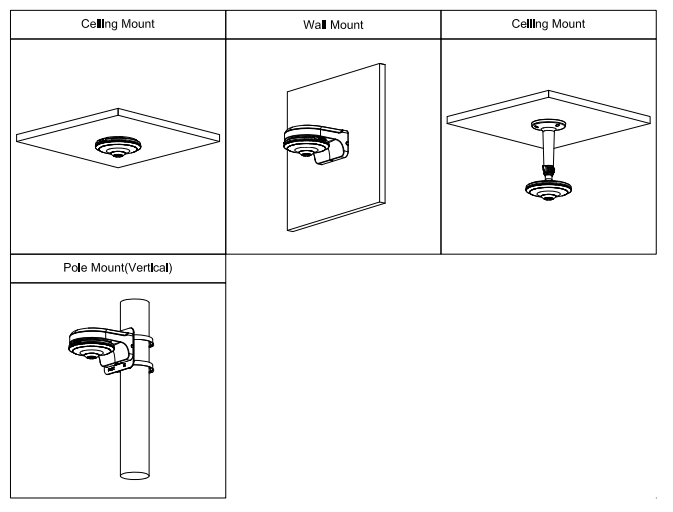

    IPC-EW5541-AS- DAHUA DH-IPC-EW5541-AS 5MP WizMind IR Fisheye Network CAMERA With Heat Map and In Area No IPC-EW5541-AS  Installation



    IPC-EW5541-AS- DAHUA DH-IPC-EW5541-AS 5MP WizMind IR Fisheye Network CAMERA With Heat Map and In Area No IPC-EW5541-AS Specification



    Technical Specifications

    **

    ***********

    Camera

    Image Sensor

    1/2.7”5Megapixel progressive CMOS

    Max. Resolution

    2592 (H) × 1944 (V)

    ROM

    128 MB

    RAM

    512 MB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual 1/3 s–1/100,000 s

    Min. Illumination

    0.006 Lux @F2.0

    S/N Ratio

    >56 dB

    Illumination Distance

    10 m (32.8 ft)

    Illuminator On/Off Control

    Auto/Manual

    Illuminator Number

    3 (IR LED)

    Lens

    Lens Type

    Fixed-focal

    Mount Type

    M12

    Focal Length

    1.4 mm

    Max. Aperture

    F2.0

    Field of View

    Horizontal: 180°
    Vertical: 180°
    Diagonal: 180°

    Iris Type

    Fixed

    Close Focus Distance

    0.2 m (0.7 ft)

    DORI Distance

    Detect

    Observe

    Recognize

    Identify

    28 m

    (91.9 ft)

    11.2 m

    (36.7 ft)

    5.6 m

    (18.4 ft)

    2.8 m

    (9.2 ft)

    Smart Event

    Heat Map

    Yes

    Professional, intelligent

    IVS (Perimeter Protection)

    Tripwire; intrusion

    People Counting

    Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas

    Intelligent Search

    Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

    Video

    Video Compression

    H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

    Smart Codec

    Smart H.265+/ Smart H.264+

    Video Frame Rate

    Main stream (2592 × 1944 @1–25/30 fps)
    sub stream (704 × 576 @1–25 fps/704 × 480 @1–30 fps)
    third stream (1280 × 720 @1–25/30 fps)

    Stream Capability

    3 streams

    Resolution

    5M (2592 × 1944); 3M (2048 × 1536); UXGA (1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

    Bit Rate Control

    CBR/VBR

    Video Bit Rate

    H.264: 3 kbps–8192 kbps
    H.265: 3 kbps–8192 kbps

    Day/Night

    Auto (ICR)/Color/B/W

    BLC

    Yes

    HLC

    Yes

    WDR

    120 dB

    Scene Self-adaptation

    Yes

    White Balance

    Auto/natural/street lamp/outdoor/manual/regional custom

    Gain Control

    Auto/Manual

    Noise Reduction

    3D DNR

    Motion Detection

    OFF/ON (4 areas)

    Region of Interest (RoI)

    Yes (4 areas)

    Smart Illumination

    Yes

    Privacy Masking

    4 areas

    Audio

    Built-in MIC

    Yes

    Audio Compression

    PCM; G.711a; G.711Mu; G726; AAC

    Alarm

    Alarm Event

    No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay alarm; people counting; people No. exception detection; safety exception

    Network

    Network

    RJ-45 (10/100 Base-T)

    SDK and API

    Yes

    Protocol

    IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP

    Interoperability

    ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P

    User/Host

    20 (Total bandwidth: 64 M)

    Storage

    Dahua Cloud; FTP; SFTP; Micro SD card (support max. 256 G); NAS

    Browser

    IE: IE8, IE9 and IE11
    Chrome
    Firefox

    Management Software

    Smart PSS; DSS; DMSS

    Mobile Phone

    IOS; Android

    Certification

    Certification

    CE-LVD: EN62368-1
    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
    FCC: 47 CFR FCC Part 15, Subpart B
    UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

    Port

    Audio Input

    1 channel (RCA port)

    Audio Output

    1 channel (RCA port)

    Alarm Input

    1 channel in: 5mA 3V–5V DC

    Alarm Output

    1 channel out: 300mA 12V DC

    Power

    Power Supply

    12V DC/PoE

    Power Consumption

    Basic power consumption: 3.6W (12V DC); 4.4W (PoE)
    Max. power consumption (H.265 + IR on+ intelligent function + WDR): 7.3W (12V DC); 8.8W (PoE)

    Environment

    Operating Conditions

    –10°C to +50°C (14°F to +122°F)/Less than 95% RH

    Strorage Conditions

    –40°C to +60°C (–40°F to +140°F)

    Structure

    Casing

    Metal + plastic

    Dimensions

    44.6 mm × Φ126.2 mm (1.8" × Φ5.0")

    Net Weight

    299 g (0.7 lb)

    Gross Weight

    441 g (1.0 lb)

    ***************

    *
