VTM416 - DAHUA DHI-VTM416 Lift Controller WITH Connection up to 1 Wiegand reader and 2 RS485 readers Support 8 cascading, up to 128 floors permission control VTM416 WITHOUT LOGO
VTM416
Lift Controller
> Connection up to 1 Wiegand reader and 2 RS485 readers
> Support 8 cascading, up to 128 floors permission control
> Alarm In/Out: 6/2
> Alarm records and log records: 30,000
> Maximum support 60 call lift modules
> All floors' permission will be released if fire alarm triggered
> Remote control via web client
> Support 8 cascading, up to 128 floors permission control
> Alarm In/Out: 6/2
> Alarm records and log records: 30,000
> Maximum support 60 call lift modules
> All floors' permission will be released if fire alarm triggered
> Remote control via web client
> without Logo,English firmware
> 100% original products manufactured by DAHUA
Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.
VTM416 - DAHUA DHI-VTM416 Lift Controller WITH Connection up to 1 Wiegand reader and 2 RS485 readers Support 8 cascading, up to 128 floors permission control VTM416 WITHOUT LOGO
VTM416
Lift Controller
> Connection up to 1 Wiegand reader and 2 RS485 readers
> Support 8 cascading, up to 128 floors permission control
> Alarm In/Out: 6/2
> Alarm records and log records: 30,000
> Maximum support 60 call lift modules
> All floors' permission will be released if fire alarm triggered
> Remote control via web client
> Support 8 cascading, up to 128 floors permission control
> Alarm In/Out: 6/2
> Alarm records and log records: 30,000
> Maximum support 60 call lift modules
> All floors' permission will be released if fire alarm triggered
> Remote control via web client
> without Logo,English firmware
> 100% original products manufactured by DAHUA
VTM416 - DAHUA DHI-VTM416 Lift Controller WITH Connection up to 1 Wiegand reader and 2 RS485 readers Support 8 cascading, up to 128 floors permission control VTM416 WITHOUT LOGO Picture
VTM416 - DAHUA DHI-VTM416 Lift Controller WITH Connection up to 1 Wiegand reader and 2 RS485 readers Support 8 cascading, up to 128 floors permission control VTM416 WITHOUT LOGO Dimension

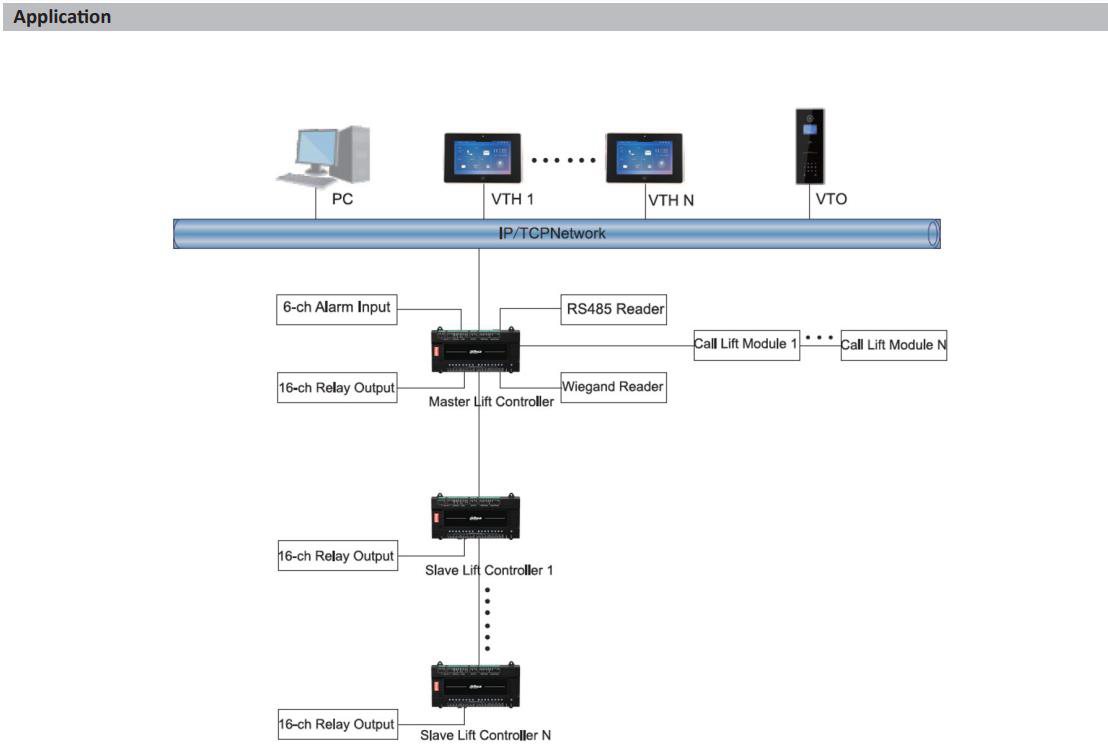

VTM416 - DAHUA DHI-VTM416 Lift Controller WITH Connection up to 1 Wiegand reader and 2 RS485 readers Support 8 cascading, up to 128 floors permission control VTM416 WITHOUT LOGO Installation
VTM416 - DAHUA DHI-VTM416 Lift Controller WITH Connection up to 1 Wiegand reader and 2 RS485 readers Support 8 cascading, up to 128 floors permission control VTM416 WITHOUT LOGO Specification
***
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
VTM416 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
ARM Cortex M4@180MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Type |
TCP/IP; RS485, and Wiegand |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Indicator |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Indicator |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Indicator |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Relay Indicator |
16 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interface |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm In |
6 ( Alarm_in_1 for fire alarm) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Out |
2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RS485 |
4 RS485 1: card reader or call lift module RS485 2: card reader or call lift module RS485 3: cascade with slave lift controller RS485 4: call lift module |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wiegand |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Relay Out |
16 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Fixed onto the wall; U-shaped guide rail |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
DC 12V, PoE(802.3af) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Temperature |
﹣20°C~+55°C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Relative Humidity |
10%~90%RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions |
210mm×116mm×29mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight |
1.0Kg |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
***
***
*
**
***
