M70-4U-E - DAHUA DH-M70-4U-E Multi-service Video Management Platform

In stock

SKU

M70-4U-E

$5,486.59

M70-4U-E

Multi-service Video Management Platform

> 19” standard 4U ATCA industry box
> Easy and flexible configuration with pluggable card module
design
> 80ch@1080P or 320ch@D1 signal encoding (full configured)
> 80ch@4K or 320ch@1080P or 720ch@720P or 1280ch@D1 signal decoding (full configured)
> Support 320ch@1080P H.265 signal decoding(full configured)
> Support 240@D1 nonstandard stream signal decoding(full configured)
> Support max 60 screens splicing
> Support analog/digital video signals input and matrix output
> Support SD/HD video signal matrix switch and output
> Support non-compressed digital signal encoding output
> 6 RJ-45 gigabit network ports for matrix control, preview and online central storage
> Support TCP/IP/RTP/RTSP/RTCP/TCP/UDP/DHCP/PPPoE and etc. network protocols
> Remote cast analog/digital video onto the video-wall
> Remote reboot/upgrade/default setting and etc. operations
> Support VGA signal automatic adjustment

>100% original products manufactured by DAHUA

please contact our email sales@icctvzone.com

Skip to the end of the images gallery

Skip to the beginning of the images gallery

M70-4U-E - DAHUA DH-M70-4U-E Multi-service Video Management Platform

M70-4U-E

Multi-service Video Management Platform

>100% original products manufactured by DAHUA

DAHUA M70-4U-E,DAHUA DH-M70-4U-E,M70-4U-E,DH-M70-4U-E,Video Management Platform,DAHUA Management Platform

M70-4U-E - DAHUA DH-M70-4U-E Multi-service Video Management Platform SYSTEM OVERVIEW

DAHUA NVR NEW UI 4.0

M70-4U-E - DAHUA DH-M70-4U-E Multi-service Video Management Platform FUNCTIONS

M70-4U-E - DAHUA DH-M70-4U-E Multi-service Video Management Platform PICTURE

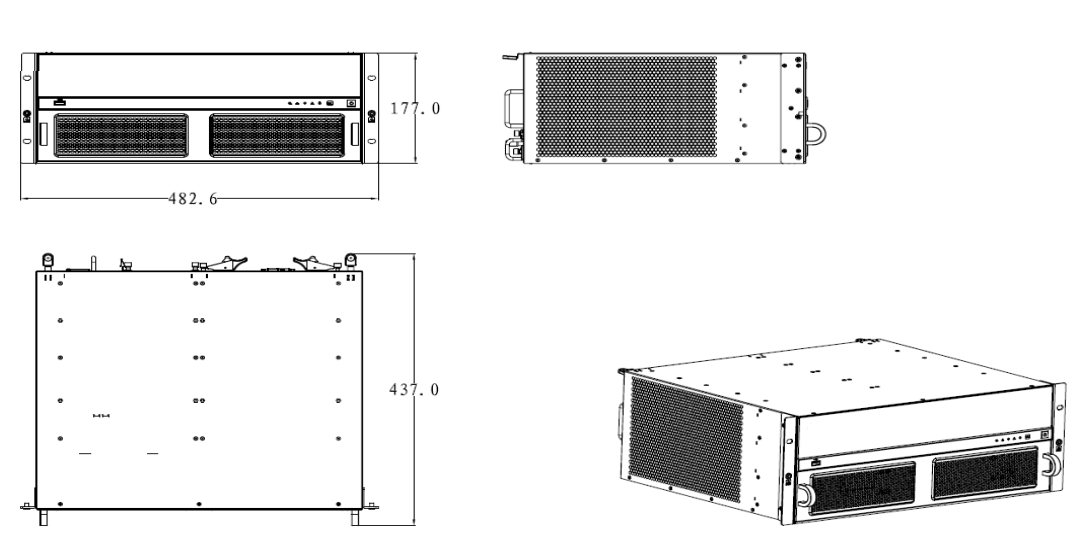

M70-4U-E - DAHUA DH-M70-4U-E Multi-service Video Management Platform DIMENSIONS

M70-4U-E - DAHUA DH-M70-4U-E Multi-service Video Management Platform REAR PANEL

M70-4U-E - DAHUA DH-M70-4U-E Multi-service Video Management Platform TECHNICAL SPECIFICATIONS

*********

Model
Model		M70-4U-E
System Parameter
Main Processor		Quad-core embedded microprocessor
Operating System		Embedded LINUX
Bus		PCI-E
Slot		12(2 Main Control Board Slot, 10 Video and Audio Function Board)
Mainframe		Power module (redundant power optional), main control board, control board, PCI-E bus rear panel, smart temperature controlled fan
Video Input Card		Max. 10
Video Output Card		Max. 10
Video Input
VIC0201UH-M70 (HDMI)	Interface		2ch HDMI1.4 support HDCP
	Access Capability		2ch@4K, downward compatibility
VEC0404HH-M70 (HDMI)	Interface		4ch HDMI
	Encoding Format		H.264/MPEG4
	Encoding Capability		4CH@1080P, support resolution: 1080P/720P/UXGA/ SXGA+/SXGA/XGA/SVGA/VGA
VEC3204FB-M70 (CVBS)	Interface		32ch BNC (1.0Vp-p, 75Ω)
	Signal Format		NTSC/PAL self-adaption
	Encoding Format		H.264/MPEG4
	Encoding Capability		32CH@D1
	Data Ports		2 RS485 ports
VEC0404HD-M70 (DVI)	Interface		4ch DVI-I (HDMI & VGA with convertor)
	Encoding Format		H.264/MPEG4
	Encoding Capability		4CH@1080P, support resolution: 1080P/720P/UXGA/SXGA+/ SXGA/XGA/SVGA/VGA

******
