SD8A840-HNF-PA

8MP 40x Starlight IR PTZ AI Network Camera

SD8A840-HNF-PA - DAHUA DH-SD8A840-HNF-PA 4K 40x Starlight IR PTZ AI Network Camera WITH Support metadata · Auto-tracking Starlight technology SD8A840-HNF-PA SYSTEM OVERVIEW

AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc. The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and more devices. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way.

Dahua PTZ AI network camera adopts advanced CNN deep learning algorithms to support face recogniton with high accuracy. This camera possess wide monitor range, PFA algorithm that can always present a clear, focused image while zooming, and smart wiper technology that supported by RainSensor.

SD8A840-HNF-PA - DAHUA DH-SD8A840-HNF-PA 4K 40x Starlight IR PTZ AI Network Camera WITH Support metadata · Auto-tracking Starlight technology SD8A840-HNF-PA FUNCTIONS

Face Recognition

Once facial features are extracted from captured faces, they are stored in a database where they can be easily searched and compared against other images. Once a successful match is found, the system outputs the result. The Dahua Face Recognition camera supports a built-in database that stores up to 10,000 facial images, helping the camera achieve realtime face capture and comparison.

Metadata

Metadata is feature attribute information extracted from a target object which can be used for data retrieval. There are four kinds of metadata supported by Dahua PTZ AI camera: human face, human body, motor vehicle and non-motor vehicle metadata. Facial information includes gender, age, glasses, masks, beards, etc. Human body information includes hat, top, top color, bottom, bottom color, bag, etc. Motor vehicle information includes plate color, type, vehicle color, sunshield, ornament, calling, seatbelt, smoking, annual inspection sticker, etc. Non-motor vehicle information includes type, color, top type, top color, people number, etc.

Perimeter Protection

Automatically filtering out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improving alarm accuracy.

Starlight Technology

Starlight Technology For challenging low-light conditions, Dahua's Starlight Ultra-low Light Technology offers the best in light sensitivity, capturing color in vivid detail, even in lighting as low as 0.001 lux. The camera uses a set of optical features to balance light throughout the scene, producing clear images in dark environments.

Auto-tracking .

This feature controls the pan, tilt and zoom actions of the camera to automatically track an object in motion, to keep it in view of the camera. Tracking can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically

PFA Technology

PFA technology has innovatively introduced new methods of judgment to ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms. PFA ensures clarity of the image throughout the process of zooming and shortens focus time. The realization of PFA technology substantially improves user experience and increases product value.

Environmental

cameras operate in extreme temperature environments, rated for use in temperatures from -40 °C to +70 °C (-40 °F to +158 °F) with 95% humidity. Subjected to rigorous dust and water immersion tests and certified to the IP67 Ingress Protection rating makes it suitable for demanding outdoor applications.

Protection

The camera allows for -5%~+10% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 8KV lightning rating provides effective protection for both the camera and its structure against lightning.

Interoperability

The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

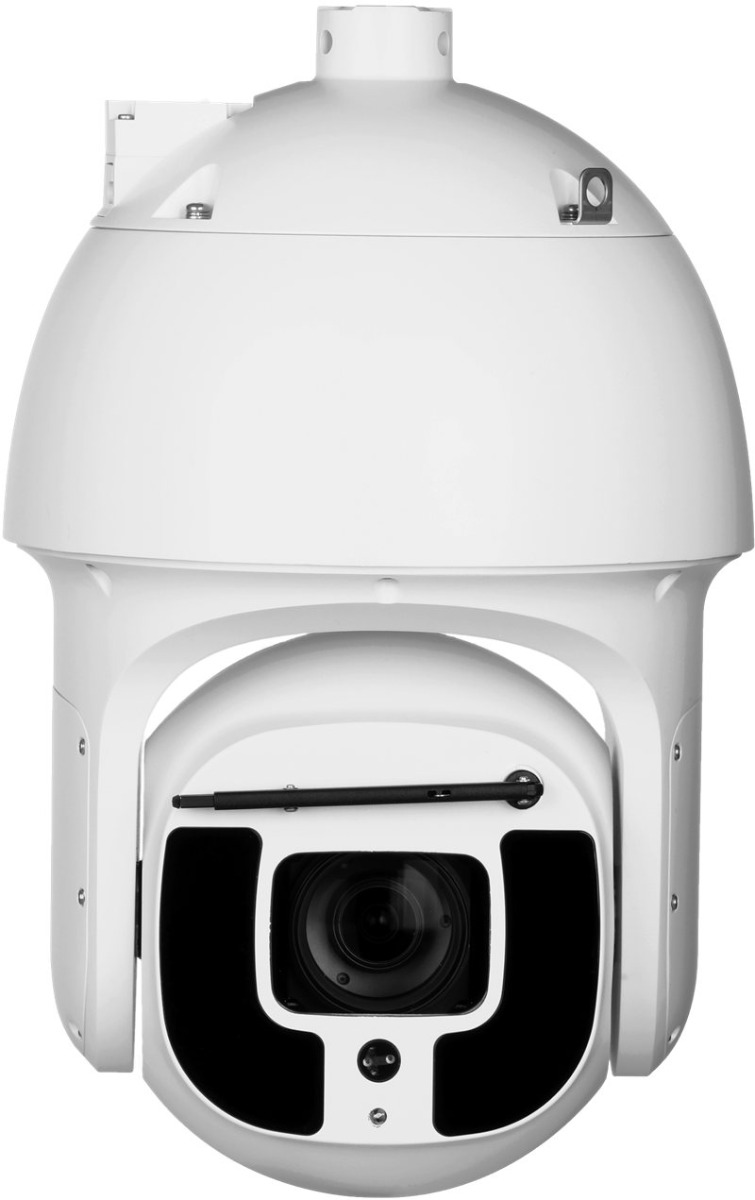

SD8A840-HNF-PA - DAHUA DH-SD8A840-HNF-PA 4K 40x Starlight IR PTZ AI Network Camera WITH Support metadata · Auto-tracking Starlight technology SD8A840-HNF-PA PICTURE

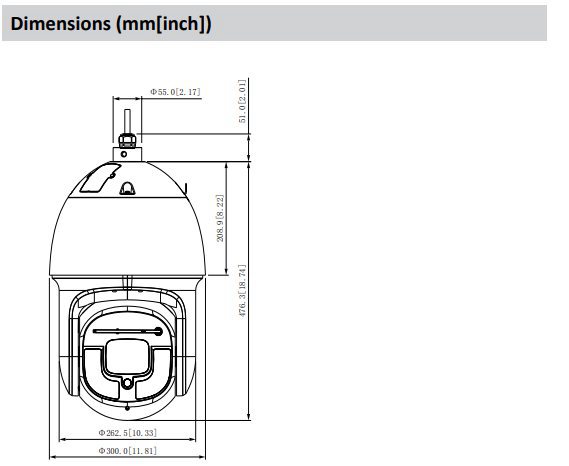

SD8A840-HNF-PA - DAHUA DH-SD8A840-HNF-PA 4K 40x Starlight IR PTZ AI Network Camera WITH Support metadata · Auto-tracking Starlight technology SD8A840-HNF-PA DIMENSIONS

SD8A840-HNF-PA - DAHUA DH-SD8A840-HNF-PA 4K 40x Starlight IR PTZ AI Network Camera WITH Support metadata · Auto-tracking Starlight technology SD8A840-HNF-PA INSTALLATION
