PFM800-E - DAHUA DH-PFM800-E 1 Channel Passive HDCVI Balun With Real-time transmission over UTP CAT5E/6 cable With female BNC connector, and pluggable screw terminal connections

In stock

SKU

PFM800-E

$5.00

PFM800-E

1 Channel Passive HDCVI Balun

>Real-time transmission over UTP CAT5E/6 cable.
>Passive, no need for power supply.
>With female BNC connector, and pluggable screw terminal connections.

> 100% original products manufactured by DAHUA

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PFM800-E - DAHUA DH-PFM800-E 1 Channel Passive HDCVI Balun With Real-time transmission over UTP CAT5E/6 cable With female BNC connector, and pluggable screw terminal connections

PFM800-E

1 Channel Passive HDCVI Balun

>Real-time transmission over UTP CAT5E/6 cable.
>Passive, no need for power supply.
>With female BNC connector, and pluggable screw terminal connections.

> 100% original products manufactured by DAHUA

PFM800-E - DAHUA DH-PFM800-E 1 Channel Passive HDCVI Balun With Real-time transmission over UTP CAT5E/6 cable With female BNC connector, and pluggable screw terminal connections OVERVIEW

HDCVI

HDCVI Camera products

DHCVI Camera

PFM800-E - DAHUA DH-PFM800-E 1 Channel Passive HDCVI Balun With Real-time transmission over UTP CAT5E/6 cable With female BNC connector, and pluggable screw terminal connections FUNCTIONS

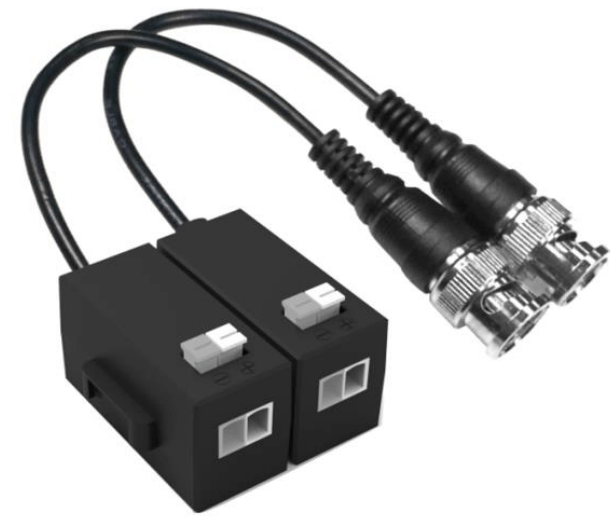

PFM800-E - DAHUA DH-PFM800-E 1 Channel Passive HDCVI Balun With Real-time transmission over UTP CAT5E/6 cable With female BNC connector, and pluggable screw terminal connections Picture

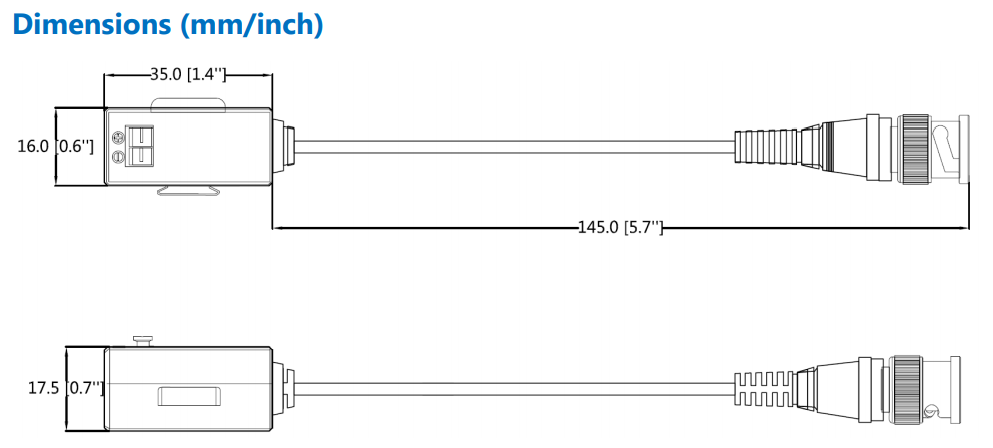

PFM800-E - DAHUA DH-PFM800-E 1 Channel Passive HDCVI Balun With Real-time transmission over UTP CAT5E/6 cable With female BNC connector, and pluggable screw terminal connections Dimension

PFM800-E - DAHUA DH-PFM800-E 1 Channel Passive HDCVI Balun With Real-time transmission over UTP CAT5E/6 cable With female BNC connector, and pluggable screw terminal connections

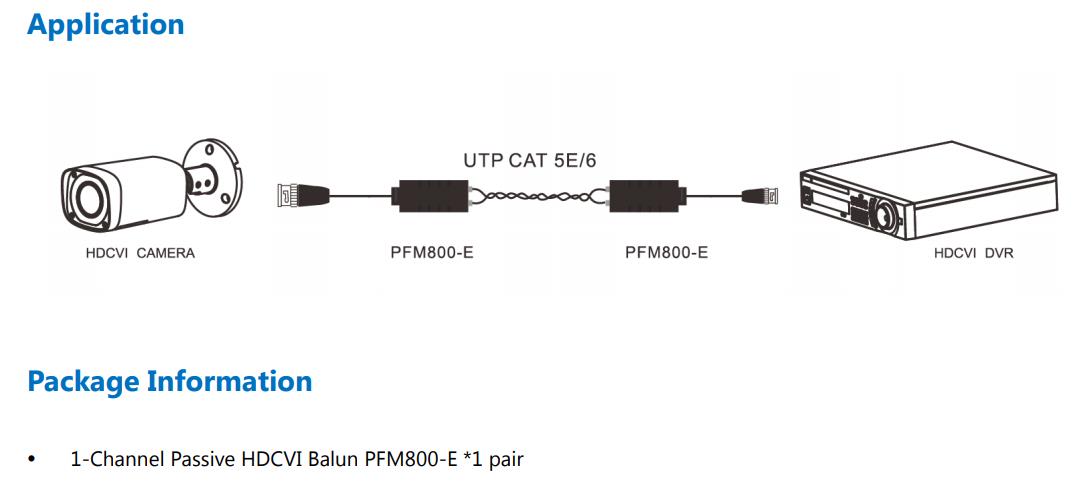

Installation

PFM800-E - DAHUA DH-PFM800-E 1 Channel Passive HDCVI Balun With Real-time transmission over UTP CAT5E/6 cable With female BNC connector, and pluggable screw terminal connections Specification

Technical Specifications

******

Model	PFM800-E
Properties
Transmission Signal	1 channel
Transmission Distance	HDCVI 720P: max.400m(1312.34ft) 1080P: max.250m(820.21ft)
Category Type	UTP CAT 5E/6
Video Transmission Properties And Port
Coaxial Video Connector	BNC-M
Twisted-pair Video Connector	Push-terminal
Compatible Format	HDCVI/AHD/TVI/CVBS
Resolution	720P/1080P
Anti-interference	＞60db
Protection
ESD	1a contact discharge electricity level 3
	1b air discharge electricity level 3
	Per: IEC61000-4-2
Coaxial Cable Connector	2KV(common-code) Per: IEC1000-4-5
UTP Cable Connector	2KV(different-code), 4KV(common-code), Per: IEC1000-4-5
Impedance
BNC Male	75 ohms
UTP Cable	100 ohms
Physical Properties
Dimension(LWH)	180mm19mm16mm(7.09”x0.75”x0.63”)
Shell	ABS
Color	Black
N.W.	42g/pair (0.09lb)
Stability
MTBF	＞10000h
Environmental
Operating Temperature	-10℃~+55℃(14℉~131℉)
Storage Temperature	-20℃~+70℃(-4℉~158℉)
Humidity	0~95%(non-condensing)
