IPC-HFW81230E-ZE - DAHUA DH-IPC-HFW81230E-ZE 12MP IR Bullet Network Camera with ePOE transmission over 800 meters Smart Codec 4.1mm ~16.4mm zoom lens IPC-HFW81230E-ZE

In stock
SKU
IPC-HFW81230E-ZE
$445.89

IPC-HFW81230E-ZE

12MP IR Bullet Network Camera

> 1/1.7” 12Megapixel progressive scan STARVISTM CMOS
> H.265&H.264 triple-stream encoding
> 20fps@12M(4000×3000),25/30fps@4K(3840×2160)
> DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 4.1mm ~16.4mm zoom lens
> Max. IR LEDs Length 50m
> Micro SD memory,IP67,IK10,PoE+

>without Logo,English firmware
>100% original products manufactured by DAHUA



The delivery time is 25 working days usually, some times can complete early, only 10-15days.

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

IPC-HFW81230E-ZE - DAHUA DH-IPC-HFW81230E-ZE 12MP IR Bullet Network Camera with ePOE transmission over 800 meters Smart Codec 4.1mm ~16.4mm zoom lens IPC-HFW81230E-ZE



IPC-HFW81230E-ZE

12MP IR Bullet Network Camera

> 1/1.7” 12Megapixel progressive scan STARVISTM CMOS
> H.265&H.264 triple-stream encoding
> 20fps@12M(4000×3000),25/30fps@4K(3840×2160)
> DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 4.1mm ~16.4mm zoom lens
> Max. IR LEDs Length 50m
> Micro SD memory,IP67,IK10,PoE+

>,English firmware
>100% original products manufactured by DAHUA



IPC-HFW81230E-ZE - DAHUA DH-IPC-HFW81230E-ZE 12MP IR Bullet Network Camera with ePOE transmission over 800 meters Smart Codec 4.1mm ~16.4mm zoom lens IPC-HFW81230E-ZE System Overview

Ultra series product adopts high performance DSP and Sony advanced image sensor technology, which can provide excellent image effects for users such as UHD resolution, starlight and super WDR etc. The series utilizes Dahua advanced software algorithm, which is able to support people counting and heat map, bringing extra business analysis value for customers; IP67, IK10 and heater compliance enables the product to be applied in a more harsh environment.

IPC-HFW81230E-ZE - DAHUA DH-IPC-HFW81230E-ZE 12MP IR Bullet Network Camera with ePOE transmission over 800 meters Smart Codec 4.1mm ~16.4mm zoom lens IPC-HFW81230E-ZE Functions

ePoE technology

The ePoE technology of Dahua, designed internally, adopts advanced 2D-PAM3 coding modulation from physical layer, and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it supports PoE and PoC power supply technology which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

4K technology

4K technology as a revolutionary breakthrough in image, which enhance the expressive image of essence, allowing users to experience the best picture quality brought about by the visual feast . For the purposes of 4K surveillance with four times the 1080P resolution, presented to the user with more details . Under the same scenario by raising the pixels , reduce the camera cost.

E-PTZ function

E- PTZ ( electronic -PTZ ( pan / tilt / zoom function ) . Is a virtual technology . Through E- PTZ function can be achieved on the local area pan, zoom and other functions . Mostly It appeared in Megapixel or more cameras.

Intelligent Video System (IVS)

camera has a built-in video analysis based on intelligent algorithms and can achieve the following:Tripwire,Intrusion,Abandoned/ Missing can timely, quickly and accurately respond to monitoring events in specific area. It enhances monitoring efficiency. At the same time, the camera can support face detection,it can quickly capture a face and upload the image to the server. In addition the camera also supports intelligent tamper detection,through dramatic changes in the scene it will send out warning information to ensure effective monitoring.

Business intelligent analysis (People counting, Heatmap)

Camera also supports more advanced intelligent features such as people counting and heat map besides basic IVS functions. These two functions can be applied to business intelligence and bring extra values to customers. It is available to acquire daily, weekly, monthly and yearly people flow via people counting and output data report. Heat map can be based on a moving object in time of space movement for analysis, find the most active area and output the report, which is to provide valuable data support for commercial applications.

Smart Scene Adaptive (SSA)

Smart Scene Adaptive (SSA) is a  self-developed intelligent image technology, the camera automatically evaluates the change in scene, in particular strong lights.In a strong backlight environment, it will automatically regulate exposure parameters to get better image quality. This can effectively address the impact of traffic lights, providing excellent video quality.

HEVC (H.265)

H.265 ITU-T VCEG is a new video coding standard. H.265 Following standard developed around the existing video coding standard H.264 , some retain the original technology , while some of the relevant technology to improve the new technology uses advanced technology to improve the relationship between the code stream , encoding quality , and the delay between algorithm complexity , optimize settings specific contents include : Improve compression efficiency , improve the robustness and error recovery capabilities, real-time to reduce the delay, reduce channel acquisition time and a random access delay , reduce complexity , etc

Environmental

With a temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments. The camera complies to an IK10 impact rating making it capable of withstanding the equivalent of 55 kg (120 lbs) of force. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications.



IPC-HFW81230E-ZE - DAHUA DH-IPC-HFW81230E-ZE 12MP IR Bullet Network Camera with ePOE transmission over 800 meters Smart Codec 4.1mm ~16.4mm zoom lens IPC-HFW81230E-ZE  Picture



DAHUA DH-IPC-HFW81230E-Z


IPC-HF81230E-Z - DAHUA IPC-HFW81230E-Z 12MP IR Bullet Network Camera DH-IPC-HFW81230E-Z

IPC-HFW81230E-ZE - DAHUA DH-IPC-HFW81230E-ZE 12MP IR Bullet Network Camera with ePOE transmission over 800 meters Smart Codec 4.1mm ~16.4mm zoom lens IPC-HFW81230E-ZE  Dimensions



DAHUA DH-IPC-HFW81230E-Z


IPC-HFW81230E-ZE - DAHUA DH-IPC-HFW81230E-ZE 12MP IR Bullet Network Camera with ePOE transmission over 800 meters Smart Codec 4.1mm ~16.4mm zoom lens IPC-HFW81230E-ZE

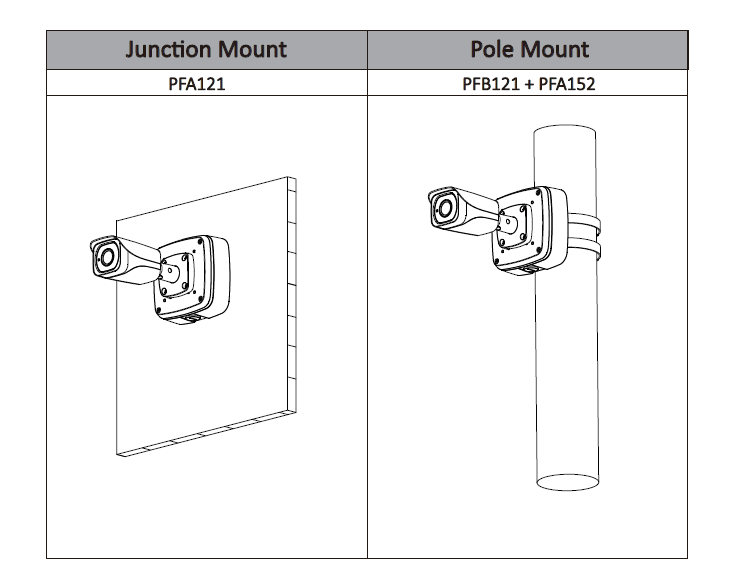

Installation


DAHUA DH-IPC-HFW81230E-ZDDAHUA DH-IPC-HFW81230E-Z

IPC-HFW81230E-ZE - DAHUA DH-IPC-HFW81230E-ZE 12MP IR Bullet Network Camera with ePOE transmission over 800 meters Smart Codec 4.1mm ~16.4mm zoom lens IPC-HFW81230E-ZE

Technical Specifications

 ******

Camera

Image Sensor

1/1.7” 12Megapixel progressive scan CMOS

Effective Pixels

4000(H)x3000(V)

RAM/ROM

1024MB/128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.01Lux/F1.53(Color,1/3s,30IRE)

0.1Lux/F1.53(Color,1/30s,30IRE)

0Lux/F1.53(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 50m(164ft)

IR On/Off Control

Auto/ Manual

IR LEDs

4

Lens

Lens Type

Motorized /Auto Iris(HALL)

Mount Type

Board-in

Focal Length

4.1~16.4mm motorized

Max. Aperture

F1.53

Angle of View

H: 105°~35°, V:77°~26°(12MP,4:3)

H: 101°~32°, V:57°~18°(8MP,16:9)

Optical Zoom

4x

Focus Control

Motorized

Predictive Focus Algorithm (PFA)

Support

Close Focus Distance

0.5m(1.64ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

115m(377ft)

46m(151ft)

23m(75ft)

11m(36ft)

T

227m(909ft)

111m(364ft)

55m(180ft)

28m(92ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚

Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection, People Counting, Heat Map

Video

Compression

H.265/H.264/H.264B/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

3 Streams

Resolution

12M(4000x3000)/ 4K(3840x2160)/ 6M(3072x2048)/ 5M(2560x1920)/ 3M(2048x1536)/ 3M(2304x1296)/ 1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480) / VGA(640x480)/CIF(352×288/342x240)

Frame Rate

Main Stream: 12M(1~20fps)/ 4K(1~25/30fps)

Sub Stream: D1 (1 ~ 25/30fps)

Third Stream: 1080P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24~ 16384Kbps H.265: 14~ 9984Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR/ SSA

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

Support

Smart IR

Support

Defog

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/G.711Mu/AAC/ G.726

Network

Ethernet

RJ-45 (100/1000Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

1 Port(For adjustment only)

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

2 channel In: 5mA 5VDC

1 channel Out: 1A 30VDC / 0.5A 50VAC

Electrical

Power Supply

DC12V, PoE+(802.3at)(Class 4)

Power Consumption

<13W

Environmental

Operating Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Storage Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

273.2mm×95.0mm×95.0mm (10.76×3.74×3.74)

Net Weight

1.12Kg (2.47lb)

Gross Weight

1.52Kg (3.35lb)

*******

********

*

****************

***

*

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

*

**************

More Information
Wired/Wireless Wired
Outdoor use Intdoor use, Outdoor use
Focal Type Motorized Zoom, Vari-Focal
Day/Night D/N IR, Day/Night, Low light
Factor Bullet
Max Resolution 12 MP
