IPC-HF8835F– DAHUA DH-IPC-HF8835F 8MP Starlight+ Box Network Camera with Starlight+ Ultra WDR (140dB) Business intelligent analysis (People counting, Heatmap) IPC-HF8835F
IPC-HF8835F
8MP Starlight+ Box Network Camera
> H.265&H.264 triple-stream encoding
> 25/30fps@4K(3840×2160)
> WDR(140dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Micro SD memory, PoE
> 100% original products manufactured by DAHUA
DAHUA original firmware, Upgradable,2 year guarantee
IPC-HF8835F– DAHUA DH-IPC-HF8835F 8MP Starlight+ Box Network Camera with Starlight+ Ultra WDR (140dB) Business intelligent analysis (People counting, Heatmap) IPC-HF8835F without logo
IPC-HF8835F
8MP Starlight+ Box Network Camera
> H.265&H.264 triple-stream encoding
> 25/30fps@4K(3840×2160)
> WDR(140dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Micro SD memory, PoE
> without Logo,English firmware
> 100% original products manufactured by DAHUA
IPC-HF8835F– DAHUA DH-IPC-HF8835F 8MP Starlight+ Box Network Camera with Starlight+ Ultra WDR (140dB) Business intelligent analysis (People counting, Heatmap) IPC-HF8835F without logo System Overview
Ultra series product adopts high performance DSP and Sony advanced image sensor technology, which can provide excellent image effects for users such as UHD resolution, starlight and super WDR etc. The series utilizes Dahua advanced software algorithm, which is able to support people counting and heat map, bringing extra business analysis value for customers; IP67, IK10 and heater compliance enables the product to be applied in a more harsh environment.
IPC-HF8835F– DAHUA DH-IPC-HF8835F 8MP Starlight+ Box Network Camera with Starlight+ Ultra WDR (140dB) Business intelligent analysis (People counting, Heatmap) IPC-HF8835F without logoFunctions
Starlight+ Technology
Featuring Dahua’s Starlight+ Technology, this camera is ideal for applications with challenging lighting conditions. Its low-light performance delivers usable video with minimal ambient light. Even in extreme low-light conditions, Starlight+ Technology is capable of delivering color images in near complete darkness (0.0005 lux).
Ultra WDR (140dB)
Standard WDR/HDR camera can provide 120dB dynamic range,However, for some scenes with wider contrast range, 120dB is slightly insufficient. By adopting the latest technology, Dahua Cameras can provide an amazing dynamic range up to140dB.
Intelligent Video System (IVS)
Dahua camera has a built-in video analysis based on intelligent algorithms and can achieve the following:Tripwire, Intrusion,Abandoned/ Missing can timely, quickly and accurately respond to monitoring events in specific area. It enhances monitoring efficiency. At the same time, the camera can support face detection, it can quickly capture a face and upload the image to the server. In addition the camera also supports intelligent tamper detection,through dramatic changes in the scene it will send out warning information to ensure effective monitoring.
Business intelligent analysis (People counting, Heatmap)
Camera also supports more advanced intelligent features such as people counting and heat map besides basic IVS functions. These two functions can be applied to business intelligence and bring extra values to customers. It is available to acquire daily, weekly, monthly and yearly people flow via people counting and output data report. Heat map can be based on a moving object in time of space movement for analysis, find the most active area and output the report, which is to provide valuable data support for commercial applications.
Smart Scene Adaptive (SSA)
Smart Scene Adaptive (SSA) is a Dahua self-developed intelligent image technology, the camera automatically evaluates the change in scene, in particular strong lights.In a strong backlight environment, it will automatically regulate exposure parameters to get better image quality. This can effectively address the impact of traffic lights, providing excellent video quality.
Smart H.265+
Deliver high quality video without straining the network, Smart H.265+ is the optimized implementation of H.265. The Smart H.265+ encoding technology includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing saving of up to 70% of bandwidth and storage when compared with standard H.265.

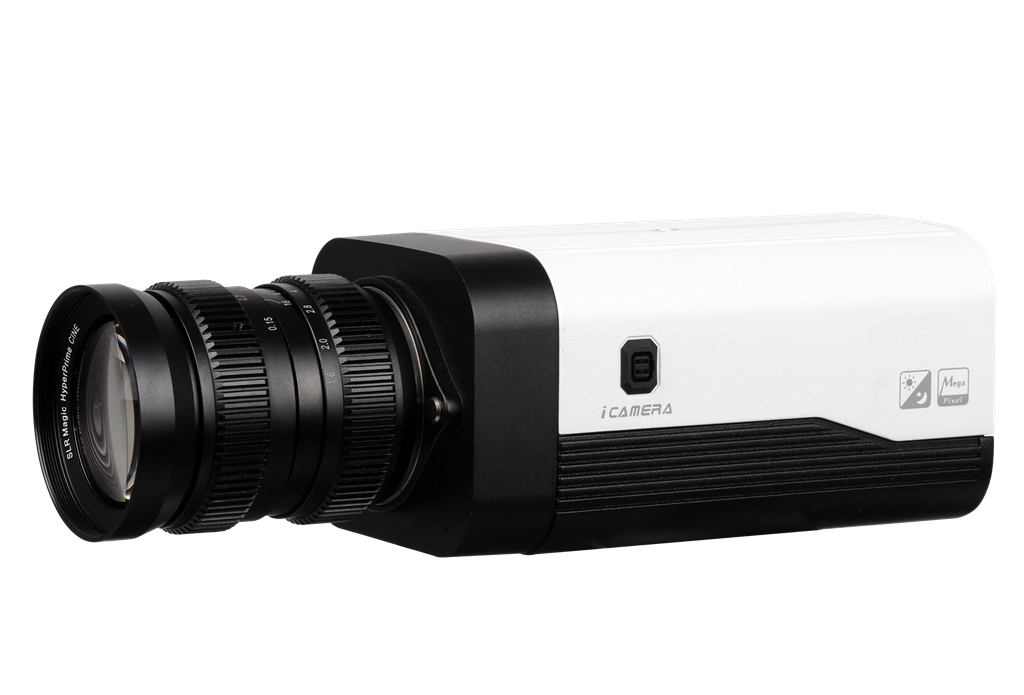

IPC-HF8835F– DAHUA DH-IPC-HF8835F 8MP Starlight+ Box Network Camera with Starlight+ Ultra WDR (140dB) Business intelligent analysis (People counting, Heatmap) IPC-HF8835F without logo Picture

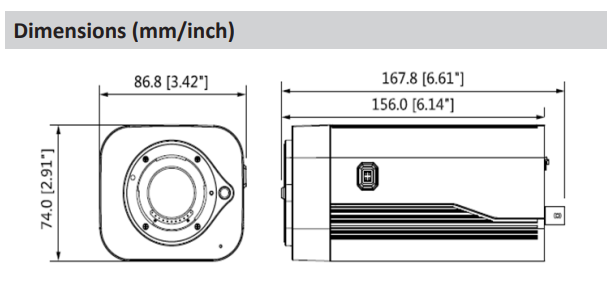

IPC-HF8835F– DAHUA DH-IPC-HF8835F 8MP Starlight+ Box Network Camera with Starlight+ Ultra WDR (140dB) Business intelligent analysis (People counting, Heatmap) IPC-HF8835F without logo Dimension

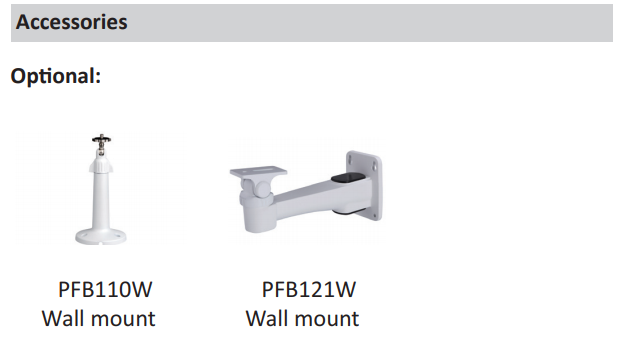

IPC-HF8835F– DAHUA DH-IPC-HF8835F 8MP Starlight+ Box Network Camera with Starlight+ Ultra WDR (140dB) Business intelligent analysis (People counting, Heatmap) IPC-HF8835F without logo Installation
IPC-HF8835F– DAHUA DH-IPC-HF8835F 8MP Starlight+ Box Network Camera with Starlight+ Ultra WDR (140dB) Business intelligent analysis (People counting, Heatmap) IPC-HF8835F without logo Specification
Technical Specifications
******
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
4/3” 8Megapixel progressive scan CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels |
3840(H)x2160(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM/ROM |
2048MB/4096MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Minimum Illumination |
0.0005Lux/F0.95 (Color,1/3s,30IRE) 0.003Lux/F0.95 (Color,1/30s,30IRE) 0.0003Lux/F0.95 (B/W,1/3s,30IRE) 0.002Lux/F0.95 (B/W,1/30s,30IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
More than 50dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR Distance |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR On/Off Control |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR LEDs |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount Type |
M43 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle of View |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Zoom |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focus Control |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS |
Tripwire, Intrusion, Object Abandoned/Missing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Advanced Intelligent Functions |
Face Detection, People Counting, Heat Map |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression |
H.265+/H.265/H.264+/H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Capability |
3 Streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
4K(3840x2160)/ 6M(3072x2048)/ 5M(2560x1920)/ 3M(2048x1536)/ 3M(2304x1296)/ 1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480) / VGA(640x480)/ CIF(352×288/342x240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Rate |
Main Stream: 4K(1~25/30fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sub Stream: D1 (1 ~ 25/30fps) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Third Stream: 1080P(1~25/30fps) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control |
CBR/VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate |
H.264: 32~ 16384Kbps H.265: 12~ 9984Kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
Auto(ICR) / Color / B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC Mode |
BLC / HLC / WDR(140dB)/ SSA |
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
3D DNR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detetion |
Off / On (4 Zone, Rectangle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest |
Off / On (4 Zone) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Image Stabilization (EIS) |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart IR |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Zoom |
16x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flip |
0°/90°/180°/270° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror |
Off / On |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking |
Off / On (4 Area, Rectangle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression |
G.711a/ G.711Mu/ AAC/ G.726 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet |
RJ-45 (100/1000Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol |
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF, PSIA, CGI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Method |
Unicast / Multicast |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. User Access |
10 Users/20 Users |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Edge Storage |
NAS Local PC for instant recording Mirco SD card 128GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Web Viewer |
IE, Chrome, Firefox, Safari |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software |
Smart PSS, DSS, Easy4ip |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Phone |
IOS, Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interface |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Interface |
1 port(BNC,1Vp-p,75Ω) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Interface |
2/1 channel In/Out, 1 Built-in Mic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS485 |
1 port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
2 channel In: 5mA 5VDC 2 channel Out: 1A 30VDC / 0.5A 50VAC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electrical |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
DC12V, AC24V, PoE(802.3af)(Class 0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
< 10.5W |
Environmental |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Strorage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ingress Protection |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vandal Resistance |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
167.8mm×86.8mm×74.0mm (6.61”×3.42”×2.91”) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.81Kg (1.78lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.97 (2.13lb) |
*********
**
***
*****
********
***
*
*
******
Wired/Wireless | Wired |
---|---|
Outdoor use | Hosing required |
Focal Type | Lens not included |
Day/Night | Day/Night |
Factor | Box |
Max Resolution | 8 MP |
