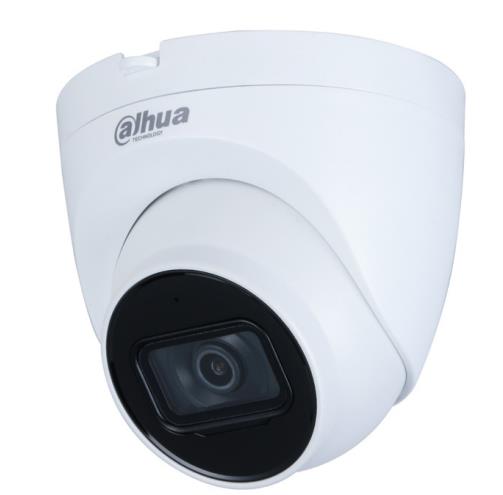

IPC-HDW2431T-AS-S2 -DAHUA DH-IPC-HDW2431T-AS-S2 4MP Lite IR Fixed-focal Eyeball Network Camera With AI H.265+ IPC-HDW2431T-AS-S2

In stock

SKU

BVDH-IPC-HDW2431T-AS-S2

Be the first to review this product

$68.89

PAL/NTSC

Lens

Qty

IPC-HDBW2231E-S-S2

2MP WDR IR Mini Dome Network Camera

> 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition

> Outputs 2MP (1920 × 1080) @ 25/30 fps

> H.265 codec, high compression rate, ultra-low bit rate

> Built-in IR LED, max IR distance: 30 m

> ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Intelligent detection: Intrusion, tripwire · Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection

> Supports max. 256 GB Micro SD card

> 12V DC/PoE power support

> IP67, IK10 protection grade

>dahua Logo,English firmware

>100% original products manufactured by DAHUA

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee,

Enough stock, welcome to order

Skip to the end of the images gallery

Skip to the beginning of the images gallery

IPC-HDW2431T-AS-S2 -DAHUA DH-IPC-HDW2431T-AS-S2 4MP Lite IR Fixed-focal Eyeball Network Camera With AI H.265+ IPC-HDW2431T-AS-S2

IPC-HDBW2231E-S-S2

2MP WDR IR Mini Dome Network Camera

> 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition

> Outputs 2MP (1920 × 1080) @ 25/30 fps

> H.265 codec, high compression rate, ultra-low bit rate

> Built-in IR LED, max IR distance: 30 m

> ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Supports max. 256 GB Micro SD card

> 12V DC/PoE power support

> IP67, IK10 protection grade

>dahua Logo,English firmware

>100% original products manufactured by DAHUA

IPC-HDW2431T-AS-S2 -DAHUA DH-IPC-HDW2431T-AS-S2 4MP Lite IR Fixed-focal Eyeball Network Camera With AI H.265+ IPC-HDW2431T-AS-S2 System Overview

With updraded H.265 encoding technology, Dahua Lite series camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colorful image in the environment of low illumination. It supports SD card storage, waterproof function, dust-proof function and tamper-proof function, complying to the standards of IP67 and IK10.

DAHUA Smart Shop solution

IPC-HDW2431T-AS-S2 -DAHUA DH-IPC-HDW2431T-AS-S2 4MP Lite IR Fixed-focal Eyeball Network Camera With AI H.265+ IPC-HDW2431T-AS-S2 Functions

Smart (H.265+ & H.264+)

Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.

Wide dynamic range (WDR)

adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back-light environment, bright region and dark region with strong light source, you can also get clear images.

Starlight

Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee the good image effect

starlight Cyber Security

Dahua network camera is equipped with a series of key security technologies, such as security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, which improve its security defense and data protection, and prevent malicious programs from invading the device.

Intelligent Video Analysis (IVS)

With advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion and so on.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

IPC-HDW2431T-AS-S2 -DAHUA DH-IPC-HDW2431T-AS-S2 4MP Lite IR Fixed-focal Eyeball Network Camera With AI H.265+ IPC-HDW2431T-AS-S2 Picture

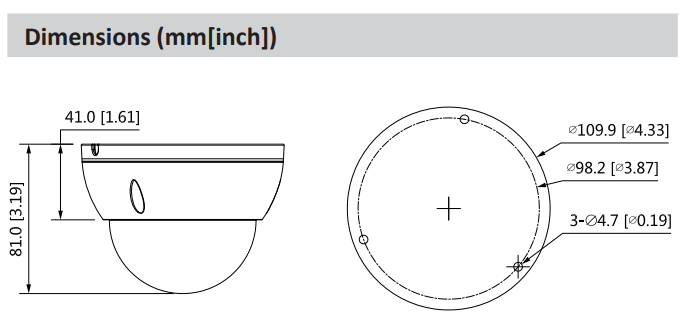

IPC-HDW2431T-AS-S2 -DAHUA DH-IPC-HDW2431T-AS-S2 4MP Lite IR Fixed-focal Eyeball Network Camera With AI H.265+ IPC-HDW2431T-AS-S2 Dimensions

DAHUA DH-IPC-HDBW2231E-S-S2

IPC-HDW2431T-AS-S2 -DAHUA DH-IPC-HDW2431T-AS-S2 4MP Lite IR Fixed-focal Eyeball Network Camera With AI H.265+ IPC-HDW2431T-AS-S2 Installation

DAHUA DH-IPC-HDBW2231E-S-S2

IPC-HDW2431T-AS-S2 -DAHUA DH-IPC-HDW2431T-AS-S2 4MP Lite IR Fixed-focal Eyeball Network Camera With AI H.265+ IPC-HDW2431T-AS-S2 Technical Specifications

******

Camera
Image Sensor	1/3” 4Megapixel progressive CMOS
Max. Resolution	2688 (H) × 1520 (V)
ROM	128 MB
RAM	128 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100000 s
Min. Illumination	0.008 Lux @ F1.6
S/N Ratio	>56 dB
Illumination Distance	30 m (98.43 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	2 (IR LED)
Pan/Tilt/Rotation Range	Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Mount Type	M12
Focal Length	2.8 mm 3.6 mm
Max. Aperture	F1.6 F1.6
Field of View	2.8 mm: Horizontal 102.0° × Vertical 55.0° × Diagonal 121.0° 3.6 mm : Horizontal 84.0° × Vertical 45.0° × Diagonal 100.0°
Iris Type	Fixed
Close Focus Distance	2.8 mm: 0.9 m (2.95 ft) 3.6 mm: 1.6 m (3.61 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	2.8 mm	56 m (183.73 ft)	22.4 m (73.49 ft)	11.2 m (36.75 ft)	5.6 m (18.37 ft)
	3.6 mm	80 m (262.47 ft)	32.0 m (104.99 ft)	16.0 m (52.49 ft)	8.0 m (26.25 ft)
Smart event
IVS	Tripwire; intrusion
Video
Video Compression	H.265; H.264; H.264B; MJPEG(only supported by sub stream)
Smart Codec	Smart H.265+/ Smart H.264+
Video Frame Rate	Main stream: 2688 × 1520 (1 fps-20 fps) 2560 × 1440 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps)
Stream Capability	2 streams
Resolution	2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control	Auto/Manual
Noise Reduction	3D NR
Motion Detection	Disable/Enable (4 areas, rectangle)
Region of Interest(RoI)	Yes (4 areas)
Smart Illumination	Yes
Image Rotation	0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution.)
Mirror	Yes
Privacy Masking	4 areas
Audio
Built-in MIC	Yes
Audio Compression	G.711A; G.711Mu; G.726
Alarm
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception
Network
Network	RJ-45 (10/100 Base-T)
SDK and API	Yes
Cyber Security	Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host	20
Storage	FTP; Micro SD card (support max. 256 G); NAS; SFTP
Browser	IE Google Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Phone	IOS; Android
Certification
Certifications	CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply	12V DC/PoE
Power Consumption	Basic power consumption: 2.1W (12V DC), 2.5W (POE) Max power consumption (H.265, Max resolution, Max stream, WDR, IR full intensity, IVS): 5.7W (12V DC), 6.6W (POE)
Environment
Operating Temperature	-40°C to +60°C (-40°F to +140°F)
Operating Humidity	≤95%
Storage Temperature	-40°C to +60°C (-40°F to +140°F)
Storage Humidity	≤95%
Protection	IP67
Structure
Casing	Metal + Plastic
Dimensions	100.9 mm × Φ109.9 mm (3.97" × Φ4.33")
Net Weight	0.39 kg (0.86 lb)
Gross Weight	0.52 kg (1.15 lb)

************

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

***********

More Information
Wired/Wireless	Wired
Outdoor use	Outdoor use
Focal Type	Fixed
Day/Night	Low light
Factor	Dome
Max Resolution	4 MP
