IPC-HDBW2431F-AS-S2 - DAHUA DH-IPC-HDBW2431F-AS-S2 4MP Lite IR Fixed-focal Dome Network Camera Intelligent Video Analysis (IVS) IPC-HDBW2431F-AS-S2

In stock
SKU
DH-IPC-HDBW2431F-AS-S2
$96.52

IPC-HDBW2431F-AS-S2

4MP Lite IR Fixed-focal Dome Network Camera

> 4MP, 1/3” CMOS image sensor, low illuminance, high image definition

> Outputs max. 4MP (2688 × 1520) @20 fps,and supports 2560 × 1440 (2560 × 1440) @25/30 fps

> H.265 codec, high compression rate, ultra-low bit rate

> Built-in IR LED, max. IR distance: 30 m

> RoI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Intelligent detection: Intrusion, tripwire

> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; built-in Mic; supports max. 256 GB Micro SD card

> 12V DC/PoE power supply

> IP67, IK10 protection

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee,Enough stock, welcome to order

in Warehouse

IPC-HDBW2431F-AS-S2 - DAHUA DH-IPC-HDBW2431F-AS-S2 4MP Lite IR Fixed-focal Dome Network Camera Intelligent Video Analysis (IVS) IPC-HDBW2431F-AS-S2

4MP Lite IR Fixed-focal Dome Network Camera

> 4MP, 1/3” CMOS image sensor, low illuminance, high image definition

> Outputs max. 4MP (2688 × 1520) @20 fps,and supports 2560 × 1440 (2560 × 1440) @25/30 fps

> H.265 codec, high compression rate, ultra-low bit rate

> Built-in IR LED, max. IR distance: 30 m

> RoI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Intelligent detection: Intrusion, tripwire

> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; built-in Mic; supports max. 256 GB Micro SD card

> 12V DC/PoE power supply

> IP67, IK10 protection

IPC-HDBW2431F-AS-S2 - DAHUA DH-IPC-HDBW2431F-AS-S2 4MP Lite IR Fixed-focal Dome Network Camera Intelligent Video Analysis (IVS) IPC-HDBW2431F-AS-S2 System Overview



With updraded H.265 encoding technology, Dahua Lite series camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colorful image in the environment of low illumination. It supports SD card storage, waterproof function, dust-proof function and tamper-proof function, complying to the standards of IP67 and IK10.

DAHUA Smart Shop solution

IPC-HDBW2431F-AS-S2 - DAHUA DH-IPC-HDBW2431F-AS-S2 4MP Lite IR Fixed-focal Dome Network Camera Intelligent Video Analysis (IVS) IPC-HDBW2431F-AS-S2 Functions

Smart (H.265+ & H.264+)

Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.

Wide dynamic range (WDR)

adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back-light environment, bright region and dark region with strong light source, you can also get clear images.

Starlight

Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee the good image effect

starlightIntelligent Video Analysis (IVS)

With advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion and so on.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

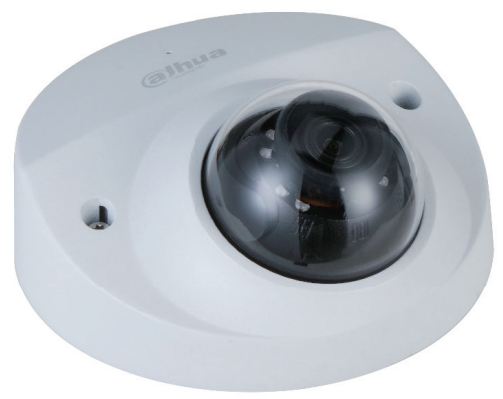

IPC-HDBW2431F-AS-S2 - DAHUA DH-IPC-HDBW2431F-AS-S2 4MP Lite IR Fixed-focal Dome Network Camera Intelligent Video Analysis (IVS) IPC-HDBW2431F-AS-S2 Picture



DAHUA DH-IPC-HDBW2431F-AS-S2

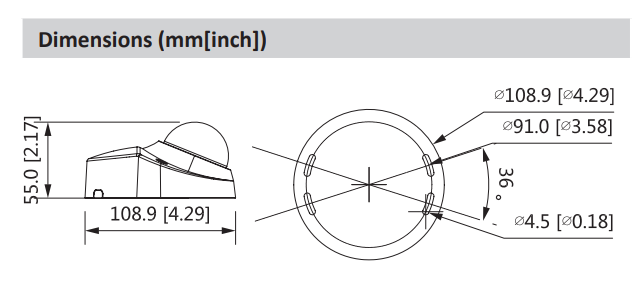

IPC-HDBW2431F-AS-S2 - DAHUA DH-IPC-HDBW2431F-AS-S2 4MP Lite IR Fixed-focal Dome Network Camera Intelligent Video Analysis (IVS) IPC-HDBW2431F-AS-S2  Dimensions

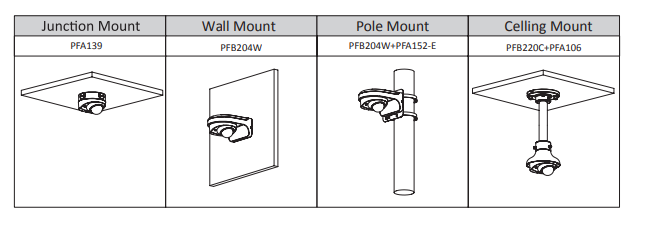

IPC-HDBW2431F-AS-S2 - DAHUA DH-IPC-HDBW2431F-AS-S2 4MP Lite IR Fixed-focal Dome Network Camera Intelligent Video Analysis (IVS) IPC-HDBW2431F-AS-S2  Installation


IPC-HDBW2431F-AS-S2 - DAHUA DH-IPC-HDBW2431F-AS-S2 4MP Lite IR Fixed-focal Dome Network Camera Intelligent Video Analysis (IVS) IPC-HDBW2431F-AS-S2 Technical Specifications

***

Camera

Image Sensor

1/3”4Megapixel progressive CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Minimum Illumination

0.008 Lux @ F1.6

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

8 (IR LED)

Pan/Tilt/Rotation Range

Pan: –30°–30°

Tilt: 0°–80°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm
3.6 mm

Max. Aperture

F1.6
F1.6

Field of View

2.8 mm:Horizontal 102° × Vertical 55° × Diagonal 121°

3.6 mm:Horizontal 84° × Vertical 45° × Diagonal 100

Iris Type

Fixed

Close Focus Distance

2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.2 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

56.0 m

(183.7 ft)

22.4 m

(73.5 ft)

11.2 m

(36.7 ft)

5.6 m

(8.5 ft)

3.6mm

80.0 m

(262.5 ft)

32.0 m

(105.0 ft)

16.0 m

(52.5 ft)

8.0 m

(26.2 ft)

Smart Event

IVS

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG (only supported

by sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream:
2688 × 1520 (1 fps-20 fps)
2560 × 1440 (1 fps-25/30 fps)
Sub stream:
704 × 576 (1 fps-25 fps)
704 × 480 (1 fps-30 fps)

Stream Capability

2 streams

Resolution

2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with

2688 × 1520 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; security exception; local alarm

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

20

Storage

FTP; SFTP; Micro SD Card (support max. 256 GB); NAS

Browser

IE
Chrome
Firefox

Management Software

Smart PSS, DSS, DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5mA 3V–5V DC

Alarm Output

1 channel out: 300mA 12V DC

Power

Power Supply

12V DC/PoE

Power Consumption

<5.4W

Environment

Operating Temperature

–40°C to +60°C (–40°F to +140°F)/less than ≤ 95% RH

Storage Temperature

–40°C to +60°C (–40°F to +140°F)

Protection

IP67; IK10

Structure

Casing

Metal

Dimensions

55 mm × Φ108.9 mm (2.2" × Φ4.3")

Net Weight

0.38 kg (0.8 lb)

Gross Weight

0.52 kg (1.1 lb)



**

*

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

******

*

More Information
Wired/Wireless Wired
Outdoor use Intdoor use
Focal Type Fixed
Day/Night D/N IR
Factor Dome
Max Resolution 4 MP
