IPC-D2B20-L-ZS - DAHUA DH-IPC-D2B20-L-ZS 4MP IR Mini-Dome Network Camera with 2.8~12mm varifocal lens Regions of interest Image flip IPC-D2B20-L-ZS without Logo

In stock
SKU
IPC-D2B20-L-ZS
$95.00

 IPC-D2B20-L-ZS

2MP IR Mini-Dome Network Camera

> 1/2.7” 2Megapixel progressive CMOS
> H.265+ & H.265 dual-stream encoding
> 20fps@1080P(1920×1080)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8~12mm varifocal lens
> Max IR LEDs Length 30m
> Micro SD card memory, IP67, PoE

 >without Logo,English firmware
>100% original products manufactured by DAHUA




The delivery time is 25 working days .

IPC-D2B20-L-ZS - DAHUA DH-IPC-D2B20-L-ZS 4MP IR Mini-Dome Network Camera with 2.8~12mm varifocal lens Regions of interest Image flip IPC-D2B20-L-ZS without Logo

IPC-D2B20-L-ZS/ DH-IPC-D2B20-L-ZS

2MP IR Mini-Dome Network Camera

> 1/2.7” 2Megapixel progressive CMOS
> H.265+ & H.265 dual-stream encoding
> 20fps@1080P(1920×1080)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8~12mm varifocal lens
> Max IR LEDs Length 30m
> Micro SD card memory, IP67, PoE

>without Logo,English firmware
>100% original products manufactured by DAHUA




System Overview
EZ-IP is perfect for small to medium size applications like home/residential security, small retail shops, and other typical SMB applications. It offers a perfect alternative to migrate from analog to an IP system with its easy to use nature and cost effectiveness.
EZ-IP is fully in line with Dahua’s quality. Stable and reliable components are utilized and Various tests such as anti-vibration, water resistance, and aging tests are performed to ensure Dahua quality standards.
Functions
Smart Codec (H.265+ & H.264+)
Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression.
True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens
Regions of interest
Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas
Smart IR
With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDS from whiting out images as they come closer to the camera. The camera's integrated infrared illumination

provides high performance in extreme low-light environments up to 40m (131ft).
Image flip
Capturing unnecessary data such as surrounding hallway walls can increase storage requirements without any added value. The image flip feature allows the camera's image to be rotated in 90° increments for better video optimization.
Environmental
Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95% humidity.
Protection (IP67, wide voltage)
The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 2KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) .
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer

>without Logo,English firmware
>
100% original products manufactured by DAHUA - See more at: http://www.cctv-mall.com/dahua-ipc-hfw81200e-z-dahua-ipc-hfw81200e-z-4k-ultra-hd-12-megapixel-ultra-hd-network-bullet-camera-with-4-1mm-16-4mm-motorized-lens-and-poe-ip67#sthash.PYy4AcYd.dpuf

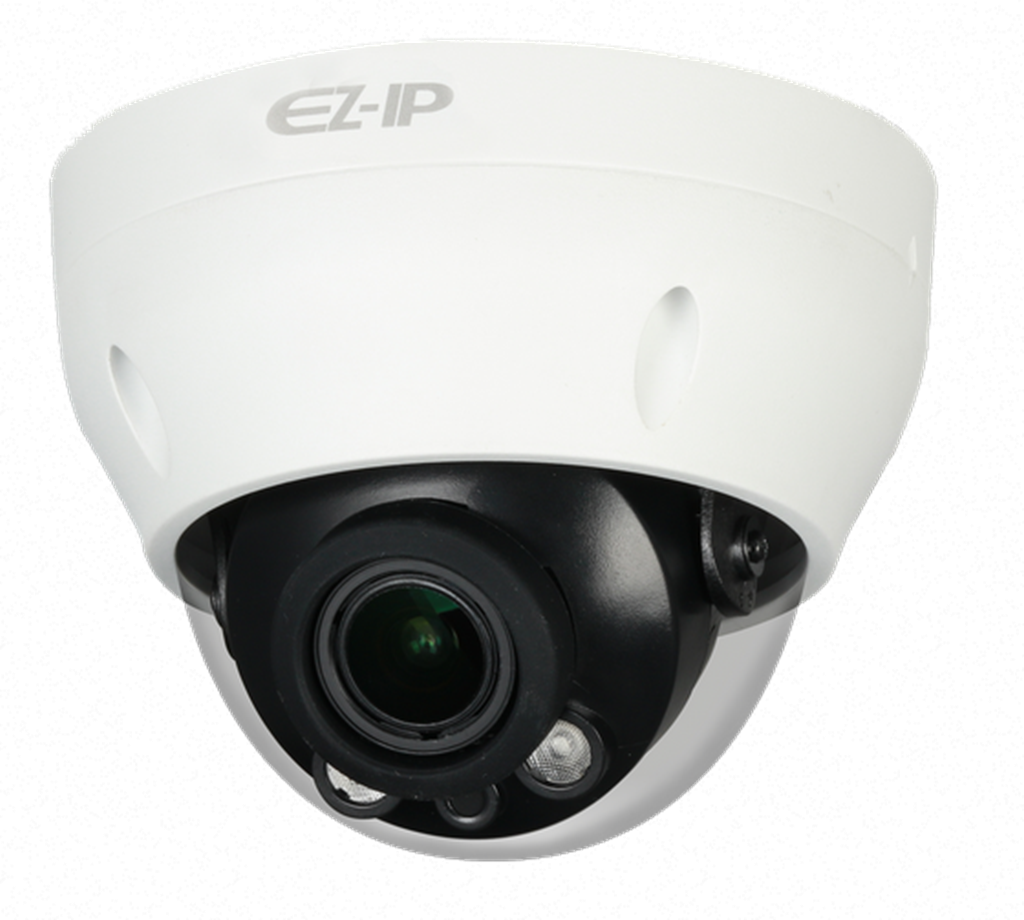

IPC-D2B20-L-ZS - DAHUA DH-IPC-D2B20-L-ZS 4MP IR Mini-Dome Network Camera with 2.8~12mm varifocal lens Regions of interest Image flip IPC-D2B20-L-ZS without Logo Picture

IPC-D2B20-ZS

 IPC-D2B20-L-ZS - DAHUA DH-IPC-D2B20-L-ZS 4MP IR Mini-Dome Network Camera with 2.8~12mm varifocal lens Regions of interest Image flip IPC-D2B20-L-ZS without Logo Dimension

DH-IPC-HFW83A1EN-Z5 3MP Starlight IR Vari-focal Bullet Network Camera Dimension

>without Logo,English firmware
>
100% original products manufactured by DAHUA - See more at: http://www.cctv-mall.com/dahua-ipc-hfw81200e-z-dahua-ipc-hfw81200e-z-4k-ultra-hd-12-megapixel-ultra-hd-network-bullet-camera-with-4-1mm-16-4mm-motorized-lens-and-poe-ip67#sthash.PYy4AcYd.dpufIPC-HFW8331E-Z  DAHUA IPC-HFW8331E-Z 3Megapixel Full HD WDR Smart Network Motorized IR Camera ApplicationDAHUA IPC-HFW8331E-Z - DAHUA IPC-HFW8331E-Z 3Megapixel Full HD WDR Smart Network Motorized IR Camera

DAHUA IPC-D2B20-L-ZS

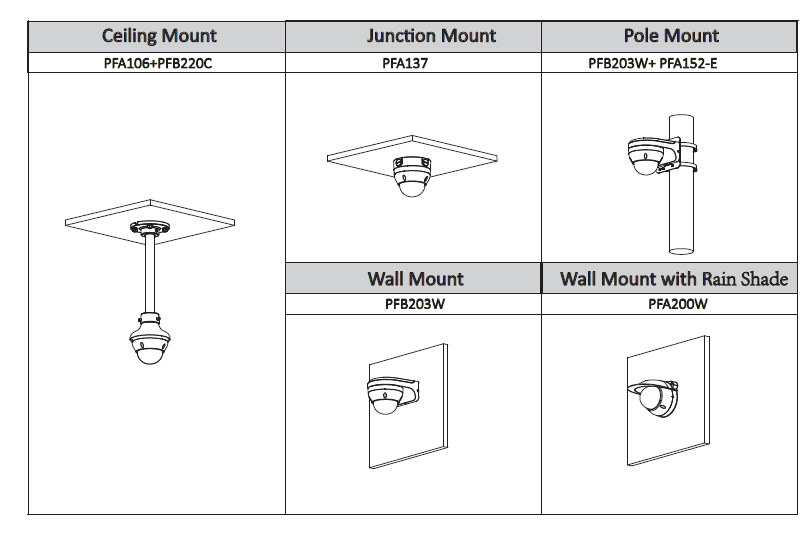

 IPC-D2B20-L-ZS - DAHUA DH-IPC-D2B20-L-ZS 4MP IR Mini-Dome Network Camera with 2.8~12mm varifocal lens Regions of interest Image flip IPC-D2B20-L-ZS without Logo Installation

DAHUA IPC-D2B20-L-ZS

IPC-D2B20-ZS

IPC-D2B20-L-ZS - DAHUA DH-IPC-D2B20-L-ZS 4MP IR Mini-Dome Network Camera with 2.8~12mm varifocal lens Regions of interest Image flip IPC-D2B20-L-ZS without Logo Specifications

DH-IPC-HFW83A1EN-Z 3MP Starlight IR Vari-focal Bullet Network Camera Specifications

Technical Specifications

 ***

Camera

Image Sensor

1/2.7” 2Megapixel progresive CMOS

Effective Pixels

1920(H)x1080(V)

RAM/ROM

64MB/16MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.05Lux/F1.8( Color,1/3s,30IRE)

0.3Lux/F1.8( Color,1/30s,30IRE)

0Lux/F1.8(IR on)

S/N Ratio

More than 40dB

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/ Manual

IR LEDs

2

Lens

Lens Type

Motorized

Mount Type

Board-in

Focal Length

2.8mm~12mm

Max. Aperture

F1.8

Angle of View

H:105°~33°, V:56°~18°

Focus Control

Motorized

Close Focus Distance

0.2m(0.66ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

44m(144.4ft)

17.6m(57.7ft)

8.8m(28.9ft)

4.4m(14.4ft)

T

133m(436.4ft)

53m(173.9ft)

27m(88.6ft)

13m(42.7ft)

PTZ

Pan/Tilt Range

Pan:0° ~355° ;Tilt:0° ~75° ;Rotation:0° ~355°

Intelligence

Event Trigger

Motion detection, Video tampering , Network disconnection , IP address conflict, Illegal Access,Storage anomaly

Video

Compression

H.265/H.264/H.264B/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

2 Streams

Resolution

1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/VGA(640×480)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 1080P(1 ~ 20fps)

Sub Stream: 1.3M(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32K~6144K

H.265: 12K~ 6144K

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;FTP;DHCP;DNS;IPV4;NTP;Multicast;ICMP;IGMP;TLS

Interoperability

ONVIF Profile S

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS(Network Attached Storage)

Local PC for instant recording

Micro SD Card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS,DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE: (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V, PoE (802.3af)(Class 0)

Power Consumption

DC12V: 1.8W, 5.8W(IR On)

PoE: 2.1W, 6.7W(IR On)

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Plastic

Dimensions

Φ122mm × 98.1mm (4.8" x3.86")

Net Weight

0.381Kg (0.84lb)

Gross Weight

0.562Kg (1.24lb)

*****

**

**

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

**

*******

Save

Save

Save

More Information
Wired/Wireless Wired
Outdoor use Intdoor use, Outdoor use
Focal Type Motorized Zoom, Vari-Focal
Day/Night D/N IR, Day/Night, Low light
Factor Bullet
