IPC-HDBW5241E-ZHE – DAHUA DH-IPC-HDBW5241E-ZHE 2MP Pro AI IR Vari-focal Dome Network Camera with starlight and smart IR ,ePOE technology IPC-HDBW5241E-ZHE

In stock
SKU
IPC-HDBW5241E-ZHE
$172.95

IPC-HDBW5241E-ZHE

2MP Pro AI IR Vari-focal Dome Network Camera

> 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS

> H.265 & H.264 triple-stream encoding

> 25/30 fps@1080P (1920 × 1080)

> WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC

> Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS

> 2.7 mm–13.5 mm motorized lens

> 1/1 Alarm in/out, 1/1 audio in/out

> Max. IR LEDs Length 40 m

> Micro SD memory, IP67, IK10, PoE+, Heater

> without Logo,English firmware
> 100% original products manufactured by DAHUA

The delivery time is 25 working days

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

IPC-HDBW5241E-ZHE – DAHUA DH-IPC-HDBW5241E-ZHE 2MP Pro AI IR Vari-focal Dome Network Camera with starlight and smart IR ,ePOE technology IPC-HDBW5241E-ZHE

IPC-HDBW5241E-ZHE

2MP Pro AI IR Vari-focal Dome Network Camera

> 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS

> H.265 & H.264 triple-stream encoding

> 25/30 fps@1080P (1920 × 1080)

> WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC

> Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS

> 2.7 mm–13.5 mm motorized lens

> 1/1 Alarm in/out, 1/1 audio in/out

> Max. IR LEDs Length 40 m

> Micro SD memory, IP67, IK10, PoE+, Heater

> ,English firmware
> 100% original products manufactured by DAHUA

IPC-HDBW5241E-ZHE – DAHUA DH-IPC-HDBW5241E-ZHE 2MP Pro AI IR Vari-focal Dome Network Camera with starlight and smart IR ,ePOE technology IPC-HDBW5241E-ZHE System Overview

Pro AI series contains Face Detection, Perimeter Protection and People Counting functions.Powered by deep-learning Artificial Intelligence algorithms, significantly improved accuracy. Meanwhile, the series features starlight and smart IR technology. This series fully protected from dust and water, certified to IP67 and vandal resistant to IK10 standard.

IPC-HDBW5241E-ZHE – DAHUA DH-IPC-HDBW5241E-ZHE 2MP Pro AI IR Vari-focal Dome Network Camera with starlight and smart IR ,ePOE technology IPC-HDBW5241E-ZHE Functions

Face Detection

Face Detection is a software application that automatically captures faces from within a digital image or a video frame from a video source. Dahua cameras use advanced deep learning algorithms and are trained by a large number of face data sources, enabling the camera to locate faces quickly and accurately from the video source and capture facial images.

Face Attributes

Through the use of deep learning algorithms to analyze facial images, Dahua cameras can extract six facial attributes from each frame, including Age, Gender,Expression(Jolly/Surprise/Normal/Rage/Sad/Disgusted/ Confused/Frightened), Glasses,Mouth Mask, Moustache & Beard. Customers can acquire data of interest via face attributes statistics.

Perimeter Protection

Perimeter Protection functions significantly improved accuracy. Perimeter Protection reduces false alarms and decreases pixel count requirements for object detection. Perimeter Protection features custom tripwires based on object type for automation in limited access areas such as pedestrian or vehicle-only zones. This combination of advanced AI analytics and real-time alerts to a desktop or to a mobile client reduces system requirements and resources resulting in greater surveillance system efficiency.

People Counting

People Counting function uses advanced image processing technology to capture depth information from within images. The camera pairs this information with deep learning algorithms to analyze and detect human bodies and track target objects in real time. The camera provides statistics for separate individuals’ entrance and exit with up to 95% counting accuracy.

Metadata

Metadata is feature attribute information extracted from a target object which can be used for data retrieval.  face detection camera can extract six facial attributes and output the metadata for analysis.

ePoE technology

ePoE technology

The ePoE technology, designed internally, adopts advanced 2D-PAM3 coding modulation from physical layer, and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it supports PoE and PoC power supply technology which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

Protection(IP67, wide voltage)

The camera allows for ±30% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) , the camera is the choice for installation in even the most unforgiving environments.

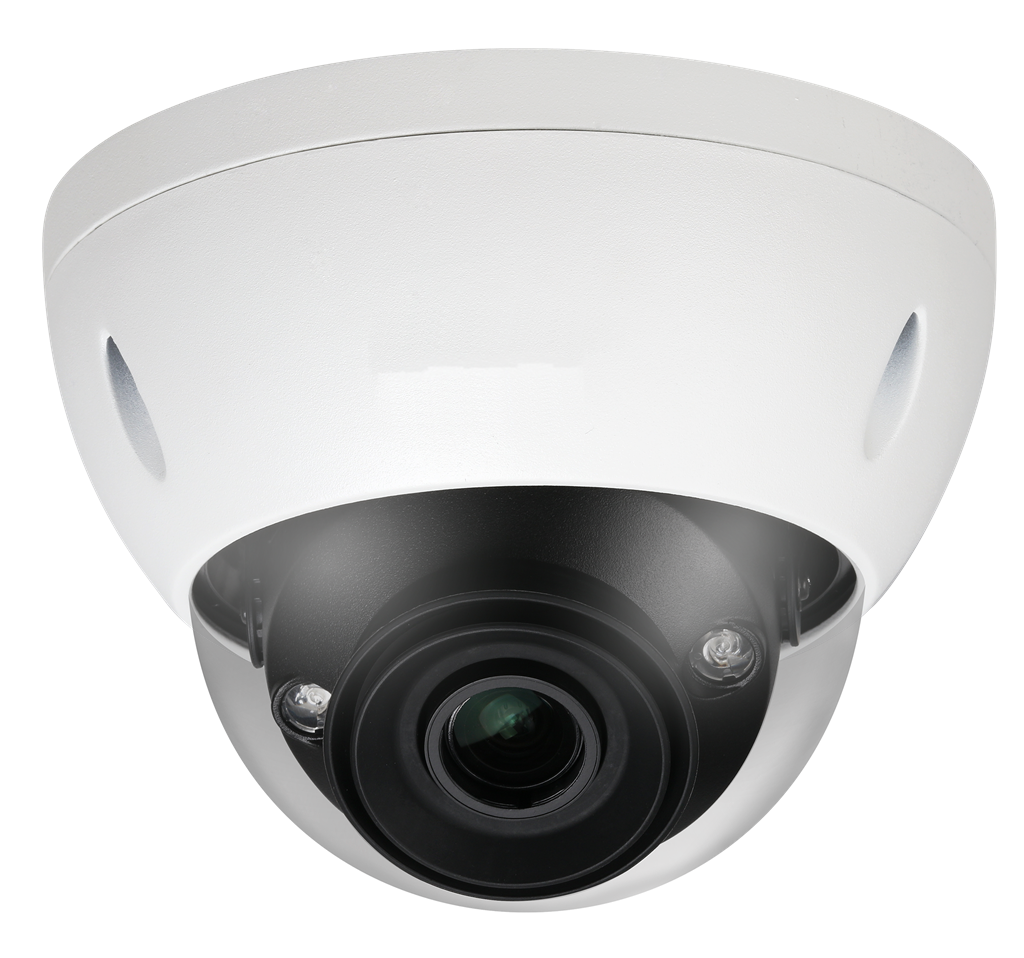

IPC-HDBW5241E-ZHE – DAHUA DH-IPC-HDBW5241E-ZHE 2MP Pro AI IR Vari-focal Dome Network Camera with starlight and smart IR ,ePOE technology IPC-HDBW5241E-ZHE  Picture


IPC-HDBW5241E-ZHE – DAHUA DH-IPC-HDBW5241E-ZHE 2MP Pro AI IR Vari-focal Dome Network Camera with starlight and smart IR ,ePOE technology IPC-HDBW5241E-ZHE without logo


IPC-HDBW5241E-ZHE – DAHUA DH-IPC-HDBW5241E-ZHE 2MP Pro AI IR Vari-focal Dome Network Camera with starlight and smart IR ,ePOE technology IPC-HDBW5241E-ZHE  Dimension

IPC-HDBW5442E-ZHE

IPC-HDBW5241E-ZHE – DAHUA DH-IPC-HDBW5241E-ZHE 2MP Pro AI IR Vari-focal Dome Network Camera with starlight and smart IR ,ePOE technology IPC-HDBW5241E-ZHE  Installation



IPC-HDBW5442E-ZHE

IPC-HDBW5442E-ZHE

IPC-HDBW5241E-ZHE – DAHUA DH-IPC-HDBW5241E-ZHE 2MP Pro AI IR Vari-focal Dome Network Camera with starlight and smart IR ,ePOE technology IPC-HDBW5241E-ZHE Specification



Technical Specifications

**

Camera

Image Sensor

1/2.8” 2Megapixel progressive scan STARVIS™ CMOS

Effective Pixels

1920 (H) × 1080 (V)

RAM/ROM

512 MB/128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3 s–1/100000 s

Minimum Illumination

0.002 Lux@F1.5

IR Distance

Distance up to 40 m (131 ft)

IR On/Off Control

Auto/Manual

IR LEDs

3

Lens

Lens Type

Motorized vari-focal

Mount Type

Board-in

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Angle of View

H: 109°–30°, V: 57°–17°

Aperture Type

Auto

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

44m(144ft)

18m(59ft)

9m(30ft)

4m(13ft)

T

146m(479ft)

58m(190ft)

29m(95ft)

15m(49ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan: 0˚–355˚; Tilt: 0˚–65˚; Rotation: 0˚–355˚

Artificial Intelligence

Face Detection

Support face image capture

Face Attributes

Support 6 kinds of face attributes extraction: Age, Gender, Expression (Jolly, Surprise, Normal, Rage, Sad, Disgusted, Confused, Frightened), Glasses, Mouth Mask, Moustache & Beard

Perimeter Protection

Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering

People Counting

Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection

General Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly

General Intelligence

Object Abandoned/Missing

Heat Map

Yes

Video

Compression

H.265,H.264,H.264B,H.264H,

MJPEG (sub stream)

Streaming Capability

3 Streams

Smart Codec

Yes

Resolution

1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)

Frame Rate

Main Stream: 1080P (1 fps–25/30 fps)

Sub Stream: D1 (1 fps–25/30 fps)

Third Stream: 1080P (1 fps–6 fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32 Kbps–8192 Kbps

H.265: 19 Kbps–7424 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC Mode

BLC/HLC/WDR (120 dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off/On (4 Zone, Rectangle)

Region of Interest

Off/On (4 Zone)

Electronic Image Stabilization (EIS)

Yes

Smart IR

Yes

Defog

Yes

Flip

0°/90°/180°/270°

Mirror

Off/On

Privacy Masking

Off/On (4 Area, Rectangle)

Audio

Compression

G.711aG.711MuG.726AACG.723

Network

Ethernet

RJ-45 (10/100 Base-T)

Protocol

IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P

Streaming Method

Unicast/Multicast

Max. User Access

20 Users

Edge Storage

NAS;FTP;SFTP

Micro SD card 256 GB

Web Viewer

IE (versions newer than IE8), Chrome,

Firefox, Safari (versions newer than Safari 12)

Management Software

Smart PSS, DSS, DMSS

Smart Phone

iOS, Android

Certifications

Certifications

CE-LVD: EN60950-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Interface

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

1 channel In: 5mA 5V DC

1 channel Out: 300mA 12V DC

Electrical

Power Supply

DC 12V (±30%), AC 24V (±30%), PoE+ (802.3at)(Class 4)

Power Consumption

<18W

Environmental

Operating Conditions

-40° C to +60° C (-40° F to +140° F)/Less than 95% RH

Storage Conditions

-30° C to +60° C (-22° F to +140° F)

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

Φ159.0 mm × 117.9 mm (6.26” × 4.64”)

Net Weight

0.95 kg (2.09 lb)

Gross Weight

1.20 kg (2.65 lb)

******************

***********

Icctvzone-wholesales DAHUA IP CamerasIcctvzone IP surveillanceIcctvzone-wholesales DAHUA NVRbest price of DAHUA camera

***

More Information
Wired/Wireless Wired
Outdoor use Intdoor use, Outdoor use
Focal Type Motorized Zoom
Day/Night Low light
Factor Dome
Max Resolution 2 MP
