PTZ19245U-IRB-N - DAHUA DH-PTZ19245U-IRB-N 2MP 45x Starlight IR Network Positioning System DH-PTZ19245U-IRB-N Powerful 48x optical zoom IR Distance up to 350m PTZ19245U-IRB-N

In stock
SKU
PTZ19245U-IRB-N
$2,750.00

PTZ19245U-IRB-N

2MP 45x Starlight IR Network Positioning System

> 1/2.8” 2Megapixels STARVIS™ CMOS
> Powerful 45x optical zoom
> Starlight technology
> H.265 Encoding
> Max. 50/60fps@1080P
> IR distance up to 350m
> NEMA 4X, IP68

>without Logo,English firmware
>100% original products manufactured by DAHUA

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

PTZ19245U-IRB-N - DAHUA DH-PTZ19245U-IRB-N 2MP 45x Starlight IR Network Positioning System DH-PTZ19245U-IRB-N Powerful 48x optical zoom IR Distance up to 350m PTZ19245U-IRB-N

PTZ19245U-IRB-N

2MP 45x Starlight IR Network Positioning System

> 1/2.8” 2Megapixels STARVIS™ CMOS
> Powerful 45x optical zoom
> Starlight technology
> H.265 Encoding
> Max. 50/60fps@1080P
> IR distance up to 350m
> NEMA 4X, IP68

>without Logo,English firmware
>100% original products manufactured by DAHUA

PTZ19245U-IRB-N - DAHUA DH-PTZ19245U-IRB-N 2MP 45x Starlight IR Network Positioning System DH-PTZ19245U-IRB-N Powerful 48x optical zoom IR Distance up to 350m PTZ19245U-IRB-N SYSTEM OVERVIEW



Featuring powerful optical zoom and accurate pan/tilt/zoom performance, this camera provides an all-in-one solution for capturing long distance video surveillance for outdoor applications. Together with infrared illumination and Starlight technology, the camera is the perfect solution for dark, lowlight applications. The series combines a day/night mechanical IR cut filter for the highest image quality in variable lighting conditions during the day, and True WDR for applications with direct sunlight or glare.

Network Positioning System

Network Positioning System

PTZ19245U-IRB-N - DAHUA DH-PTZ19245U-IRB-N 2MP 45x Starlight IR Network Positioning System DH-PTZ19245U-IRB-N Powerful 48x optical zoom IR Distance up to 350m PTZ19245U-IRB-N FUNCTIONS

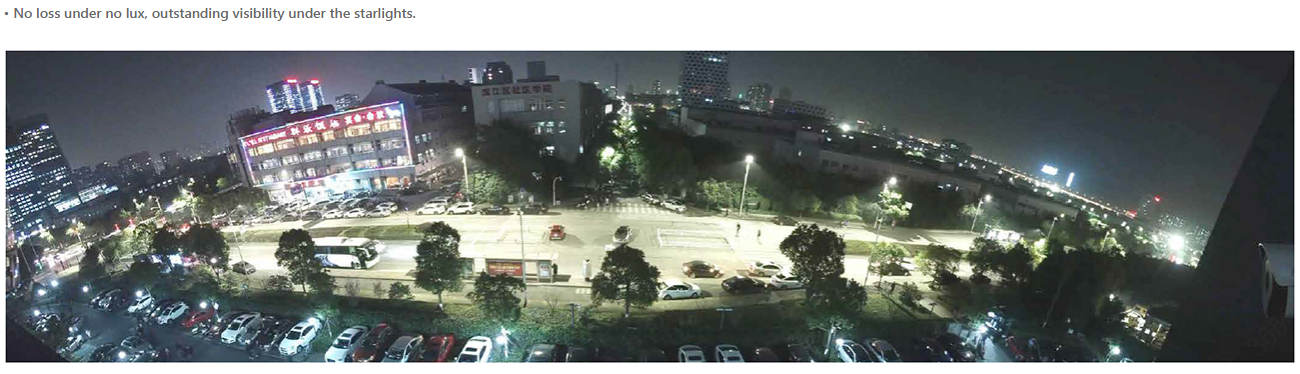

Starlight Technology

For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.001 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Starlight+ Technology

Wide Dynamic Range

The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video. Auto-tracking This feature controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. The tracking action can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically.

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

Auto-tracking

This feature controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. The tracking action can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically

Smart Wiper

With Dahua smart wiper technology, the wiper can be start/stop automatically when the build-in rain senor discerns whether it rains. The technology could offer better surveillance performance against wet weather and reduce dependence on manual operation.

PFA Technology

PFA technology has innovatively introduced new methods of judgment to ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms. PFA ensures clarity of the image throughout the process of zooming and shortens focus time. The realization of PFA technology substantially improves user experience and increases product value.

Predictive Focus Algorithm (PFA)

Predictive Focus Algorithm (PFA)

Predictive Focus Algorithm (PFA)

Environmental

Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -40 °C to +70 °C (-40 °F to +158 °F) with 95% humidity. Subjected to rigorous dust and water immersion tests and certified to the IP66 Ingress Protection rating makes it suitable for demanding outdoor applications.

Protection

The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning.

Interoperability

The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

PTZ19245U-IRB-N - DAHUA DH-PTZ19245U-IRB-N 2MP 45x Starlight IR Network Positioning System DH-PTZ19245U-IRB-N Powerful 48x optical zoom IR Distance up to 350m PTZ19245U-IRB-N PICTURE



DAHUA DH-PTZ19245U-IRB-N


PTZ19245U-IRB-N - DAHUA DH-PTZ19245U-IRB-N 2MP 45x Starlight IR Network Positioning System DH-PTZ19245U-IRB-N Powerful 48x optical zoom IR Distance up to 350m PTZ19245U-IRB-N DIMENSIONS




PTZ19245U-IRB-N - DAHUA DH-PTZ19245U-IRB-N 2MP 45x Starlight IR Network Positioning System DH-PTZ19245U-IRB-N Powerful 48x optical zoom IR Distance up to 350m PTZ19245U-IRB-N INSTALLATION


PTZ19245U-IRB-N - DAHUA DH-PTZ19245U-IRB-N 2MP 45x Starlight IR Network Positioning System DH-PTZ19245U-IRB-N Powerful 48x optical zoom IR Distance up to 350m PTZ19245U-IRB-N TECHNICAL SPECIFICATIONS

********

Camera

Image Sensor

1/2.8” STARVIS™ CMOS

Effective Pixels

1920(H) x 1080(V), 2 Megapixels

Scanning System

Progressive

Electronic Shutter Speed

1/1s~1/30,000s

Minimum Illumination

Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux@F1.6 (IR on)

S/N Ratio

More than 56dB

IR Distance

Distance up to 350m (1148ft)

IR On/Off Control

Auto/Manual

IR LEDs

8

Smart Wiper

Support

Lens

Focal Length

3.95mm~177.7mm

Max. Aperture

F1.6~ F4.95

Angle of View

H: 70.3° ~ 1.8°

Optical Zoom

45x

Focus Control

Auto/Manual

Close Focus Distance

100mm~ 1000mm

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to

pinpoint the right camera for your needs. The DORI distance is calculated based on

sensor specification and lab test result according to EN 62676-4 which defines the

criteria for Detect, Observe, Recognize and Identify respectively.

Detect

Observe

Recognize

Identify

2345m(7694ft)

938m(3077ft)

469m(1539ft)

234m(768ft)

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: 0° ~ 360° endless, effective tilt angle: -55° ~ 223°

Manual Control Speed

Pan: 0.1° ~120° /s; Tilt: 0.1° ~60° /s

Preset Speed

Pan: 120° /s; Tilt: 60° /s

Presets

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan ,Auto Scan

Speed Setup

Human-oriented focal Length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Protocol

DH-SD, Pelco-P/D (Auto recognition)

Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing,

Network disconnection, IP address conflict, Illegal Access, Storage anomaly

Auto Tracking

Support

IVS

Tripwire, Intrusion, Abandoned/Missing

Advanced Intelligent Functions

Face Detection, Heat Map

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/1.3M(1280×960)/720P(1280× 720)/

D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main stream: 1080P/1.3M/720P(1~50/60fps)

Sub stream1: D1/CIF(1 ~ 25/30fps)

Sub stream2: 1080P/1.3M/720P/D1/CIF (1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265/H.264: 448K ~ 8192Kbps

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR(120dB)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Motion Detection

Support

Region of Interest

Support

Electronic Image Stabilization (EIS)

Support

Defog

Support

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas

Audio

Compression

G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/MPEG2-Layer2

Network

Ethernet

RJ-45 (10Base-T/100Base-TX)

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,

ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP,DHCP,

DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

20 users

Edge Storage

NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

**************

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

****

More Information
Outdoor use Outdoor use
Max Resolution 2 MP
