IVSS7008- DAHUA DHI-IVSS7008 2U 8HDD Intelligent Video Surveillance Server With Max 512Mbps incoming bandwidth Face Recognition Perimeter Protection N+M Hot Standby IPC IVSS7008

In stock
SKU
IVSS7008
$2,296.86

IVSS7008

2U 8HDD Intelligent Video Surveillance Server

> Industry embedded micro-controller

> Max 512Mbps incoming bandwidth

> 128-channel IP video access

> Supports RAID 0/1/5/6/10

> 3 HDMI/2 VGA video output

>Multi language firmware

>100% original products manufactured by DAHUA

DAHUA IVSS7008,DAHUA DHI-IVSS7008,IVSS7008,DHI-IVSS7008,Wholesales DAHUA,Intelligent Video Surveillance Server,DHI-IVSS7008P,DHI-IVSS7008N

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

Can upgrade DAHUA original firmware,2 year guarantee

IVSS7008- DAHUA DHI-IVSS7008 2U 8HDD Intelligent Video Surveillance Server With Max 512Mbps incoming bandwidth Face Recognition Perimeter Protection N+M Hot Standby IPC IVSS7008 Multi language firmware

IVSS7008

2U 8HDD Intelligent Video Surveillance Server

> Industry embedded micro-controller

> Max 512Mbps incoming bandwidth

> 128-channel IP video access

> Supports RAID 0/1/5/6/10

> 3 HDMI/2 VGA video output

>Multi language firmware,English firmware

>100% original products manufactured by DAHUA

IVSS7008- DAHUA DHI-IVSS7008 2U 8HDD Intelligent Video Surveillance Server With Max 512Mbps incoming bandwidth Face Recognition Perimeter Protection N+M Hot Standby IPC IVSS7008 Multi language firmware SYSTEM OVERVIEW

.

DAHUA NVR NEW UI 4.0DAHUA NVR New ui

AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc. The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way.

Dahua IVSS goes beyond the ordinary NVR products. It is an Intelligent Video Surveillance Server that combines video management features with traditional video storage functions in one device. Besides the basic functions as a network video recorder, IVSS is integrated with features such as face detection and face recognition for different business and industrial applications. With the build-in deep learning module, IVSS series products adopt video image metadata technology based on deep learning algorithms, offering high-precision human face recognition and perimeter protection. By applying deep learning artificial intelligence, IVSS allows users to focus on what matters most, to improve event response time and help make video actionable. An all new UI design supports device operation and maintenance management, improving the value and experience of surveillance view, and serving the era of security big data.

IVSS7008- DAHUA DHI-IVSS7008 2U 8HDD Intelligent Video Surveillance Server With Max 512Mbps incoming bandwidth Face Recognition Perimeter Protection N+M Hot Standby IPC IVSS7008 Multi language firmware FUNCTIONS

Face Recognition

Supports recording faces by metadata and real-time crosscheck with incredible accuracy to figure out the face with target features. With the Regular and Stranger face mode, IVSS triggers various kinds of alarm actions for different applications.

Perimeter Protection Automatically filters out false alarms caused by animals, rustling leave sand bright lights, so as to improve alarm accuracy. Enables system to act secondary recognition for the targets.

Video Metadata

Metadata is feature attribute information extracted from a target object which can be used for data retrieval. Currently, there are four main kinds of metadata in the security industry: Human face, human body, and motor vehicle and non-motor vehicle metadata.

AI Search

Supports search by metadata of human and vehicles. Supports uploading face pictures to IVSS and compare them with recorded faces in IVSS by similarity. IVSS enables operators to quickly and easily search through multiple channels and long duration, to efficiently find out when and where a person of interest appeared.

Fisheye Dewarping

The NVR features multiple fisheye dewarping modes to make viewing video easy whether its live or during playback.

N+M Hot Standby

The highly reliable redundancy N+M Hot Standby design provides a secure, failover technique ensuring immediate backup. In the event of a system failure, the slave instantly takes over the master ensuring no data is lost.

Smart Tracking

The auto tracking PTZ feature automatically tracks a moving target throughout the camera's field of view. This function is ideal for following an object as it moves through airports, parking lots, city centers, or other applications.

ANPR

Automatic Number Plate Recognition available for convenient entrance/ exit management. This feature provides number plate recognition (working with Dahua ITC camera), number plate comparison with black/ white list, vehicle database management, and vehicle record search.

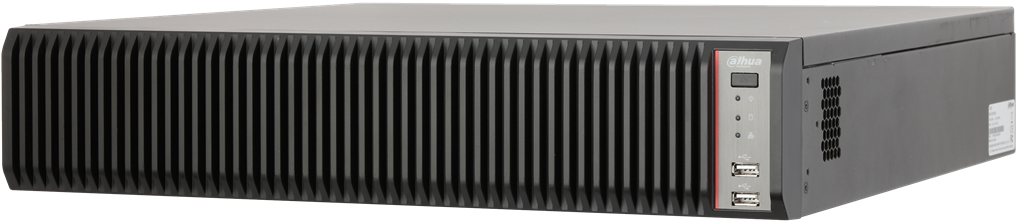

IVSS7008- DAHUA DHI-IVSS7008 2U 8HDD Intelligent Video Surveillance Server With Max 512Mbps incoming bandwidth Face Recognition Perimeter Protection N+M Hot Standby IPC IVSS7008 Multi language firmware PICTURE



DAHUA DHI-IVSS7008 DAHUA IVSS7008,DAHUA DHI-IVSS7008,IVSS7008,DHI-IVSS7008,Wholesales DAHUA,Intelligent Video Surveillance Server,DHI-IVSS7008P,DHI-IVSS7008N

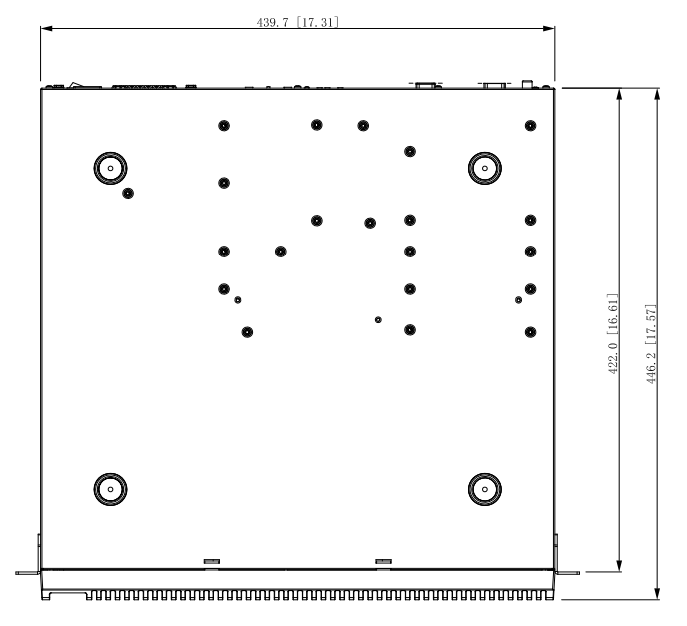

IVSS7008- DAHUA DHI-IVSS7008 2U 8HDD Intelligent Video Surveillance Server With Max 512Mbps incoming bandwidth Face Recognition Perimeter Protection N+M Hot Standby IPC IVSS7008 Multi language firmware DIMENSIONS



IVSS7008- DAHUA DHI-IVSS7008 2U 8HDD Intelligent Video Surveillance Server With Max 512Mbps incoming bandwidth Face Recognition Perimeter Protection N+M Hot Standby IPC IVSS7008 Multi language firmware REAR PANEL

IVSS7008- DAHUA DHI-IVSS7008 2U 8HDD Intelligent Video Surveillance Server With Max 512Mbps incoming bandwidth Face Recognition Perimeter Protection N+M Hot Standby IPC IVSS7008 Multi language firmware TECHNICAL SPECIFICATIONS

*******

System

Main Processor

Industry embedded micro-controller

Operating System

Embedded Linux OS

Operation Interface

WEB (PCAPP), local GUI

AI Applications

AI by Camera

Supports AI by camera function: Human face detection, human face recognition, video metadata (person/vehicle/non-motor vehicle), perimeter protection

Perimeter Protection

Perimeter Function (AI by Camera)

64-channel

Human Face Detection

Human Face Properties

Supports 6 properties: Gender, age range (6-level), glasses, expression (8 types), mouth mask, and beard

Face Detection Performance (AI by Camera) (Channel Number)

64-channel

ANPR

Plate Database Capacity

Max. 50 plate databases with 3 hundred thousand plate numbers in total
Supports black list/white list

Plate Detection Performance

32-channel

Video Metadata

Human Body Properties

Top color, top type, bottom color, bottom type, cap, bag, age, gender, and umbrella

Vehicle Properties

Supports 9 properties: Plate, plate color, vehicle body, vehicle brand, driver calling, seatbelt status, decoration object in the vehicle, and vehicle registration place

Non-motor Vehicle Properties

Supports 4 properties: Vehicle type, vehicle color, people amount, and helmet

Metadata Performance (AI by Device) (1080P) (Channel Number)

N/A

Metadata Performance (AI by Camera) (Channel Number)

32-channel

Video Parameters

Remote Connection

128

Network Bandwidth

Incoming bandwidth: 512Mbps
Recording bandwidth: 400Mbps
Outgoing bandwidth: 512Mbps

Resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF/QCIF

Decoding Capability

5-channel 12MP (20fps)/6-channel 12MP (15fps)/5-channel 8MP (30fps)/10-channel 8MP (15fps)/6-channel 6MP(30fps)/8-channel 5MP(30fps)/9-channel 5MP (25fps)/10-channel 4MP (30fps)/15-channel 4MP (20fps)/16-channel 3MP (25fps)/10-channel 1080P (60fps)/20-channel 1080P (30fps)/30-channel 720P (30fps)

Video Output

2-channel VGA output, 3-channel HDMI output, VGA 1/HDMI 1 outputs the same video source. VGA2/HDMI2 outputs the same video source. Supports 4K output

Multi-screen Display

Customized display. Max. 36-channel local live view. Max.16-channel PCAPP live view

Third-party Support

Onvif, RTSP, Sony, Panasonic, Axis, Arecont, Pelco,Canon, Samsung

Compression

Video Compression

Smart H.265+/Smart H.264+/H.265/H.264

Audio Compression

G.711A/G.711U/PCM/G726

Network

Protocol

HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P

Mobile Phone

DMSS

Interoperability

ONVIF(Profile S, T and G), CGI, SDK

Browser

Chrome, PCAPP, IE9 or higher, Firefox

Network Mode

NIC binding mode such as multiple-address mode, load balance, fault-tolerance, etc

Record Playback

Multiple-channel Playback

Max. 16-channel playback

Record Search

Search video detection/manual record/IO alarm/intelligent event/all record file

Storage Medium

Internal HDD

Backup Method

HDD, peripheral USB storage device

Playback Function

1. Play/pause/stop/fast forward/fast backward/reverse play/frame by frame play.

2. Full-screen, backup (clip/file), snapshot, digital zoom, audio on/off

Storage

HDD Group

8

RAID

RAID0/1/5/6/10

Storage Pool

N/A

Alarm

General Alarm

Motion detect, tampering, local alarm

Anomaly Alarm

IPC offline alarm, storage error, HDD full, IP conflict, MAC conflict, login lock, fan malfunction

Intelligent Alarm

Human face detection, human face recognition, video metadata (person/vehicle/non-motor vehicle),perimeter protection (intrusion, tripwire),plate recognition

Alarm Linkage

Record, picture storage (full image), local external alarm output, IPC external alarm output, access & control, audio prompt, buzzer, log, preset, email

Peripheral Interface

Audio Input

1-channel, RCA port (reserved)

Audio Output

2-channel, RCA port (reserved), speaker output, audio linkage output

Alarm Input

16-channel

Alarm Output

8-channel

Internal HDD

8 slots, SATA3.0. Max.10T/HDD

eSATA

1 port

SAS

N/A

RS-232

1 port, for debug or transparent COM data

RS-485

1 port, control peripheral PTZ and so on. Supports various protocols

USB

4 ports. 2 USB2.0 port at the front panel and 2 USB3.0 port a the rear panel

HDMI

3 ports; support 4K output

VGA

2 ports

Network

4 RJ-45 10/100/1000Mbps self-adaptive Ethernet ports

Power

1 port

PoE

N/A

General Parameters

Power Supply

100V AC–240V AC 50±2%Hz

Power Consumption

40W (Without HDD, idling)

Net Weight

8.55 Kg (18.85 lb)

Gross Weight

10.9 Kg (24.03 lb)

Dimensions

Chassis: 439.7 mm × 446.2 mm × 89 mm

(17.31 " × 17.57 " × 3.50 ")
Max. size: 481.7 mm (with hanger) × 446.2 mm × 90.8
mm (with feet mat) (18.96 " × 17.57 " × 3.57 ")

Packaging Dimensions

With Packaging: 562 mm × 599 mm × 235 mm

(22.13 " × 23.58 " × 9.25 ")
Protection box: 491 mm × 584 mm × 631 mm

(19.33 " × 22.99 " × 24.84 ")

Operating Temperature

0 °C to +45 °C (+32 °F to +113 °F)/10%RH–90% RH

Storage Temperature

0 °C to +40 °C (+32 °F to +104 °F)/30%RH–85% RH

Operating Humidity

10%–90%

Storage Humidity

30%–85%

Operating Altitude

5000 m (16404.20 ft)

Installation Mode

Desktop/rack

Certifications

CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
UL 60950-1

*******Icctvzone-wholesales DAHUA IP Cameras

Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

*

*DAHUA IVSS7008,DAHUA DHI-IVSS7008,IVSS7008,DHI-IVSS7008,Wholesales DAHUA,Intelligent Video Surveillance Server,DHI-IVSS7008P,DHI-IVSS7008N*

More Information
including hard disk NO
