NVR2104-W-4KS2 - DAHUA DHI-NVR2104-W-4KS2 4 Channel Smart 1U Lite 4K H.265 Wireless Network Video Recorder With Support two-antenna to strenthen the Wi-Fi signal 8MP Resolution Smart H.265+ NVR2104-W-4KS2

In stock
SKU
NVR2104-W-4KS2
$135.00

NVR2104/2108-W-4KS2

4 Channel Smart 1U Lite 4K H.265 Wireless Network Video Recorder

> Support IEEE802.11b/g/n(2.4GHz)
> Support two-antenna to strenthen the Wi-Fi signal
> H.265+/H.264+ codec decoding
> Max 80Mbps wire incoming bandwidth
> Max 24Mbps wireless incoming bandwidth
> Up to 1ch@8MP/4ch@1080P decoding

>Multi language firmware

>100% original products manufactured by DAHUA

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

Can upgrade DAHUA original firmware,2 year guarantee

NVR2104-W-4KS2 - DAHUA DHI-NVR2104-W-4KS2 4 Channel Smart 1U Lite 4K H.265 Wireless Network Video Recorder With Support two-antenna to strenthen the Wi-Fi signal 8MP Resolution Smart H.265+ NVR2104-W-4KS2

NVR2104/2108-W-4KS2

4 Channel Smart 1U Lite 4K H.265 Wireless Network Video Recorder

> Support IEEE802.11b/g/n(2.4GHz)
> Support two-antenna to strenthen the Wi-Fi signal
> H.265+/H.264+ codec decoding
> Max 80Mbps wire incoming bandwidth
> Max 24Mbps wireless incoming bandwidth
> Up to 1ch@8MP/4ch@1080P decoding

>Multi language firmware

>100% original products manufactured by DAHUA

NVR2104-W-4KS2 - DAHUA DHI-NVR2104-W-4KS2 4 Channel Smart 1U Lite 4K H.265 Wireless Network Video Recorder With Support two-antenna to strenthen the Wi-Fi signal 8MP Resolution Smart H.265+ NVR2104-W-4KS2 SYSTEM OVERVIEW

Dahua's third generation network video recorder embedded Wi-Fi module to support wireless AP function, support automatic detection and connection of IP camera from Dahua without any operation. In addition, it has two-antenna for a strong wireless network signal. IEEE 802.11 b/g/n (2.4G Hz) Wi-Fi covers wider and further area. Also, this NVR can support wire IP cameras accessing, making the installation more flexible. Without the limitation of the network cable, this NVR is ideal for a wide range of applicaiton such as home safety, cafe, retail, grocery, education and other industries. Combination with Dahua wireless camera makes the perfect solution for surveillance systems that work independently of video management system (VMS). It features an open architecture that supports for multi-user access and is compatible with ONVIF 2.4 protocol, enabling interoperability with IP cameras.

DAHUA NVR2104-W-4KS2,DAHUA DHI-NVR2104-W-4KS2,NVR2104-W-4KS2,DHI-NVR2104-W-4KS2,Wholesales DAHUA Network Video Recorder,DHI-NVR2104N-W-4KS2,NVR2104N-W-4KS2,WIFI Network Video Recorder,WIFI IP DVR

NVR2104-W-4KS2 - DAHUA DHI-NVR2104-W-4KS2 4 Channel Smart 1U Lite 4K H.265 Wireless Network Video Recorder With Support two-antenna to strenthen the Wi-Fi signal 8MP Resolution Smart H.265+ NVR2104-W-4KS2 FUNCTIONS

WiFi AP

With built-in Wi-Fi module, this NVR can supply Wi-Fi access point for wireless devices. Setting SSID and password to construct a dedicated wireless network, it will makes the wireless transmission more reliable and safe. Besides, IEEE802.11b/g/n(2.4G Hz) Wi-Fi covers wider and further area.

8MP Resolution

8MP resolution is a revolutionary breakthrough in image processing technology. 8MP delivers four times the resolution of standard HDTV 1080p cameras and offers superior picture quality and image details. 8MP resolution improves the clarity of a magnified scene to view or record crisp forensic video from large areas. Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

DMSS

The DMSS app is available on the iOS App Store and Google Play. It makes surveillance easy and simple, allowing you to remotely access NVR devices, view live video, receive event push notifications, and search for recorded videos from an iPhone, iPad, or Android phone at anytime from virtually anywhere.

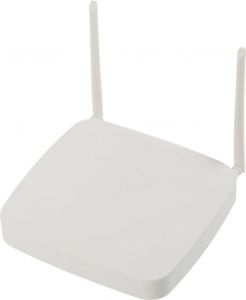

NVR2104-W-4KS2 - DAHUA DHI-NVR2104-W-4KS2 4 Channel Smart 1U Lite 4K H.265 Wireless Network Video Recorder With Support two-antenna to strenthen the Wi-Fi signal 8MP Resolution Smart H.265+ NVR2104-W-4KS2 PICTURE



DAHUA DHI-NVR2104-W-4KS2

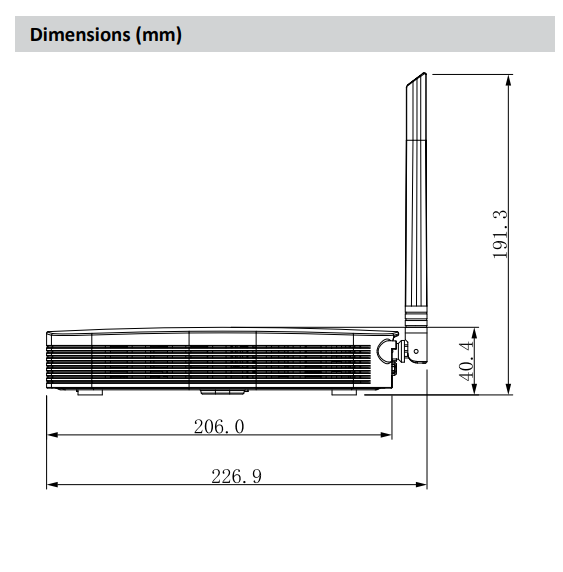

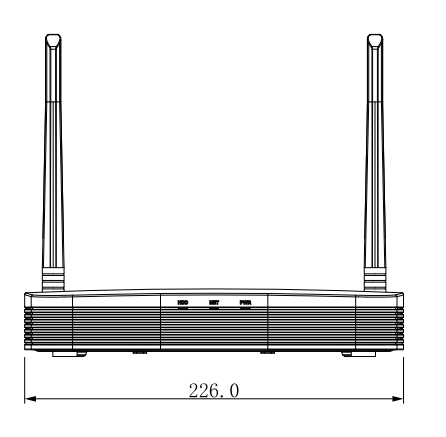

NVR2104-W-4KS2 - DAHUA DHI-NVR2104-W-4KS2 4 Channel Smart 1U Lite 4K H.265 Wireless Network Video Recorder With Support two-antenna to strenthen the Wi-Fi signal 8MP Resolution Smart H.265+ NVR2104-W-4KS2  DIMENSIONS




NVR2104-W-4KS2 - DAHUA DHI-NVR2104-W-4KS2 4 Channel Smart 1U Lite 4K H.265 Wireless Network Video Recorder With Support two-antenna to strenthen the Wi-Fi signal 8MP Resolution Smart H.265+ NVR2104-W-4KS2  Rear Panel


NVR2104-W-4KS2 - DAHUA DHI-NVR2104-W-4KS2 4 Channel Smart 1U Lite 4K H.265 Wireless Network Video Recorder With Support two-antenna to strenthen the Wi-Fi signal 8MP Resolution Smart H.265+ NVR2104-W-4KS2 TECHNICAL SPECIFICATIONS

**********

System

Main Processor

Dual-core embedded processor

Operating System

Embedded LINUX

Audio and Video

IP Camera Input

4/8 Channel

Two-way Talk

N/A

Display

Interface

1 HDMI, 1 VGA

Resolution

HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720

VGA: 1920×1080, 1280×1024, 1280×720

Decoding Capacity

1ch@8MP 30fps, 4ch@1080P 30fps

Multi-screen Display

4CH: 1/4

8CH: 1/4/8/9

OSD

Camera title, Time, Camera lock, Motion detection, Recording

Recording

Compression

H.265+/H.264+/H.265/H.264

Resolution

8MP/6MP/5MP/4MP/3MP/1080P/720P/D1&etc.

Record Rate

80Mbps

Bit Rate

16Kbps ~ 20Mbps Per Channel

Record Mode

Manual, Schedule(Regular(Continuous), MD, Stop

Record Interval

1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18),

and Tampering

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Sync Playback

1/4

Search Mode

Time /Date, MD and Exact Search

(accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Third-party Support

Third-party Support

Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more

Network

Interface

1 RJ-45 port (10/100Mbps)

Wireless

IEEE802.11b/g/n(2.4GHz)

PoE

N/A

Network Function

HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support IP camera, DVR, NVS and etc.), P2P

Optical Fiber Interface

N/A

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.4, SDK, CGI

Storage

Internal HDD

1 SATA III Port, up to 4TB capacity for each HDD

HDD Mode

Single

eSATA

N/A

Auxiliary Interface

USB

2 ports (2 USB2.0)

RS232

N/A

RS485

N/A

Electrical

Power Supply

Single, DC12V/2A

Power Consumption

<6.6W (without HDD)

Environmental

Operating Conditions

0°C ~ +40°C (+32°F ~ +104°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions(W×D×H)

Smart 1U, 226mm×226.9mm×40.4mm

(8.9" x 8.9" x 1.6")

Net Weight

0.5kg (1.10lb) (without HDD)

Gross Weight

1.6kg(3.53 lb)(without HDD)

Certifications

CE

EN55032, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2014

UL

UL60950-1

***************

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

**********DAHUA NVR2104-W-4KS2,DAHUA DHI-NVR2104-W-4KS2,NVR2104-W-4KS2,DHI-NVR2104-W-4KS2,Wholesales DAHUA Network Video Recorder,DHI-NVR2104N-W-4KS2,NVR2104N-W-4KS2,WIFI Network Video Recorder,WIFI IP DVR*******

More Information
including hard disk NO
channels 4 channels
