IPC-HUM8241-E1– DAHUA DH-IPC-HUM8241-E1 2MP Bank Network Camera-Main Box withSmart detection IPC-HUM8241-E1

In stock
SKU
IPC-HUM8241-E1
$188.89

 IPC-HUM8241-E1

2MP bank Network Camera-Main Box

> H.265&H.264 triple-stream encoding
> Support Smart H.265+/H.264+
> 50/60fps@1080P(1920×1080)
> Day/Night(Electronic), WDR, 3DNR, AWB, AGC, BLC
> Smart detection
> Micro SD memory, PoE
> Multiple Lens Unit optional
> DAHUA Logo,English firmware
> 100% original products manufactured by DAHUA

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

IPC-HUM8231-E1– DAHUA DH-IPC-HUM8231-E1 2MP Bank Network Camera-Main Box withSmart detection IPC-HUM8231-E1

DAHUA IPC-HUM8231-E1

2MP bank Network Camera-Main Box

> H.265&H.264 triple-stream encoding
> Support Smart H.265+/H.264+
> 50/60fps@1080P(1920×1080)
> Day/Night(Electronic), WDR, 3DNR, AWB, AGC, BLC
> Smart detection
> Micro SD memory, PoE
> Multiple Lens Unit optional
> Require a Lens Unit to work together
> ,English firmware
> 100% original products manufactured by DAHUA



IPC-HUM8231-E1– DAHUA DH-IPC-HUM8231-E1 2MP Bank Network Camera-Main Box withSmart detection IPC-HUM8231-E1 System Overview

the covert camera used modular design, this product provides an independent main unit, with multiple lens types for customers to choose separately. It can be easily installed into any indoor environments, which makes this camera ideal for  the ATMs(Automatic Teller Machines), banks, stores, hotels and offices

IPC-HUM8231-E1– DAHUA DH-IPC-HUM8231-E1 2MP Bank Network Camera-Main Box withSmart detection IPC-HUM8231-E1 Functions

Intelligent Video System (IVS)

This IP camera has a built-in video analysis based on intelligent algorithms and can achieve the following:Tripwire,Intrusion,Abandoned/ Missing can timely, quickly and accurately respond to monitoring events in specific area. It enhances monitoring efficiency. At the same time, the camera can support face detection,it can quickly capture a face and upload the image to the server. In addition the camera also supports intelligent tamper detection,through dramatic changes in the scene it will send out warning information to ensure effective monitoring.

Protection

Supporting ±30% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning.

HEVC (H.265)

H.265 ITU-T VCEG is a new video coding standard. H.265 following standard developed around the existing video coding standard H.264, some retain the original technology, while some of the relevant technology to improve the new technology uses advanced technology to improve the relationship between the code stream, encoding quality, and the delay between algorithm complexity, optimize settings specific contents include: Improve compression efficiency, improve the robustness and error recovery capabilities, real-time to reduce the delay, reduce channel acquisition time and a random access delay, reduce complexity, etc.

Smart H.265+

Deliver high quality video without straining the network, Smart H.265+ is the optimized implementation of H.265. The Smart H.265+ encoding technology includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing saving of up to 70% of bandwidth and storage when compared with standard H.265.

Wide Dynamic Range (WDR)

Embeded with industry leading wide dynamic range (WDR) technology, vivid picutures are achieved even in the most intense contrast lighting conditions. For applications with both bright and low lighting conditions that change quickly, True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

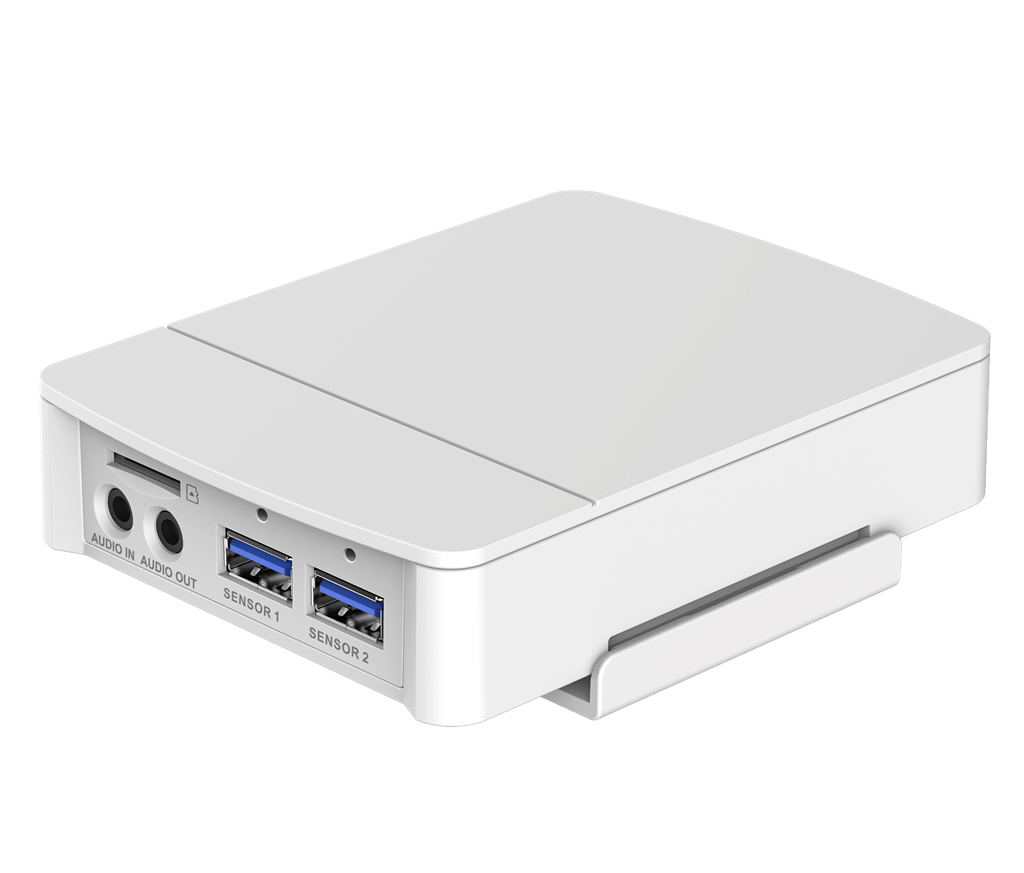

IPC-HUM8231-E1– DAHUA DH-IPC-HUM8231-E1 2MP Bank Network Camera-Main Box withSmart detection IPC-HUM8231-E1  Picture


IPC-HUM8231-E1

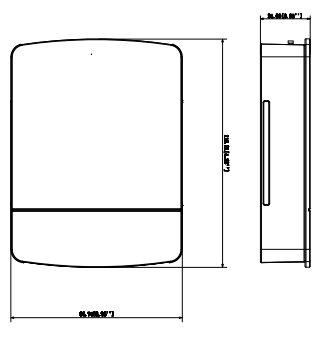

IPC-HUM8231-E1– DAHUA DH-IPC-HUM8231-E1 2MP Bank Network Camera-Main Box withSmart detection IPC-HUM8231-E1  Dimension

IPC-HUM8231-E1

IPC-HUM8231-E1– DAHUA DH-IPC-HUM8231-E1 2MP Bank Network Camera-Main Box withSmart detection IPC-HUM8231-E1 Specification



Technical Specifications

*****

Camera

RAM/ROM

512MB/32MB

S/N Ratio

More than 50dB

Intelligence

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video (working together with lens unit)

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480)/ VGA(640x480)/ CIF(352×288/342x240)

Frame Rate

Main Stream: 1080P(1~50/60fps)

Sub Stream: D1 (1 ~ 25/30fps)

Third Stream: 1080P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24Kbps~ 9472Kbps

H.265: 14Kbps~ 5632Kbps

Day/Night

Electronic

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zones, Rectangle)

Region of Interest

Off / On (4 Zones)

Electronic Image Stabilization (EIS)

N/A

Smart IR

N/A

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Areas, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;

DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;

Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, Easy4ip

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

1/1 channel In/Out

RS232

1 port

Alarm

2 channel In: 5mA 5VDC
2 channel Out: 1A 30VDC / 0.5A 50VAC

Electrical

Power Supply

DC12V, PoE(802.3af)(Class 0)

Power Consumption

<6W (working together with lens unit)

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

N/A

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

110.0mm×82.7mm×24.0mm (4.33×3.26×0.95)

Net Weight

0.21Kg (0.46lb)

Gross Weight

0.30Kg (0.66lb)

******************

**

***

**********

*

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

*

************

More Information
Wired/Wireless Wired
Focal Type Fixed
Day/Night Standard
Factor Mini
Max Resolution 2 MP
