IPC-HUM4231– DAHUA DH-IPC-HUM4231 2MP WDR MIni Network Camera with H.265& H.264 triple-stream encoding IPC-HUM4231 without logo

In stock

SKU

IPC-HUM4231

Be the first to review this product

$79.00

PAL/NTSC

Brand

Qty

IPC-HUM4231

2MP WDR mini Network Camera

> 1/2.7” 2Megapixel progressive CMOS
> H.265& H.264 triple-stream encoding
> 25/30fps@1080P(1920×1080)
> WDR(120dB), Day/Night(Electronic), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8 mm pinhole lens

> without Logo,English firmware
> 100% original products manufactured by DAHUA

IPC-HUM4231

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

Skip to the end of the images gallery

Skip to the beginning of the images gallery

IPC-HUM4231– DAHUA DH-IPC-HUM4231 2MP WDR MIni Network Camera with H.265& H.264 triple-stream encoding IPC-HUM4231 without logo

IPC-HUM4231

2MP WDR mini Network Camera

> without Logo,English firmware

> 100% original products manufactured by DAHUA

IPC-HUM4231

The Future has Arrived for AI

IPC-HUM4231– DAHUA DH-IPC-HUM4231 2MP WDR MIni Network Camera with H.265& H.264 triple-stream encoding IPC-HUM4231 without logo System Overview

The pinhole camera delivers 2MP resolution with a 2.8mm pinhole lens for covert surveillance. The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.It can be easily installed in any indoor environment, making it ideally suited for a wide range of applications such as ATM, bank, store and office.

IPC-HUM4231– DAHUA DH-IPC-HUM4231 2MP WDR MIni Network Camera with H.265& H.264 triple-stream encoding IPC-HUM4231 without logo Functions

Smart Codec (H.265+ & H.264+)

Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression.

Wide Dynamic Range (WDR)

The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Environmental

The IP cameras operate in extreme temperature environments, rated for use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95% humidity.

Image Flip

Capturing unnecessary data such as surrounding hallway walls can increase storage requirements without any added value. The image flip feature allows the camera's image to be rotated in 90° increments for better video optimization.

Interoperability

The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

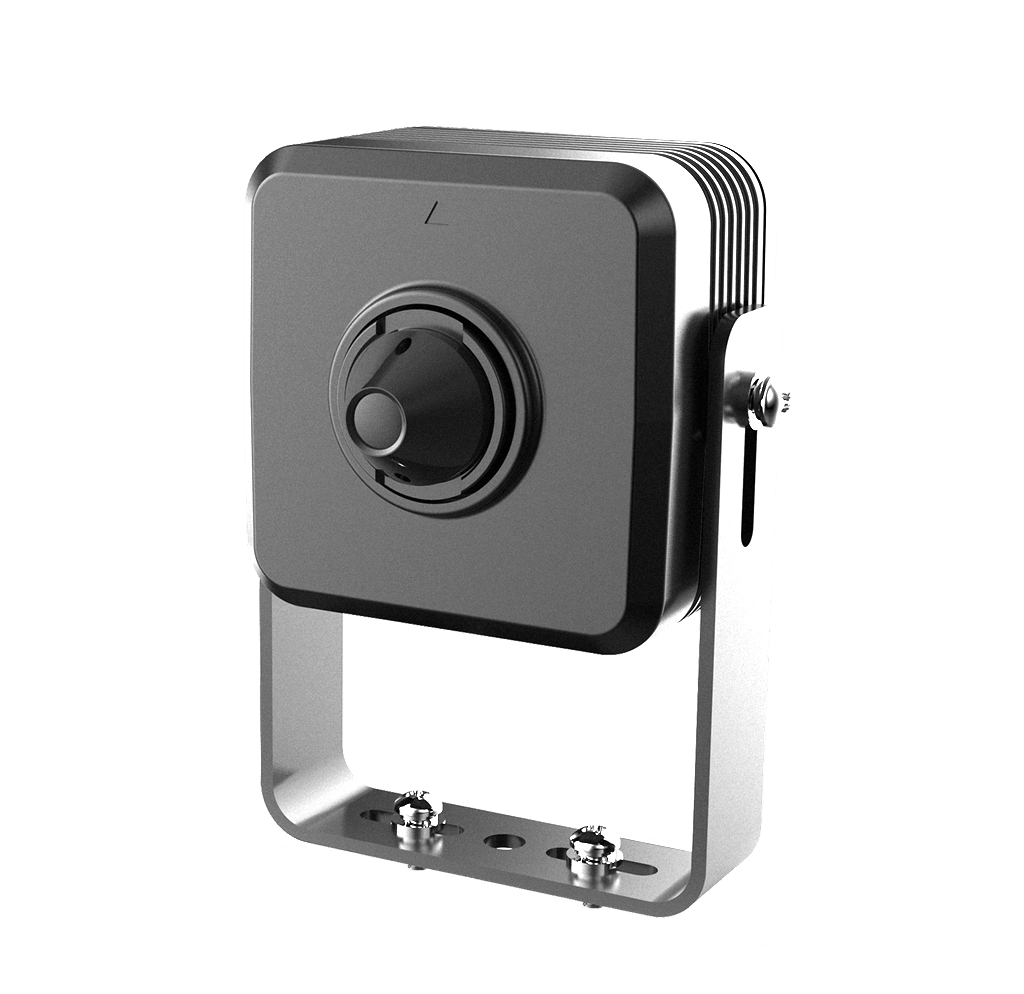

IPC-HUM4231– DAHUA DH-IPC-HUM4231 2MP WDR MIni Network Camera with H.265& H.264 triple-stream encoding IPC-HUM4231 without logo Picture

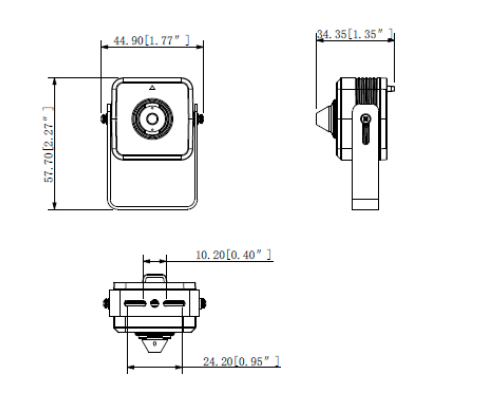

IPC-HUM4231– DAHUA DH-IPC-HUM4231 2MP WDR MIni Network Camera with H.265& H.264 triple-stream encoding IPC-HUM4231 without logo Dimension

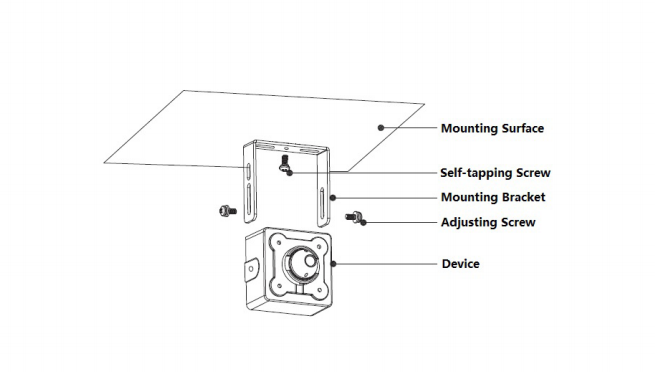

IPC-HUM4231– DAHUA DH-IPC-HUM4231 2MP WDR MIni Network Camera with H.265& H.264 triple-stream encoding IPC-HUM4231 without logo Installation

IPC-HUM4231– DAHUA DH-IPC-HUM4231 2MP WDR MIni Network Camera with H.265& H.264 triple-stream encoding IPC-HUM4231 without logo Specification

Technical Specifications

******

Camera

Image Sensor

1/2.7” 2Megapixel progresive CMOS

Effective Pixels

1920H)x1080(V)

RAM/ROM

256MB/128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.007Lux/F2.4( Color,1/3s,30IRE)

0.04Lux/F2.4( Color,1/30s,30IRE)

0.004Lux/F2.4( B/W,1/3s,30IRE)

0.02Lux/F2.4( B/W,1/30s,30IRE)

S/N Ratio

More than 50dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8mm

Max. Aperture

F2.4

Angle of View

H:105°, V:60°

Focus Control

Fixed

Close Focus Distance

N/A

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

63(207ft)

25(82ft)

13(43ft)

6(20ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

N/A

Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video

Compression

H.265/H.264/H.264B/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/960P(1280×960)/720P(1280×720)/D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 1080p (1 ~ 25/30fps)

Sub Stream: D1(1 ~ 25/30fps)

Third Stream: 1080P(1 ~ 14/9fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265: 12K ~ 6400Kbps

H.264: 32K ~ 8192Kbps

Day/Night

Auto(Electronic) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/G.711Mu/AAC/ G.726

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;

FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS

Interoperability

ONVIF Profile S, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users / 20 Users

Edge Storage

NAS

Local PC for instant recording

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V

Power Consumption

< 1.5W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Stroage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

N/A

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

44.9mm × 57.7mm×34.35mm (1.77" x 2.27"x 1.35")

Net Weight

0.102Kg (0.225lb)

Gross Weight

0.145Kg (0.319lb)

***

******

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

*****

**********

More Information
Wired/Wireless	Wired
Outdoor use	Intdoor use
Focal Type	Fixed
Day/Night	Standard
Factor	Mini
Max Resolution	2 MP
