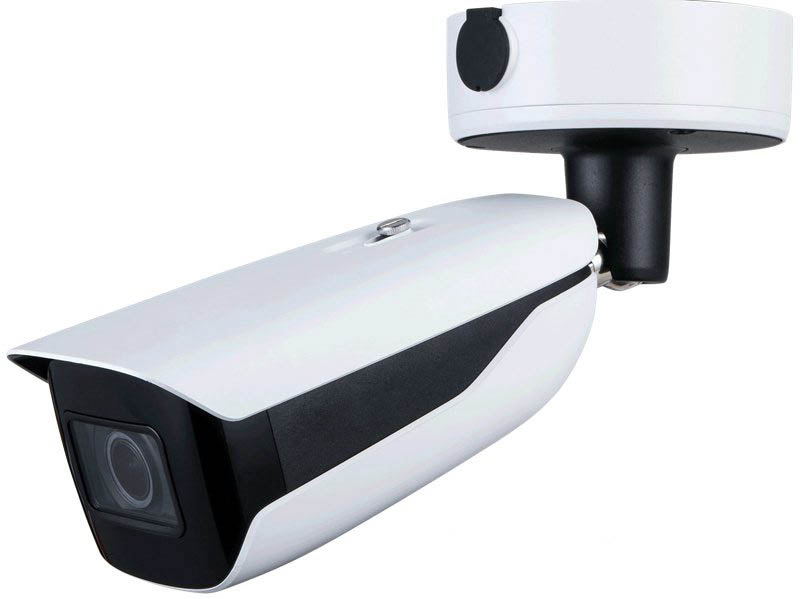

IPC-HFW5242H-Z6E-MF- DAHUA DH-IPC-HFW5242H-Z6E-MF 2MP Vari-focal Bullet WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HFW5242H-Z6E-MF

In stock
SKU
IPC-HFW5242H-Z6E-MF
Rating:
100% of 100
$337.00



IPC-HFW5242H-Z6E-MF

2MP Vari-focal Bullet WizMind Network Camera

> 2MP, 1/1.8” CMOS image sensor, low illuminance, high image definition

> Outputs max. 2MP (1920 × 1080) @60 fps

> Max. IR distance: 140 m

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Alarm: 3 in, 2 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card

> 12V DC/PoE power supply

> ePoE, IP67, IK10 protection

> Supports junction box mount

>without Logo,English upgradeable origianl firmware,
>100% original products manufactured by DAHUA

The delivery time is 15-25 working days

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

IPC-HFW5242H-Z6E-MF- DAHUA DH-IPC-HFW5242H-Z6E-MF 2MP Vari-focal Bullet WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HFW5242H-Z6E-MF



IPC-HFW5242H-Z6E-MF

2MP Vari-focal Bullet WizMind Network Camera

> 2MP, 1/1.8” CMOS image sensor, low illuminance, high image definition

> Outputs max. 2MP (1920 × 1080) @60 fps

> Max. IR distance: 140 m

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Alarm: 3 in, 2 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card

> 12V DC/PoE power supply

> ePoE, IP67, IK10 protection

> Supports junction box mount

>,English upgradeable origianl firmware,
>100% original products manufactured by DAHUA



WizMind Series

 WizMind is a wide range of project-oriented products that adopt industry-leading deep learning algorithms, such as IPC, NVR, PTZ, XVR, thermal camera and software platform. Focusing on customers’ needs, WizMind provides precise and reliable and comprehensive AI products for verticals.
Precise: Powered by AI chip and deep learning algorithms, WizMind delivers accurate detection and recognition of human and vehicle, enabling users to rapidly and precisely act on what really matters. In addition, it provides accurate and effective AI search to locate targets, and various human-based data for business analysis.
Reliable: Strict component selection to ensure the high product reliability. With thorough testing of front-end cameras, back-end device and platform, WizMind injects reliability into all of its solutions.
Comprehensive: Focusing on human and vehicle, WizMind provides various applications solutions such as face recognition, privacy protection, video metadata, stereo analysis, ANPR, illegal parking, etc. Moreover, WizMind combines deep learning algorithm with thermal imaging technology to help users achieve ultra-long distance monitoring in harsh environments, highly accurate non-contact temperature measurement with only ±0.3℃ temperature difference, and early detection of fire.wizmind AI

IPC-HFW5242H-Z6E-MF- DAHUA DH-IPC-HFW5242H-Z6E-MF 2MP Vari-focal Bullet WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HFW5242H-Z6E-MF System Overview



 WizMind is a full portfolio of solutions composed of project-oriented products including IPC, NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.

DAHUA Smart Shop solution

With starlight solution and deep learning algorithm, Dahua WizMind 5 Series network camera has various intelligent functions, including face capture, perimeter protection and people counting, which greatly improve the accuracy of video analysis. The series camera supports dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67 and IK10 (Supported by some select models).

IPC-HFW5242H-Z6E-MF- DAHUA DH-IPC-HFW5242H-Z6E-MF 2MP Vari-focal Bullet WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HFW5242H-Z6E-MF Functions

ePoE

ePoE technology provides a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.ePoE technology

Face Detection

Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.

Face Attributes

With deep learning algorithm, the network camera can recognize face attributes, such as gender, age, expression, glasses, mouth mask, and beard.

People Counting

With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs yearly/monthly/weekly/daily reports to meet your requirements..

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Perimeter Protection

With deep learning algorithm, Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Detect tripwire and intrusion violationsProcessing Flow

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.



IPC-HFW5242H-Z6E-MF- DAHUA DH-IPC-HFW5242H-Z6E-MF 2MP Vari-focal Bullet WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HFW5242H-Z6E-MF Picture




IPC-HFW5242H-Z6E-MF- DAHUA DH-IPC-HFW5242H-Z6E-MF 2MP Vari-focal Bullet WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HFW5242H-Z6E-MF  Dimensions




IPC-HFW5242H-Z6E-MF- DAHUA DH-IPC-HFW5242H-Z6E-MF 2MP Vari-focal Bullet WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HFW5242H-Z6E-MF  Installation


IPC-HFW5242H-Z6E-MF- DAHUA DH-IPC-HFW5242H-Z6E-MF 2MP Vari-focal Bullet WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HFW5242H-Z6E-MF Technical Specifications

*******

Camera

Image Sensor

1/1.8”2Megapixel progressive CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.002 Lux @F1.6

S/N Ratio

>56 dB

Illumination Distance

140 m (459.3 ft) (IR LED)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

4 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Mount Type

Module

Focal Length

8 mm–48 mm

Max. Aperture

F1.6

Field of View

Horizontal: 42°–10.9°
Vertical: 23°–6°
Diagonal: 49°–12°

Iris Type

Auto

Close Focus Distance

2.5 m–6 m (8.2 ft–19.7 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

107.0 m (351.0 ft)

40.0 m

(131.2 ft)

21.0 m

(68.9 ft)

10.0 m

(32.8 ft)

T

400.0 m (1312.3 ft)

160 m

(524.9 ft)

80.0 m

(262.5 ft)

40.0 m

(131.2 ft)

Smart Event

IVS

Abandoned object; missing object

Heat Map

Yes

Professional, intelligent

IVS (Perimeter Protection)

Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection

Face Detection

Face detection; track; optimization; snapshot; report high quality picture; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear), mask, beard; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting

People Counting

Support the counting of enter number, leave number

and pass number, and displaying and outputting yearly/

monthly/weekly/daily reports

Support the counting of number in area, and 4 rules

configuration. Count number of people or stay time and

link alarm

Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm

Intelligent Search

Work together with Smart NVR to perform refine

intelligent search, event extraction and merging to event

videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/H.264+

Video Frame Rate

Main stream: 1920 × 1080 (1 fps–50/60 fps)
Sub stream: D1 (1 fps–50/60 fps)
Third stream: 1080p (1 fps–25/30 fps)

Stream Capability

3 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps
H.265: 19 kbps–8192 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

140 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Electronic Image Stabilization (EIS)

Yes

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270°

Mirror

Yes

Privacy Masking

4 areas

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; AAC; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; scene changing; intrusion; tripwire; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input abnormal detection; intensity change detection; people counting; face detection; voltage detection; people counting in area; stay alarm; people No. exception detection, queue management

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P

User/Host

20 (Total bandwidth: 88 M)

Storage

FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS

Browser

IE: IE8 and later
Chrome
Firefox
Safari: Safari 12 and later

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certification

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

Audio Input

1 channel (3.5mm JACK port)

Audio Output

1 channel (3.5mm JACK port)

Alarm Input

3 channels in: 5mA 3V–5V DC

Alarm Output

2 channels out: 300mA 12V DC

Power

Power Supply

12V DC (±30%)/PoE (802.3af)

Power Consumption

<11.6W

Environment

Operating Conditions

–30°C to +60°C (–22°F to +140°F)/Less than 95% RH

Storage Conditions

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67; IK10

Structure

Casing

Metal + Plastic

Dimensions

340.1 mm × 108.5 mm × 92.9 mm (13.4" × 4.3" × 3.7")

(L × W × H)

Net Weight

1.47 kg (3.2 lb)

Gross Weight

2.34 kg (5.2 lb)

********

**

*

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

********************DAHUA IPC-HFW5242H-Z6E-MF,DAHUA DH-IPC-HFW5242H-Z6E-MF,IPC-HFW5242H-Z6E-MF,DH-IPC-HFW5242H-Z6E-MF,DH-IPC-HFW5242HP-Z6E-MF,DH-IPC-HFW5242HN-Z6E-MF,intelligent ip camera,sectec ip camera,Security camera aliexpress,ip camera honeywell,Face Detection,Video Metadata,ANPR,People Counting,Queue Management****DAHUA IPC-HFW5242H-Z6E-MF,DAHUA DH-IPC-HFW5242H-Z6E-MF,IPC-HFW5242H-Z6E-MF,DH-IPC-HFW5242H-Z6E-MF,DH-IPC-HFW5242HP-Z6E-MF,DH-IPC-HFW5242HN-Z6E-MF,dahua 2mp kamera,dahua 2mp starlight camera,2mp ip bullet camera price,smart pss ip camera,2mp dahua bullet camera,2mp cameras,2 megapixel bullet camera,2mp bullet ip camera,ip bullet camera 2mp,buy dahua camera,intelligent ip camera,sectec ip camera,Security camera aliexpress,ip camera honeywell,Face Detection,Video Metadata,ANPR,People Counting,Queue Management*********************

More Information
Wired/Wireless Wired
Outdoor use Intdoor use, Outdoor use
Focal Type Motorized Zoom
Day/Night Low light
Factor Bullet
Max Resolution 2 MP
