IPC-HF8231F-E

2MP WDR Box Network Camera

> 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
> H.265&H.264 triple-stream encoding
> 50/60fps@1080P(1920×1080)
> WDR(140dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Auto back focus(ABF)
> Micro SD memory, PoE

IPC-HF8231F-E– DAHUA DH-IPC-HF8231F-E 2MP WDR Box Network Camera with 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS IPC-HF8231F-E without logo System Overview

Ultra series adopts high performance DSP and Sony advanced image sensor technology, which can provide excellent image effects for users. With Dahua advanced software algorithm, the series is able to support people counting and heat map which brings extra business analysis value for customers.

IPC-HF8231F-E– DAHUA DH-IPC-HF8231F-E 2MP WDR Box Network Camera with 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS IPC-HF8231F-E without logoFunctions

ePoE technology

The ePoE technology of Dahua, designed internally, adopts advanced 2D-PAM3 coding modulation from physical layer, and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it supports PoE and PoC power supply technology which has greatly simplified construction and wiring.  ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

Starlight Technology

For challenging low-light applications,  Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.003lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Ultra WDR

Standard WDR/HDR camera can provide 120dB dynamic range,However, for some scenes with wider contrast range, 120dB is slightly insufficient. By adopting the latest technology, Dahua Cameras can provide an amazing dynamic range up to140dB.

Business intelligent analysis (People counting, Heatmap)

Camera also supports more advanced intelligent features such as people counting and heat map besides basic IVS functions. These two functions can be applied to business intelligence and bring extra values to customers. It is available to acquire daily, weekly, monthly and yearly people flow via people counting and output data report. Heat map can be based on a moving object in time of space movement for analysis, find the most active area and output the report, which is to provide valuable data support for commercial applications.

Smart Scene Adaptive (SSA)

Smart Scene Adaptive (SSA) is a  self-developed intelligent image technology, the camera automatically evaluates the change in scene, in particular strong lights.In a strong backlight environment, it will automatically regulate exposure parameters to get better image quality. This can effectively address the impact of traffic lights, providing excellent video quality.

Smart Codec (H.265+ & H.264+)

Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression.

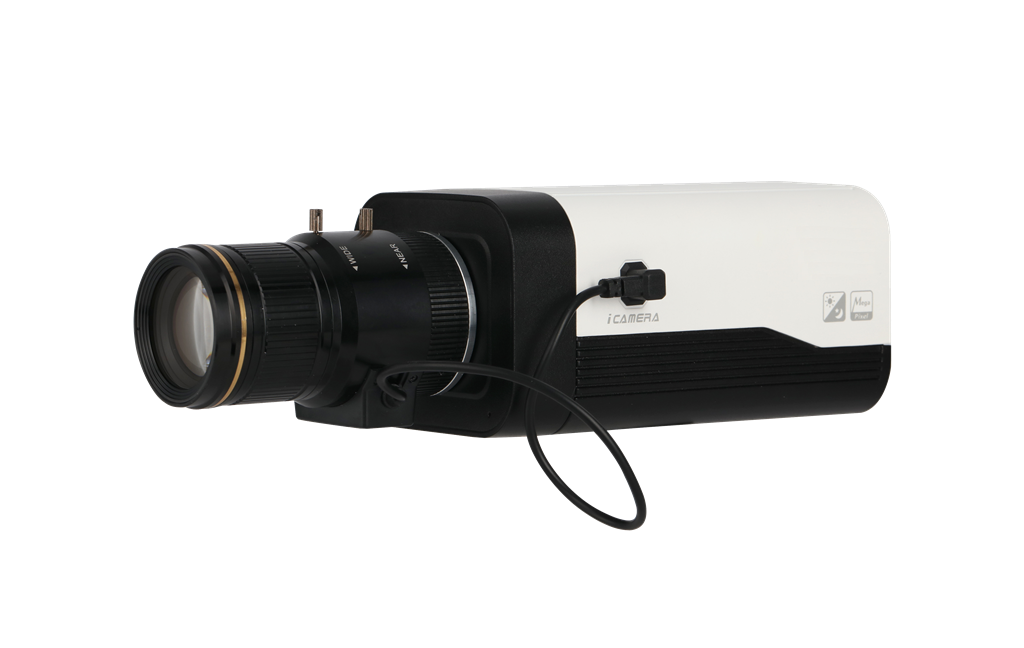

IPC-HF8231F-E– DAHUA DH-IPC-HF8231F-E 2MP WDR Box Network Camera with 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS IPC-HF8231F-E without logo  Picture

IPC-HF8231F-E– DAHUA DH-IPC-HF8231F-E 2MP WDR Box Network Camera with 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS IPC-HF8231F-E without logo  Dimension

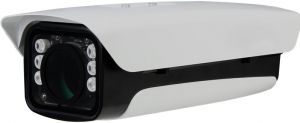

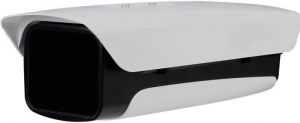

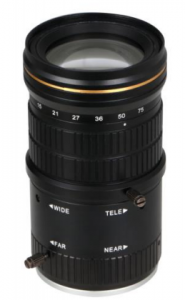

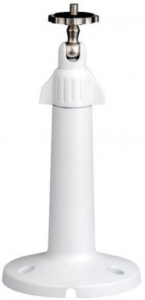

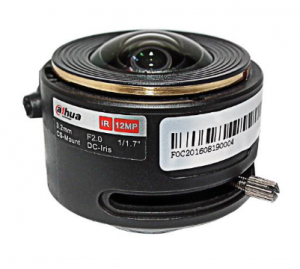

IPC-HF8231F-E– DAHUA DH-IPC-HF8231F-E 2MP WDR Box Network Camera with 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS IPC-HF8231F-E without logo  Installation
