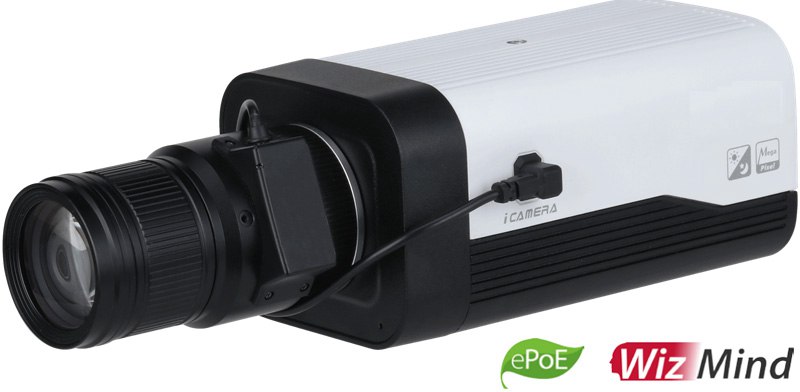

IPC-HF71242F - DAHUA DH-IPC-HF71242F 12MP Box WizMind Network Camera With Face Detection Perimeter Protection IPC-HF71242F

In stock
SKU
IPC-HF71242F
$456.50

IPC-HF71242F

12MP Box WizMind Network Camera

> 12MP 1/1.7” CMOS image sensor, high image definition

> Outputs max. 12MP (4000 × 3000) @25/30 fps

> H.265 codec, high compression rate, ultra-low bit rate

> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking

> ROI, SVC, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Perimeter Protection , Face Detection , Video Metadata , ANPR , People Counting , Queue Management

> Alarm: 2 in, 2 out; audio: 2 in, 1 out; RS-485; BNC; supports max. 256 G SD card

> 24V AC/12V DC/PoE power supply; 12V DC power output, max. current 165mA; easy for installation.

> Five streams for three-channel HD video

>dahua Logo,English upgradeable origianl firmware,
>100% original products manufactured by DAHUA

The delivery time is 15-25 working days

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

IPC-HF71242F - DAHUA DH-IPC-HF71242F 12MP Box WizMind Network Camera With Face Detection Perimeter Protection IPC-HF71242F

IPC-HF71242F

12MP Box WizMind Network Camera

> 12MP 1/1.7” CMOS image sensor, high image definition

> Outputs max. 12MP (4000 × 3000) @25/30 fps

> H.265 codec, high compression rate, ultra-low bit rate

> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking

> ROI, SVC, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Perimeter Protection , Face Detection , Video Metadata , ANPR , People Counting , Queue Management

> Alarm: 2 in, 2 out; audio: 2 in, 1 out; RS-485; BNC; supports max. 256 G SD card

> 24V AC/12V DC/PoE power supply; 12V DC power output, max. current 165mA; easy for installation.

> Five streams for three-channel HD video

>,English upgradeable origianl firmware,
>100% original products manufactured by DAHUA

WizMind Series

 WizMind is a wide range of project-oriented products that adopt industry-leading deep learning algorithms, such as IPC, NVR, PTZ, XVR, thermal camera and software platform. Focusing on customers’ needs, WizMind provides precise and reliable and comprehensive AI products for verticals.
Precise: Powered by AI chip and deep learning algorithms, WizMind delivers accurate detection and recognition of human and vehicle, enabling users to rapidly and precisely act on what really matters. In addition, it provides accurate and effective AI search to locate targets, and various human-based data for business analysis.
Reliable: Strict component selection to ensure the high product reliability. With thorough testing of front-end cameras, back-end device and platform, WizMind injects reliability into all of its solutions.
Comprehensive: Focusing on human and vehicle, WizMind provides various applications solutions such as face recognition, privacy protection, video metadata, stereo analysis, ANPR, illegal parking, etc. Moreover, WizMind combines deep learning algorithm with thermal imaging technology to help users achieve ultra-long distance monitoring in harsh environments, highly accurate non-contact temperature measurement with only ±0.3℃ temperature difference, and early detection of fire.wizmind AI

IPC-HF71242F - DAHUA DH-IPC-HF71242F 12MP Box WizMind Network Camera With Face Detection Perimeter Protection IPC-HF71242F System Overview



 WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

DAHUA Smart Shop solution

With advanced deep learning algorithm, Dahua WizMind 7 Series network camera supports various intelligent functions and satisfies the requirements in different scenes. The camera can accurately recognize person, vehicle, and non-motor vehicle, face, ANPR, and liveness. This series camera has ultra starlight night version effect, and works with ultra-low stream. It supports dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67 and IK10 (Supported by some select models).

IPC-HF71242F - DAHUA DH-IPC-HF71242F 12MP Box WizMind Network Camera With Face Detection Perimeter Protection IPC-HF71242F Functions

Video Metadata

With deep learning algorithm, Dahua Video Metadata technology can detect, track, capture vehicle, non-motor vehicle and people, and select the best images, and extract attributes.

Face Detection

Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.

ANPR

With high-performance GPU chip, deep learning algorithm, and lots of sample training learning, Dahua ANPR technology can automatically collect and recognize the vehicle information, including license plate, logo, vehicle type, and vehicle color

Perimeter Protection

With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Perimeter Protection

With deep learning algorithm, Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Detect tripwire and intrusion violationsProcessing Flow

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.



IPC-HF71242F - DAHUA DH-IPC-HF71242F 12MP Box WizMind Network Camera With Face Detection Perimeter Protection IPC-HF71242F Picture



IPC-HF71242F DAHUA IPC-HF71242F,DAHUA DH-IPC-HF71242F,IPC-HF71242F,DH-IPC-HF71242F,ip camera 12mp,cctv 4k,DH-IPC-HF71242FP,DH-IPC-HF71242FN

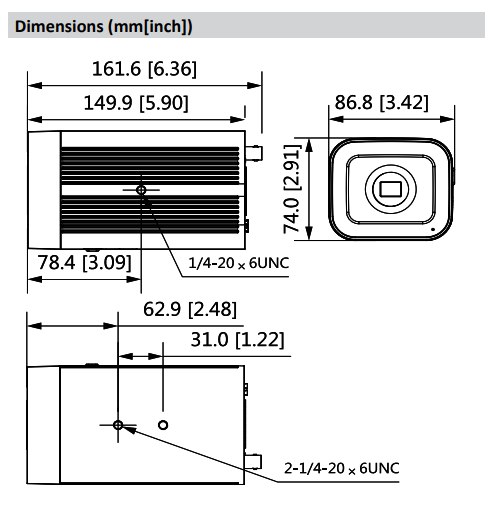

IPC-HF71242F - DAHUA DH-IPC-HF71242F 12MP Box WizMind Network Camera With Face Detection Perimeter Protection IPC-HF71242F  Dimensions

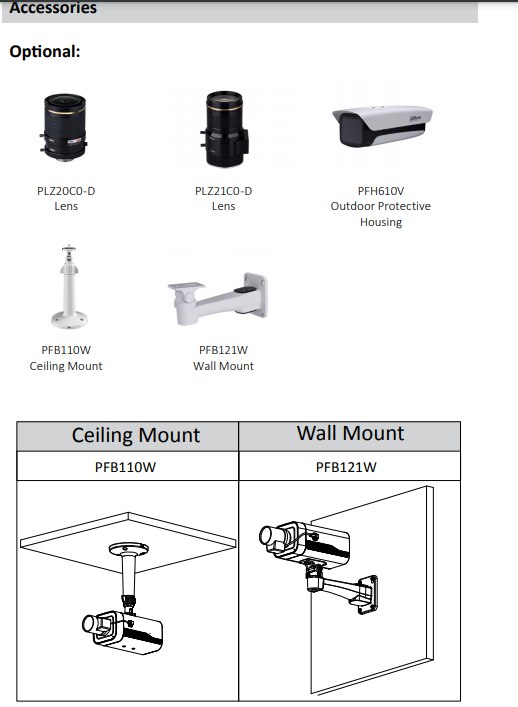

IPC-HF71242F - DAHUA DH-IPC-HF71242F 12MP Box WizMind Network Camera With Face Detection Perimeter Protection IPC-HF71242F  Installation


IPC-HF71242F - DAHUA DH-IPC-HF71242F 12MP Box WizMind Network Camera With Face Detection Perimeter Protection IPC-HF71242F Technical Specifications

***

Camera

Image Sensor

1/1.7”12Megapixel progressive CMOS

Max. Resolution

4000 (H) × 3000 (V)

ROM

4 GB

RAM

2 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.01 Lux @F1.8

S/N Ratio

>56 dB

Lens

Lens Type

Manual vari-focal

Mount Type

C/CS

Iris Type

Auto

Smart event

IVS

Abandoned object; missing object

Professional, intelligent

IVS (Perimeter Protection)

Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection

Face Detection

Face detection; track; optimization; snapshot; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear), mask, beard; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting; Support Duration Optimal,Non-living Filtering

People Counting

Support tripwire number counting, people counting in area, and displaying and outputting yearly/monthly/daily reports.
Support queue management, and displaying and outputting monthly/daily reports.
Support 4 tripwire rules configuration, people counting in 4 areas, and 4 queue management functions.

Video Metadata

Vehicle detection, non-motor vehicle detection, face detection, human body detection, track, optimization, snapshot, report high quality picture, vehicle attributes (license plate, vehicle type, vehicle color, and vehicle brand), other attributes (sun visor, seatbelt, smoking, phoning, in-car accessories, and annual vehicle inspection mark), non-motor vehicle attributes (vehicle type, vehicle color, hat, driver number, cloth type, and cloth color), personnel attribute (cloth type, trousers type, cloth color, trousers color, knapsack, hat, gender and umbrella), face attribute (gender, age, expression, glasses, mask, and beard)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.264+
Smart H.265+

Video Frame Rate

Main stream: 4000 × 3000 @1-25/30 fps
Sub stream: 704 × 576 @1-25 fps; 704 × 480 @1-30 fps

Third stream: 1920 × 1080 @1-25/30 fps
Fourth stream: 1920 × 1080 @1-25/30 fps
Fifth stream: 704 × 576 @1-25 fps; 704 × 480@1-30 fps

Stream Capability

5 streams

Resolution

12M (4000 × 3000); 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 5M (2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536); 3M (2304 × 1296); 2M (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–16384 kbps
H.265: 32 kbps–14080 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

DWDR

Yes

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711A; G.711Mu; G.726; AAC; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; defocus detection; external alarm; face detection; video metadata; ANPR; people counting in area; stay alarm; people counting; people counting exception detection; queue management;safety exception

Network

Network

RJ-45 (10/100/1000 Base-T)

SDK and API

Yes

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P;RTMP

User/Host

20 (Total bandwidth: 240 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS;Dahua Cloud

Browser

IE: IE9 and later
Chrome: Chrome 42 and later
Firefox: Firefox 48.0.2 and later

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

RS-485

1 (baud rate range: 1200 bps–115200 bps)

Audio Input

2 channels (3.5mm JACK port)

Audio Output

1 channel (3.5mm JACK port)

Alarm Input

2 channels in: 5mA 3V–5V DC

Alarm Output

2 channels out: 1,000mA 30V DC/500mA 50V DC

Power

Power Supply

12V DC/24V AC/POE (802.3af)

Power Consumption

<12.7W

Environment

Operating Conditions

–30°C to +60°C (–22°F to +140°F)

Storage Conditions

–30°C to +60°C (–22°F to +140°F)

Structure

Casing

Metal

Dimensions

86 mm × 74 mm × 150 mm (3.39" ×2.91" ×5.91") (L × W × H)

Net Weight

780 g (1.72 lb)

Gross Weight

918 g (2.02 lb)

**

**

*

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

***************DAHUA IPC-HF71242F,DAHUA DH-IPC-HF71242F,IPC-HF71242F,DH-IPC-HF71242F,ip camera 12mp,cctv 4k,DH-IPC-HF71242FP,DH-IPC-HF71242FN***************

More Information
Wired/Wireless Wired
Outdoor use Intdoor use, Outdoor use
Focal Type Lens not included
Day/Night Low light
Factor Box
Max Resolution 12 MP
