IPC-HDPW5442G-ZE- DAHUA DH-IPC-HDPW5442G-ZE 4MP IR Vari-focal Dome WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HDPW5442G-ZE

IPC-HDBW5442H-Z4E

4MP Vari-focal Dome WizMind Network Camera

> 4MP, 1/1.8” CMOS image sensor, low illuminance, high image definition

> Outputs max. 4MP (2688 × 1520) @30 fps

> H.265 codec, high compression rate, ultra-low bit rate

> Max. IR distance: 80 m

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Intelligent detection: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), abandoned object, missing object, loitering detection, people gathering, parking detection, heat map, face detection, face attributes and people counting

> Alarm: 3 in, 2 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card

> 24V AC/PoE/12V DC power supply (power input ports vary depending on power supply)

> ePoE, transmission over long distance, easy for installations of various scenes

> IP67, IK10 protection

> Supports junction box mount

IPC-HDPW5442G-ZE- DAHUA DH-IPC-HDPW5442G-ZE 4MP IR Vari-focal Dome WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HDPW5442G-ZE System Overview

 WizMind is a full portfolio of solutions composed of project-oriented products including IPC, NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.

With starlight solution and deep learning algorithm, Dahua WizMind 5 Series network camera has various intelligent functions, including face capture, perimeter protection and people counting, which greatly improve the accuracy of video analysis. The series camera supports dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67 and IK10 (Supported by some select models).

IPC-HDPW5442G-ZE- DAHUA DH-IPC-HDPW5442G-ZE 4MP IR Vari-focal Dome WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HDPW5442G-ZE Functions

ePoE

ePoE technology provides a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

Face Detection

Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.

Face Attributes

With deep learning algorithm, the network camera can recognize face attributes, such as gender, age, expression, glasses, mouth mask, and beard.

People Counting

With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs yearly/monthly/weekly/daily reports to meet your requirements..

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Perimeter Protection

With deep learning algorithm, Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

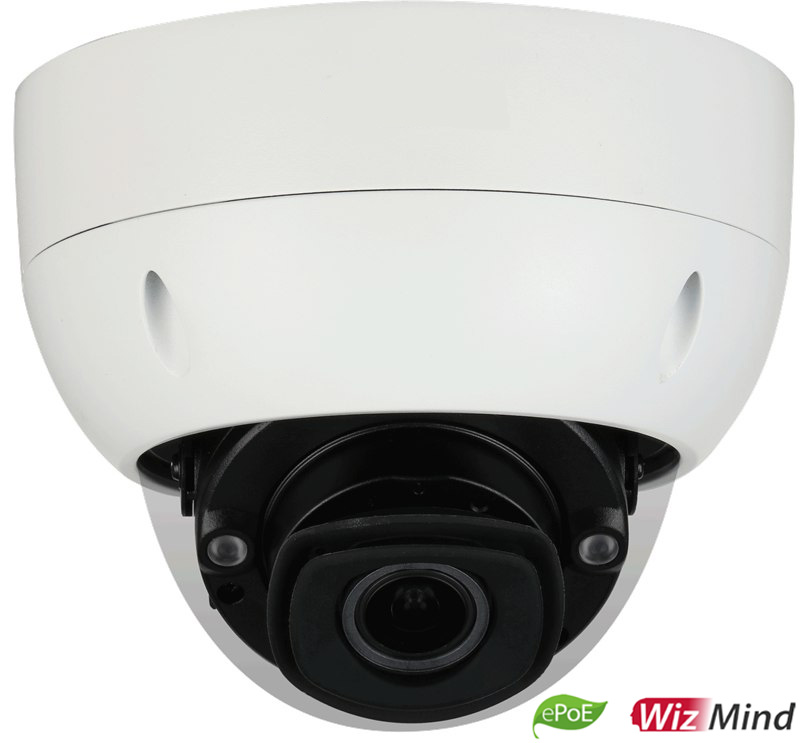

IPC-HDPW5442G-ZE- DAHUA DH-IPC-HDPW5442G-ZE 4MP IR Vari-focal Dome WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HDPW5442G-ZE Picture

IPC-HDPW5442G-ZE- DAHUA DH-IPC-HDPW5442G-ZE 4MP IR Vari-focal Dome WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HDPW5442G-ZE  Dimensions

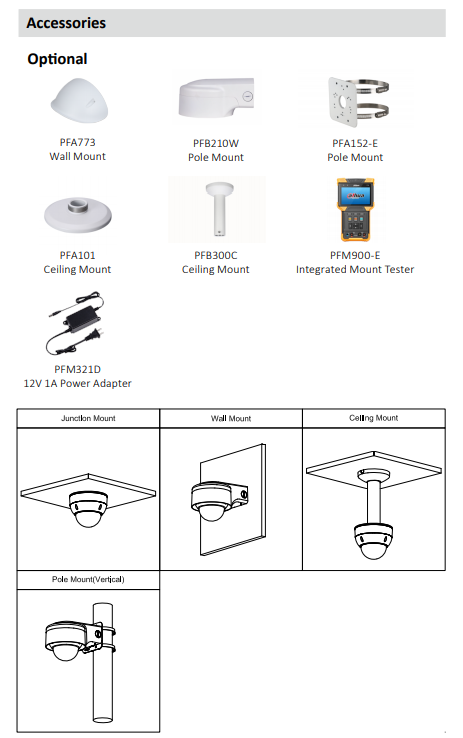

IPC-HDPW5442G-ZE- DAHUA DH-IPC-HDPW5442G-ZE 4MP IR Vari-focal Dome WizMind Network Camera With People Counting Face Attributes Face Detection Perimeter Protection IPC-HDPW5442G-ZE  Installation
