IPC-HDBW4431F-M– DAHUA DH-IPC-HDBW4431F-M 4MP IR Mini Dome Network Camera with H.265&H.264 dual-stream encoding IPC-HDBW4431F-M

IPC-HDBW4431F-M

4MP IR Mini Dome Network Camera

IPC-HDBW4431F-M – DAHUA DH-IPC-HDBW4431F-M 4MP IR Mini Dome Network Camera with H.265&H.264 dual-stream encoding IPC-HDBW4431F-M System Overview

Eco-savvy products by upgrading H.265 encoding technology, bringing high efficient video compression. It saves bandwidth and storage , energy-saving design to enhance the monitoring system . Meanwhile, the series offers features such as starlight , Smart IR technology , intelligent image analysis techniques. It provides excellent image quality and intelligent and efficient event reminders . This series provides IP67 weatherproof and IK10 vandal-proof protection feature. Give customers more value

IPC-HDBW4431F-M – DAHUA DH-IPC-HDBW4431F-M 4MP IR Mini Dome Network Camera with H.265&H.264 dual-stream encoding IPC-HDBW4431F-M Functions

Wide Dynamic Range

Embeded with industry leading wide dynamic range (WDR) technology, vivid picutures are achieved even in the most intense contrast lighting conditions. For applications with both bright and low lighting conditions that change quickly, True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Intelligent Video System (IVS)

With built-in intelligent video analytics, the camera has the ability to detect and analyze moving objects for improved video surveillance. The camera provides optional standard intelliegence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed, ideal for business intelligence, and Facial Detection, for searching or identification of individuals.

Environmental

With a temperature range of -30 °C to +60 °C (-22 °F to +140 °F), the camera is designed for extreme temperature environments. The camera complies to an IK10 impact rating making it capable of withstanding the equivalent of 55 kg (120 lbs) of force. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications. For enviorments with rain, sleet, snow and fog, an integrated wiper provides users with clear visibility at all times.

Protection

Supporting ±30% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 4KV lightning rating provides protectection against the camera and its structure from the effects of lightning.

Smart H.265+

Deliver high quality video without straining the network,Smart H.265+ is the optimized implementation of H.265. The Smart H.265+ encoding technology includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing saving of up to 70% of bandwidth and storage when compared with standard H.265.

HEVC (H.265)

H.265 ITU-T VCEG is a new video coding standard. H.265 Following standard developed around the existing video coding standard H.264 , some retain the original technology , while some of the relevant technology to improve the new technology uses advanced technology to improve the relationship between the code stream , encoding quality , and the delay between algorithm complexity , optimize settings specific contents include : Improve compression efficiency , improve the robustness and error recovery capabilities, real-time to reduce the delay, reduce channel acquisition time and a random access delay , reduce complexity , etc

IPC-HDBW4431F-M – DAHUA DH-IPC-HDBW4431F-M 4MP IR Mini Dome Network Camera with H.265&H.264 dual-stream encoding IPC-HDBW4431F-M  Picture

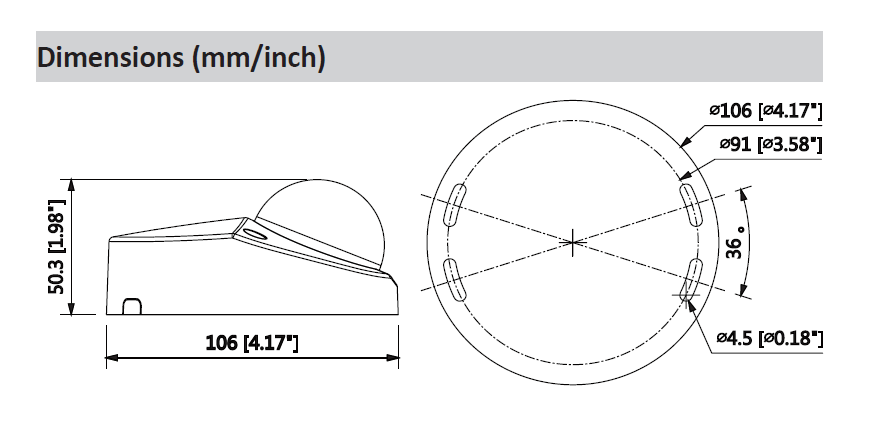

IPC-HDBW4431F-M– DAHUA DH-IPC-HDBW4431F-M 4MP IR Mini Dome Network Camera with H.265&H.264 dual-stream encoding IPC-HDBW4431F-M  Dimension

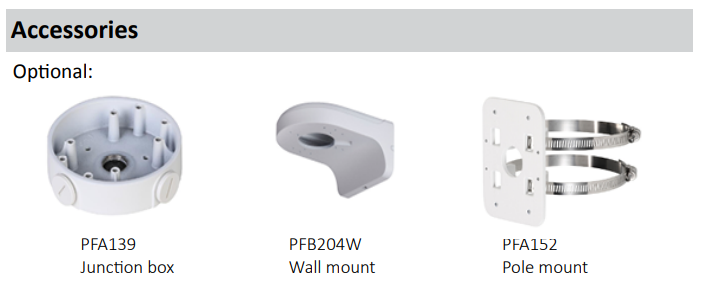

IPC-HDBW4431F-M– DAHUA DH-IPC-HDBW4431F-M 4MP IR Mini Dome Network Camera with H.265&H.264 dual-stream encoding IPC-HDBW4431F-M  Installation

*********

*

*

**********
