IPC-MBW4431-M12– DAHUA DH-IPC-MBW4431-M12 4MP IR Mobile Network Camera H.265&H.264 triple-stream encoding IPC-MBW4431-M12

In stock
SKU
IPC-MBW4431-M12
$179.00

IPC-MBW4431-M12

4MP IR Mobile Network Camera

> 1/3” 4Megapixel progressive scan CMOS
> H.265&H.264 triple-stream encoding
> 25/30fps@4M(2688×1520)
> WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC,
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8mm fixed lens (3.6mm, 6mm optional)
> Max. IR LEDs Length 30m
> Micro SD memory, IP67, IK10, IP6K9K, PoE
> EN50155, E-MARK(ECE-Regulation No.10)
> DAHUA Logo,English firmware
> 100% original products manufactured by DAHUA

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

IPC-MBW4431-M12– DAHUA DH-IPC-MBW4431-M12 4MP IR Mobile Network Camera H.265&H.264 triple-stream encodingIPC-MBW4431-M12

IPC-MBW4431-M12

4MP IR Mobile Network Camera

> 1/3” 4Megapixel progressive scan CMOS
> H.265&H.264 triple-stream encoding
> 25/30fps@4M(2688×1520)
> WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC,
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8mm fixed lens (3.6mm, 6mm optional)
> Max. IR LEDs Length 30m
> Micro SD memory, IP67, IK10, IP6K9K, PoE
> E-MARK(ECE-Regulation No.10)
> ,English firmware
> 100% original products manufactured by DAHUA

IPC-MBW4431-M12– DAHUA DH-IPC-MBW4431-M12 4MP IR Mobile Network Camera H.265&H.264 triple-stream encodingIPC-MBW4431-M12 System Overview

The mobile camera is specially designed for trains, buses and other vehicles. Due to its high-specification design, the mobile camera meets the requirements of vehicle standards such as EN50155, E-MARK(ECE-Regulation No.10), making the camera able to withstand the tough conditions like vibrations, shocks and wide range temperature fluctuations. The external camera meets the IP6K9K standard, which makes it dustproof and waterproof, sustaining high pressure / steam jet cleaning directly.

IPC-MBW4431-M12– DAHUA DH-IPC-MBW4431-M12

IPC-MBW4431-M12– DAHUA DH-IPC-MBW4431-M12 4MP IR Mobile Network Camera H.265&H.264 triple-stream encodingIPC-MBW4431-M12 Functions

IP6K9K

IP6K9K is the Degrees of protection (IP code, ISO 20653) for Road vehicles, Protection of electrical equipment against foreign objects, water and access. Products meet the IP6K9K standard, can be directly used high pressure / steam jet cleaning.

Wide Dynamic Range

Embeded with industry leading wide dynamic range (WDR) technology, vivid picutures are achieved even in the most intense contrast lighting conditions. For applications with both bright and low lighting conditions that change quickly, True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Environmental

With a temperature range of -40 °C to +70 °C (-40 °F to +158 °F), the camera is designed for extreme temperature environments. The camera complies to an IK10 impact rating making it capable of withstanding the equivalent of 55 kg (120 lbs) of force. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications.

Protection

Supporting ±30% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 4KV lightning rating provides protectection against the camera and its structure from the effects of lightning. Smart H.265+ Deliver high quality video without straining the network, Smart H.265+ is the optimized implementation of H.265. The

Smart H.265+

encoding technology includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing saving of up to 70% of bandwidth and storage when compared with standard H.265.

HEVC (H.265)

H.265 ITU-T VCEG is a new video coding standard. H.265 Following standard developed around the existing video coding standard H.264 , some retain the original technology , while some of the relevant technology to improve the new technology uses advanced technology to improve the relationship between the code stream , encoding quality , and the delay between algorithm complexity , optimize settings specific contents include : Improve compression efficiency , improve the robustness and error recovery capabilities, real-time to reduce the delay, reduce channel acquisition time and a random access delay , reduce complexity , etc

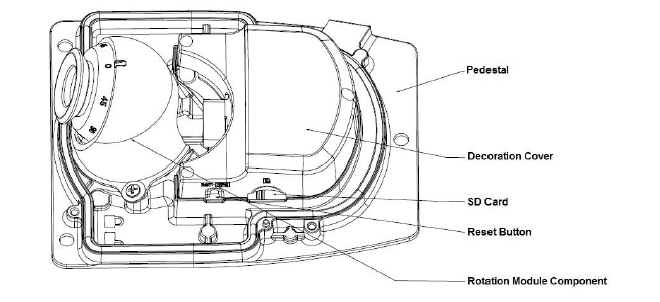

IPC-MBW4431-M12– DAHUA DH-IPC-MBW4431-M12 4MP IR Mobile Network Camera H.265&H.264 triple-stream encoding IPC-MBW4431-M12  Picture


IPC-MBW4431-M12– DAHUA DH-IPC-MBW4431-M12


IPC-MBW4431-M12 – DAHUA DH-IPC-MBW4431-M12 4MP IR Mobile Network Camera H.265&H.264 triple-stream encoding IPC-MBW4431-M12  Dimension

IPC-MBW4231-M12

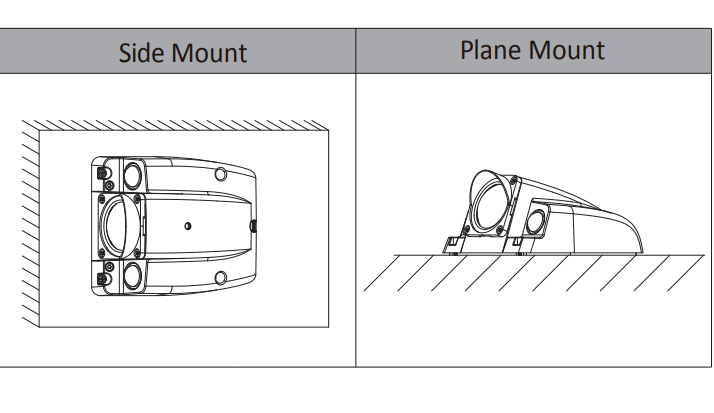

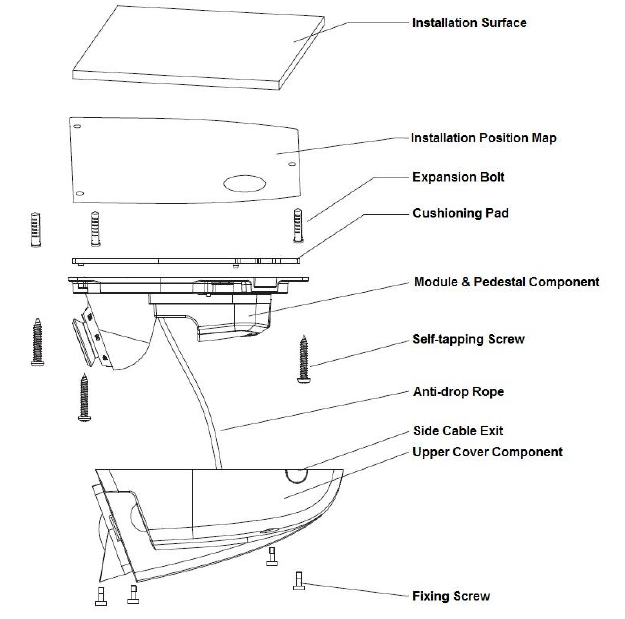

IPC-MBW4431-M12– DAHUA DH-IPC-MBW4431-M12 4MP IR Mobile Network Camera H.265&H.264 triple-stream encoding IPC-MBW4431-M12  Installation



DAHUA IPC-MBW4431-M12  Installation

DAHUA DH-IPC-MBW4431-M12 2MP IR Mobile Network Camera

DAHUA  IR Mobile Network Camera

DAHUA  IR Mobile Network Camera


IPC-MBW4431-M12– DAHUA DH-IPC-MBW4431-M12 4MP IR Mobile Network Camera H.265&H.264 triple-stream encodingIPC-MBW4431-M12 Specification



Technical Specifications

****

Camera

Image Sensor

1/3” 4Megapixel progressive scan CMOS

Effective Pixels

2688(H) x 1520(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.08Lux/F2.0( Color,1/3s,30IRE)

0.3Lux/2.0( Color,1/30s,30IRE)

0Lux/F2.0(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m (98ft)

IR On/Off Control

Auto/ Manual

IR LEDs

2

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8mm (3.6mm, 6mm optional)

Max. Aperture

F2.0 (F2.0, F2.0)

Angle of View

H: 104° (83°, 55°), V: 55° (45°, 31°)

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

N/A

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

56m(184ft)

22m(72ft)

11m(36ft)

6m(20ft)

3.6 mm

80m(262ft)

32m(105ft)

16m(52ft)

8m(26ft)

6.0 mm

120m(394ft)

48m(157ft)

24m(79ft)

12m(39ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~20˚; Tilt:±15˚; Rotation:0˚~360˚

Intelligence

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

4M(2688×1520)/3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280x960)/

720P(1280×720)/D1(704×576/704×480)/

VGA(640×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 4M(1~25/30fps)

Sub Stream: D1(1~25/30fps)

Third Stream: 720P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24~10240Kbps

H.265: 14~9984Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

-AS: RJ45(10/100Base-T)

-M12:M12 D-Coding(10/100Base-T)

Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;

IGMP; SNMP

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users /20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, Easy4ip

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

E-mark(ECE-Regulation No.10)

EN50155(Environment)

Interface

Video Interface

N/A

Audio Interface

1/1 channel In/Out (-AS Model)

RS485

N/A

Alarm

1 channel In: 5mA 5VDC

1 channel Out: 300mA 12VDC (-AS Model)

Electrical

Power Supply

-AS: DC12V, PoE (802.3af)(Class 0)

-M12: PoE (802.3af)(Class 0)

Power Consumption

<6.5W

Environmental

Operating Conditions

-40° C ~ +70° C (-40° F ~ +158° F) / Less than 95% RH

Strorage Conditions

-40° C ~ +70° C (-40° F ~ +158° F) / Less than 95% RH

Ingress Protection

IP67,IP6K9K

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

140.6mm×112.9mm×69.4mm (5.53×4.44×2.73)

Net Weight

0.59Kg (1.3lb)

Gross Weight

0.8Kg (1.76lb)

****

***************

***

*

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

*

****

*********

More Information
Wired/Wireless Wired
Outdoor use Outdoor use
Focal Type Fixed
Day/Night Day/Night
Factor Dome
Max Resolution 4 MP
