IPC-HDBW3241F-FD-M12– DAHUA DH-IPC-HDBW3241F-FD-M12 2MP IR Starlight Dome Network Camera with H.265&H.264 triple-stream encoding IPC-HDBW3241F-FD-M12
IPC-HDBW3241F-FD-M12
2MP IR Starlight Dome Network Camera
> H.265&H.264 triple-stream encoding
> 25/30fps@1080P(1920×1080)
> WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Max. IR LEDs Length 50m
> IP67,IK10,PoE
> Support face capture, face atributes
> without Logo,English firmware
> 100% original products manufactured by DAHUA
DAHUA original firmware, Upgradable,2 year guarantee
IPC-HDBW3241F-FD-M12– DAHUA DH-IPC-HDBW3241F-FD-M12 2MP IR Starlight Dome Network Camera with H.265&H.264 triple-stream encoding IPC-HDBW3241F-FD-M12without logo
IPC-HDBW3241F-FD-M12
2MP IR Starlight Dome Network Camera
> H.265&H.264 triple-stream encoding
> 25/30fps@1080P(1920×1080)
> WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Max. IR LEDs Length 50m
> IP67,IK10,PoE
> Support face capture, face atributes
> without Logo,English firmware
> 100% original products manufactured by DAHUA
IPC-HDBW3241F-FD-M12– DAHUA DH-IPC-HDBW3241F-FD-M12 2MP IR Starlight Dome Network Camera with H.265&H.264 triple-stream encoding IPC-HDBW3241F-FD-M12 without logo System Overview
The mobile camera is specially designed for trains, buses and other vehicles. Due to its high-specification design, the mobile camera meets the requirements of vehicle standards such as EN50155, E-MARK(ECE-Regulation No.10), making the camera able to withstand the tough conditions like vibrations, shocks and wide range temperature fluctuations. The external camera meets the IP6K9K standard, which makes it dustproof and waterproof, sustaining high pressure / steam jet cleaning directly.
IPC-HDBW3241F-FD-M12– DAHUA DH-IPC-HDBW3241F-FD-M12 2MP IR Starlight Dome Network Camera with H.265&H.264 triple-stream encoding IPC-HDBW3241F-FD-M12 without logo Functions
Face Capture
Face capture is a software application that automatically captures faces from within a digital image or a video frame from a video source. Dahua cameras use advanced deep learning algorithms and are trained by a large number of face data sources, enabling the camera to locate faces quickly and accurately from the video source and capture facial images.
Face Attributes
Through the use of deep learning algorithms to analyze facial images, cameras can extract four facial attributes from each frame, including gender, age, expression (happy, calm, surprised, sad, and angry), and glasses. Customers can acquire data of interest via face attributes statistics.
Metadata
Metadata is feature attribute information extracted from a target object which can be used for data retrieval. face recognition camera can extract four facial attributes and output the metadata for analysis.
Starlight Technology
Featuring Dahua’s Starlight Technology, this camera is ideal for applications with challenging lighting conditions. Its low-light performance delivers usable video with minimal ambient light. Even in extreme low-light conditions, Starlight Technology is capable of delivering color images in near complete darkness .

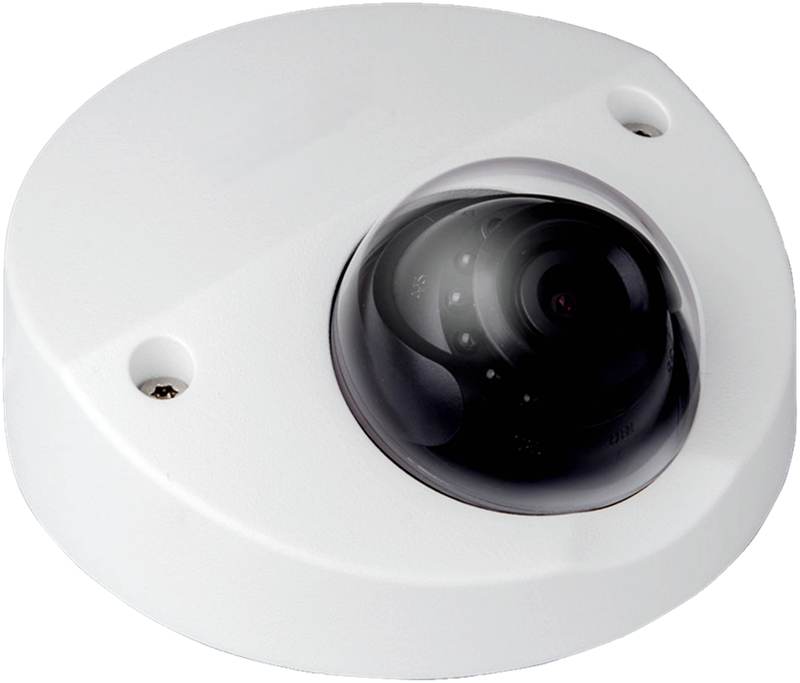

IPC-HDBW3241F-FD-M12– DAHUA DH-IPC-HDBW3241F-FD-M12 2MP IR Starlight Dome Network Camera with H.265&H.264 triple-stream encoding IPC-HDBW3241F-FD-M12 without logo Picture

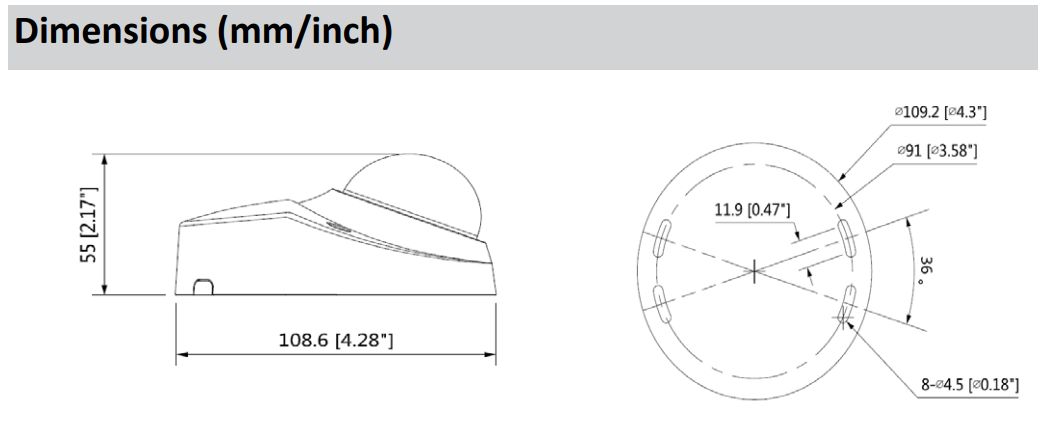

IPC-HDBW3241F-FD-M12 – DAHUA DH-IPC-HDBW3241F-FD-M12 2MP IR Starlight Dome Network Camera with H.265&H.264 triple-stream encoding IPC-HDBW3241F-FD-M12 without logo Dimension
IPC-HDBW3241F-FD-M12– DAHUA DH-IPC-HDBW3241F-FD-M12 2MP IR Starlight Dome Network Camera with H.265&H.264 triple-stream encoding IPC-HDBW3241F-FD-M12 without logo Installation
IPC-HDBW3241F-FD-M12– DAHUA DH-IPC-HDBW3241F-FD-M12 2MP IR Starlight Dome Network Camera with H.265&H.264 triple-stream encoding IPC-HDBW3241F-FD-M12without logo Specification
Technical Specifications
******
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.8 2Megapixel progressive scan CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels |
1920(H)x1080(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM/ROM |
1024MB/128MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Minimum Illumination |
0.003Lux/F2.0 ( Color,1/3s,30IRE) 0.02Lux/F2.0 ( Color,1/30s,30IRE) 0Lux/F2.0 (IR on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
More than 45dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR Distance |
Distance up to 50m(164ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR On/Off Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR LEDs |
8 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount Type |
Board-in |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.8mm(3.6mm;6mm;8mm;12mm) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F2.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle of View |
H: 110 ˚ (89.5°)(52.8°)(39.7°)(25.7°) V: 60˚ (50˚)( 30°)(22°)(14.4°) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Zoom |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focus Control |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
0.5m(0.9m)(2.1m)(3.5m)(8.5m) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
2.8mm |
39m(128ft) |
15m(49ft) |
8m(26ft) |
4m(13ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
3.6mm |
55m(180ft) |
22m(187ft) |
11m(36ft) |
5.5m(18ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
6mm |
83m(272ft) |
33m(108ft) |
17m(56ft) |
8m(26ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
8mm |
107m(351ft) |
43m(141ft) |
21m(69ft) |
11(36ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
12mm |
172m(564ft) |
69m(226ft) |
3m(114ft) |
17m(55.8ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range |
Pan:-30˚~30˚; Tilt:0˚~80˚; Rotation:0˚~360˚ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Artificial Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Caputure |
Support face image caputure |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Attributes |
Support 4 kinds of face attributes extraction: Age, Gender, Expression(Jolly, Calm, Surprise, Sad, Rage), Glasses |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
People Counting |
Line crossing people counting, Region people counting, Loitering filter |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression |
H.265/H.264H/H.264/H.264B/MJPEG(Sub Stream) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codec |
Support H.265+/H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Capability |
3 Streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480)/ CIF(352×288/352×240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Rate |
Main Stream: 1080P(1~25/30fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sub Stream: D1 (1 ~ 25/30fps) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sub Stream 2: 1080P(1~25/30fps) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control |
CBR/VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate |
H.264H:32Kbps ~ 15104Kbps H.6Kbps~ 15104Kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
Auto(ICR) / Color / B/W |
BLC Mode |
BLC / HLC / WDR(120dB) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
3D DNR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection |
Off / On (4 Zone, Rectangle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest |
Off / On (4 Zone) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Image Stabilization (EIS) |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart IR |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Zoom |
16x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flip |
0°/90°/180°/270° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror |
Off / On |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking |
Off / On (4 Area, Rectangle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression |
G.711a/G.726/G.711Mu/AAC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet |
RJ-45 (10/100Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol |
HTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF;CGI;Milstone;Genetec |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Method |
Unicast / Multicast |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. User Access |
10Users/20 Users |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Edge Storage |
NAS Local PC for instant recording |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Web Viewer |
IE, Chrome, Firefox, Safari |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software |
Smart PSS, DSS, DMSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Phone |
IOS, Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B EN50155(optional) |
Interface |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Interface |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Interface |
Built-in Mic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS485 |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electrical |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
DC12V, PoE (IEEE 802.3af)(Class 0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
DC 12V: 3.6W 5.4W(IR on) PoE: 4.2W 6.2W(IR on) |
Environmental |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions |
-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Conditions |
-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ingress Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vandal Resistance |
IK10 |
Construction |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
108.6mm×55mm(4.17"x1.98") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.426kg(0.94lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.559kg(1.23lb) |
****
***********
****
**************
*
*
***************
Wired/Wireless | Wired |
---|---|
Outdoor use | Intdoor use |
Focal Type | Fixed |
Day/Night | Day/Night |
Factor | Dome |
Max Resolution | 2 MP |
