IPC-HDBW1431E-S – DAHUA DH-IPC-HDBW1431E-S 4MP WDR IR Mini-Dome Network Camera with Regions of interest Smart IR True Day/Night IPC-HDBW1431E-S

IPC-HDBW1431E-S

4MP WDR IR Mini-Dome Network Camera

> 1/3” 4Megapixel progressive CMOS
> H.265& H.264 dual-stream encoding
> 20fps@4M(2688×1520) &25/30fps@3M(2304×1296)
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6 mm optional)
> Max IR LEDs Length 30m
> IP67, IK10, PoE

> ,English firmware
> 100% original products manufactured by DAHUA

IPC-HDBW1831R-S – DAHUA DH-IPC-HDBW1831R-S 8MP WDR IR Dome Network Camera with H.265 true WDR (120 dB) Intelligent Video Analysis (IVS) IP67, IK10, wide voltage IPC-HDBW1831R-S  System Overview

The IR Megapixel Fixed camera delivers 8MP resolution with a 2.8/4.0/6.0mm fixed lens.The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price

IPC-HDBW1831R-S – DAHUA DH-IPC-HDBW1831R-S 8MP WDR IR Dome Network Camera with H.265 true WDR (120 dB) Intelligent Video Analysis (IVS) IP67, IK10, wide voltage IPC-HDBW1831R-S  Functions

Smart Codec (H.265+ & H.264+)

Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression.

Intelligent Video Analysis (IVS)

Dahua camera is equipped with a built-in intelligent analytic algorithm based on video, which can realize intelligent functions like Tripwire and Intrusion, to quickly and accurately respond to monitoring events in specific area, It can enhance monitoring efficiency. In addition, the camera supports intelligent tamper detection, which is to generate warning message via detecting dramatic scene change and to guarantee effective video surveillance.

Wide Dynamic Range (WDR)

The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Smart IR Technology

With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of camera's infrared LEDs to compensate the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 30m (98ft).

Protection (IP67, IK10, wide voltage)

The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 2KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests (IK10), The camera complies with an IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.).

Environmental

Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95% humidity.

Image Flip

Capturing unnecessary data such as surrounding hallway walls can increase storage requirements without any added value. The image flip feature allows the camera's image to be rotated in 90° increments for better video optimization.

Interoperability

The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

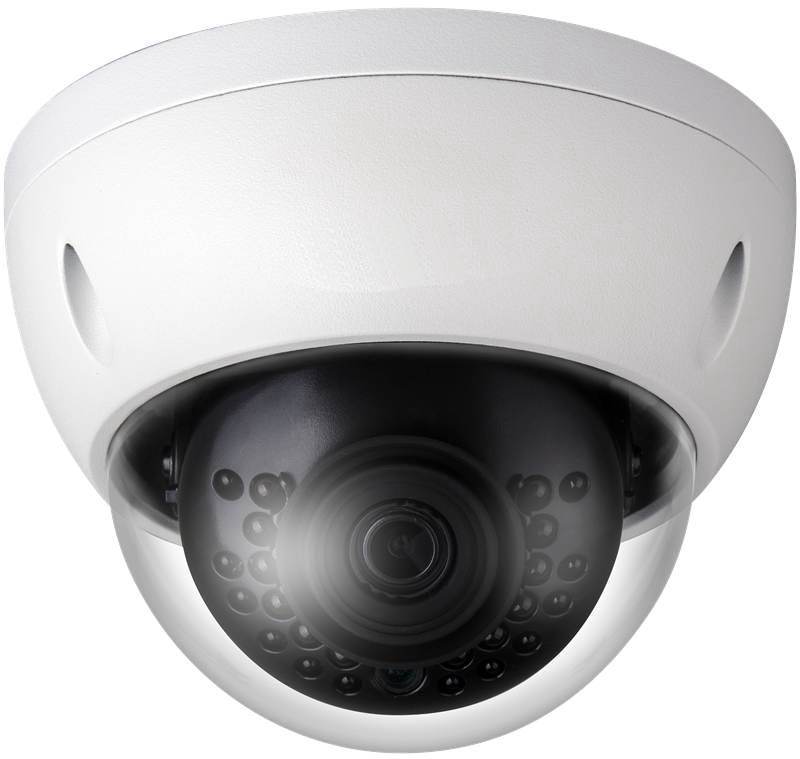

IPC-HDBW1431E-S – DAHUA DH-IPC-HDBW1431E-S 4MP WDR IR Mini-Dome Network Camera with Regions of interest Smart IR True Day/Night IPC-HDBW1431E-S  Picture

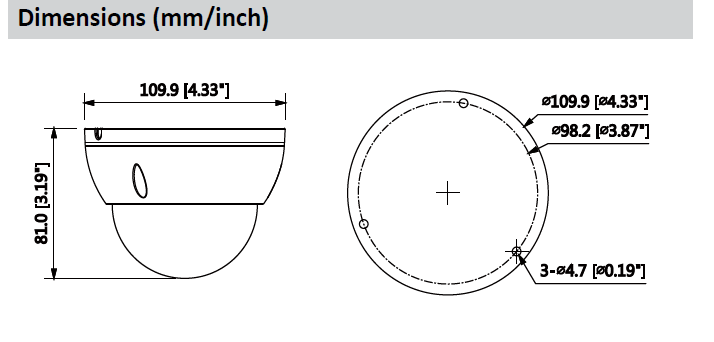

IPC-HDBW1431E-S – DAHUA DH-IPC-HDBW1431E-S 4MP WDR IR Mini-Dome Network Camera with Regions of interest Smart IR True Day/Night IPC-HDBW1431E-S  Dimension

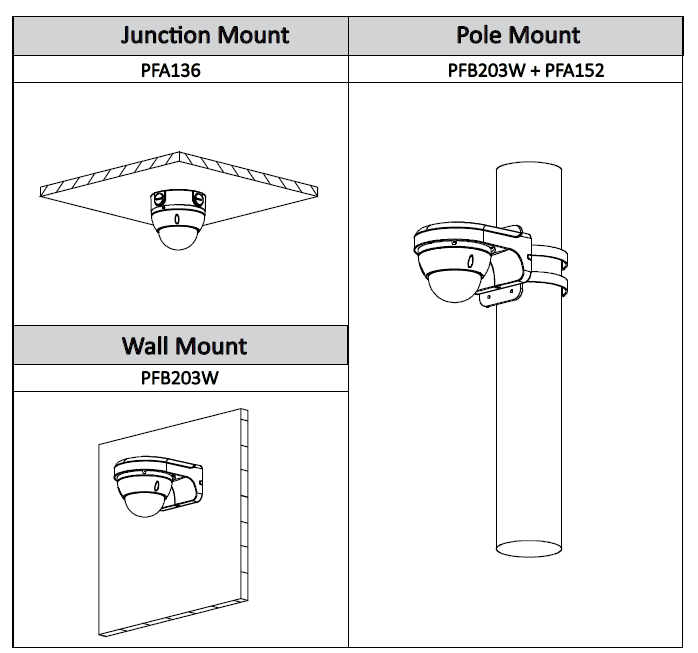

IPC-HDBW1431E-S – DAHUA DH-IPC-HDBW1431E-S 4MP WDR IR Mini-Dome Network Camera with Regions of interest Smart IR True Day/Night IPC-HDBW1431E-S  Installation
