Hikvision DS-7732NI-I4/16P - Hikvision DS-7732NI-I4/16P 32-ch 1.5U 16 PoE 4K NVR with Supports various special function cameras TECHNICAL SPECIFICATIONS

****

Video And Audio

IP Video Input32-ch Up to 12 MP resolution

HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Incoming Bandwidth256 Mbps 256 Mbps

Audio Output1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding FormatH.265+,H.265,H.264+,H.264

Decoding Capability16-ch@1080p

Synchronous Playback16-ch

Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF /DCIF/ 2CIF/CIF/QCIF

Network

Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Remote Connection128

Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

Interface16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces

Power≤200W

StandardIEEE 802.3 af/at

RAID

RAID TypeNo

Auxiliary Interface

SATA4 SATA interfaces for 4HDDs

CapacityUp to 8TB capacity for each HDD

Serial Interface1 RS-485 (half-duplex), 1 RS-232

USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm In/Out16/4

General

Power Supply100 to 240 VAC ≤300 W

Consumption≤20 W (without enabling PoE)

Working Temperature-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity10 to 90 %

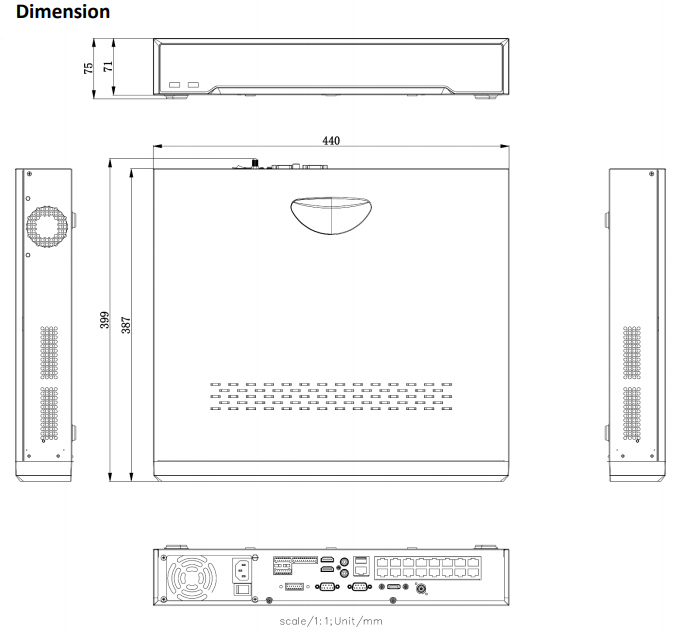

Dimension (W × D × H)445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")

Weight≤ 5 kg (11 lb)

*******

*
