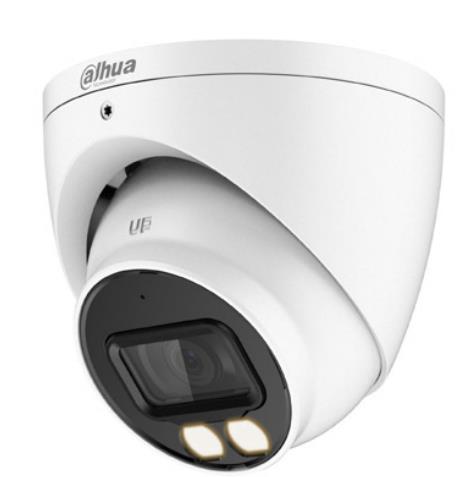

HAC-HDW2249T-A-LED - DAHUA DH-HAC-HDW2249T-A-LED 2MP Full-color Starlight HDCVI Eyeball Camera With Full-color starlight HD/SD output switchable Audio in interface 3.6mm fixed lens HAC-HDW2249T-A-LED

In stock
SKU
HAC-HDW2249T-A-LED
$85.00

HAC-HDW2249T-A-LED

2MP Full-color HDCVI Eyeball Camera

> 24/7 color imaging, Max. 30 fps@1080p
> 40 m illumination distance
> Super Adapt, 120 dB true WDR, 3D NR
> Built-in mic
> 3.6 mm fixed lens (2.8 mm optional)
> CVI/CVBS/AHD/TVI switchable
> IP67, DC 12 V

> 100% original products manufactured by DAHUA

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

HAC-HDW2249T-A-LED - DAHUA DH-HAC-HDW2249T-A-LED 2MP Full-color Starlight HDCVI Eyeball Camera With Full-color starlight HD/SD output switchable Audio in interface 3.6mm fixed lens HAC-HDW2249T-A-LED

HAC-HDW2249T-A-LED

2MP Full-color Starlight HDCVI Eyeball Camera

> Full-color starlight
> 120dB true WDR, 3DNR
> Max. 30fps@1080P
> HD/SD output switchable
> Audio in interface, built-in mic
> 3.6mm fixed lens (6mm optional)
> IP67, DC12V±30%

> without Logo,English firmware
> 100% original products manufactured by DAHUA

HAC-HDW2249T-A-LED - DAHUA DH-HAC-HDW2249T-A-LED 2MP Full-color Starlight HDCVI Eyeball Camera With Full-color starlight HD/SD output switchable Audio in interface 3.6mm fixed lens HAC-HDW2249T-A-LED OVERVIEW

Experience 2 megapixel video with the simplicity of reusing existing coaxial infrastructure. The 2MP starlight HDCVI camera presents a high quality image with rich details even under extreme low-light conditions. The camera also features broadcast-quality audio to provide enhanced supplementary evidence collection. It offers various motorized/fixed lens models with 120dB true WDR and HD/SD switchable output. The higher resolution and starlight feature makes the 4MP HDCVI camera an ideal choice for mid to large-size businesses and projects where both highly reliable surveillance and construction flexibility are needed.

HDCVI

HDCVI Camera products

DHCVI Camera

HAC-HDW2249T-A-LED - DAHUA DH-HAC-HDW2249T-A-LED 2MP Full-color Starlight HDCVI Eyeball Camera With Full-color starlight HD/SD output switchable Audio in interface 3.6mm fixed lens HAC-HDW2249T-A-LED FUNCTIONS

4 Signals over 1 Coaxial Cable

HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility. * Audio input is available for some models of HDCVI cameras.

Long Distance Transmission

HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 700m transmission for 4K and 4MP HD video via coaxial cable, and up to 300m via UTP cable.* *Actual results verified by real-scene testing in Dahua's test laboratory.

Simplicity

HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.

Starlight

With the adoption of large sized high performance sensor, the camera is able to provide incomparable performance even under extreme lowlight environment. The starlight feature allows more details to be captured and accurate color to be recognized at night or in scenes with limited illumination.

starlight

Broadcast-quality Audio

Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information.

Multiple-formats

The camera supports multiple video formats including HDCVI, CVBS, and other two common HD analog formats in the market. A DIP switch located on the cable allows you to quickly toggle formats, further simplifying installation and debugging. This feature makes the camera compatible with not only XVRs, but also most existing HD/SD DVRs.

Wide Dynamic Range

Embedded with industry leading wide dynamic range (WDR) technology, vivid pictures are achieved even in the most intense contrast lighting conditions. True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Advanced 3DNR

3DNR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua’s advanced 3DNR technology allows remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. Besides, the advanced 3DNR effectively decreases the band width and saves the storage space.

Protection

The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments. Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.

HAC-HDW2249T-A-LED - DAHUA DH-HAC-HDW2249T-A-LED 2MP Full-color Starlight HDCVI Eyeball Camera With Full-color starlight HD/SD output switchable Audio in interface 3.6mm fixed lens HAC-HDW2249T-A-LED  Picture

HAC-HDW2249T-A-LED - DAHUA DH-HAC-HDW2249T-A-LED 2MP Full-color Starlight HDCVI Eyeball Camera With Full-color starlight HD/SD output switchable Audio in interface 3.6mm fixed lens HAC-HDW2249T-A-LED  Dimension



HAC-HDW2249T-A-LED - DAHUA DH-HAC-HDW2249T-A-LED 2MP Full-color Starlight HDCVI Eyeball Camera With Full-color starlight HD/SD output switchable Audio in interface 3.6mm fixed lens HAC-HDW2249T-A-LED

Installation



HAC-HDW2249T-A-LED - DAHUA DH-HAC-HDW2249T-A-LED 2MP Full-color Starlight HDCVI Eyeball Camera With Full-color starlight HD/SD output switchable Audio in interface 3.6mm fixed lens HAC-HDW2249T-A-LED Specification



Technical Specifications

************

Camera

Image Sensor

1/2.8" CMOS

Effective Pixels

1920(H)×1080(V), 2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/4s~1/100,000s

NTSC: 1/3s~1/100,000s

Minimum Illumination

0.001Lux/F1.0

S/N Ratio

More than 65dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

3.6mm (6mm Optional)

Max Aperture

F1.0

Angle of View

H: 89.5° (53.8°)

Focus Control

Auto / Manual

Close Focus Distance

1600mm (3500mm)

63'' (138")

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 70°

Rotation: 0° ~ 360°

Video

Resolution

1080P (1920×1080)

Frame Rate

25/30fps@1080P, 25/30/50/60fps@720P

Video Output

1-channel BNC high definition video output / CVBS video output (DIP switch)

Day/Night

Color

OSD Menu

Multi-language

BLC Mode

BLC / HLC / WDR

WDR

120dB

Gain Control

AGC

Noise Reduction

2D/3D

White Balance

Auto / Manual

Smart IR

N/A

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

DORI

Definition

Distance

Detect

25px/m (8px/ft)

3.6mm: 53m(174ft)

6mm: 83m(272ft)

Observe

63px/m (19px/ft)

3.6mm: 21m(69ft)

6mm: 33m(108ft)

Recognize

125px/m (38px/ft)

3.6mm: 11m(36ft)

6mm: 17m(56ft)

Identify

250px/m (76px/ft)

3.6mm: 5m(16ft)

6mm: 8m(26ft)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface

1ch in & Built-in Mic

Eelectrical

Power Supply

12V DC ±30%

Power Consumption

Max. 2.4W (12V DC)

Environmental

Operating Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

Ingress Protection & Vandal Resistance

IP67

Construction

Casing

Aluminium

Dimensions

Φ106mm×99.2mm (Φ4.17"×3.9")

Net Weight

0.48kg (1.05lb)

Gross Weight

0.65kg (1.43lb)

**************Icctvzone-wholesales DAHUA IP Cameras

Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

*

**************

More Information
Wired/Wireless Wired
Outdoor use Outdoor use
Day/Night D/N IR
Focal Type Fixed
Factor Dome
