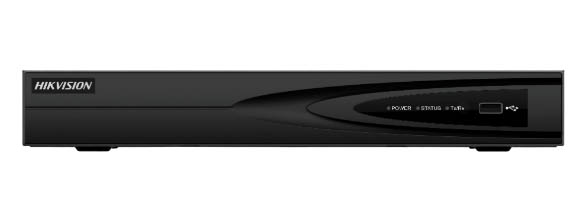

DS-7604NI-Q1/4P - Hikvision DS-7604NI-Q1/4P 4-ch 1U 4 PoE 4K NVR TECHNICAL SPECIFICATIONS

***********

Video And Audio

IP Video Input4-ch,Up to 8 MP resolution

HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; ,HDMI/VGA simultaneous output,

VGA Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;,HDMI/VGA simultaneous output,

Incoming Bandwidth40 Mbps,80 Mbps

Audio Output1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding FormatH.265+,H.265,H.264+,H.264

Decoding Capability1-ch @ 8 MP / 4-ch @ 1080p

Synchronous Playback4-ch

Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Network

Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power≤ 50W

StandardIEEE 802.3 af/at

RAID

RAID TypeNo

Auxiliary Interface

SATA1 SATA interface

CapacityUp to 6TB capacity for each disk

USB Interface2 × USB 2.0

General

Power Supply48 VDC or ≤ 65 W

Consumption≤ 10 W (without enabling PoE)

Working Temperature-10 to +55º C (+14 to +131º F)

Working Humidity10 to 90 %

Chassis1U

Dimension (W × D × H)315 × 240 × 48 mm (12.4" × 9.4" × 1.9")

Weight≤ 1 kg (2.2 lb)

**********

*
