SD8A840XA-HNP-WP- DAHUA DH-SD8A840XA-HNP-WP 2MP 60x Starlight IR Network PTZ Camera SD8A840XA-HNP-WP

In stock

SKU

SD8A840XA-HNP-WP

$2,030.00

SD8A840XA-HNP-WP

8MP 40x Starlight WizMind Hydrological Monitoring Network Camera

> 1/1.8" 8Megapixel STARVIS™ CMOS
> Powerful 40x optical zoom
> IR distance up to 250 m
> Max. 25/30 fps@4K
> Water level marker detection and calibration
> Water level marker joining
> Boat detection
> IP67

The delivery time is 15-25 working days

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

Enough stock, welcome to order

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SD8A840XA-HNP-WP- DAHUA DH-SD8A840XA-HNP-WP 2MP 60x Starlight IR Network PTZ Camera SD8A840XA-HNP-WP

SD8A840XA-HNP-WP

8MP 40x Starlight WizMind Hydrological Monitoring Network Camera

WizMind Series

WizMind is a wide range of project-oriented products that adopt industry-leading deep learning algorithms, such as IPC, NVR, PTZ, XVR, thermal camera and software platform. Focusing on customers’ needs, WizMind provides precise and reliable and comprehensive AI products for verticals.
Precise: Powered by AI chip and deep learning algorithms, WizMind delivers accurate detection and recognition of human and vehicle, enabling users to rapidly and precisely act on what really matters. In addition, it provides accurate and effective AI search to locate targets, and various human-based data for business analysis.
Reliable: Strict component selection to ensure the high product reliability. With thorough testing of front-end cameras, back-end device and platform, WizMind injects reliability into all of its solutions.
Comprehensive: Focusing on human and vehicle, WizMind provides various applications solutions such as face recognition, privacy protection, video metadata, stereo analysis, ANPR, illegal parking, etc. Moreover, WizMind combines deep learning algorithm with thermal imaging technology to help users achieve ultra-long distance monitoring in harsh environments, highly accurate non-contact temperature measurement with only ±0.3℃ temperature difference, and early detection of fire. wizmind AI

SD8A840XA-HNP-WP- DAHUA DH-SD8A840XA-HNP-WP 2MP 60x Starlight IR Network PTZ Camera SD8A840XA-HNP-WP System Overview

WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

DAHUA Smart Shop solution

With advanced deep learning algorithm, Dahua WizMind 7 Series network camera supports various intelligent functions and satisfies the requirements in different scenes. The camera can accurately recognize person, vehicle, and non-motor vehicle, face, ANPR, and liveness. This series camera has ultra starlight night version effect, and works with ultra-low stream. It supports dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67 and IK10 (Supported by some select models).

SD8A840XA-HNP-WP- DAHUA DH-SD8A840XA-HNP-WP 2MP 60x Starlight IR Network PTZ Camera SD8A840XA-HNP-WP Datasheets

SD8A840XA-HNP-WP Datasheets

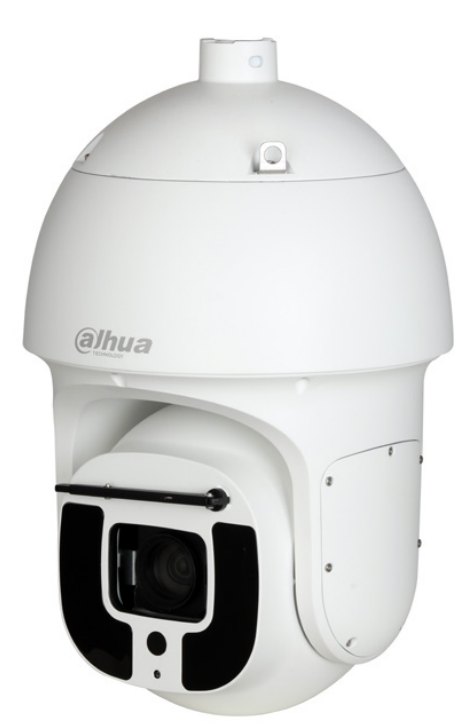

SD8A840XA-HNP-WP- DAHUA DH-SD8A840XA-HNP-WP 2MP 60x Starlight IR Network PTZ Camera SD8A840XA-HNP-WP Picture

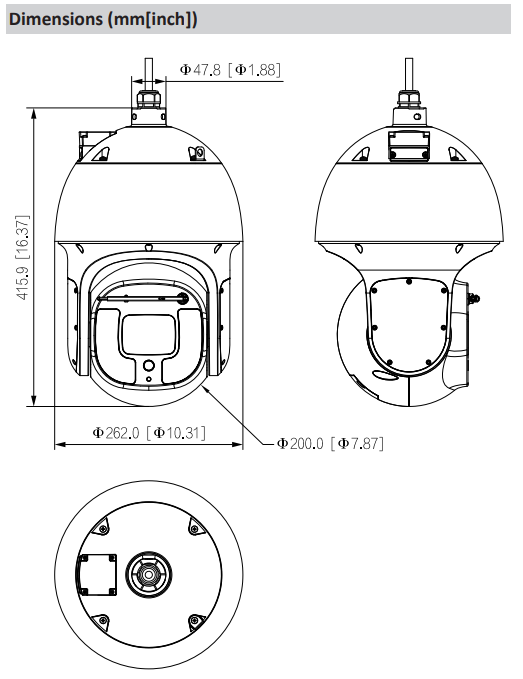

SD8A840XA-HNP-WP- DAHUA DH-SD8A840XA-HNP-WP 2MP 60x Starlight IR Network PTZ Camera SD8A840XA-HNP-WP Dimensions

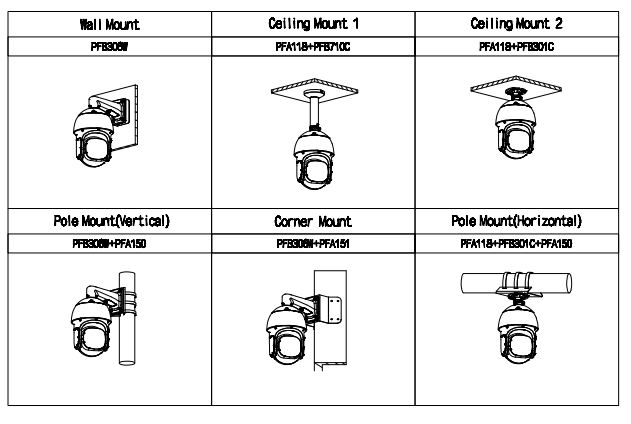

SD8A840XA-HNP-WP- DAHUA DH-SD8A840XA-HNP-WP 2MP 60x Starlight IR Network PTZ Camera SD8A840XA-HNP-WP Installation

SD8A840XA-HNP-WP- DAHUA DH-SD8A840XA-HNP-WP 2MP 60x Starlight IR Network PTZ Camera SD8A840XA-HNP-WP Technical Specifications

****

Camera

Image Sensor

1/1.8" CMOS

Pixel

8 MP

Max. Resolution

3840 (H) × 2160 (V)

ROM

8 GB

RAM

4 GB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.5
B/W: 0.0005 lux@F1.5
0 lux (IR light on)

Illumination Distance

500 m (1,640.42 ft) (IR)

Illuminator On/Off Control

Zoom Prio; Manual; Off

Illuminator Number

10 (IR)

Wiper

Smart Wiper

Lens

Focal Length

5.5 mm–248 mm

Max. Aperture

F1.5–F5.3

Field of View

H: 64.4°–2.0°; V: 38.4°–1.1°; D: 69.6°–2.3°

Optical Zoom

45x

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.1 m–5 m (0.33 ft–16.40 ft)

Iris Control

Auto

DORI Distance

Detect

Observe

Recognize

Identify

4,420 m (14,501.31 ft)

1,768 m (5,800.52 ft)

884 m (2,900.26 ft)

442 m (1,450.13 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –30° to +90°, auto flip 180°

Manual Control Speed

Pan: 0°/s–240°/s
Tilt: 0°/s–100°/s

Preset Speed

Pan: 90°/s; Tilt: 60°/s

Preset

300

Tour

8 (up to 32 preset per tour)

Pattern

Scan

Power-off Memory

Yes

Idle Motion

Preset; Pattern; Tour; Scan

PTZ Protocol

DH-SD
Pelco-P/D (auto recognition)

Intelligence

Video Metadata

Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.

IVS (Perimeter Protection)

Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification

Face Recognition

Yes

Auto Tracking

Yes

Video

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264M; H.264H; MJPEG (Sub Stream 1)

Streaming Capability

3 Streams

Resolution

4K (3840 × 2160); 4M (2560 × 1440); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF (352 × 288)

Video Frame Rate

50 Hz:
Main stream: 3840 × 2160@25 fps/2560 × 1440@25 fps/1920 × 1080@25 fps/1280 × 960@25 fps/1280 × 720@25 fps
Sub stream: 704 × 576@25 fps/640 × 480@25 fps/352 × 288@25 fps
Third stream: 1920 × 1080@25 fps/1280 × 960@25 fps/1280 × 720@25 fps
60 Hz:
Main stream: 3840 × 2160@30 fps/2560 × 1440@30 fps/1920 × 1080@30 fps/1280 × 960@30 fps/1280 × 720@30 fps
Sub stream: 704 × 480@30 fps/640 × 480@30 fps/352 × 240@30 fps
Third stream: 1920 × 1080@30 fps/1280 × 960@30 fps/1280 × 720@30 fps

Bit Rate Control

CBR; VBR

Video Bit Rate

H.264: 3328 kbps–16384 kbps
H.265: 1280 kbps–9984 kbps

Day/Night

Auto (ICR); Color; B/W

BLC

Yes

WDR

Yes

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; Manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Optical

Defog

Optical

Digital Zoom

16x

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view

S/N Ratio

≥55 dB

Audio

Audio Compression

G.711a; G.711Mu; G726; MPEG2-Layer2; G722.1; G729

<p data-gtm-vis-has-fired-10552706_181="1" data-gtm-vis-has-fired

More Information
Wired/Wireless	Wired
Outdoor use	Intdoor use, Outdoor use
Focal Type	Motorized Zoom
Day/Night	Low light
Factor	Dome
Max Resolution	12 MP
