SD6C3432XB-HNR-AGQ-PV- DAHUA DH-SD6C3432XB-HNR-AGQ-PV 4MP 32x Startlight IR WizSense Network PTZ Camera SD6C3432XB-HNR-AGQ-PV

In stock
SKU
SD6C3432XB-HNR-AGQ-PV
$858.00

SD6C3432XB-HNR-AGQ-PV

4MP 32x Startlight IR WizSense Network PTZ Camera

> 1/2.8" 4Megapixel STARVIS™ CMOS
> 32x optical zoom
> Starlight technology
> Max. 25/30 fps@4M
> IR distance up to 150 m
> Auto-tracking
> Perimeter protection
> Face detection
> 4G
> Sound and light alarm
> Low power consumption







The delivery time is 15-25 working days

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

Enough stock, welcome to order


in Warehouse

SD6C3432XB-HNR-AGQ-PV- DAHUA DH-SD6C3432XB-HNR-AGQ-PV 4MP 32x Startlight IR WizSense Network PTZ Camera SD6C3432XB-HNR-AGQ-PV

SD6C3432XB-HNR-AGQ-PV

4MP 32x Startlight IR WizSense Network PTZ Camera

> 1/2.8" 4Megapixel STARVIS™ CMOS
> 32x optical zoom
> Starlight technology
> Max. 25/30 fps@4M
> IR distance up to 150 m
> Auto-tracking
> Perimeter protection
> Face detection
> 4G
> Sound and light alarm
> Low power consumption





SD6CE432GB-HNR- DAHUA DH-SD6CE432GB-HNR 4MP 32x Starlight IR WizSense Network PTZ Camera SD6CE432GB-HNR Datasheets

SD6C3432XB-HNR-AGQ-PV Datasheets



SD6CE432GB-HNR- DAHUA DH-SD6CE432GB-HNR 4MP 32x Starlight IR WizSense Network PTZ Camera SD6CE432GB-HNR Picture

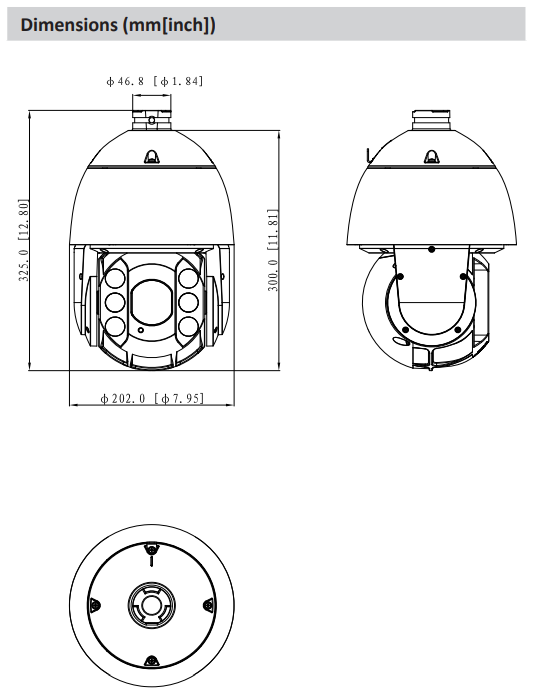

SD6CE432GB-HNR- DAHUA DH-SD6CE432GB-HNR 4MP 32x Starlight IR WizSense Network PTZ Camera SD6CE432GB-HNR  Dimensions

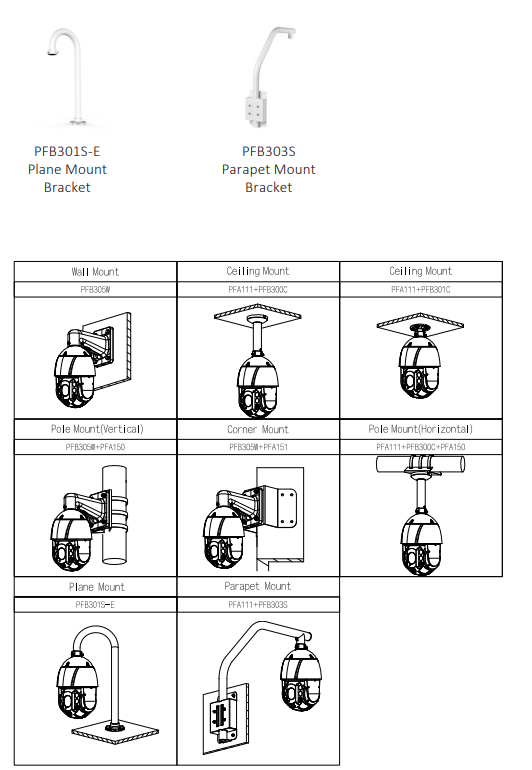

SD6CE432GB-HNR- DAHUA DH-SD6CE432GB-HNR 4MP 32x Starlight IR WizSense Network PTZ Camera SD6CE432GB-HNR  Installation


SD6CE432GB-HNR- DAHUA DH-SD6CE432GB-HNR 4MP 32x Starlight IR WizSense Network PTZ Camera SD6CE432GB-HNR Technical Specifications

**********************

*********************

Camera

Image Sensor

1/2.8" CMOS

Pixel

4 MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

4 GB

RAM

1 GB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)

Illumination Distance

150 m (492.13 ft) (IR)

50 m (164.04 ft) (white light)

Illuminator Number

4 (IR)
2 (white light)

Lens

Focal Length

4.8 mm–154 mm

Max. Aperture

F1.6–F4.0

Field of View

H: 55.8°–2.3°; V: 31.9°–1.3°; D: 63.7°–2.7°

Optical Zoom

32×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.1 m–1.5 m (0.33-4.92)

Iris Control

Auto

DORI Distance

Detect

Observe

Recognize

Identify

3,080 m

(10,104.99 ft)

1,216.6 m (3,991.47 ft)

616 m (2,021.00 ft)

308 m (1,010.50 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –20° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s–160°/s

Tilt: 0.1°/s–120°/s

Preset Speed

Pan: 240°/s; Tilt: 150°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Preset; Pattern; Tour; Scan

Smart Event

IVS

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; linkage tracking

Intelligence

Smart Capture

Support human, motor vehicle and non-motor vehicle image capture.

IVS (Perimeter Protection)

Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

Face Detection

Yes

SMD Plus

Yes

Auto Tracking

Yes

Active Deterrence

Light Warning

White light warning

Flash duration: 5 s–30 s

Flash frequency: High, medium, low

Sound Warning

Sound warning alarm: Customizable

Volumn: High, middle, low

Alarm duration: 5 s–30 s

Video

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream 1)

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288)

Video Frame Rate

Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p (1–25/30 fps)

Bit Rate Control

CBR; VBR

Video Bit Rate

H.264: 2816 kbps–8192 kbps
H.265: 1024 kbps–7936 kbps

Day/Night

Auto (ICR); Color; B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; Manual

Noise Reduction

2D NR; 3D NR

Region of Interest (RoI)

Yes

Image Stabilization

EIS

Defog

Electronic defog

Digital Zoom

16×

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view

S/N Ratio

≥ 55 dB

Audio

Audio Compression

G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723

Network

Network Port

RJ-45 (10/100 Base-T)

4G-Wireless Frequency Range

LTE-FDD: B1/3/5/7/8/20

LTE-TDD: Band 38/40

WCDMA: Band 1/5/8

GSM: 850/900/1800 MHz

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP;DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; IP Filter; RTMP; Bonjour; TCP; SMB; NFS

Interoperability

ONVIF Profile S&G&T; CGI; Dahua SDK; SDK; API

User/Host

20 (total bandwidth: 64 M)

Storage

FTP; Micro SD card (256 GB); NAS

Management Software

Smart PSS; DSS; DMSS; Easy4ip; IVSS; ConfigTool; NVR; Smart Player; NetSDK

Mobile Client

iOS; Android; iPhone; iPad; Windows Phone

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014

Port

RS-485

1 (baud rate: 1200 bps–9600 bps)

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT, bare wire; built-in speaker (mutually exclusive))

Alarm I/O

2/1

Audio I/O

1/1

Alarm Linkage

Capture; preset; tour; pattern; recording; triggering on-off value output; audio; sending email; waking up

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection

Power

Power Supply

12 VDC, 4 A (–10% to +25%)

Power Consumption

Sleep: ≤ 1 W
Basic: 4.0 W (not pulling stream in 4G), 7.4 (pulling stream in 4G)
Max.: 27 W (illuminator + heater + PTZ + speaker + pulling stream in 4G)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤ 95%

Protection

IP66; TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Casing

ADC12

Product Dimensions

325.0 mm × Φ202.0 mm (12.80" × Φ7.95")

Net Weight

4.4 kg (9.70 lb)

Gross Weight

6.4 kg (14.11 lb)



*****************

More Information
Wired/Wireless Wired
Outdoor use Intdoor use, Outdoor use
Focal Type Motorized Zoom
Day/Night Low light
Factor Dome
Max Resolution 12 MP
