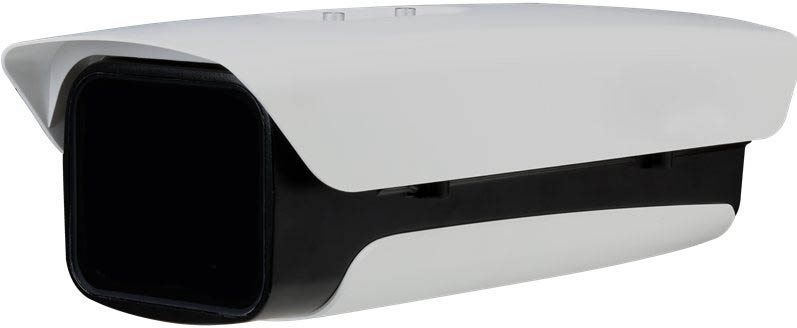

PFH610E - PFH610E PFH610E Series 14" Extreme Cold Housing H-PFH610E
PFH610E Series
14" Extreme Cold Housing
>Build-in heating system, applicable for -65ºC ~+55ºC extreme environment
>IP67, IK10, corrosion-proof 14” housing (IR optional)
>Aesthetic design
>IP67, IK10, corrosion-proof 14” housing (IR optional)
>Aesthetic design
Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.
PFH610E - PFH610E PFH610E Series 14" Extreme Cold Housing H-PFH610E is a security camera product for CCTV video surveillance, monitoring, and replacement projects.
Listed details include IR night vision, IP67 weather resistance, IK10 vandal resistance. Use the model number to match this item with an existing recorder, camera system, or installation requirement.
PFH610E - PFH610E PFH610E Series 14" Extreme Cold Housing H-PFH610E
PFH610E - PFH610E PFH610E Series 14" Extreme Cold Housing H-PFH610E DIMENSIONS
PFH610E - PFH610E PFH610E Series 14" Extreme Cold Housing H-PFH610E INSTALLATION
PFH610E - PFH610E PFH610E Series 14" Extreme Cold Housing H-PFH610E TECHNICAL SPECIFICATIO
**********
| Model | PFH610E | PFH610E-IR | |
| General | |||
| Inside Dimension(LxWxH) | 230mmx90mmx75mm(9.06”x3.54”x2.95”) | ||
| Window Dimension(LxWxH) | ɸ60mm(ɸ2.36”) | ||
| Heater Operating Temperature | ON: <-15ºC(+41℉) OFF: +25ºC(+41℉) | ||
| IR Distance | N/A | 0~100m(0~328.08ft) | |
| Power Voltage | AC220V25%, 50/60Hz; AC110V25%, 50/60Hz | ||
| Power Consumption(without camera) | AC220V input: Heating mode: 350W Normal mode: 30W AC110V input: Heating mode: 150W Normal mode: 30W | ||
| Environmental | |||
| Operating Temperature | -65ºC ~+55ºC(-85℉~+131℉) | ||
| Humidity | <90% RH | ||
| Ingress Protection | IP67 | ||
| Vandal Resistance | IK10 | ||
| Corrosion Protection | Meet the criteria of NEMA 4X | ||
| Construction | |||
| Material | Aluminum(case)&PC(others) | ||
| Dimension(L x W x H) | 404mmx164mmx132mm(15.91”x6.46”x5.2”) | ||
| Weight | 3.7kg(8.16lb) | 3.9kg(8.6lb) | |
| Others | |||
| Certification | CE, FCC | ||
| Applicable Model | Please see “Accessory Selection” | ||
*******
Accessory Selection
************
****************
**
**
*
