NVR616DR-128-4KS2 - DAHUA DHI-NVR616DR-128-4KS2 Ultra 4K H.265 128 Channel Network Video Recorder With Intelligent Video System Supports RAID 0/1/5/10 Smart Tracking Point of Sale (POS) Heat Map NVR616DR-128-4KS2

In stock
SKU
NVR616DR-128-4KS2
$4,649.00

NVR616DR-128-4KS2

128 Channel Ultra 4K H.265 Network Video Recorder

> Intel Processor
> Max 64/128 IP Camera Inputs
> Max 384Mbps Incoming Bandwidth
> Up to 12MP Resolution for Preview and Playback
> Supports RAID 0/1/5/10
> iSCSI and Mini SAS for Expanded Storage Space
> Smart Tracking and Intelligent Video
> Redundant Power&7-inch HD LCD Monitor

>Multi language firmware

>100% original products manufactured by DAHUA

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

NVR616DR-64-4KS2 - DAHUA DHI-NVR616DR-64-4KS2 Ultra 4K H.265 64 Channel Network Video Recorder With Intelligent Video System Supports RAID 0/1/5/10 Smart Tracking Point of Sale (POS) Heat Map NVR616DR-64-4KS2 Multi language firmware

NVR616DR-128-4KS2

128 Channel Ultra 4K H.265 Network Video Recorder

> Intel Processor
> Max 64/128 IP Camera Inputs
> Max 384Mbps Incoming Bandwidth
> Up to 12MP Resolution for Preview and Playback
> Supports RAID 0/1/5/10
> iSCSI and Mini SAS for Expanded Storage Space
> Smart Tracking and Intelligent Video
> Redundant Power&7-inch HD LCD Monitor

>Multi language firmware

>100% original products manufactured by DAHUA

NVR616DR-64-4KS2 - DAHUA DHI-NVR616DR-64-4KS2 Ultra 4K H.265 64 Channel Network Video Recorder With Intelligent Video System Supports RAID 0/1/5/10 Smart Tracking Point of Sale (POS) Heat Map NVR616DR-64-4KS2 Multi language firmware SYSTEM OVERVIEW

.

DAHUA NVR NEW UI 4.0DAHUA NVR New ui

Dahua's next generation network video recorder offers unparalleled recording technology for IP video surveillance applications. For applications where details are critical for identification, this enterprise-level NVR provides a powerful Intel processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, centre storage, edge storage, and back up storage. This NVR is ideal for a wide range of applications such as public safety, transportation stations, government institutions, hotel resorts, shopping malls, city centers, and financial institutions, where demand expansion flexibility, high reliability and centralized storage management. The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access and is compatible with ONVIF 2.4, enabling interoperability when combined with 4K cameras.

NVR616DR-64-4KS2 - DAHUA DHI-NVR616DR-64-4KS2 Ultra 4K H.265 64 Channel Network Video Recorder With Intelligent Video System Supports RAID 0/1/5/10 Smart Tracking Point of Sale (POS) Heat Map NVR616DR-64-4KS2 Multi language firmware FUNCTIONS

RAID 0/1/5/10

Offering a balance between storage performance, storage capacity, and data integrity, the NVR features Fruitfull RAID 0/1/5/10 for faster and safer recording

Fisheye Dewarping

The NVR features multiple fisheye dewarping modes to make viewing video easy whether its live or during playback.

N+M Hot Standby

The highly reliable redundancy N+M Hot Standby design provides a secure, failover technique ensuring immediate backup. In the event of a system failure, the slave instantly takes over the master ensuring no data is lost.

4K Resolution

The NVR supports 4K ultra HD resolution (3840 x 2160) for recording, live viewing and playback.

Intelligent Video System (IVS)

With built-in intelligent video analytics, the NVR has the ability to detect and analyze moving objects for improved video surveillance. The NVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed, People Counting, ideal for business intelligence, and Facial Detection, for searching or identification of individuals.

Point of Sale (POS)

Ideal for grocery and retail stores, the optional POS solution allows the NVR to receive a POS transaction via corresponding video. This feature allows merchants to analyze specific transactions via the Fuzzy search algorithm.

Heat Map

The NVR's Heat Map option highlights the areas with the highest concentration of people. This information can then be exported into a customized report to assist in business or forensic analysis.

Smart Tracking

The auto tracking PTZ feature automatically tracks a moving target throughout the camera's field of view. This function is ideal for following an object as it moves through airports, parking lots, city centers, or other applications.

Automatic Network Replenishment (ANR)

Technology Network Video Recorders with the ANR function automatically store video data on an IP camera SD card when the network is disconnected. After recovery of the network, the NVR automatically retrieves the video data stored on the camera.

NVR616DR-64-4KS2 - DAHUA DHI-NVR616DR-64-4KS2 Ultra 4K H.265 64 Channel Network Video Recorder With Intelligent Video System Supports RAID 0/1/5/10 Smart Tracking Point of Sale (POS) Heat Map NVR616DR-64-4KS2 Multi language firmware PICTURE

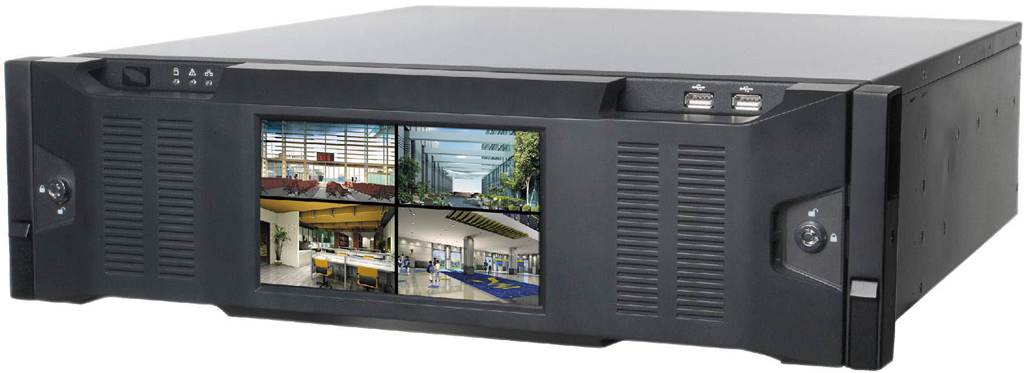

DAHUA DHI-NVR616DR-128-4KS2

NVR616DR-64-4KS2 - DAHUA DHI-NVR616DR-64-4KS2 Ultra 4K H.265 64 Channel Network Video Recorder With Intelligent Video System Supports RAID 0/1/5/10 Smart Tracking Point of Sale (POS) Heat Map NVR616DR-64-4KS2 Multi language firmware DIMENSIONS



NVR616DR-64-4KS2 - DAHUA DHI-NVR616DR-64-4KS2 Ultra 4K H.265 64 Channel Network Video Recorder With Intelligent Video System Supports RAID 0/1/5/10 Smart Tracking Point of Sale (POS) Heat Map NVR616DR-64-4KS2 Multi language firmware REAR PANEL

NVR616DR-64-4KS2 - DAHUA DHI-NVR616DR-64-4KS2 Ultra 4K H.265 64 Channel Network Video Recorder With Intelligent Video System Supports RAID 0/1/5/10 Smart Tracking Point of Sale (POS) Heat Map NVR616DR-64-4KS2 Multi language firmware TECHNICAL SPECIFICATIONS

*****

System

Main Processor

Intel Quad-core Processor

Operating System

Embedded LINUX

Audio and Video

IP Camera Input

64/128 Channel

Two-way Talk

1 Channel Input, 1 Channel Output, RCA

Display

Interface

2 HDMI (up to 3840 x 2160 , Different Source),

1 VGA

Resolution

3840 × 2160 , 1920 × 1080 , 1280 × 1024,

1280 × 720 , 1024 × 768

Multi-screen Display

1st Screen: 1/4/8/9/16/25/36

2nd Screen: 1/4/8/9/16

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Compression

H.265/H.264/MJPEG

Resolution

12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P etc.

Record Rate

384Mbps

Bit Rate

16Kbps ~ 20Mbps Per Channel

Record Mode

Manual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Holiday, Stop

Record Interval

1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering

Alarm input

16 Channel, Low Level Effective, Green Terminal Interface

Relay Output

8 Channel, NO/NC Programmable, Green Terminal Interface

Tracking Trigger Event

Zoom, Tracking, Recording, Preset, Snapshot, Alarm, etc.

Playback and Backup

Playback

128 Mbps in Raid 5 Mode;

64 Mbps in single HDD Mode

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network/eSATA Device

Third-party Support

Third-party Support

Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Network

Interface

4 RJ-45 Ports (10/100/1000Mbps)

Ethernet Port

4 Ethernet Ports Joint Working or 4 Independent 1000Mbps Ethernet Ports

PoE

N/A

Network Function

HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support IP camera, DVR, NVS, etc.)

Optical Fiber Interface

2 Giga Optical Fiber Interface

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.4, CGI Conformant

Storage

Internal HDD

16 SATA III Ports, Up to 8 TB capacity for each HDD

HDD Mode

Single, Raid 0/1/5/10(Enterprise-level HDDs are recommended)Support Global HDD Hot-spare

eSATA

1 eSATA Port (Please contact technical engineer to confirm the compatible device)

SAS

1 Mini SAS Port, for Storage Expansion

Auxiliary Interface

Front Cover

Support Hot-swap7-inch HD LCD (1920 × 1080 , 1280 × 1024, 1024 × 768)

USB

4 USB Ports (2 USB 2.0 , 2 USB 3.0 )

RS232

1 Port, for PC Communication and Keyboard

RS485

1 Port, for PTZ Control

Electrical

Power Supply

AC100V ~ 240V, 50 ~ 60 Hz, Redundant

Power Consumption

<51W (Without HDD)

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions

3U, 485mm x 529.9mm x 133.2mm (19.1" x 20.9" x 5 .2")

Net Weight

19.6kg (43.2 lb) (without HDD)

Gross Weight

29kg (63.9 lb)

Installation

Rack-mounted

Certifications

CE

EN55022, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2014

UL

UL 60950-1 and CAN/CSA C22.2 No.60950-1
