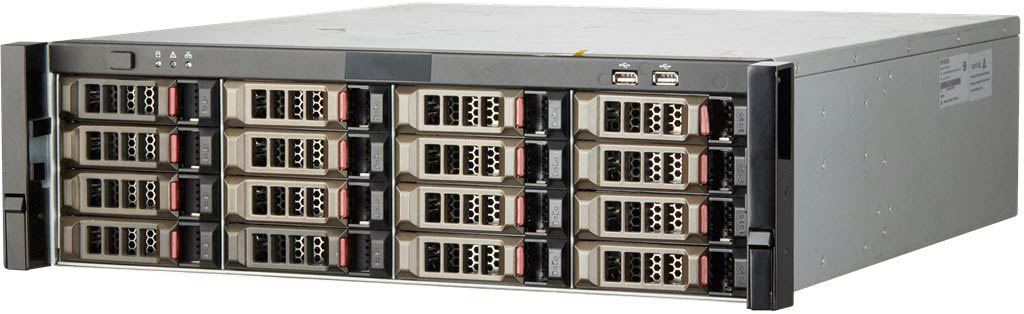

IVSS7016-8I - DAHUA DHI-IVSS7016-8I 3U 16HDD Intelligent Video Surveillance Server With 50 face databases with 300,000 face pictures Video Metadata Perimeter Protection 256-channel IP video IVSS7016-8I

In stock
SKU
IVSS7016-8I
$13,544.00

IVSS7016-8I - DAHUA DHI-IVSS7016-8I 3U 16HDD Intelligent Video Surveillance Server With 50 face databases with 300,000 face pictures Video Metadata Perimeter Protection 256-channel IP video IVSS7016-8I withoutlogo

IVSS7016-8I

3U 16HDD Intelligent Video Surveillance Server

> Industry embedded micro-controller

> Max 512Mbps incoming bandwidth

> 256-channel IP video access

> Up to 128-channel perimeter protection

> Up to 64-channel face recognition with normal IPC

> Up to 160-channel face recognition with face detection IPC

> Up to 32-channel video metadata

> Up to 50 face databases with 300,000 face pictures in total

> Supports RAID 0/1/5/6/10

> 3 HDMI/1 VGA video output

>Multi language firmware

>100% original products manufactured by DAHUA

DAHUA IVSS7016-8I,DAHUA DHI-IVSS7016-8I,IVSS7016-8I,DHI-IVSS7016-8I,DHI-IVSS7016P-8I,DHI-IVSS7016N-8I,DAHUA Intelligent Video Surveillance Server,DAHUA Surveillance Server

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.
Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

IVSS7016-8I - DAHUA DHI-IVSS7016-8I 3U 16HDD Intelligent Video Surveillance Server With 50 face databases with 300,000 face pictures Video Metadata Perimeter Protection 256-channel IP video IVSS7016-8I

IVSS7016-8I

3U 16HDD Intelligent Video Surveillance Server

> Industry embedded micro-controller

> Max 512Mbps incoming bandwidth

> 256-channel IP video access

> Up to 128-channel perimeter protection

> Up to 64-channel face recognition with normal IPC

> Up to 160-channel face recognition with face detection IPC

> Up to 32-channel video metadata

> Up to 50 face databases with 300,000 face pictures in total

> Supports RAID 0/1/5/6/10

> 3 HDMI/1 VGA video output

>without Logo,English firmware

>100% original products manufactured by DAHUA

IVSS7016-8I - DAHUA DHI-IVSS7016-8I 3U 16HDD Intelligent Video Surveillance Server With 50 face databases with 300,000 face pictures Video Metadata Perimeter Protection 256-channel IP video IVSS7016-8I SYSTEM OVERVIEW

.

DAHUA NVR NEW UI 4.0 DAHUA IVSS7016-8I,DAHUA DHI-IVSS7016-8I,IVSS7016-8I,DHI-IVSS7016-8I,DHI-IVSS7016P-8I,DHI-IVSS7016N-8I,DAHUA Intelligent Video Surveillance Server,DAHUA Surveillance ServerDAHUA NVR New ui

AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc. The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way.

Dahua IVSS goes beyond the ordinary NVR products. It is an Intelligent Video Surveillance Server that combines video management features with traditional video storage functions in one device. Besides the basic functions as a network video recorder, IVSS is integrated with features such as face detection and face recognition for different business and industrial applications. With the build-in deep learning module, IVSS series products adopt video image metadata technology based on deep learning algorithms, offering high-precision human face recognition and perimeter protection. By applying deep learning artificial intelligence, IVSS allows users to focus on what matters most, to improve event response time and help make video actionable. An all new UI design supports device operation and maintenance management, improving the value and experience of surveillance view, and serving the era of security big data.

IVSS7016-8I - DAHUA DHI-IVSS7016-8I 3U 16HDD Intelligent Video Surveillance Server With 50 face databases with 300,000 face pictures Video Metadata Perimeter Protection 256-channel IP video IVSS7016-8I FUNCTIONS

Face Recognition

Supports recording faces by metadata and real-time crosscheck with incredible accuracy to figure out the face with target features. With the Regular and Stranger face mode, IVSS triggers various kinds of alarm actions for different applications.

Perimeter Protection Automatically filters out false alarms caused by animals, rustling leave sand bright lights, so as to improve alarm accuracy. Enables system to act secondary recognition for the targets.

Video Metadata

Metadata is feature attribute information extracted from a target object which can be used for data retrieval. Currently, there are four main kinds of metadata in the security industry: Human face, human body, and motor vehicle and non-motor vehicle metadata.

AI Search

Supports search by metadata of human and vehicles. Supports uploading face pictures to IVSS and compare them with recorded faces in IVSS by similarity. IVSS enables operators to quickly and easily search through multiple channels and long duration, to efficiently find out when and where a person of interest appeared.

Fisheye Dewarping

The NVR features multiple fisheye dewarping modes to make viewing video easy whether its live or during playback.

N+M Hot Standby

The highly reliable redundancy N+M Hot Standby design provides a secure, failover technique ensuring immediate backup. In the event of a system failure, the slave instantly takes over the master ensuring no data is lost.

Smart Tracking

The auto tracking PTZ feature automatically tracks a moving target throughout the camera's field of view. This function is ideal for following an object as it moves through airports, parking lots, city centers, or other applications.

ANPR

Automatic Number Plate Recognition available for convenient entrance/ exit management. This feature provides number plate recognition (working with Dahua ITC camera), number plate comparison with black/ white list, vehicle database management, and vehicle record search.

IVSS7016-8I - DAHUA DHI-IVSS7016-8I 3U 16HDD Intelligent Video Surveillance Server With 50 face databases with 300,000 face pictures Video Metadata Perimeter Protection 256-channel IP video IVSS7016-8I PICTURE



DAHUA DHI-IVSS7016-8I

IVSS7016-8I - DAHUA DHI-IVSS7016-8I 3U 16HDD Intelligent Video Surveillance Server With 50 face databases with 300,000 face pictures Video Metadata Perimeter Protection 256-channel IP video IVSS7016-8I  DIMENSIONS



IVSS7016-8I - DAHUA DHI-IVSS7016-8I 3U 16HDD Intelligent Video Surveillance Server With 50 face databases with 300,000 face pictures Video Metadata Perimeter Protection 256-channel IP video IVSS7016-8I  REAR PANEL

IVSS7016-8I - DAHUA DHI-IVSS7016-8I 3U 16HDD Intelligent Video Surveillance Server With 50 face databases with 300,000 face pictures Video Metadata Perimeter Protection 256-channel IP video IVSS7016-8I TECHNICAL SPECIFICATIONS

************

System

Main Processor

Industry embedded micro-controller

Operating System

Embedded Linux OS

Operation Interface

WEB (PCAPP), local GUI

AI Applications

AI by Camera

Supports AI by camera function: Human face detection, human face recognition, video metadata (human/vehicle/non-motorized vehicle), perimeter protection

AI by Device

Supports AI by IVSS function: Human face detection, human face recognition, video metadata (human/vehicle/non-motorized vehicle), perimeter protection

Perimeter Protection

Perimeter Function (AI by Device)

128-channel

Perimeter Function (AI by camera)

256-channel

Human Face Detection

Human Face Properties

Supports 6 properties: Gender, age range (6 levels), glasses, expression (8 types), mouth mask, and beard

Face Detection Performance (AI by Device) (1080P) (Channel Number)

64-channel

Face Detection Performance (AI by camera) (Channel Number)

160-channel

Human Face Recognition

Face Database Capacity

50 face databases with 300,000 face pictures in total

Human Face Recognition Performance (AI by Device) (1080P)(Channel Number)

64-channel with normal IP camera

160-channel with face detection IP camera (Totally 160 face pictures analyzed per second)

Human Face Recognition Performance (AI by camera) (Channel Number)

160-channel

ANPR

Plate Database Capacity

50 plate databases with 300,000 plate numbers in total

Supports black list/white list

Plate Detection Performance by ITC Camera (Channel Number)

64-channel

Video Metadata

Human Body Properties

Top color, top type, bottom color, bottom type, cap, bag, age, gender, and umbrella

Vehicle Properties

Supports 9 properties: Plate, plate color, vehicle body, vehicle brand, driver calling, seatbelt status, decoration object in the vehicle, and vehicle registration place

Non-motorized Vehicle Properties

Supports 4 properties: Vehicle type, vehicle color, people amount, and helmet

Metadata Performance (AI by Device) (1080P) (Channel Number)

32-channel

Metadata Performance (AI by camera) (Channel Number)

64-channel

Video Parameters

Remote Connection

256-channel

Network Bandwidth

Incoming bandwidth: 512Mbps
recording bandwidth: 384Mbps
outgoing bandwidth: 128Mbps

Resolution

12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/CIF/QCIF

Decoding Capability

6-channel12MP (20fps)/7-channel12MP (15fps)/6-channel8MP (30fps)/12-channel8MP (15fps)/7-channel6MP(30fps)/9-channel5MP(30fps)/11-channel5MP (25fps)/12-channel4MP (30fps)/18-channel4MP (20fps)/19-channel3MP (25fps)/12-channel1080P (60fps)/24-channel1080P (30fps)/36-channel720P (30fps)

Video Output

1-channel VGA output, 3-channel HDMI output, VGA 1/HDMI 1 outputs the same video source

Supports 4K output

Multi-screen Display

Customized display

Max. 36-channel local live view

Max.16-channel PCAPP live view

Third-party Support

Onvif, RTSP, Sony, Panasonic, Axis, Arecont, Pelco,Canon, Samsung

Operating System

Embedded Linux OS

Operation Interface

WEB(PCAPP), local GUI

Compression

Video Compression

Smart H.265+/Smart H.264+/H.265/H.264

Audio Compression

G.711A/G.711U/PCM/G726

Network

Protocol

HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P

Mobile Phone

iOS, Android

Interoperability

ONVIF (Profile S, T and G), CGI, SDK

Browser

Chrome, PCAPP, IE9 or higher, Firefox

Network Mode

NIC binding mode such as multiple-address mode, load balance, fault-tolerance, etc

Record Playback

Multiple-channel Playback

Max. 16-channel playback

Record Search

Search video detection/manual record/IO alarm/intelligent event/all record file

Storage Medium

Internal HDD, SAS disk array enclosure

Backup Method

HDD, peripheral USB storage device

Playback Function

Play, pause, stop, fast forward, fast backward, reverse play, frame by frame play

Full-screen, backup (clip/file), snapshot, digital zoom, audio on/off

Storage

HDD Group

16

RAID

RAID 0/1/5/6/10

Storage Pool

N/A

Alarm

General Alarm

Motion detect, tampering, local alarm

Anomaly Alarm

IPC offline alarm, storage error, HDD full, IP conflict, MAC conflict, login lock, AI module temperature alarm, AI module offline, fan malfunction

Intelligent Alarm

Human face detection, human face recognition, video metadata (person/vehicle/non-motorized vehicle),perimeter protection (intrusion, tripwire),plate recognition

Alarm Linkage

Record, snapshot (full image), local external alarm output, IPC external alarm output, access & control, audio prompt, buzzer, log, preset, email

Peripheral Interface

Audio Input

1-channel (reserved)

Audio Output

1-channel, speaker output, audio linkage output

Alarm Input

16-channel

Alarm Output

8-channel

Internal HDD

16 slots, SATA3.0/SAS. Max.10T/HDD

eSATA

1 port (reserved)

SAS

2 SAS3.0 ports

RS-232

1 port, for debug or transparent COM data

RS-485

1 port, control peripheral PTZ and so on

Supports various protocols

USB

4 ports

2 USB2.0 port at the front panel and 2 USB3.0 port at the rear panel

HDMI

3 ports. 4K output

VGA

1 port

Network

4 RJ-45 10/100/1000Mbps self-adaptive Ethernet ports

Power

1 port

PoE

N/A

General Parameters

Power Supply

100V AC–240V AC 50±2%Hz

Power Consumption

122 W (Without HDD, idling)

Net Weight

16 kg (35.27 lb)

Gross Weight

17 kg (37.48 lb)

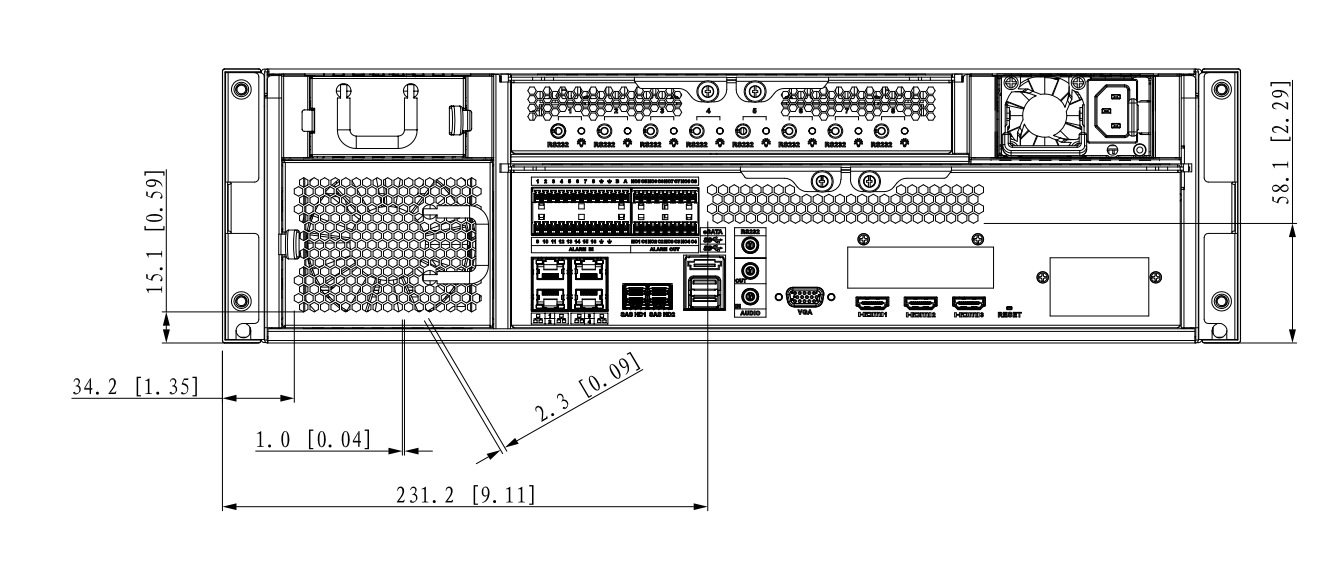

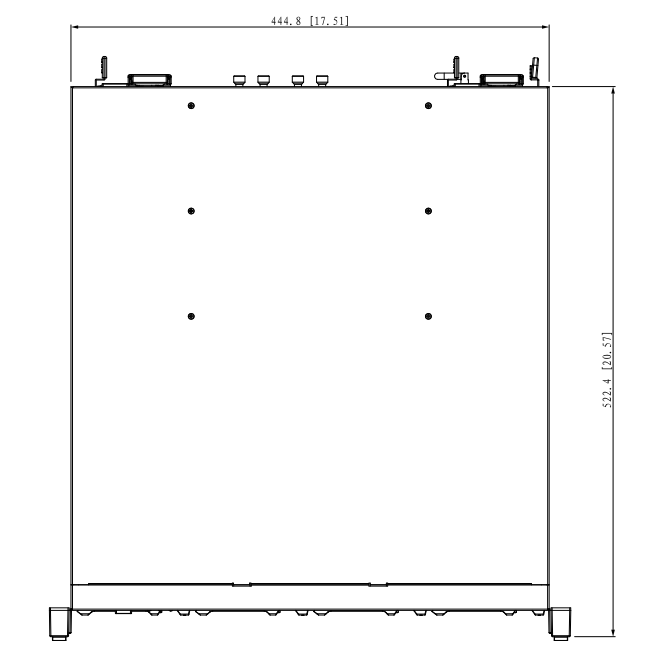

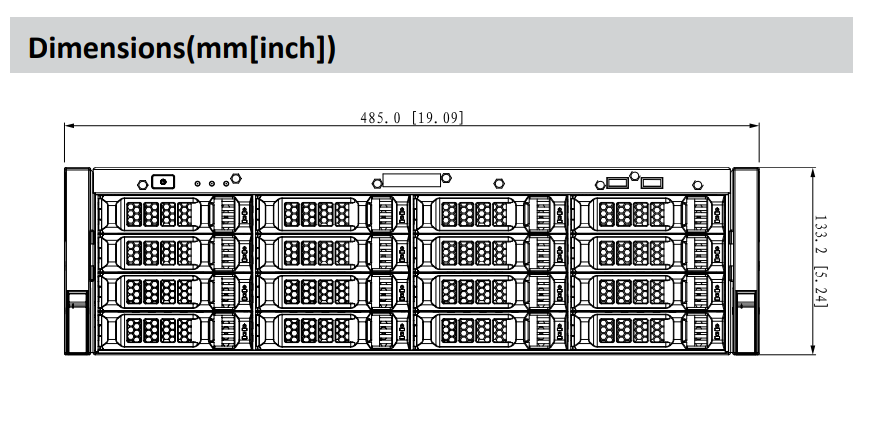

Dimensions

(W × L × H)

Chassis: 444.8 mm × 522.4 mm × 133.2 mm

(17.51 " × 20.57 " × 5.24 ")
Max. size: 485 mm (with hanger) × 522.4 mm × 133.2 mm (with feet mat) (19.09 " × 20.57 " × 5.24 ")

Packaging Dimensions

(W × L × H)

689 mm× 779 mm × 464 mm

(27.13 " × 30.67 " × 18.27 ")

Operating Conditions

0 °C to +45 °C (+32 °F to +113 °F)/10%RH–90% RH

Strorage Conditions

0 °C to +40 °C (+32 °F to +104 °F)/30%RH–85% RH

Operating Altitude

5000 m (16404.20 ft)

Installation Mode

Desktop/rack

Certifications

CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN55024,EN55035, EN50130-4,EN60950-1

FCC: Part 15 Subpart A

UL: 60950-1 and CAN/CSA C22.2 No. 60950-1-07
