IPC-PFW5849-A180-E2- DAHUA DH-IPC-PFW5849-A180-E2 8MP IR Bullet WizMind Network Camera IPC-PFW5849-A180-E2

In stock

SKU

IPC-PFW5849-A180-E2

$289.56

IPC-PFW5849-A180-E2

2×4MP Full-Color Dual-Lens Splicing WizMind Network Camera

> Outputs 180° wide angle splicing image.
> Outputs max. 8 MP (4096 × 1800)@25 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light, and the max. illumination distance is 40 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card, built-in Mic and speaker, support two-way talk.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Intelligent monitoring: Intrusion, tripwire, heat map, and people counting.
> EPTZ: Enlarge and track the targets of intelligent alarms.
> SMD 4.0.

The delivery time is 15-25 working days

Special Note:

Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

Enough stock, welcome to order

Skip to the end of the images gallery

Skip to the beginning of the images gallery

IPC-PFW5849-A180-E2- DAHUA DH-IPC-PFW5849-A180-E2 8MP IR Bullet WizMind Network Camera IPC-PFW5849-A180-E2

IPC-PFW5849-A180-E2

2×4MP Full-Color Dual-Lens Splicing WizMind Network Camera

WizMind Series

WizMind is a wide range of project-oriented products that adopt industry-leading deep learning algorithms, such as IPC, NVR, PTZ, XVR, thermal camera and software platform. Focusing on customers’ needs, WizMind provides precise and reliable and comprehensive AI products for verticals.
Precise: Powered by AI chip and deep learning algorithms, WizMind delivers accurate detection and recognition of human and vehicle, enabling users to rapidly and precisely act on what really matters. In addition, it provides accurate and effective AI search to locate targets, and various human-based data for business analysis.
Reliable: Strict component selection to ensure the high product reliability. With thorough testing of front-end cameras, back-end device and platform, WizMind injects reliability into all of its solutions.
Comprehensive: Focusing on human and vehicle, WizMind provides various applications solutions such as face recognition, privacy protection, video metadata, stereo analysis, ANPR, illegal parking, etc. Moreover, WizMind combines deep learning algorithm with thermal imaging technology to help users achieve ultra-long distance monitoring in harsh environments, highly accurate non-contact temperature measurement with only ±0.3℃ temperature difference, and early detection of fire. wizmind AI

IPC-PFW5849-A180-E2- DAHUA DH-IPC-PFW5849-A180-E2 8MP IR Bullet WizMind Network Camera IPC-PFW5849-A180-E2 System Overview

WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

DAHUA Smart Shop solution

With advanced deep learning algorithm, Dahua WizMind 7 Series network camera supports various intelligent functions and satisfies the requirements in different scenes. The camera can accurately recognize person, vehicle, and non-motor vehicle, face, ANPR, and liveness. This series camera has ultra starlight night version effect, and works with ultra-low stream. It supports dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67 and IK10 (Supported by some select models).

IPC-PFW5849-A180-E2- DAHUA DH-IPC-PFW5849-A180-E2 8MP IR Bullet WizMind Network Camera IPC-PFW5849-A180-E2 Datasheets

IPC-PFW5849-A180-E2 Datasheets

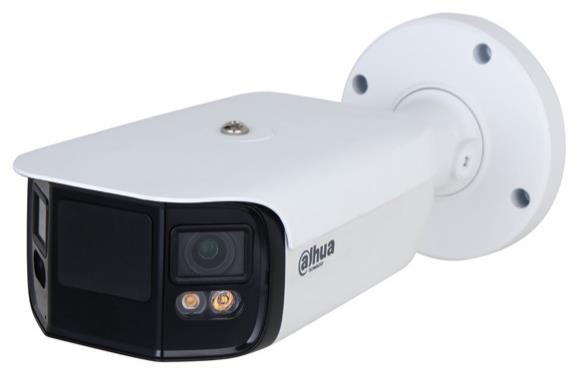

IPC-PFW5849-A180-E2- DAHUA DH-IPC-PFW5849-A180-E2 8MP IR Bullet WizMind Network Camera IPC-PFW5849-A180-E2 Picture

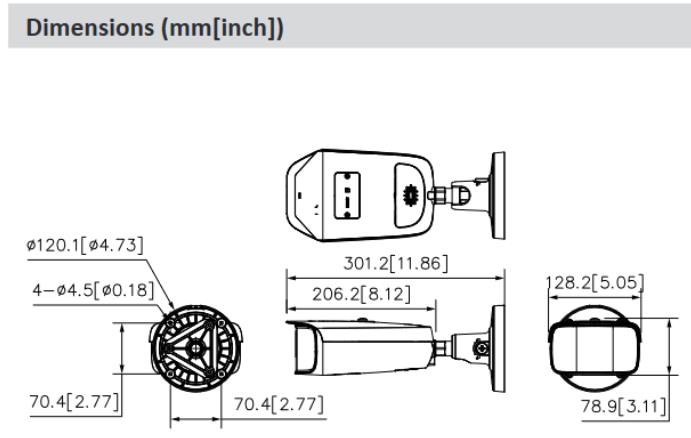

IPC-PFW5849-A180-E2- DAHUA DH-IPC-PFW5849-A180-E2 8MP IR Bullet WizMind Network Camera IPC-PFW5849-A180-E2 Dimensions

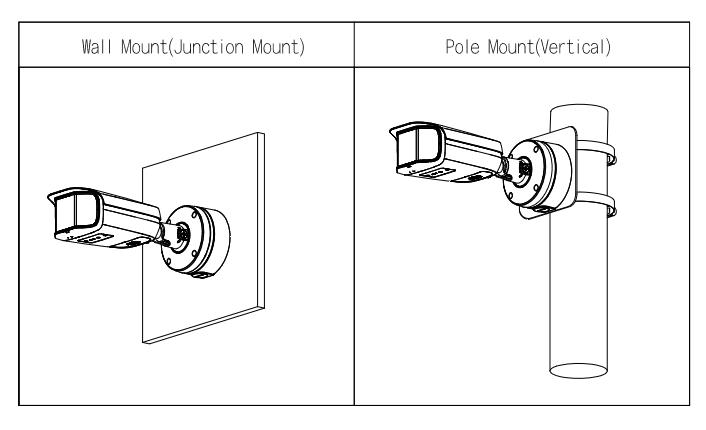

IPC-PFW5849-A180-E2- DAHUA DH-IPC-PFW5849-A180-E2 8MP IR Bullet WizMind Network Camera IPC-PFW5849-A180-E2 Installation

IPC-PFW5849-A180-E2- DAHUA DH-IPC-PFW5849-A180-E2 8MP IR Bullet WizMind Network Camera IPC-PFW5849-A180-E2 Technical Specifications

********

Camera
Image Sensor	Dual 1/1.8" CMOS
Max. Resolution	4096 (H) × 1800 (V)
ROM	128 MB
RAM	1 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.0005 lux@F1.0 (Color, 30 IRE) 0.0002 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	>56 dB
Illumination Distance	40 m (131.23 ft)
Illuminator On/Off Control	Auto
Illuminator Number	4 (Warm light)
Pan/Tilt/Rotation Range	Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Lens Mount	M16
Focal Length	3.6 mm
Field of View	Horizontal: 180°; Vertical: 48°
Max. Aperture	F1.0
Iris Control	Fixed
Close Focus Distance	3.6 m (11.81 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	3.6 mm	70.3 m (230.64 ft)	28.1 m (92.19 ft)	14.1 m (46.25 ft)	7.0 m (41.99 ft)
Smart Event
IVS	Abandoned object; missing object
Heat Map	Yes
Professional, intelligent
IVS (Perimeter Protection)	Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
People Counting	Tripwire people counting and people counting in area, generating and exporting report (day/month/year); queue management, generating and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management
Video
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Video Frame Rate	WDR Off: Main stream: 4096 × 1800 @ (1–25 fps) sub stream: 1024 × 452 @ (1–25 fps) third stream: 1920 × 832 @ (1–25 fps) WDR On: Main stream: 4096 × 1800 @ (1–20 fps) sub stream: 1024 × 452 @ (1–20 fps) third stream: 1920 × 832 @ (1–20 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability	3 streams
Resolution	8M (4096 × 1800); 6.5M (3840 × 1680);4M (3840 × 1080); 4M (2880 × 1264); 1.6M (1920 × 832); 0.7M (1280 × 560); 0.5M (1024 × 452)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 9 kbps–8192 kbps H.265: 9 kbps–8192 kbps
Day/Night	Color/B/W
BLC	Yes
HLC	Yes
WDR	140 dB
Scene Self-adaptation (SSA)	Yes
White Balance	Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Privacy Masking	4 areas
Defog	Yes
Privacy Masking	4 areas
Audio
Built-in MIC	Yes
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; SMD; people counting in area; stay detection; people counting; security exception
Network
Network Port	RJ-45 (10/100 Base-T)
SDK and API	Yes
Cyber Security	Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Network Protocol	IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; Milestone
User/Host	20 (Total bandwidth: 80 M)
Storage	FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Browser	IE: IE 8 and later Chrome Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Client	iOS; Android
Certification
Certifications	CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channels in: 5 mA 3 V–5 VDC
Alarm Output	1 channel out: 300 mA 12 VDC
Power
Power Supply	12 VDC (±30%)/PoE+ (802.3at) /ePoE
Power Consumption	Basic: 4.8 W (12 VDC); 5.5 W (PoE) Max. (WDR + intelligence + warm light + SPK): 10.5W (12 VDC); 11.8 W (PoE)
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67
Structure
Casing	Metal + plastic
Product Dimensions	301.2 mm × 128.2 mm × 120.1 mm (11.86" × 5.05" × 4.73") (L × W × H)
Net Weight	1420 g (3.13 lb)
Gross Weight	1570 g (3.46 lb)

***********
