IPC-HFW5449T1-ASE-D2- DAHUA DH-IPC-HFW5449T1-ASE-D2 4 MP Dual Lens Fixed-focal Bullet WizMind Full-color Network Camera IPC-HFW5449T1-ASE-D2
IPC-HFW5449T1-ASE-D2
4 MP Dual Lens Fixed-focal Bullet WizMind Full-color Network Camera
> Dual AI sensors with multi-spectral imaging technology that produces colorful images in low illumination conditions.
> Outputs max. 4 MP (2688 × 1520)@25/30 fps.
> Built-in warm light/IR LED, with a maximum illumination distance of 50 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, and parking detection.
> Face detection: Track, snapshot, snapshot optimization, optimal face snapshot upload, face enhancement, and face exposure.
> People counting: Queue management, people counting in area, entered/exited people counting, and generating and exporting report (day/month/year).
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in Mic and speaker, support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
The delivery time is 15-25 working days
DAHUA original firmware, Upgradable,2 year guarantee
Enough stock, welcome to order
IPC-HFW5449T1-ASE-D2- DAHUA DH-IPC-HFW5449T1-ASE-D2 4 MP Dual Lens Fixed-focal Bullet WizMind Full-color Network Camera IPC-HFW5449T1-ASE-D2
IPC-HFW5449T1-ASE-D2
4 MP Dual Lens Fixed-focal Bullet WizMind Full-color Network Camera
> Dual AI sensors with multi-spectral imaging technology that produces colorful images in low illumination conditions.
> Outputs max. 4 MP (2688 × 1520)@25/30 fps.
> Built-in warm light/IR LED, with a maximum illumination distance of 50 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, and parking detection.
> Face detection: Track, snapshot, snapshot optimization, optimal face snapshot upload, face enhancement, and face exposure.
> People counting: Queue management, people counting in area, entered/exited people counting, and generating and exporting report (day/month/year).
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in Mic and speaker, support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
WizMind Series
WizMind is a wide range of project-oriented products that adopt industry-leading deep learning algorithms, such as IPC, NVR, PTZ, XVR, thermal camera and software platform. Focusing on customers’ needs, WizMind provides precise and reliable and comprehensive AI products for verticals.
Precise: Powered by AI chip and deep learning algorithms, WizMind delivers accurate detection and recognition of human and vehicle, enabling users to rapidly and precisely act on what really matters. In addition, it provides accurate and effective AI search to locate targets, and various human-based data for business analysis.
Reliable: Strict component selection to ensure the high product reliability. With thorough testing of front-end cameras, back-end device and platform, WizMind injects reliability into all of its solutions.
Comprehensive: Focusing on human and vehicle, WizMind provides various applications solutions such as face recognition, privacy protection, video metadata, stereo analysis, ANPR, illegal parking, etc. Moreover, WizMind combines deep learning algorithm with thermal imaging technology to help users achieve ultra-long distance monitoring in harsh environments, highly accurate non-contact temperature measurement with only ±0.3℃ temperature difference, and early detection of fire.
IPC-HFW5449T1-ASE-D2- DAHUA DH-IPC-HFW5449T1-ASE-D2 4 MP Dual Lens Fixed-focal Bullet WizMind Full-color Network Camera IPC-HFW5449T1-ASE-D2 System Overview
WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
With advanced deep learning algorithm, Dahua WizMind 7 Series network camera supports various intelligent functions and satisfies the requirements in different scenes. The camera can accurately recognize person, vehicle, and non-motor vehicle, face, ANPR, and liveness. This series camera has ultra starlight night version effect, and works with ultra-low stream. It supports dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67 and IK10 (Supported by some select models).
IPC-HFW5449T1-ASE-D2- DAHUA DH-IPC-HFW5449T1-ASE-D2 4 MP Dual Lens Fixed-focal Bullet WizMind Full-color Network Camera IPC-HFW5449T1-ASE-D2 Datasheets
IPC-HFW5449T1-ASE-D2 Datasheets
IPC-HFW5449T1-ASE-D2- DAHUA DH-IPC-HFW5449T1-ASE-D2 4 MP Dual Lens Fixed-focal Bullet WizMind Full-color Network Camera IPC-HFW5449T1-ASE-D2 Picture

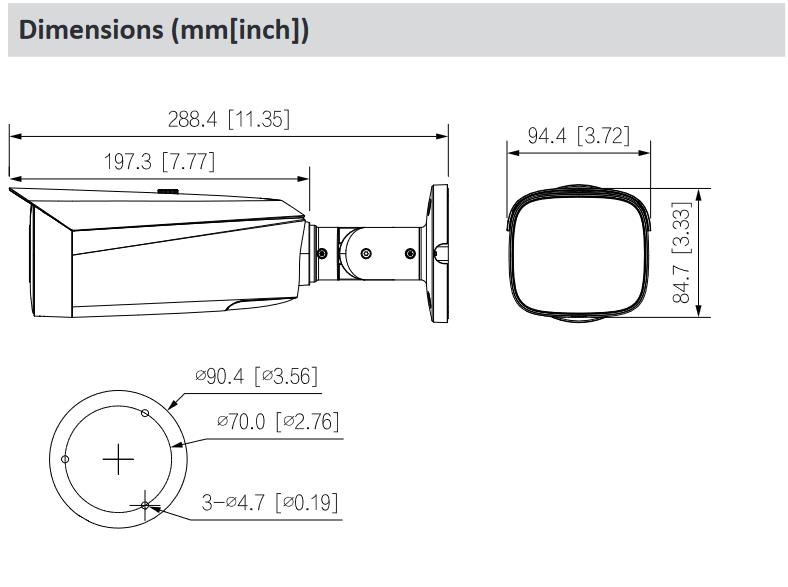

IPC-HFW5449T1-ASE-D2- DAHUA DH-IPC-HFW5449T1-ASE-D2 4 MP Dual Lens Fixed-focal Bullet WizMind Full-color Network Camera IPC-HFW5449T1-ASE-D2 Dimensions

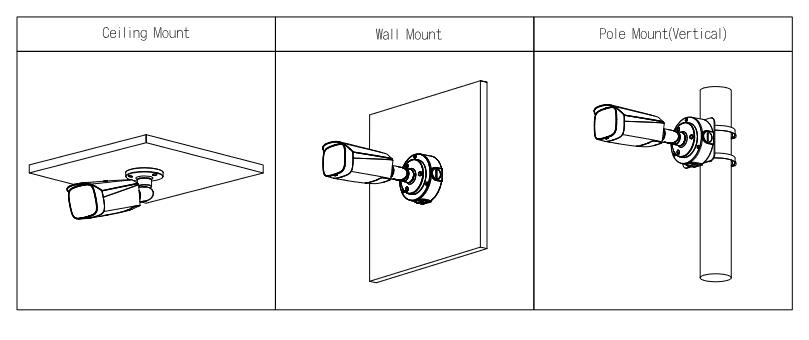

IPC-HFW5449T1-ASE-D2- DAHUA DH-IPC-HFW5449T1-ASE-D2 4 MP Dual Lens Fixed-focal Bullet WizMind Full-color Network Camera IPC-HFW5449T1-ASE-D2 Installation
IPC-HFW5449T1-ASE-D2- DAHUA DH-IPC-HFW5449T1-ASE-D2 4 MP Dual Lens Fixed-focal Bullet WizMind Full-color Network Camera IPC-HFW5449T1-ASE-D2 Technical Specifications
*******
|
Camera |
|||||
|
Image Sensor |
1/1.8" + 1/1.8" CMOS |
||||
|
Max. Resolution |
2688 (H) × 1520 (V) |
||||
|
ROM |
128 MB |
||||
|
RAM |
1 GB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||
|
Min. Illumination |
0.0002 lux @F1.0 |
||||
|
S/N Ratio |
>56 dB |
||||
|
Illumination Distance |
50 m (164.04 ft) |
||||
|
Illuminator On/Off Control |
Auto; manual |
||||
|
Illuminator Number |
4 (IR light); 2 (warm light) |
||||
|
Pan/Tilt/Rotation Range |
Pan: 0°–360° |
||||
|
Lens |
|||||
|
Lens Type |
Fixed-focal |
||||
|
Lens Mount |
M16 |
||||
|
Focal Length |
2.8 mm; 3.6 mm; 6 mm |
||||
|
Max. Aperture |
F1.0 |
||||
|
Field of View |
2.8 mm: Horizontal: 97°; Vertical: 48°; Diagonal: 115° 3.6 mm: Horizontal: 75°; Vertical: 39°; Diagonal: 87° 6 mm: Horizontal: 47°; Vertical: 25°; Diagonal: 56° |
||||
|
Iris Control |
Fixed |
||||
|
Close Focus Distance |
2.8 mm: 4 m (13.1 ft) 3.6 mm: 5 m (16.4 ft) 6 mm: 6 m (19.7 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
2.8 mm |
58.2 m (190.94 ft) |
23.3 m (76.44 ft) |
11.6 m (38.06 ft) |
5.8 m (19.03 ft) |
|
|
3.6 mm |
70.3 m (230.64 ft) |
28.1 m (92.19 ft) |
14.1 m (46.26 ft) |
7.0 m (22.97 ft) |
|
|
6 mm |
116.1 m (380.91 ft) |
46.5 m (152.56 ft) |
23.2 m (76.12 ft) |
11.6 m (38.06 ft) |
|
|
Smart event |
|||||
|
IVS |
Abandoned object; missing object |
||||
|
Heat Map |
Yes |
||||
|
Professional, intelligent |
|||||
|
IVS (Perimeter Protection) |
Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection |
||||
|
SMD 3.0 |
Less false alarm, longer detection distance |
||||
|
Face Detection |
Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 face attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face, one-inch photo or custom; 3 snapshot strategies (real-time snapshot, optimization snapshot and quality first); face angle filter; optimization time setting |
||||
|
People Counting |
Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm. |
||||
|
Intelligent Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
||||
|
Video |
|||||
|
Video Compression |
H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
||||
|
Smart Codec |
Smart H.265+; Smart H.264+ |
||||
|
AI Coding |
AI H.265; AI H.264 |
||||
|
Video Frame Rate |
Main stream: 2688 × 1520@(1–25/30 fps) |
||||
|
Stream Capability |
3 streams |
||||
|
Resolution |
4M (2688 × 1520); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||
|
Bit Rate Control |
CBR/VBR |
||||
|
Video Bit Rate |
H.264: 32 kbps–8192 kbps |
||||
|
Day/Night |
Color/B/W |
||||
|
BLC |
Yes |
||||
|
HLC |
Yes |
||||
|
WDR |
DWDR |
||||
|
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
||||
|
Gain Control |
Auto; manual |
||||
|
Noise Reduction |
3D NR |
||||
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||
|
Region of Interest (RoI) |
Yes (4 areas) |
||||
|
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
||||
|
Mirror |
Yes |
||||
|
Privacy Masking |
4 areas |
||||
|
Audio |
|||||
|
Built-in MIC |
Yes |
||||
|
Audio Compression |
PCM; G.711a; G.711Mu; G.726; G.723 |
||||
|
Alarm |
|||||
|
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; face detection; people counting in area; stay detection; people counting; people number error detection; security exception; defocus detection; people number alarm; queue time alarm |
||||
|
Network |
|||||
|
Network Port |
RJ-45 (10/100 Enhancement Base-T) |
||||
|
SDK and API |
Yes |
||||
|
Cyber Security |
Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
||||
|
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast; DDNS |
||||
|
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
||||
|
Storage |
FTP; SFTP; Micro SD card (support max. 256 G); NAS |
||||
|
Browser |
IE: IE8, IE9, IE11 |
||||
|
Management Software |
Smart PSS; DSS; DMSS |
||||
|
Mobile Client |
iOS; Android |
||||
|
Certification |
|||||
|
Certifications |
CE-LVD: EN62368-1 |
||||
|
Port |
|||||
|
Audio Input |
1 channel (RCA port) |
||||
|
Audio Output |
1 channel (RCA port) |
||||
|
Alarm Input |
1 channel in: 5 mA 3 V–5 VDC |
||||
|
Alarm Output |
1 channel out: 300 mA 12 VDC |
||||
|
Power |
|||||
|
Power Supply |
12 VDC (±30%); PoE (802.3af); ePoE |
||||
|
Power Consumption |
Basic: 3.4 W (12 VDC); 4.5 W (PoE) |
||||
|
Environment |
|||||
|
Operating Temperature |
–40 °C to +60 °C (-40 °F to +140 °F) |
||||
|
Operating Humidity |
≤ 95% |
||||
|
Storage Temperature |
–40 °C to +60 °C (-40 °F to +140 °F) |
||||
|
Protection |
IP67 |
||||
|
Structure |
|||||
|
Casing |
Metal |
||||
|
Product Dimensions |
288.4 mm × 94.4 mm × 84.7 mm (11.35" × 3.72" × 3.33") (L × W × H) |
||||
|
Net Weight |
1.0 kg (2.20 lb) |
||||
|
Gross Weight |
1.23 kg (2.71 lb) |
||||
*********
**
*
**
