IPC-HFW8331E-ZE– DAHUA DH-IPC-HFW8331E-ZE 3MP WDR IR Bullet Network Camera with 2.7mm ~13.5mm zoom lens and -40 °C work IPC-HFW8331E-ZE

IPC-HFW8331E-ZE

3MP WDR IR Bullet Network Camera

>,English firmware
> 100% original products manufactured by DAHUA

IPC-HFW8331E-ZE– DAHUA DH-IPC-HFW8331E-ZE 3MP WDR IR Bullet Network Camera with 2.7mm ~13.5mm zoom lens and -40 °C work IPC-HFW8331E-ZE System Overview

Ultra series adopts high performance DSP and Sony advanced image sensor technology, which can provide excellent image effects for users. With Dahua advanced software algorithm, the series is able to support people counting and heat map which brings extra business analysis value for customers. In addition, IP67, IK10 and heater compliance ensure the series can be applied in a harsher environment.

IPC-HFW8331E-ZE– DAHUA DH-IPC-HFW8331E-ZE 3MP WDR IR Bullet Network Camera with 2.7mm ~13.5mm zoom lens and -40 °C work IPC-HFW8331E-ZE Functions

ePoE technology

The ePoE technology , designed internally, adopts advanced 2D-PAM3 coding modulation from physical layer, and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it supports PoE and PoC power supply technology which has greatly simplified construction and wiring.  ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

Starlight Technology

Starlight Technology For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.005lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Ultra WDR Standard

WDR/HDR camera can provide 120dB dynamic range,However, for some scenes with wider contrast range, 120dB is slightly insufficient. By adopting the latest technology, Dahua Cameras can provide an amazing dynamic range up to 140dB.

Business intelligent analysis (People counting, Heatmap)

Camera also supports more advanced intelligent features such as people counting and heat map besides basic IVS functions. These two functions can be applied to business intelligence and bring extra values to customers. It is available to acquire daily, weekly, monthly and yearly people flow via people counting and output data report. Heat map can be based on a moving object in time of space movement for analysis, find the most active area and output the report, which is to provide valuable data support for commercial applications.

Smart Scene Adaptive (SSA)

Smart Scene Adaptive (SSA) is an intelligent image technology, developed  that automatically evaluates and compensates for changes in the luminance of a scene. SSA automatically regulates the exposure parameters to improve image quality in a backlit scene, especially in scenes with traffic lights or headlights.

Smart Codec (H.265+ & H.264+)

Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression.

Environmental & Protection

With a temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments. Supporting ±25% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests (IK10), The camera complies with an IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.)

IPC-HFW8331E-ZE– DAHUA DH-IPC-HFW8331E-ZE 3MP WDR IR Bullet Network Camera with 2.7mm ~13.5mm zoom lens and -40 °C work IPC-HFW8331E-ZE Picture

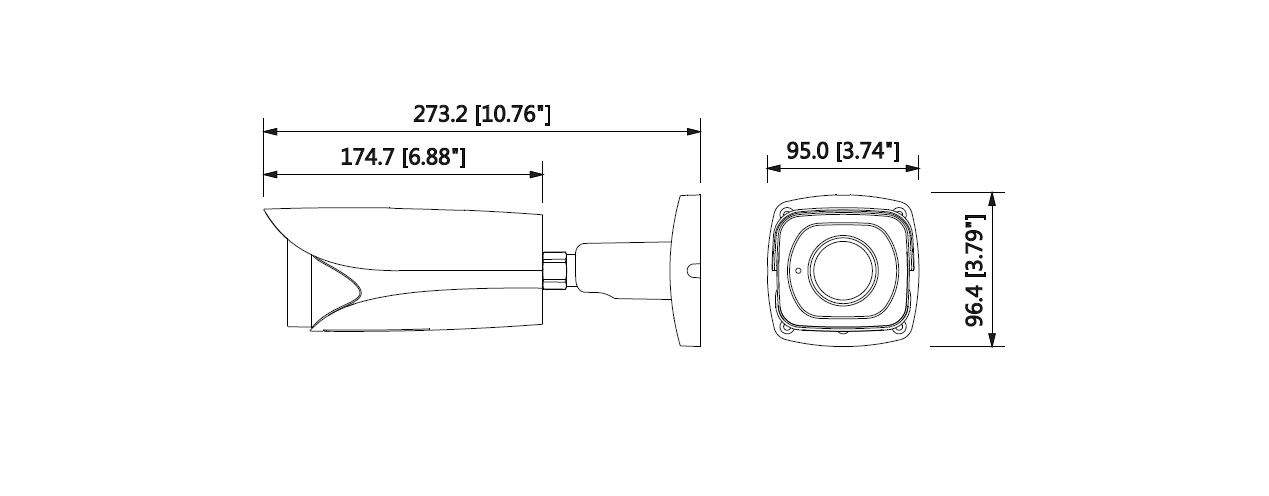

IPC-HFW8331E-ZE– DAHUA DH-IPC-HFW8331E-ZE 3MP WDR IR Bullet Network Camera with 2.7mm ~13.5mm zoom lens and -40 °C work IPC-HFW8331E-ZE Dimension

IPC-HFW8331E-ZE– DAHUA DH-IPC-HFW8331E-ZE 3MP WDR IR Bullet Network Camera with 2.7mm ~13.5mm zoom lens and -40 °C work IPC-HFW8331E-ZE Installation
