IPC-HFW8231E-Z5 – DAHUA DH-IPC-HFW8231E-Z5 2MP WDR IR Bullet Network Camera with 7mm ~35mm motorized lens Ultra WDR Intelligent Video System IPC-HFW8231E-Z5 without logo

IPC-HFW8231E-Z5

2MP WDR IR Bullet Network Camera



IPC-HFW8231E-Z5 – DAHUA DH-IPC-HFW8231E-Z5 2MP WDR IR Bullet Network Camera with 7mm ~35mm motorized lens Ultra WDR Intelligent Video System IPC-HFW8231E-Z5 without logo System Overview

Ultra series product adopts high performance DSP and Sony advanced image sensor technology, which can provide excellent image effects for users such as UHD resolution, starlight and super WDR etc. The series utilizes  advanced software algorithm, which is able to support people counting and heat map, bringing extra business analysis value for customers; IP67, IK10 and heater compliance enables the product to be applied in a more harsh environment.

IPC-HFW8231E-Z5 – DAHUA DH-IPC-HFW8231E-Z5 2MP WDR IR Bullet Network Camera with 7mm ~35mm motorized lens Ultra WDR Intelligent Video System IPC-HFW8231E-Z5 without logo Functions

Intelligent Video System (IVS)

camera has a built-in video analysis based on intelligent algorithms and can achieve the following:Tripwire,Intrusion,Abandoned/ Missing can timely, quickly and accurately respond to monitoring events in specific area. It enhances monitoring efficiency. At the same time, the camera can support face detection,it can quickly capture a face and upload the image to the server. In addition the camera also supports intelligent tamper detection,through dramatic changes in the scene it will send out warning information to ensure effective monitoring.

Starlight Technology

Starlight Technology For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.005lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Ultra WDR Standard

WDR/HDR camera can provide 120dB dynamic range,However, for some scenes with wider contrast range, 120dB is slightly insufficient. By adopting the latest technology, Dahua Cameras can provide an amazing dynamic range up to 140dB.

Business intelligent analysis (People counting, Heatmap)

Camera also supports more advanced intelligent features such as people counting and heat map besides basic IVS functions. These two functions can be applied to business intelligence and bring extra values to customers. It is available to acquire daily, weekly, monthly and yearly people flow via people counting and output data report. Heat map can be based on a moving object in time of space movement for analysis, find the most active area and output the report, which is to provide valuable data support for commercial applications.

Smart Scene Adaptive (SSA)

Smart Scene Adaptive (SSA) is an intelligent image technology, developed  that automatically evaluates and compensates for changes in the luminance of a scene. SSA automatically regulates the exposure parameters to improve image quality in a backlit scene, especially in scenes with traffic lights or headlights.

Smart Codec (H.265+ & H.264+)

Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression.

Environmental & Protection

With a temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments. Supporting ±25% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests (IK10), The camera complies with an IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.)

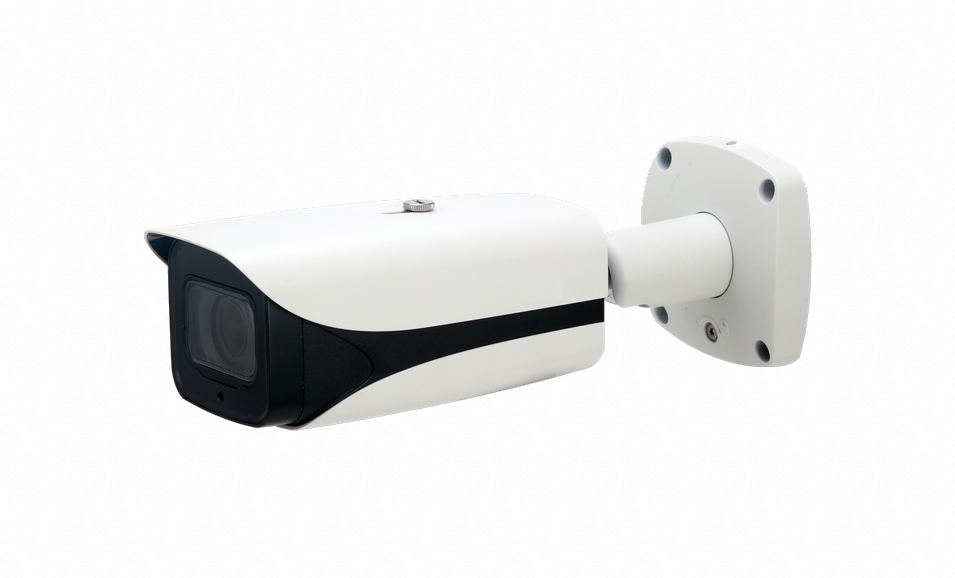

IPC-HFW8231E-Z5 – DAHUA DH-IPC-HFW8231E-Z5 2MP WDR IR Bullet Network Camera with 7mm ~35mm motorized lens Ultra WDR Intelligent Video System IPC-HFW8231E-Z5 without logo Picture

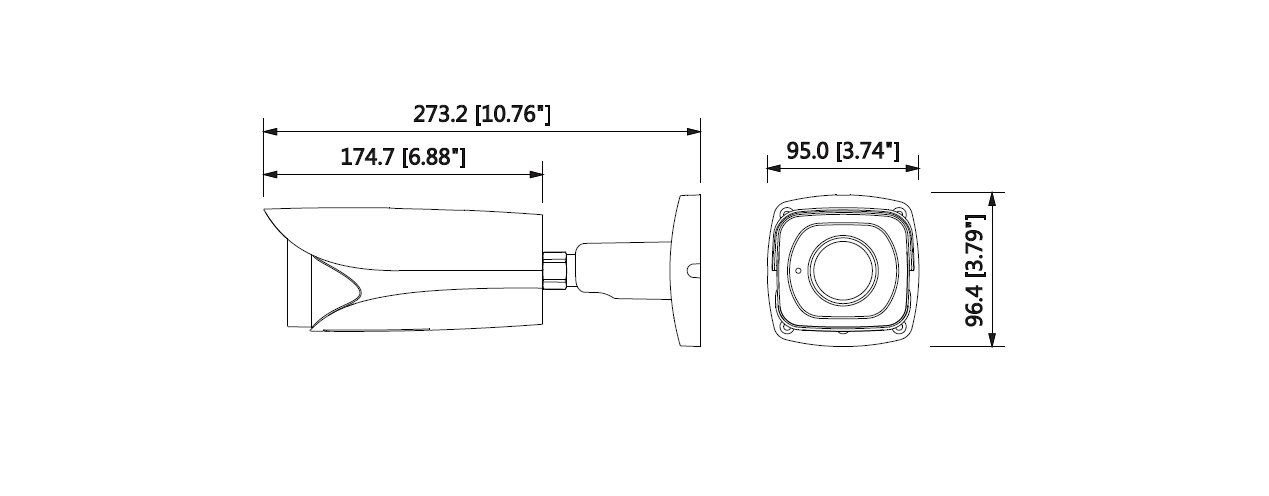

IPC-HFW8231E-Z5 – DAHUA DH-IPC-HFW8231E-Z5 2MP WDR IR Bullet Network Camera with 7mm ~35mm motorized lens Ultra WDR Intelligent Video System IPC-HFW8231E-Z5 without logo Dimension

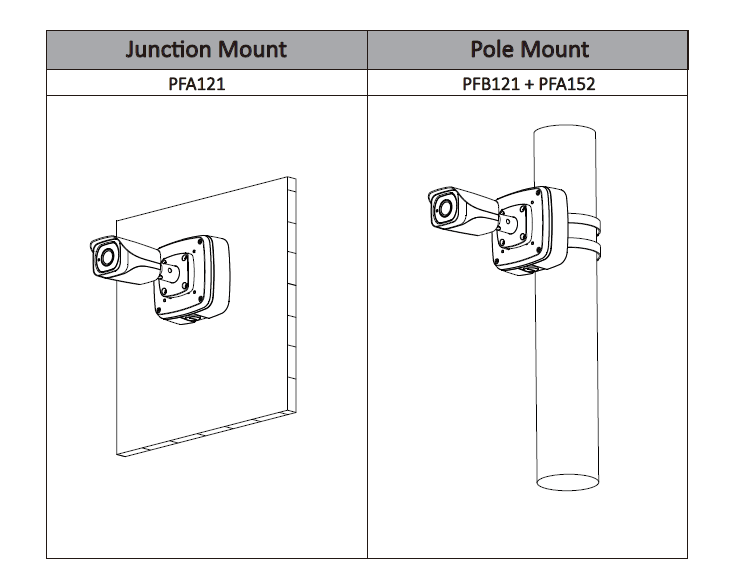

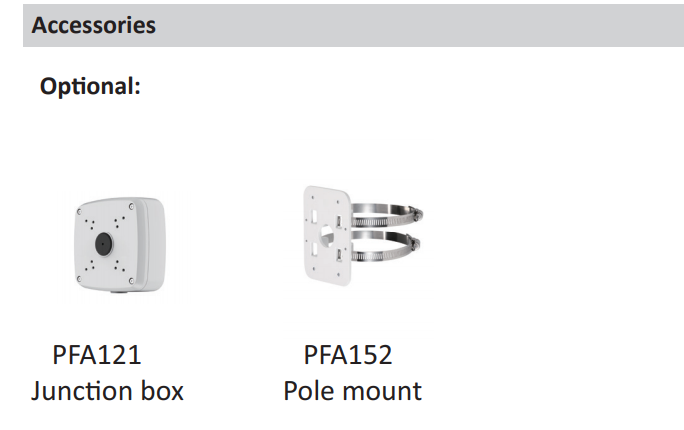

IPC-HFW8231E-Z5 – DAHUA DH-IPC-HFW8231E-Z5 2MP WDR IR Bullet Network Camera with 7mm ~35mm motorized lens Ultra WDR Intelligent Video System IPC-HFW8231E-Z5 without logo Installation



********

******

****

*

*

**

***

*****

***
