IPC-HFW3541E-AS - DAHUA DH-IPC-HFW3541E-AS 5MP Lite AI IR Fixed focal Bullet Network Camera with Smart Motion Detection (SMD) Smart (H.265+ & H.264+) Starlight technology IPC-HFW3541E-AS

In stock
SKU
IPC-HFW3541E-AS
Rating:
100% of 100
$99.38

IPC-HFW3541E-AS

5MP Lite AI IR Fixed focal Bullet Network Camera

> 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition

> Outputs max. 5MP (2592 × 1944)@20 fps
> H.265 codec, high compression rate, low bit rate
> Built-in IR LED, max. IR distance: 50 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
> Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card, built-in Mic
> 12V DC/POE power support
> IP67 protection
> SMD

>without Logo,English firmware
>100% original products manufactured by DAHUA

The delivery time is 25 working days

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

IPC-HFW3541E-AS - DAHUA DH-IPC-HFW3541E-AS 5MP Lite AI IR Fixed focal Bullet Network Camera with Smart Motion Detection (SMD) Smart (H.265+ & H.264+) Starlight technology IPC-HFW3541E-AS

IPC-HFW3541E-AS

5MP Lite AI IR Fixed focal Bullet Network Camera

> 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition

> Outputs max. 5MP (2592 × 1944)@20 fps
> H.265 codec, high compression rate, low bit rate
> Built-in IR LED, max. IR distance: 50 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
> Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card, built-in Mic
> 12V DC/POE power support
> IP67 protection
> SMD

>,English firmware
>100% original products manufactured by DAHUA

IPC-HFW3541E-AS - DAHUA DH-IPC-HFW3541E-AS 5MP Lite AI IR Fixed focal Bullet Network Camera with Smart Motion Detection (SMD) Smart (H.265+ & H.264+) Starlight technology IPC-HFW3541E-AS System Overview



With advanced deep learning algorithm, Dahua Lite AI series network camera supports some intelligent functions, such as perimeter protection and smart motion detection. It adopts starlight solution, which makes a better image effect in low illuminance

DAHUA Smart Shop solution

IPC-HFW3541E-AS - DAHUA DH-IPC-HFW3541E-AS 5MP Lite AI IR Fixed focal Bullet Network Camera with Smart Motion Detection (SMD) Smart (H.265+ & H.264+) Starlight technology IPC-HFW3541E-AS Functions

Smart (H.265+ & H.264+)

Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.

Wide dynamic range (WDR)

adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back-light environment, bright region and dark region with strong light source, you can also get clear images.

Starlight

Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee the good image effect

starlightIntelligent Video Analysis (IVS)

With advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion and so on.

Smart Motion Detection (SMD)

With intelligent algorithm, Dahua Smart Motion Detection technology can effectively recognize the target types, flitting the motion detection alarm triggered by non-concerned target types. It can realize effective and accurate alarm.

Protection (IP67, IK10, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 m (Impact energy is 20J). Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.



IPC-HFW3541E-AS - DAHUA DH-IPC-HFW3541E-AS 5MP Lite AI IR Fixed focal Bullet Network Camera with Smart Motion Detection (SMD) Smart (H.265+ & H.264+) Starlight technology IPC-HFW3541E-AS Picture



DAHUA DH-IPC-HFW3541E-AS


IPC-HFW3541E-AS - DAHUA DH-IPC-HFW3541E-AS 5MP Lite AI IR Fixed focal Bullet Network Camera with Smart Motion Detection (SMD) Smart (H.265+ & H.264+) Starlight technology IPC-HFW3541E-AS  Dimensions

 DAHUA DH-IPC-HFW3541E-AS

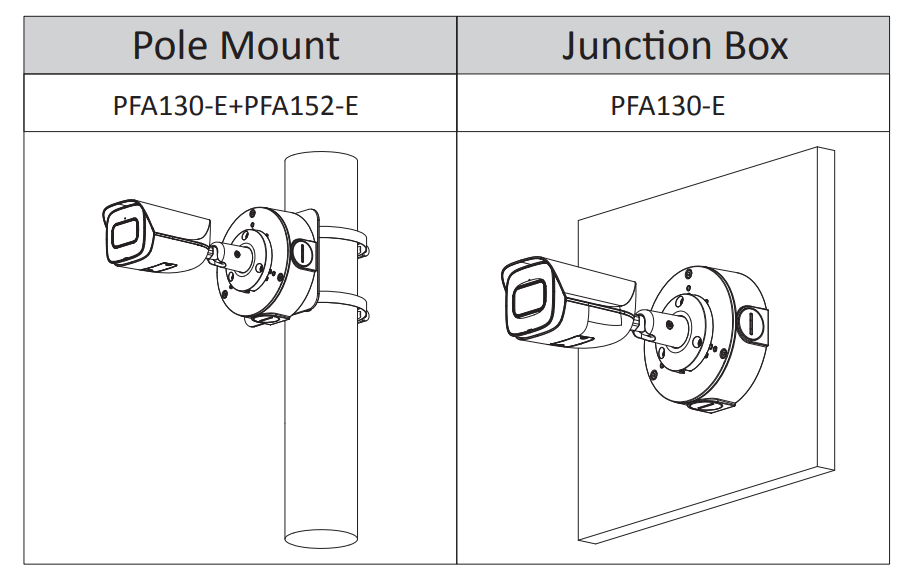

IPC-HFW3541E-AS - DAHUA DH-IPC-HFW3541E-AS 5MP Lite AI IR Fixed focal Bullet Network Camera with Smart Motion Detection (SMD) Smart (H.265+ & H.264+) Starlight technology IPC-HFW3541E-AS  Installation


DAHUA DH-IPC-HFW3541E-AS

DAHUA DH-IPC-HFW3541E-AS

IPC-HFW3541E-AS - DAHUA DH-IPC-HFW3541E-AS 5MP Lite AI IR Fixed focal Bullet Network Camera with Smart Motion Detection (SMD) Smart (H.265+ & H.264+) Starlight technology IPC-HFW3541E-AS Technical Specifications

*****

Camera

Image Sensor

1/2.7”5Megapixel progressive CMOS

Effective Pixels

2592 (H) ×1944 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.005 Lux@F1.6

IR Distance

50 m (164.0 ft)

IR On/Off Control

Auto/Manual

IR LEDs Number

1 (IR LED)

Pan/Tilt/Rotation Range

Horizontal: 0°–360°; vertical: 0°–90°; rotation: 0°–360°

Lens

Lens Type

Fixed focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: Horizontal: 98°; vertical: 72°; diagonal: 130°

3.6 mm: Horizontal: 80°; vertical: 59° ; diagonal: 106°

6 mm: Horizontal: 50°; vertical: 36°; diagonal: 64°

Iris Type

Fixed aperture

Close Focus Distance

2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.3 ft)
6 mm: 3.2 m (10.5 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

56.0 m

(183.7 ft)

22.4 m

(73.5 ft)

11.2 m

(36.8 ft)

5.6 m

(18.4 ft)

3.6mm

80.0 m

(262.5 ft)

32.0 m

(105.0 ft)

16.0 m

(52.5 ft)

8.0 m

(26.3 ft)

6mm

120.0 m (393.7 ft)

48.0 m

(157.5 ft)

24.0 m

(78.7 ft)

12.0 m (39.4ft)

Professional, Intelligent

Perimeter Protection

Tripwire; intrusion (Recognition of human and vehicle)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG

Smart Codec

Yes

Video Frame Rate

Main stream (2592 × 1944@1–20 fps)

(2688 × 1520@1–25/30 fps)

sub stream(704 × 576@1–25 fps/704 × 480@1–30 fps)

third stream(1280 × 720@1–25/30 fps)

Stream Capability

3 streams

Resolution

5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart IR

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; G726; AAC

Network

Network

RJ-45 (10/100 Base-T)

Protocol

IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;
RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

Interoperability

ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec

Scene Self-adaptation

Yes

User/Host

20 (Total bandwidth: 64 M)

Edge Storage

FTP; SFTP; Micro SD Card (support max. 256 G);Cloud; NAS

Browser

IE: IE8, IE9, IE11

Chrome

Firefox

Management Software

Smart PSS, DSS, DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

Audio Input

1-channel (RCA port)

Audio Output

1-channel (RCA port)

Alarm Input

1 channel in: 5mA 3V–5V DC

Alarm Output

1 channel out: 300mA 12V DC

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 5.4W

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/less than≤95%

Strorage Conditions

-40°C to +60°C (-40°F to +140°F)

Ingress Protection

IP67

Structure

Casing

Metal

Dimensions

192.7 mm × 70.5 mm × 66.4 mm

(632.2" × 231.3" × 217.8") (L × W × H)

Net Weight

590 g (1.3lb)

Gross Weight

780 g (1.7lb)

***

**

Icctvzone-wholesales DAHUA IP Cameras
Icctvzone IP surveillance
Icctvzone-wholesales DAHUA NVR

best price of DAHUA camera

***********************************DAHUA IPC-HFW3541E-AS,DAHUA DH-IPC-HFW3541E-AS,IPC-HFW3541E-AS,DH-IPC-HFW3541E-AS,N53AB52,DH-IPC-HFW3541EP-AS,DH-IPC-HFW3541EN-AS,Bullet Network Camera,ip camera ip68,hikvision color******

More Information
Wired/Wireless Wired
Outdoor use Intdoor use, Outdoor use
Focal Type Motorized Zoom
Day/Night Low light
Factor Bullet
Max Resolution 5 MP
