IPC-HDW5241TM-AS-LED – DAHUA DH- IPC-HDW5241TM-AS-LED 2MP WDR Eyeball AI Network Camera with H.265 & H.264 triple-stream encoding IPC-HDW5241TM-AS-LED

In stock
SKU
BWIPC-HDW5241TM-AS-LED
$140.00

IPC-HDW5241TM-AS-LED

2MP WDR Eyeball AI Network Camera

> 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
> H.265 & H.264 triple-stream encoding
> 25/30 fps@1080P (1920 × 1080)
> WDR (120 dB), Day/Night (Electronic), 3D DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6 mm, 6.0 mm optional)
> Built-in MIC
> Max. LEDs Length 20 m
> Micro SD memory, IP67

> DAHUA Logo,English firmware
> 100% original products manufactured by DAHUA

IPC-HDW5241TM-AS-LED



The delivery time is 25 working days if no stock.

Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

IPC-HDW5241TM-AS-LED – DAHUA DH- IPC-HDW5241TM-AS-LED 2MP WDR Eyeball AI Network Camera with H.265 & H.264 triple-stream encoding IPC-HDW5241TM-AS-LED

IPC-HDW5241TM-AS-LED

2MP WDR Eyeball AI Network Camera

> 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
> H.265 & H.264 triple-stream encoding
> 25/30 fps@1080P (1920 × 1080)
> WDR (120 dB), Day/Night (Electronic), 3D DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6 mm, 6.0 mm optional)
> Built-in MIC
> Max. LEDs Length 20 m
> Micro SD memory, IP67

> ,English firmware
> 100% original products manufactured by DAHUA

IPC-HDW5241TM-AS-LED



IPC-HDW5241TM-AS-LED – DAHUA DH- IPC-HDW5241TM-AS-LED 2MP WDR Eyeball AI Network Camera with H.265 & H.264 triple-stream encoding IPC-HDW5241TM-AS-LED System Overview

Pro AI series contains Face Detection, Perimeter Protection and People Counting functions.Powered by deep-learning Artificial Intelligence algorithms, significantly improved accuracy. Meanwhile, the series features starlight and smart IR technology. This series fully protected from dust and water, certified to IP67 standard.

IPC-HDW5241TM-AS-LED – DAHUA DH- IPC-HDW5241TM-AS-LED 2MP WDR Eyeball AI Network Camera with H.265 & H.264 triple-stream encoding IPC-HDW5241TM-AS-LED Functions

Face Detection

Face Detection is a software application that automatically captures faces from within a digital image or a video frame from a video source. AI cameras use advanced deep learning algorithms and are trained by a large number of face data sources, enabling the camera to locate faces quickly and accurately from the video source and capture facial images.

Perimeter Protection

Our Perimeter Protection functions significantly improved accuracy. Perimeter Protection reduces false alarms and decreases pixel count requirements for object detection. Perimeter Protection features custom tripwires based on object type for automation in limited access areas such as pedestrian or vehicle-only zones. This combination of advanced AI analytics and real-time alerts to a desktop or to a mobile client reduces system requirements and resources resulting in greater surveillance system efficiency.

People Counting

People Counting function uses advanced image processing technology to capture depth information from within images. The camera pairs this information with deep learning algorithms to analyze and detect human bodies and track target objects in real time. The camera provides statistics for separate individuals’ entrance and exit with up to 95% counting accuracy.

Full-color Starlight

The camera adopts F1.6 large aperture lens and 1/2.8" high performance sensor. With higher amount of absorbed light and advanced image processing algorithm, the camera presents an impressive lowlight performance with an exceptional balance between noise reduction and the blur of moving object.

full color

Warm Supplemental lights

With two warm supplemental LED lights, the camera is able to provide a colorful and vivid image even in total darkness. It also provides visible By default, the camera is set to smart light mode, in which the camera can automatically adjust the exposure time and light sensitivity simultaneously to avoid overexposureing of the objects in the image center. Also, the sensitivity and intensity of the LED lights can be remotely controlled by OSD menu.

Protection(IP67, wide voltage)

The camera allows for ±30% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) , the camera is the choice for installation in even the most unforgiving environments.

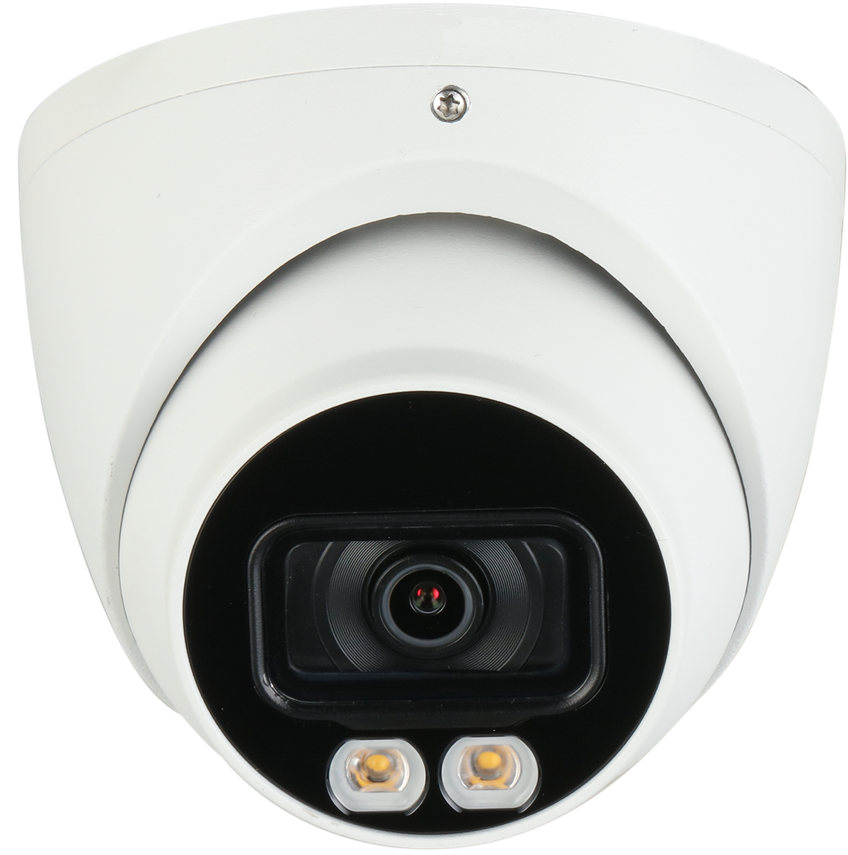

IPC-HDW5241TM-AS-LED – DAHUA DH- IPC-HDW5241TM-AS-LED 2MP WDR Eyeball AI Network Camera with H.265 & H.264 triple-stream encoding IPC-HDW5241TM-AS-LED  Picture


IPC-HDW5241TM-AS-LED

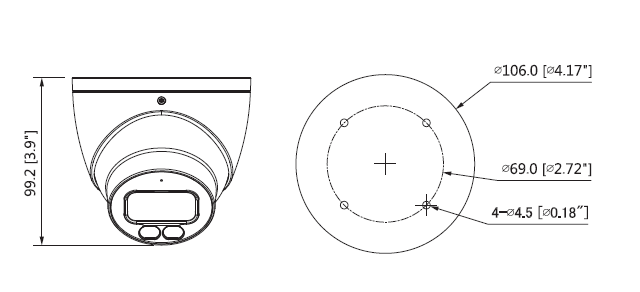

IPC-HDW5241TM-AS-LED – DAHUA DH- IPC-HDW5241TM-AS-LED 2MP WDR Eyeball AI Network Camera with H.265 & H.264 triple-stream encoding IPC-HDW5241TM-AS-LED  Dimension

IPC-HDW5241TM-AS-LED

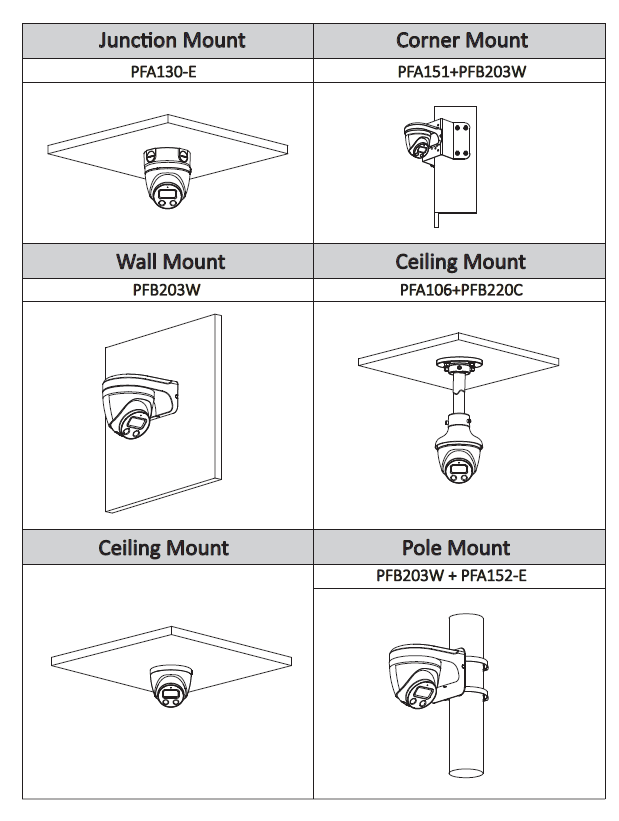

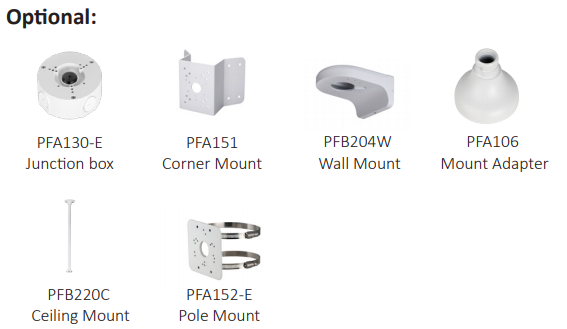

IPC-HDW5241TM-AS-LED – DAHUA DH- IPC-HDW5241TM-AS-LED 2MP WDR Eyeball AI Network Camera with H.265 & H.264 triple-stream encoding IPC-HDW5241TM-AS-LED  Installation



IPC-HDW5241TM-AS-LED
IPC-HDW5241TM-AS-LED

IPC-HDW5241TM-AS-LED – DAHUA DH- IPC-HDW5241TM-AS-LED 2MP WDR Eyeball AI Network Camera with H.265 & H.264 triple-stream encoding IPC-HDW5241TM-AS-LED Specification



Technical Specifications

******

Camera

Image Sensor

1/2.8” 2Megapixel progressive scan STARVIS™ CMOS

Effective Pixels

1920 (H) × 1080 (V)

RAM/ROM

512 MB/128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3 s–1/100000 s

Minimum Illumination

0.002 Lux@F1.6

LED Distance

Distance up to 20 m (66 ft)

LED On/Off Control

Auto/Manual

LEDs

2

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8 mm, 3.6 mm, 6.0 mm

Max. Aperture

F1.6

Angle of View

H: 106°, V: 57°/H: 87°, V: 46°/H: 53°, V: 30°

Optical Zoom

N/A

Aperture Type

Fixed

Close Focus Distance

0.6 m (1.97 ft)/1.2 m (3.94 ft)/2.5 m (8.20 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

39m(128ft)

15m(49ft)

8m(26ft)

4m(13ft)

3.6mm

55m(180ft)

22m(72ft)

11m(36ft)

6m(20ft)

6.0mm

83m(272ft)

33m(108ft)

17m(56ft)

8m(26ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚

Artificial Intelligence

Face Capture

Support face image capture

Perimeter Protection

Tripwire, Intrusion (Human & Vehicle classification)

People Counting

Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection

General Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly

General Intelligence

Object Abandoned/Missing

Video

Compression

H.265+, H.265, H.264+, H.264, H.264B, H.264H,

MJPEG (sub stream)

Streaming Capability

3 Streams

Resolution

1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)

Frame Rate

Main Stream: 1080P (1 fps–25/30 fps)

Sub Stream: D1 (1 fps–25/30 fps)

Third Stream: 1080P (1 fps–6 fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32 Kbps–8192 Kbps

H.265: 19 Kbps–7424 Kbps

Day/Night

Day/Night: Electronic

Auto/Color/B/W

BLC Mode

BLC/HLC/WDR (120 dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off/On (4 Zone, Rectangle)

Region of Interest

Off/On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Defog

Support

Digital Zoom

N/A

Flip

0°/90°/180°/270°

Mirror

Off/On

Privacy Masking

Off/On (4 Area, Rectangle)

Audio

Compression

G.711aG.711MuG.726AACG.723

Network

Ethernet

RJ-45 (10/100 Base-T)

Protocol

HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP,

FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS,

UPnP, NTP, ICMP, HTTPS, IGMP, 802.1x

Interoperability

ONVIF (Profile S/Profile G), CGI, Milstone, Genetec, P2P

Streaming Method

Unicast / Multicast

Max. User Access

20 Users

Edge Storage

NAS

FTP

Micro SD card 256 GB

Web Viewer

IE (versions newer than IE8), Chrome,

Firefox, Safari (versions newer than Safari 12)

Management Software

Smart PSS, DSS, P2P

Smart Phone

iOS, Android

Certifications

Certifications

CE-LVD: EN60950-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Interface

Video Interface

N/A

Audio Interface

Built-in MIC

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC 12V (±30%), PoE (802.3af) (Class 0)

Power Consumption

<7.2W

Environmental

Operating Conditions

-30° C to +60° C (-22° F to +140° F)/10%RH–95%RH

Strorage Conditions

-30° C to +60° C (-22° F to +140° F)

Ingress Protection

IP67

Construction

Casing

Metal

Dimensions

Φ106 mm × 93.6 mm (4.17” × 3.69”)

Net Weight

0.54 kg (1.19 lb)

Gross Weight

0.71 kg (1.57 lb)

****

***

*

***********

****

*

Icctvzone-wholesales DAHUA IP CamerasIcctvzone IP surveillanceIcctvzone-wholesales DAHUA NVRWorldwide shipping DAHUA camerabest price of DAHUA camera

*

***********

More Information
Wired/Wireless Wired
Outdoor use Intdoor use
Focal Type Fixed
Day/Night Low light
Factor Dome
Max Resolution 2 MP
