IPC-HDBW8231E-Z5– DAHUA DH-IPC-HDBW8231E-Z5 2MP WDR IR Dome Network Camera with H.265&H.264 triple-stream encoding IPC-HDBW8231E-Z5 without logo

IPC-HDBW8231E-Z5

2MP WDR IR Dome Network Camera

> 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
> H.265&H.264 triple-stream encoding
> 50/60fps@1080P(1920×1080)
> WDR(140dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 7mm ~35mm motorized lens
> Max. IR LEDs Length 100m
> Micro SD memory,IP67,IK10,PoE+
> without Logo,English firmware
> 100% original products manufactured by DAHUA

The delivery time is 25 working days

IPC-HDBW8231E-Z5– DAHUA DH-IPC-HDBW8231E-Z5 2MP WDR IR Dome Network Camera with H.265&H.264 triple-stream encoding IPC-HDBW8231E-Z5 without logo System Overview

Ultra series product adopts high performance DSP and Sony advanced image sensor technology, which can provide excellent image effects for users such as UHD resolution, starlight and super WDR etc. The series utilizes Dahua advanced software algorithm, which is able to support people counting and heat map, bringing extra business analysis value for customers; IP67, IK10 and heater compliance enables the product to be applied in a more harsh environment.

IPC-HDBW8231E-Z5– DAHUA DH-IPC-HDBW8231E-Z5 2MP WDR IR Dome Network Camera with H.265&H.264 triple-stream encoding IPC-HDBW8231E-Z5 without logo Functions

 Starlight Technology

Featuring Starlight Technology, this camera is ideal for applications with challenging lighting conditions. Its low-light performance delivers usable video with minimal ambient light. Even in extreme low-light conditions, Starlight Technology is capable of delivering color images in near complete darkness (0.005 lux).

Ultra WDR Standard WDR/HDR

camera can provide 120dB dynamic range,However, for some scenes with wider contrast range, 120dB is slightly insufficient. By adopting the latest technology,  Cameras can provide an amazing dynamic range up to140dB.

Intelligent Video System (IVS)

camera has a built-in video analysis based on intelligent algorithms and can achieve the following:Tripwire,Intrusion,Abandoned/ Missing can timely, quickly and accurately respond to monitoring events in specific area. It enhances monitoring efficiency. At the same time, the camera can support face detection,it can quickly capture a face and upload the image to the server. In addition the camera also supports intelligent tamper detection,through dramatic changes in the scene it will send out warning information to ensure effective monitoring

Business intelligent analysis (People counting, Heatmap)

Camera also supports more advanced intelligent features such aspeople counting and heat map besides basic IVS functions. These two functions can be applied to business intelligence and bring extra values to customers. It is available to acquire daily, weekly, monthly and yearly people flow via people counting and output data report. Heat map can be based on a moving object in time of space movement for analysis, find the most active area and output the report, which is to provide valuable data support for commercial applications.

Smart Scene Adaptive (SSA)

Smart Scene Adaptive (SSA) is a  self-developed intelligent image technology, the camera automatically evaluates the change in scene, in particular strong lights.In a strong backlight environment, it will automatically regulate exposure parameters to get better image quality. This can effectively address the impact of traffic lights, providing excellent video quality.

Smart H.265+

Deliver high quality video without straining the network, Smart H.265+ is the optimized implementation of H.265. The Smart H.265+ encoding technology includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing saving of up to 70% of bandwidth and storage when compared with standard H.265.

Environmental

With a temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments. The camera complies to an IK10 impact rating making it capable of withstanding the equivalent of 55 kg (120 lbs) of force. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications.

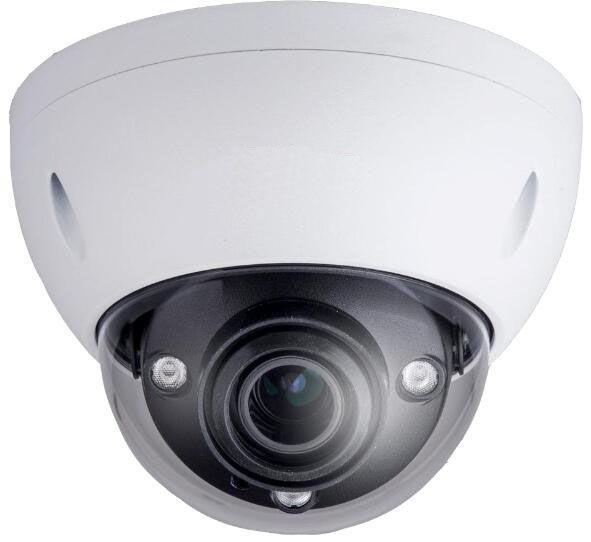

IPC-HDBW8231E-Z5– DAHUA DH-IPC-HDBW8231E-Z5 2MP WDR IR Dome Network Camera with H.265&H.264 triple-stream encoding IPC-HDBW8231E-Z5 without logo Picture

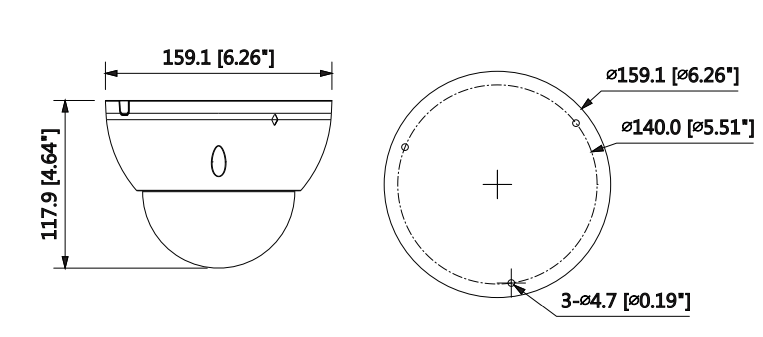

IPC-HDBW8231E-Z5– DAHUA DH-IPC-HDBW8231E-Z5 2MP WDR IR Dome Network Camera with H.265&H.264 triple-stream encoding IPC-HDBW8231E-Z5 without logo Dimension

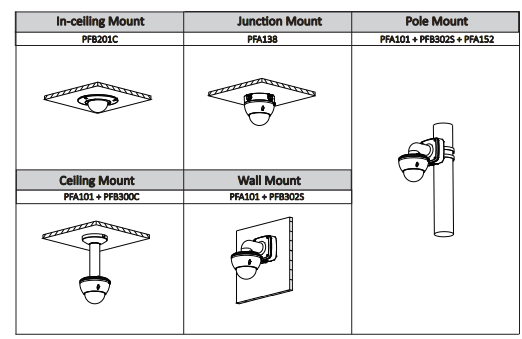

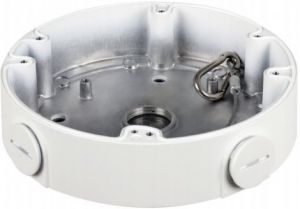

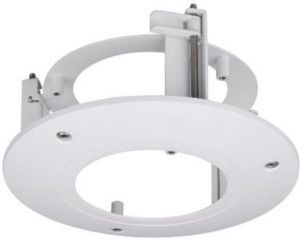

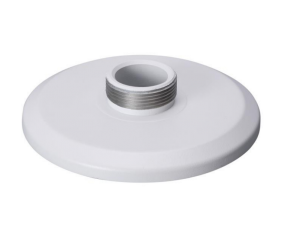

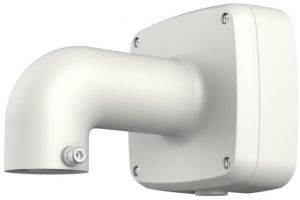

IPC-HDBW8231E-Z5– DAHUA DH-IPC-HDBW8231E-Z5 2MP WDR IR Dome Network Camera with H.265&H.264 triple-stream encoding IPC-HDBW8231E-Z5 without logo Installation

***********

*

*

***

****************
