IPC-HDBW81230E-Z - DAHUA IPC-HDBW81230E-Z 12MP IR Dome Network Camera with 4K technology E-PTZ function Business intelligent analysis (People counting, Heatmap) Smart Scene Adaptive (SSA) IPC-HDBW81230E-Z without logo without logo

> 1/1.7” 12Megapixel progressive scan CMOS
> H.265&H.264 triple-stream encoding
> 20fps@12M(4000×3000),25/30fps@4K(3840×2160)
> DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 4.1mm ~16.4mm motorized lens
> Max. IR LEDs Length 50m
> Micro SD memory,IP67,IK10,PoE

>without Logo,English firmware
>100% original products manufactured by DAHUA

IPC-HDBW81230E-Z - DAHUA IPC-HDBW81230E-Z 12MP IR Dome Network Camera with 4K technology E-PTZ function Business intelligent analysis (People counting, Heatmap) Smart Scene Adaptive (SSA) IPC-HDBW81230E-Z without logo System Overview

Ultra series product adopts high performance DSP and Sony advanced image sensor technology, which can provide excellent image effects for users such as UHD resolution, starlight and super WDR etc. The series utilizes  advanced software algorithm, which is able to support people counting and heat map, bringing extra business analysis value for customers; IP67, IK10 and heater compliance enables the product to be applied in a more harsh environment.

IPC-HDBW81230E-Z - DAHUA IPC-HDBW81230E-Z 12MP IR Dome Network Camera with 4K technology E-PTZ function Business intelligent analysis (People counting, Heatmap) Smart Scene Adaptive (SSA) IPC-HDBW81230E-Z without logo Functions

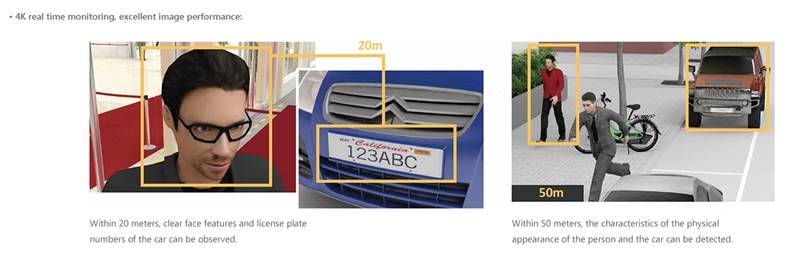

4K technology

4K technology as a revolutionary breakthrough in image, which enhance the expressive image of essence, allowing users to experience the best picture quality brought about by the visual feast . For the purposes of 4K surveillance with four times the 1080P resolution, presented to the user with more details . Under the same scenario by raising the pixels , reduce the camera cost.

E-PTZ function

E- PTZ ( electronic -PTZ ( pan / tilt / zoom function ) . Is a virtual technology . Through E- PTZ function can be achieved on the local area pan, zoom and other functions . Mostly It appeared in Megapixel or more cameras.

Intelligent Video System (IVS)

camera has a built-in video analysis based on intelligent algorithms and can achieve the following:Tripwire,Intrusion,Abandoned/ Missing can timely, quickly and accurately respond to monitoring events in specific area. It enhances monitoring efficiency. At the same time, the camera can support face detection,it can quickly capture a face and upload the image to the server. In addition the camera also supports intelligent tamper detection,through dramatic changes in the scene it will send out warning information to ensure effective monitoring.

Business intelligent analysis (People counting, Heatmap)

Camera also supports more advanced intelligent features such as people counting and heat map besides basic IVS functions. These two functions can be applied to business intelligence and bring extra values to customers. It is available to acquire daily, weekly, monthly and yearly people flow via people counting and output data report. Heat map can be based on a moving object in time of space movement for analysis, find the most active area and output the report, which is to provide valuable data support for commercial applications.

Smart Scene Adaptive (SSA)

Smart Scene Adaptive (SSA) is a   self-developed intelligent image technology, the camera automatically evaluates the change in scene, in particular strong lights.In a strong backlight environment, it will automatically regulate exposure parameters to get better image quality. This can effectively address the impact of traffic lights, providing excellent video quality.

HEVC (H.265)

H.265 ITU-T VCEG is a new video coding standard. H.265 Following standard developed around the existing video coding standard H.264 , some retain the original technology , while some of the relevant technology to improve the new technology uses advanced technology to improve the relationship between the code stream , encoding quality , and the delay between algorithm complexity , optimize settings specific contents include : Improve compression efficiency , improve the robustness and error recovery capabilities, real-time to reduce the delay, reduce channel acquisition time and a random access delay , reduce complexity , etc

Environmental

With a temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments. The camera complies to an IK10 impact rating making it capable of withstanding the equivalent of 55 kg (120 lbs) of force. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications

IPC-HDBW81230E-Z - DAHUA IPC-HDBW81230E-Z 12MP IR Dome Network Camera with 4K technology E-PTZ function Business intelligent analysis (People counting, Heatmap) Smart Scene Adaptive (SSA) IPC-HDBW81230E-Z without logo Picture

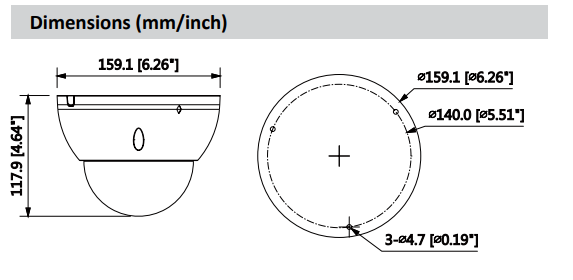

IPC-HDBW81230E-Z - DAHUA IPC-HDBW81230E-Z 12MP IR Dome Network Camera with 4K technology E-PTZ function Business intelligent analysis (People counting, Heatmap) Smart Scene Adaptive (SSA) IPC-HDBW81230E-Z without logo Dimensions

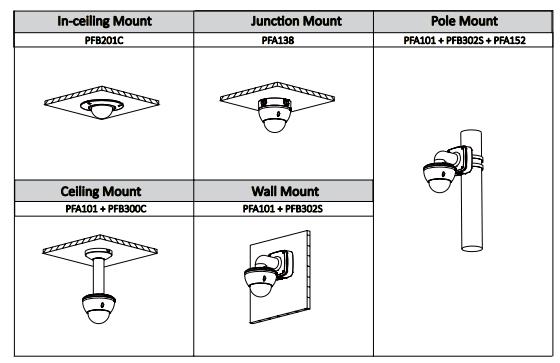

IPC-HDBW81230E-Z - DAHUA IPC-HDBW81230E-Z 12MP IR Dome Network Camera with 4K technology E-PTZ function Business intelligent analysis (People counting, Heatmap) Smart Scene Adaptive (SSA) IPC-HDBW81230E-Z without logo Installation
