IPC-HDBW7842H-Z– DAHUA DH-IPC-HDBW7842H-Z 8MP IR Dome WizMind Network Camera with SMART H.264/H.265 ultra starlight night version effect IPC-HDBW7842H-Z

In stock
SKU
IPC-HDBW7842H-Z
$526.00

IPC-HDBW7842H-Z

8MP AI IR Dome Network Camera

> 8MP, 1/1.8" CMOS image sensor, low illuminance, high image definition

> Max outputs 8MP (3840×2160) @25fps/30fps

> H.264&H.265 coding, high compression ration

> Wide dynamic, day/night, 3D noise reduction, AWB, HLC, BLC

> ROI, SVC, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments

> With deep learning algorithm, it supports people counting, face detection, perimeter protection etc.

> 24V AC/PoE/12V DC power support

> Five streams for three-channel HD video

>  IP67, IK10 protection grade

>without Logo,English firmware
>100% original products manufactured by DAHUA



Special Note:
Because the product always maintains a fast inventory flow, the model you ordered may take longer to produce (about 3 weeks or more days), we will push the factory and try our best to ship to you as soon as possible, thank you for your waiting.

DAHUA original firmware, Upgradable,2 year guarantee

IPC-HFW7842H-Z - DAHUA DH-IPC-HFW7842H-Z 8MP AI IR Bullet Network Camera With various intelligent functions Face Detection People Counting Video Metadata ePOE IPC-HFW7842H-Z



With advanced deep learning algorithm, Dahua Ultra AI series network camera supports various intelligent functions and satisifies the requirements in different scenes. The camera can acurately detect person, vehicle, and non-motor vehicle, face, ANPR, and liveness. This series camera has ultra starlight night version effect, and works with ultra-low stream. It supports dust-proof function, waterproof function and vandalproof function, complying to the standards of IP67 and IK10.

DAHUA Smart Shop solution

IPC-HFW7842H-Z - DAHUA DH-IPC-HFW7842H-Z 8MP AI IR Bullet Network Camera With various intelligent functions Face Detection People Counting Video Metadata ePOE IPC-HFW7842H-Z Functions

ePoE technology

The ePoE technology of Dahua, designed internally, adopts advanced 2D-PAM3 coding modulation from physical layer, and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it supports PoE and PoC power supply technology which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

Face Detection

Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.

People Counting

With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs yearly/monthly/weekly/daily reports to meet your requirements.

Video Metadata

With deep learning algorithm, Dahua Video Metadata technology can detect, track, capture vehicle, non-motor vehicle and people, and select the best images, and extract attributes.

Smart Codec

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Perimeter Protection

With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.



IPC-HFW7842H-Z - DAHUA DH-IPC-HFW7842H-Z 8MP AI IR Bullet Network Camera With various intelligent functions Face Detection People Counting Video Metadata ePOE IPC-HFW7842H-Z  Picture



DAHUA DH-IPC-HDBW7842H-Z


IPC-HFW7842H-Z - DAHUA DH-IPC-HFW7842H-Z 8MP AI IR Bullet Network Camera With various intelligent functions Face Detection People Counting Video Metadata ePOE IPC-HFW7842H-Z  Dimensions



DAHUA DH-IPC-HFW7842H-Z


IPC-HFW7842H-Z - DAHUA DH-IPC-HFW7842H-Z 8MP AI IR Bullet Network Camera With various intelligent functions Face Detection People Counting Video Metadata ePOE IPC-HFW7842H-Z  Installation


DAHUA DH-IPC-HFW7842H-Z

IPC-HFW7842H-Z - DAHUA DH-IPC-HFW7842H-Z 8MP AI IR Bullet Network Camera With various intelligent functions Face Detection People Counting Video Metadata ePOE IPC-HFW7842H-Z

Technical Specifications

*********

Camera

Image Sensor

1/1.8” 8Megapixel progressive CMOS

Effective Pixels

3840 (H) × 2160 (V)

ROM

4 GB

RAM

2 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.003 Lux@F1.2

IR Distance

Distance up to 40 m (131.23 ft)

IR On/Off Control

Auto

IR LEDs Number

3 (IR LEDs)

Pan/Tilt/Rotation Range

Pan: 0°–355°

Tilt: 0°–80°

Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal

Mount Type

Module interface

Focal Length

2.7mm-12mm

Max. Aperture

F1.2

Field of View

Horizontal: 111° (W)–47° (T) Vertical: 59° (W)–26° (T)

Diagonal: 135° (W)–51° (T)

Iris Type

Auto aperture

Close Focus Distance

w: 1 m (W: 3.28 ft)

T: 2.5 m (T: 8.20 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

87 m

(285.43 ft)

34.9 m

(144.50 ft)

17.4 m

(57.08 ft)

8.7 m

(28.54 ft)

T

186.7 m

(612.53 ft)

74.7 m (245.08 ft)

37.3 m

(122.37 ft)

18.6 m

(61.02 ft)

Smart event

General IVS Analytics

Abandoned object, moving object

Professional, intelligent

Perimeter Protection

Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering.

Face Detection

Face detection, track, priority, snapshot, face enhancement, face exposure, face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, sadness, disgust, fear, surprise, calm, happiness and confusion), mask, beard Face matting setting: face, single inch photo Three snapshot methods: real-time snapshot, priority snapshot, quality priority

Face angle filter Priority time setting

ANPR

ANPR, track, priority, snapshot

Vehicle attributes: license plate, vehicle type, vehicle color, vehicle brand

Other attributes: sun visor, seat belt, smoking, phoning, in-car accessories, annual vehicle inspection mark

Video Metadata

Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.

People Counting

People counting (count the entry number, exit number and pass number), display and output daily/monthly/annual statistics, No. in area

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265, H.264, H.264H, H.264B, MJPEG

Smart Codec

Yes

Video Frame Rate

Main Stream: 3840 × 2160 (1–25/30 fps)

Sub Stream 1: 704 × 576 (1–25/30 fps)

Sub Stream 2: 1920 × 1080 (1–25/30 fps)

Sub Stream 3: 1920 × 1080 (1–25/30 fps)

Sub Stream 4: 704 × 576 (1–25/30 fps)

Stream Capability

5 streams

Resolution

8M (3840 × 2160)/6M (3072 × 2048/3072 × 1728)/5M (2592 × 1944)/4M (2688 × 1520)/3M (2048 × 1536/2304 × 1296)/1080p(1920 × 1080)/1.3M (1280 × 960)/720p(1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 Kbps–16384 Kbps

H.265: 12 Kbps–16384 Kbps

Day/Night

ICR switch

BLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Electronic Image Stabilization(EIS)

Yes

Smart IR

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 1080p resolution or below.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Audio Compression

G.711a; G.711Mu; G726; AAC; G.723

Network

Network

RJ-45 (10/100/1000 Base-T)

Protocol

HTTP; Https; 8021.x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; SFTP; RTMP; Genetec;Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P

Scene Self-adaptation

Yes

User/Host

20

Edge Storage

FTP; Micro SD card (256 G); NAS; SFTP

Browser

IE: Versions later than IE9

Chrome: Versions later than Chrome 42,

Firefox: Versions later than Firefox 48.0.2,

Management Software

Smart PSS, DSS PRO, NVR, IVSS, DMSS

Mobile Phone

IOS, Android

Certification

Certifications

CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

RS-485

1 (Bit rate: 1200 bps–115200 bps)

Audio Input

Audio Interface: 1/1 channel In/Out

Audio Output

Alarm Input

3 channel In: 5mA 5V DC

2 channel Out: 1000mA 30V DC/500mA 50V AC

Alarm Output

Power

Power Supply

12V DC/24V AC/POE

Power Consumption

Basic power consumption: 5.4W (12V DC); 5W (24V AC active power); 4.9W (POE);

Max power consumption (ICR switch, and IR full intensity): 16.7W (12V DC); 15.7W (24V AC active power); 15.6W (POE);

Environment

Operating Temperature

-40°C to +60°C (-40°F to +140°F)

Storage Temperature

≤95%

Storage Temperature

-40°C to +60°C (-40°F to +140°F)

Ingress Protection

IP67, IK10

Structure

Dimensions

129.1 mm × Φ157.9 mm (5.08" × Φ6.22") (L × W × H)

Net Weight

1500g(3.31lb)

Gross Weight

1600 g (3.53 lb)

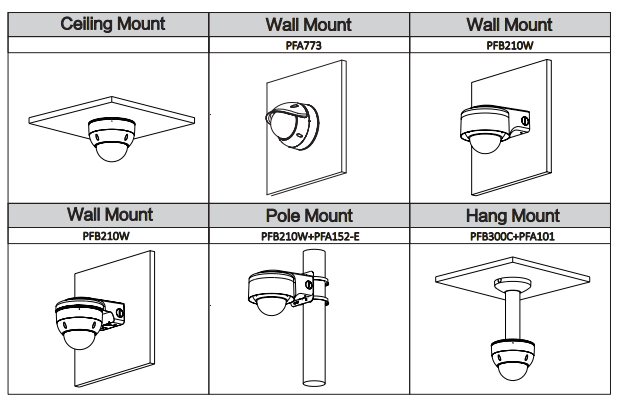

Installation

Ceiling Mount; side Mount; pole Mount

******

**
